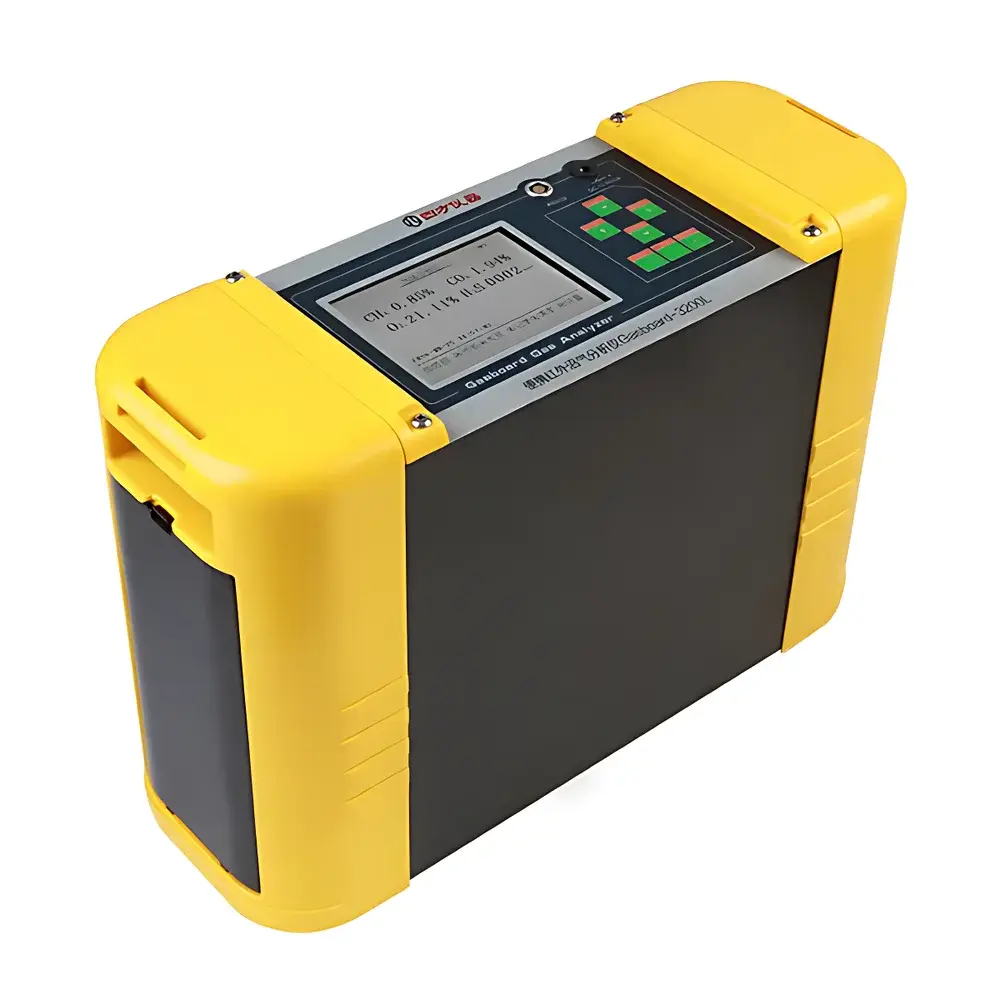

CUBIC INSTRUMENTS Gasboard-3200L Portable Biogas Analyzer

Overview

The CUBIC INSTRUMENTS Gasboard-3200L Portable Biogas Analyzer is an engineered field-deployable instrument designed for real-time, multi-component quantification of biogas composition under variable operational conditions. It integrates dual-sensing modalities: non-dispersive infrared (NDIR) spectroscopy for high-selectivity detection of methane (CH₄) and carbon dioxide (CO₂), and long-life electrochemical detection (ECD) for hydrogen sulfide (H₂S) and oxygen (O₂). This hybrid architecture ensures minimal cross-sensitivity between analytes—critical for accurate stoichiometric evaluation in anaerobic digestion systems where gas composition directly correlates with process efficiency, digester health, and downstream utilization viability (e.g., CHP engine feed or upgrading to biomethane). The analyzer operates on a volumetric concentration basis (vol%), delivering trace-to-bulk range coverage without dilution or pre-concentration, making it suitable for both continuous stack monitoring and discrete bag-sampling workflows in laboratory or mobile QA/QC settings.

Key Features

• True portable form factor with integrated rechargeable Li-ion battery, enabling >8 hours of continuous operation under typical sampling flow (1.0 L/min) and ambient temperature (15–35 °C).
• Dual-technology sensor platform: NDIR cells with thermoelectrically stabilized detectors for CH₄ and CO₂; solid-polymer electrolyte ECD sensors with >24-month operational lifetime for H₂S and O₂.
• On-board microprocessor-controlled diagnostics: real-time sensor health monitoring, zero/span drift tracking, and automatic alarm triggering for out-of-spec conditions (e.g., filter clogging, low battery, pressure deviation).
• Integrated high-efficiency sampling pump (imported diaphragm type) with adjustable flow control, maintaining stable 0.7–1.2 L/min across inlet pressures from 2 to 50 kPa—compatible with low-pressure biogas headers and evacuated Tedlar® sampling bags.
• Robust mechanical design: IP54-rated enclosure, shock-absorbing rubberized housing, and corrosion-resistant internal gas path (electropolished stainless steel and PTFE-lined components) for prolonged service in humid, H₂S-laden environments.

Sample Compatibility & Compliance

The Gasboard-3200L is validated for use with raw, conditioned, or post-scrubbed biogas streams meeting ISO 8573-1 Class 4 particulate, Class 3 moisture, and Class 2 oil contamination limits. It complies with EN 15267-3 for automated emission monitoring system (CEMS) component equivalence when deployed as part of a certified biogas quality assurance protocol. While not intrinsically safe, the unit meets IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity) standards for industrial environments. Its measurement methodology aligns with ASTM D1945 (standard test method for analysis of natural gas by gas chromatography) for comparative validation, and its O₂ and H₂S quantification supports compliance with EN 16714-1 for biomethane injection into natural gas grids. Data integrity conforms to GLP principles via timestamped logging and audit-ready event records.

Software & Data Management

Data output is supported via standard RS-485 (Modbus RTU) and RS-232 serial interfaces, enabling seamless integration into SCADA, DCS, or centralized biogas management platforms (e.g., Siemens Desigo, ABB Ability™). Optional USB-to-serial adapter allows direct connection to Windows-based configuration and data capture software (Gasboard PC Suite v3.2), which provides real-time graphing, calibration history archiving, report generation (PDF/CSV), and firmware update capability. All logged measurements include embedded metadata: sensor ID, calibration date, ambient T/P, battery voltage, and diagnostic flags. The system supports 21 CFR Part 11-compliant user access control (via optional password-protected admin mode) and electronic signature functionality for regulated laboratory applications.

Applications

• Real-time process optimization in municipal wastewater treatment plants, landfill gas recovery facilities, and agricultural AD plants—enabling dynamic adjustment of feedstock ratio, retention time, and desulfurization setpoints.
• Pre-commissioning and periodic verification of biogas upgrading units (e.g., water scrubbers, amine systems, membrane separators) per ISO 14855-2 biodegradability testing requirements.
• Field-based QA/QC for biomethane injection sites, verifying compliance with EN 16723-1 specifications prior to grid entry.
• Research-grade gas composition profiling in university and government lab studies on microbial consortia dynamics, inhibitor effects (e.g., ammonia, VFAs), and co-digestion kinetics.
• Emergency response and troubleshooting—rapid identification of O₂ ingress (indicating air leakage) or elevated H₂S (signaling sulfate-reducing bacteria overgrowth).

FAQ

What sample conditioning is required prior to analysis?
The Gasboard-3200L requires inlet gas to be free of particulates, liquid water, and oil aerosols. A heated particulate filter (optional accessory) and Nafion™ dryer are recommended for high-humidity biogas streams (>60% RH).
Can the instrument be calibrated in the field?
Yes—zero calibration uses ambient air (for O₂ and H₂S) or certified N₂ (for CH₄/CO₂); span calibration employs certified multi-gas standards traceable to NIST or BIPM. Full 4-point calibration takes <5 minutes.
Is remote firmware update supported?
Firmware updates require local USB connection and Gasboard PC Suite; over-the-air (OTA) updates are not implemented due to regulatory constraints on measurement-critical code changes.
How is sensor longevity ensured in high-H₂S environments?
The electrochemical H₂S sensor incorporates a proprietary sulfur-tolerant catalyst layer and sacrificial scrubber stage upstream of the sensing electrode, extending functional life beyond 24 months even at sustained 2000 ppm exposure.
Does the analyzer meet explosion-proof certification requirements?
No—the Gasboard-3200L is not ATEX or IECEx certified. For Zone 1/2 hazardous area deployment, it must be operated outside the classified zone with sample extracted via explosion-proof sampling probe and conditioned line.
