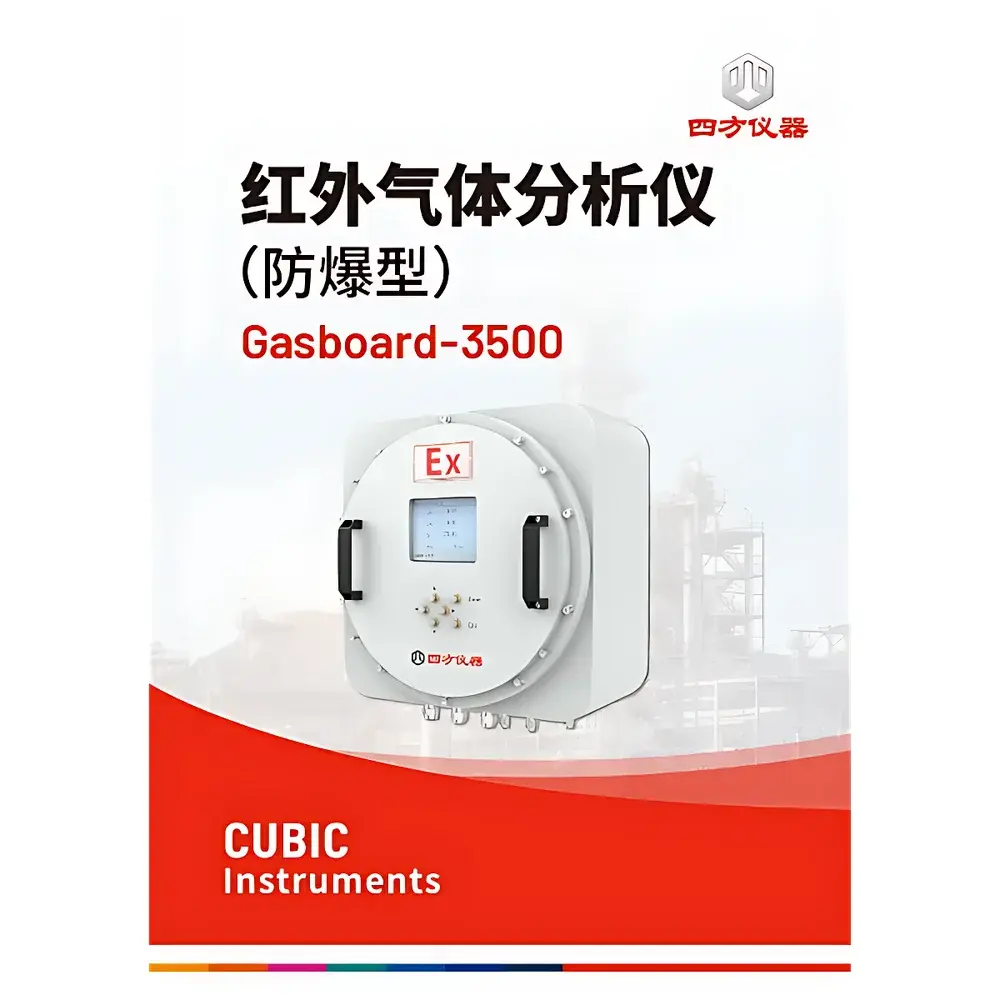

CUBIC INSTRUMENTS Gasboard-3500 Exd Intrinsically Safe Multicomponent Gas Analyzer

Overview

The CUBIC INSTRUMENTS Gasboard-3500 Exd Intrinsically Safe Multicomponent Gas Analyzer is an industrial-grade, fixed-position online gas monitoring system engineered for continuous, real-time analysis of up to six critical gas species—CO, CO₂, CH₄, C₃H₈, O₂, and H₂S—in hazardous environments. It integrates dual-sensing technologies: non-dispersive infrared (NDIR) spectroscopy for hydrocarbon and carbon oxide quantification, and electrochemical detection (ECD) for O₂ and H₂S. This hybrid architecture ensures high selectivity and eliminates cross-sensitivity between co-measured components—a fundamental requirement in complex process streams where spectral overlap or chemical interference may compromise measurement integrity. Designed specifically for Zone 1 and Zone 2 explosive atmospheres, the analyzer complies with international explosion protection standards (IEC 60079-0, -1, -8) and carries dual certification: Ex d IIC T6 Gb for gas environments and Ex tb IIIC T80°C Db for combustible dust zones. Its robust mechanical construction, combined with integrated sample conditioning, enables reliable operation under demanding field conditions—including high humidity, particulate load, and variable pressure—without requiring external scrubbers or chilled mirrors.

Key Features

• Explosion-Proof Enclosure: Cast aluminum housing with flameproof joint design per GB 3836.2–2010 and IEC 60079-1, rated Ex d IIC T6 Gb, capable of containing internal ignition without propagation to surrounding atmosphere.
• Multi-Gas Simultaneous Detection: Six independent sensor channels—four NDIR (CO, CO₂, CH₄, C₃H₈), one ECD (O₂), and one dedicated H₂S electrochemical cell—operating concurrently with synchronized data acquisition.
• Integrated Sample Conditioning: Built-in particulate filter, hydrophobic membrane, and zero-air pump enable direct installation at process taps, eliminating need for external pre-treatment skids in moderate contamination scenarios.
• Auto-Calibration & Diagnostics: Onboard air-zero calibration routine triggered automatically or on schedule; real-time sensor health monitoring including baseline drift detection, signal-to-noise ratio tracking, and fault flagging via status registers.
• Material Compatibility: All wetted parts—including sample chamber, flow path, and sensor housings—constructed from 316L stainless steel and PTFE, ensuring resistance to corrosion from acidic gases (e.g., H₂S), condensates, and organic vapors.
• Stable Dual-Channel NDIR Architecture: Reference and measurement beam paths within each NDIR module compensate for optical aging, source intensity fluctuation, and window fouling—enhancing long-term zero and span stability.

Sample Compatibility & Compliance

The Gasboard-3500 is validated for use with dry, particle-free, non-oily sample streams meeting ISO 8573-1 Class 4 for solid contaminants and Class 3 for moisture. It operates reliably across inlet pressures of 2–50 kPa and nominal flow rates of 0.7–1.2 L/min. While not intended for raw flue gas or biogas with >20 g/m³ moisture content, it performs consistently after standard cyclonic separation and coalescing filtration. Regulatory compliance includes conformity with China’s mandatory explosion-proof certification framework (GB 3836 series), CE marking under ATEX Directive 2014/34/EU (Category 2G/2D), and alignment with functional safety principles referenced in IEC 61508 SIL 2 for safety-related monitoring applications. Data logging and alarm events adhere to GLP-compliant audit trail requirements when interfaced with compliant SCADA systems.

Software & Data Management

Data output supports multiple industrial protocols: isolated 4–20 mA analog outputs (one per gas), Modbus RTU over RS-485 (addressable slave mode), ASCII protocol over RS-232, and TCP/IP-based Ethernet communication using standard Modbus TCP. The embedded firmware stores 30 days of minute-averaged concentration logs locally (non-volatile memory), accessible via serial query or web interface. Remote configuration, firmware updates, and diagnostic reports are supported through secure HTTP/S access with role-based authentication. When integrated into centralized DCS or MES platforms, the analyzer provides timestamped, CRC-verified records compatible with FDA 21 CFR Part 11 requirements—including electronic signatures, audit trails, and data immutability controls—provided the host system implements requisite security policies.

Applications

• Real-time calorific value calculation in coal gasifiers and coke oven gas networks via stoichiometric CO/CO₂/CH₄/C₃H₈ ratios.
• Early fire-risk detection in pulverized coal mills and silos through continuous CO monitoring at sub-50 ppm thresholds.
• Process optimization and emissions reporting in anaerobic digesters (wastewater treatment plants, landfill leachate facilities) by tracking CH₄/CO₂/H₂S evolution profiles.
• Feedstock quality control and reactor yield validation in thermochemical biomass conversion (pyrolysis, gasification) and microbial fermentation processes.
• Combustion efficiency analysis and stoichiometric air-fuel ratio tuning in pilot-scale burners and catalytic oxidation units used in academic and industrial R&D laboratories.

FAQ

What certifications does the Gasboard-3500 hold for hazardous area installation?

It is certified to Ex d IIC T6 Gb (gas) and Ex tb IIIC T80°C Db (dust) per GB 3836.1–2010/2–2010/8–2014 and meets ATEX 2014/34/EU Category 2 equipment requirements.
Can the analyzer operate without external sample conditioning?

Yes—its integrated particulate filter, hydrophobic membrane, and zero-air pump allow direct connection to moderately contaminated streams; however, inlet gas must be free of liquid water and oil aerosols.
How is sensor drift managed during extended unattended operation?

Through scheduled automatic air-zero calibration cycles and continuous baseline compensation algorithms that track reference-beam stability in NDIR modules.
Is H₂S measurement affected by high CO₂ concentrations?

No—the electrochemical H₂S sensor exhibits negligible cross-sensitivity to CO₂, and NDIR channels employ spectral filtering and multivariate correction to suppress interferences.
What data security features support regulatory compliance?

Modbus TCP and Ethernet interfaces support TLS 1.2 encryption; local storage includes write-protected archives; all configuration changes generate immutable audit log entries with timestamps and user IDs.
