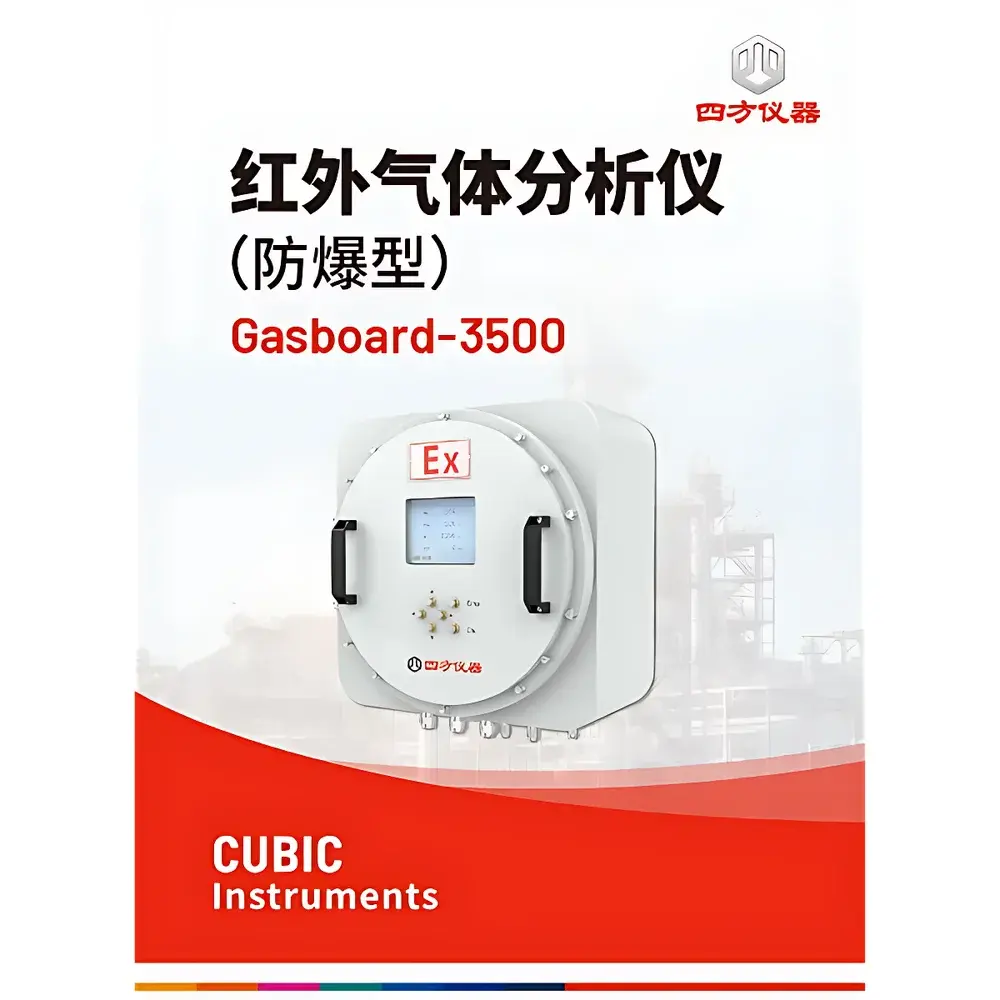

CUBIC INSTRUMENTS Gasboard-3500 Intrinsically Safe Multicomponent Industrial Gas Analyzer

Overview

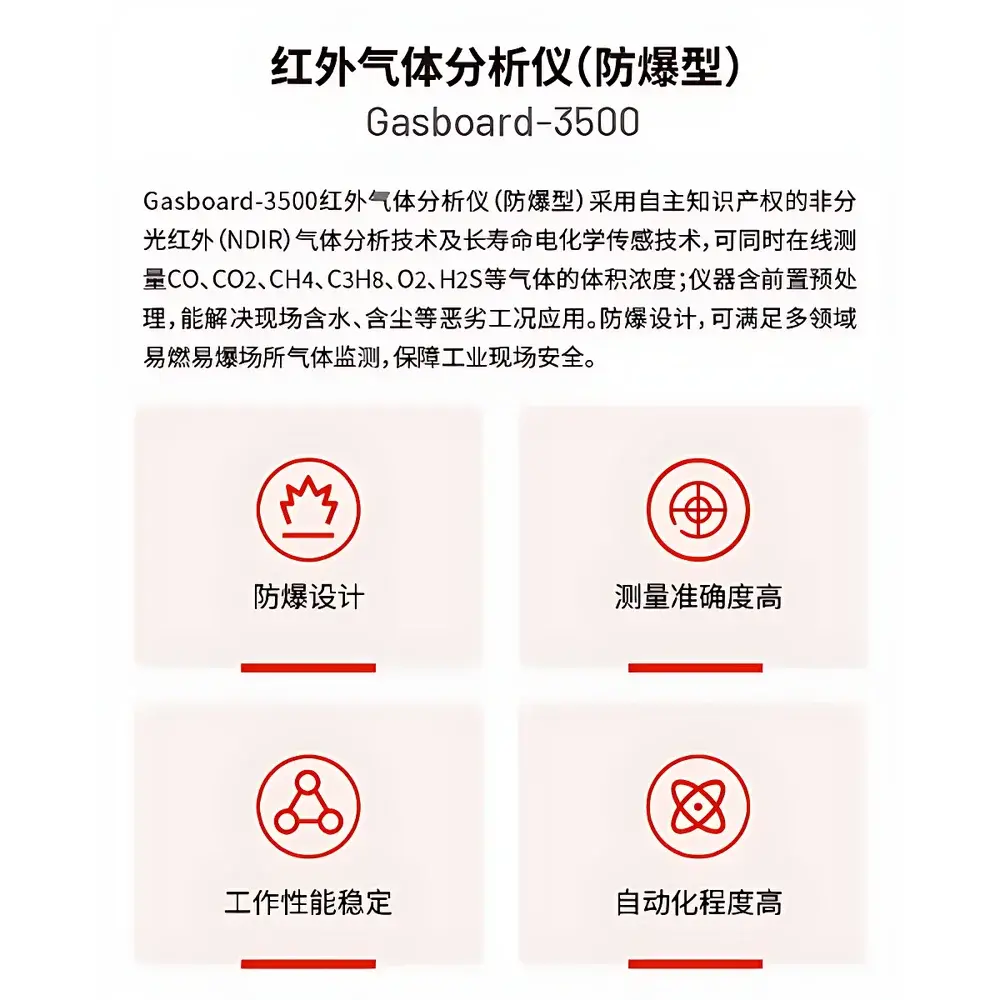

The CUBIC INSTRUMENTS Gasboard-3500 is a certified intrinsically safe, online multicomponent gas analyzer engineered for continuous, real-time monitoring of industrial process gases in hazardous environments. It employs dual-sensor architecture: non-dispersive infrared (NDIR) spectroscopy for quantitative measurement of CO, CO₂, CH₄, and C₃H₈ — leveraging characteristic absorption bands in the mid-infrared region (e.g., 4.26 µm for CO₂, 4.67 µm for CO) — and high-stability electrochemical cells (ECD) for selective detection of O₂ and H₂S. The system integrates a robust, field-deployable sample conditioning module upstream of the sensor chamber, incorporating particulate filtration, condensate separation, and hydrophobic membrane drying to ensure reliable operation under high-humidity, dusty, or oil-contaminated sampling conditions typical in coal gasification, biogas upgrading, and wastewater treatment facilities. Its explosion-proof enclosure complies with IEC 60079-1 (flameproof “d”) and IEC 60079-31 (dust ignition protection “tb”), enabling deployment in Zone 1/21 classified areas without external purging or pressurization.

Key Features

• Intrinsically safe design meeting Ex d IIC T6 Gb and Ex tb IIIC T80°C Db certification standards for use in flammable gas and combustible dust environments.
• Simultaneous six-gas measurement (CO, CO₂, CH₄, C₃H₈, O₂, H₂S) with zero cross-sensitivity between NDIR and ECD channels, validated per ISO 12039 and ASTM D1946 protocols.
• Dual-channel NDIR optical path with temperature-compensated reference detector and auto-zeroing via integrated clean-air pump, ensuring long-term baseline stability (>6 months calibration interval under stable conditions).
• Corrosion-resistant wetted materials: 316L stainless steel sample lines, PTFE-coated flow cells, and chemically inert ceramic filters compatible with acidic (H₂S), reducing (CH₄), and oxidizing (O₂) gas matrices.
• Automated diagnostics including sensor health monitoring, flow validation, pressure drift detection, and optical path contamination alerts — all accessible via onboard LCD or remote interface.
• Modular pre-conditioning unit with adjustable cooling trap (-5°C to +5°C), heated sample line (60°C), and particulate filter (0.3 µm absolute rating) to meet EN 15267-3 requirements for continuous emission monitoring systems (CEMS).

Sample Compatibility & Compliance

The Gasboard-3500 is validated for direct sampling of raw syngas, coke oven gas, landfill biogas, anaerobic digester off-gas, and biomass pyrolysis vapors. It tolerates inlet particulate loading up to 10 mg/m³ and dew points as low as -20°C after conditioning. All gas measurements comply with traceability requirements under ISO/IEC 17025:2017 accredited calibration practices. Data integrity adheres to FDA 21 CFR Part 11 principles through secure user authentication, electronic audit trails, and tamper-evident logging. The instrument supports GLP/GMP-aligned operation via configurable alarm thresholds, event-triggered data capture, and batch-mode reporting aligned with USP analytical instrument qualification (AIQ) guidelines.

Software & Data Management

The embedded firmware supports Modbus RTU/TCP, ASCII protocol over RS-485/RS-232, and standard 4–20 mA analog outputs with HART capability. Optional Ethernet interface enables integration into SCADA, DCS, or cloud-based IIoT platforms using MQTT or OPC UA. CUBIC’s GasVision™ configuration software (Windows-based) provides full remote commissioning, spectral calibration verification, trend analysis, and compliance report generation (including calibration certificates, drift logs, and fault history). All stored data are time-stamped with NTP-synchronized UTC timestamps and support CSV/Excel export for third-party statistical process control (SPC) tools.

Applications

• Real-time calorific value calculation of town gas and blast furnace gas via stoichiometric combustion modeling using measured CO, CH₄, H₂ (inferred), and CO₂ concentrations.
• Early fire detection in coal pulverizing systems and silos through continuous CO concentration trending (alarm thresholds configurable from 10 ppm to 1000 ppm).
• Process optimization in anaerobic digestion plants by tracking CH₄/CO₂ ratio, H₂S inhibition thresholds, and O₂ ingress anomalies affecting methanogen activity.
• Biogas-to-grid quality assurance per EN 16723-1, verifying H₂S < 230 ppm and O₂ < 1% v/v prior to upgrading and injection.
• Combustion efficiency studies in laboratory-scale furnaces and pilot-scale gasifiers, where synchronized multi-gas data feed kinetic modeling of oxidation and reforming reactions.

FAQ

What certifications does the Gasboard-3500 hold for hazardous area installation?
It carries ATEX and IECEx certifications: Ex d IIC T6 Gb for gas atmospheres and Ex tb IIIC T80°C Db for combustible dust environments, conforming to IEC 60079-0, -1, and -31.
Can the analyzer operate without external sample conditioning?
Yes — its integrated pretreatment system handles typical industrial gas contaminants; however, for applications with >50 mg/m³ particulates or free liquid carryover, an external cyclone or coalescing filter is recommended.
How is calibration traceability maintained?
Factory calibration uses NIST-traceable gas standards (±1% uncertainty); users may perform field span checks with certified calibration gases, with results logged automatically and linked to audit trail records.
Is the instrument suitable for unattended, long-term deployment?
Yes — designed for 24/7 operation with mean time between failures (MTBF) exceeding 12,000 hours; self-diagnostic routines flag sensor degradation ≥15% deviation from baseline before performance impact occurs.
Does the system support regulatory reporting formats such as EPA Method 3A or EN 15267?
While not a certified CEMS per se, its measurement accuracy, repeatability, and data logging architecture align with technical prerequisites of EN 15267-3 for QAL1/QAL2 qualification when installed per EN 14181 operational guidelines.
