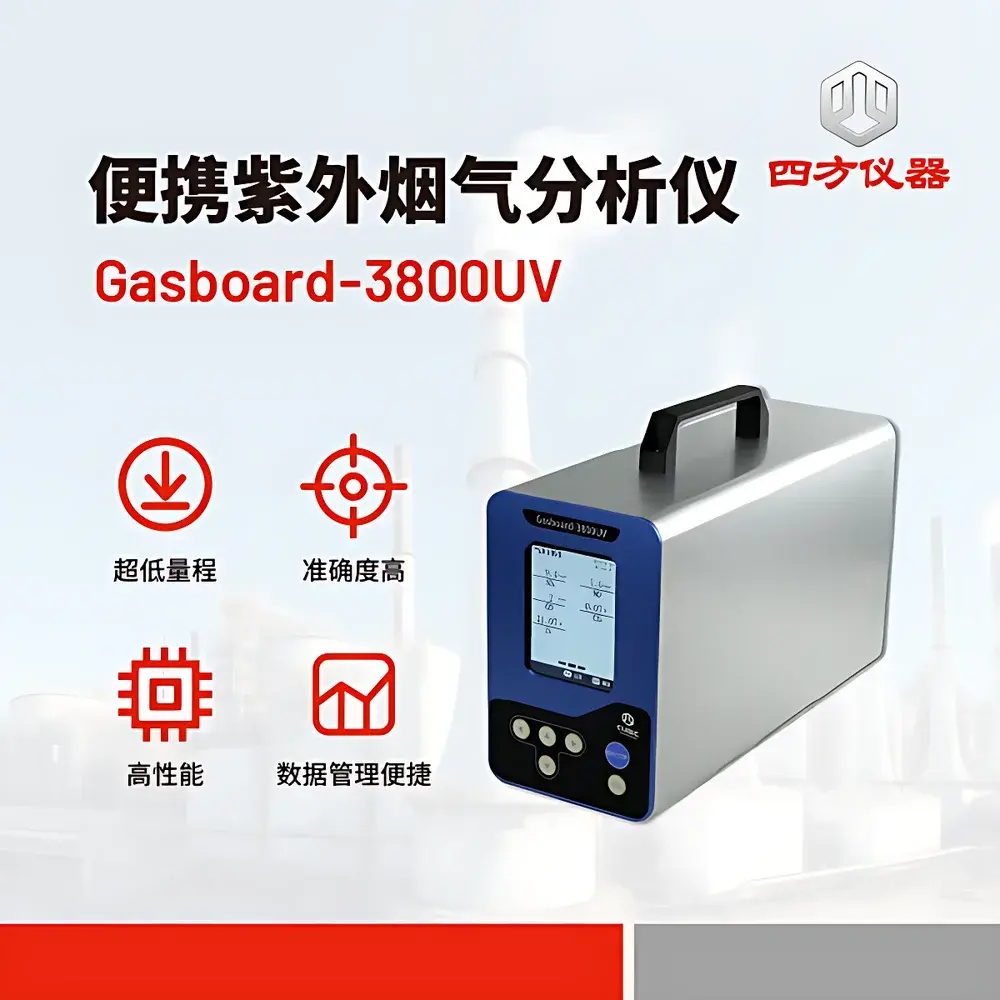

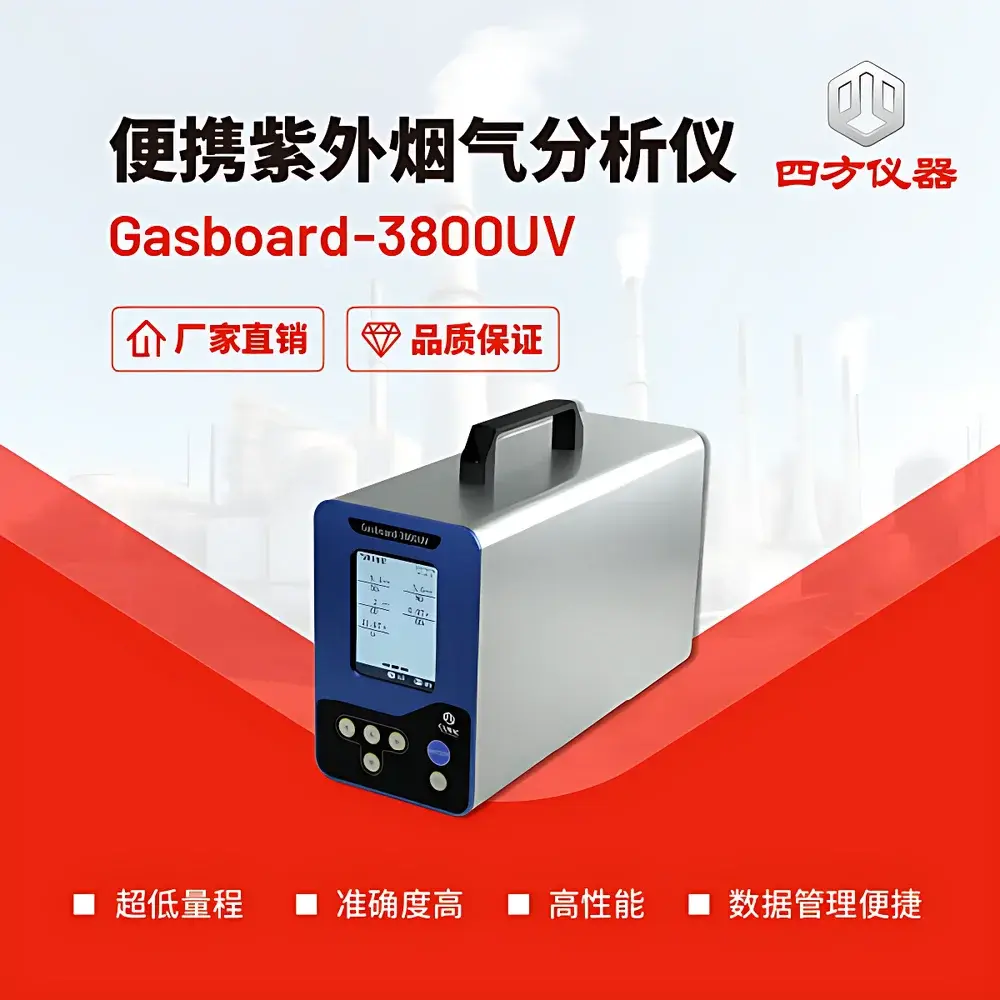

CUBIC INSTRUMENTS Gasboard-3800UV Portable UV Differential Optical Absorption Spectroscopy (DOAS) Flue Gas Analyzer

Overview

The CUBIC INSTRUMENTS Gasboard-3800UV is a field-deployable flue gas analyzer engineered for high-fidelity, multi-component emission monitoring in compliance with international environmental regulatory frameworks. It integrates three complementary analytical technologies within a single compact platform: ultraviolet differential optical absorption spectroscopy (UV-DOAS) for SO₂ and NO, non-dispersive infrared (NDIR) dual-beam spectroscopy for CO and CO₂, and electrochemical detection (ECD) for O₂. This hybrid architecture eliminates spectral interference between analytes—particularly critical for low-concentration SO₂ and NO measurement under high-humidity, high-dust flue gas conditions—and ensures trace-level quantification without cross-sensitivity. The instrument operates on the fundamental principle of Beer–Lambert law-based absorbance quantification in the UV (190–230 nm) and IR (2–5 µm) spectral windows, combined with temperature- and pressure-compensated signal processing to maintain metrological integrity across variable stack conditions. Designed for direct insertion into industrial exhaust ducts or portable grab sampling, it meets the functional requirements of EN 15267-3, EPA Method 6C, and ISO 12039 for continuous emissions monitoring system (CEMS) verification and periodic compliance auditing.

Key Features

• UV-DOAS module with embedded DOAS algorithm for simultaneous, interference-free quantification of SO₂ and NO at sub-ppm levels—immune to water vapor absorption bands and particulate scattering effects
• NDIR dual-beam configuration with reference and measurement channels to compensate for optical drift, enabling stable CO and CO₂ measurement over extended field deployments
• Long-life electrochemical O₂ sensor with integrated temperature compensation and factory-calibrated zero/span stability exceeding 180 days
• Integrated heated sampling probe and condensate-resistant pre-treatment unit (imported OEM) maintaining gas-phase integrity—no chemical scrubbing, no catalytic conversion, no dilution
• Real-time flow-controlled sample introduction (0.7–1.2 L/min) with automatic pressure regulation and particulate filtration down to 1 µm
• Ruggedized chassis (275 × 470 × 175 mm; 7.5 kg) with IP54-rated enclosure, lithium-ion battery option for >4 hr operation, and MIL-STD-810G shock/vibration certification

Sample Compatibility & Compliance

The Gasboard-3800UV is validated for use with flue gases from coal-fired, natural gas, biomass, and waste-to-energy combustion sources. Its sampling train preserves native gas composition—critical for accurate stoichiometric ratio calculation (e.g., excess air, combustion efficiency) and regulatory reporting under EU IED Annex V, US Clean Air Act Subpart JJJJ, and China’s HJ 1045–2019 standard. All measurement modules comply with GLP-aligned calibration traceability to NIST SRM-certified gas standards. Data acquisition meets FDA 21 CFR Part 11 requirements via optional audit-trail-enabled firmware, supporting electronic signatures and secure data export in CSV/Excel formats compatible with LIMS integration. Full documentation package includes ISO/IEC 17025-compliant calibration certificates, uncertainty budgets per component, and method validation reports aligned with ASTM D6522 and EN 14792.

Software & Data Management

The onboard Linux-based operating system runs proprietary CUBIC AnalyzeSuite v3.2 firmware, featuring real-time spectral deconvolution, automatic baseline correction, and dynamic interference subtraction. Field software enables configurable averaging intervals (1–60 s), user-defined alarm thresholds, and auto-zeroing routines triggered by ambient air purging. Data is stored locally on encrypted microSD (up to 128 GB) with time-stamped metadata (GPS coordinates, barometric pressure, humidity). PC-side CUBIC DataLink desktop application supports batch processing, spectral overlay comparison, and generation of EPA-compliant QA/QC reports—including daily drift checks, linearity verification logs, and T90 response validation summaries. Remote diagnostics and firmware updates are supported via secure SSH tunneling.

Applications

• Regulatory compliance verification for SCR/SNCR denitrification and wet/dry FGD systems in thermal power plants and cement kilns
• Third-party stack testing for ISO 50001 energy management system audits and GHG Protocol Scope 1 emissions reporting
• Boiler tuning and combustion optimization studies requiring simultaneous O₂/CO/CO₂ ratio analysis
• Mobile monitoring campaigns for fugitive emission source identification and dispersion modeling input
• Academic and governmental research on pollutant formation mechanisms under varying fuel blends and firing conditions
• Pre-commissioning CEMS performance qualification (PQ) and ongoing relative accuracy test audits (RATA)

FAQ

What calibration gases are required for field verification?
Certified NIST-traceable span gases (SO₂, NO, CO, CO₂, O₂) at 50–80% of full scale, plus zero air (hydrocarbon-free, <0.1 ppm THC); calibration frequency follows EPA PS-17 guidelines (minimum quarterly).

Can the instrument measure NH₃ or HCl?
No—Gasboard-3800UV is configured exclusively for SO₂, NO, CO, CO₂, and O₂. NH₃ and HCl require dedicated mid-IR or tunable diode laser (TDLAS) modules not integrated in this model.

Is heated line integration supported?
Yes—the optional CUBIC HT-300 heated sampling line (120 °C, 3 m) connects directly to the analyzer’s inlet port and is fully controlled via the main unit’s thermal management interface.

How is moisture interference mitigated in UV-DOAS measurements?
By leveraging DOAS spectral fitting over multiple harmonic absorption features and applying polynomial baseline correction to remove broadband H₂O continuum absorption—validated per EN 14181 QAL1 requirements.

Does the device support remote data transmission?
Via optional 4G LTE module (SIM-ready) with MQTT/HTTP(S) protocol support for secure cloud upload to customer-owned SCADA or EMS platforms.
