CUBIC INSTRUMENTS Gasboard-7800 Automotive Diluted Exhaust Flow Analyzer

Overview

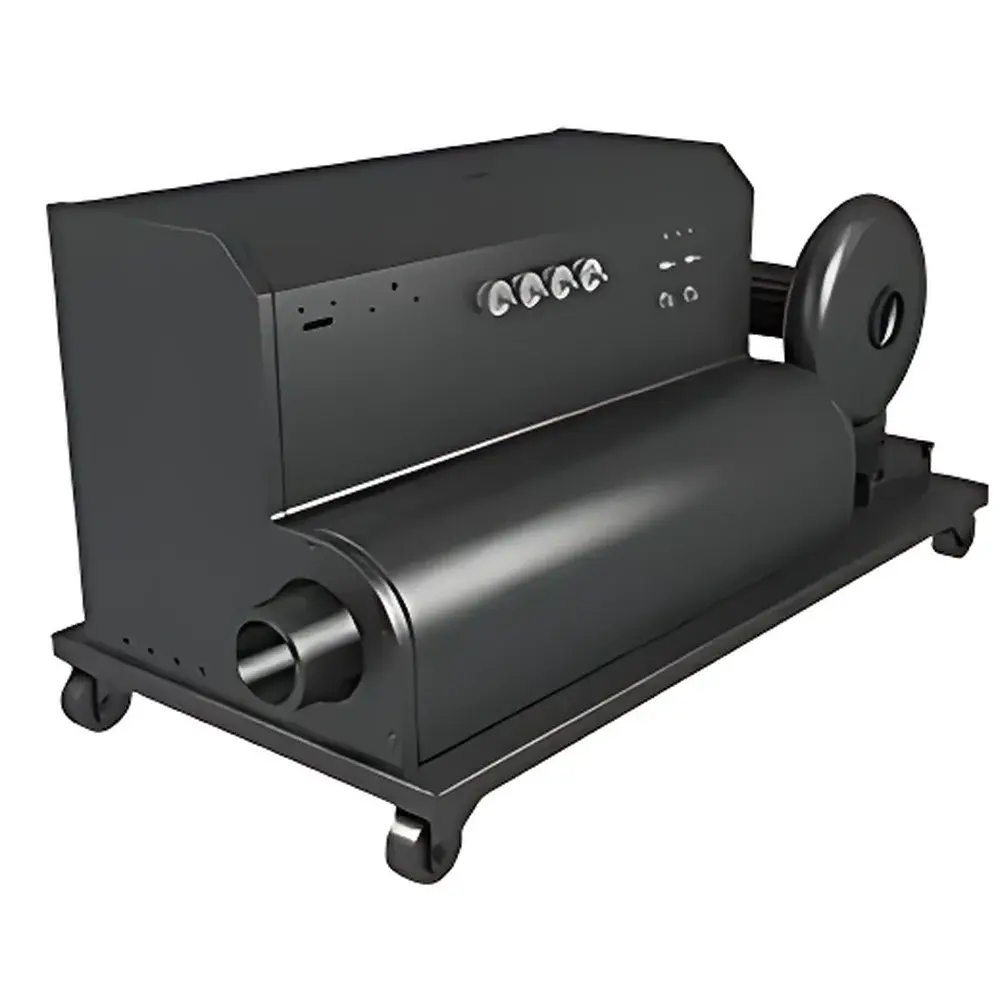

The CUBIC INSTRUMENTS Gasboard-7800 is an online automotive diluted exhaust flow analyzer engineered for precise, real-time quantification of exhaust gas volume, temperature, pressure, and dilution oxygen concentration in vehicle emissions testing systems. It serves as a core component within Vehicle Emissions Measurement Systems (VMAS), particularly those configured for transient or steady-state dilution tunnel testing per regulatory protocols. The instrument integrates dual physical measurement principles: ultrasonic time-of-flight and vortex shedding technologies for robust, non-intrusive volumetric flow determination under dynamic exhaust conditions. Simultaneously, it employs a high-stability zirconia (ZrO₂) electrochemical sensor to quantify O₂ concentration in the diluted sample stream — critical for stoichiometric correction, dilution ratio calculation, and mass emission computation. Designed to meet the metrological and operational requirements of GB 18285–2018, the Gasboard-7800 supports compliance with Chinese national standards for gasoline-powered vehicle emissions certification and periodic inspection.

Key Features

• Hybrid flow sensing architecture combining ultrasonic transit-time and vortex shedding methods ensures high linearity and low sensitivity to particulate loading, moisture condensation, or pulsating flow typical in diluted exhaust streams.
• Zirconia-based O₂ sensor with integrated temperature compensation delivers stable, drift-resistant readings across wide operating ranges (−30 °C to +150 °C ambient and sample temperatures).
• Mechanically robust housing and vibration-damped transducer mounting mitigate performance degradation in mobile test cell environments or chassis dynamometer installations.
• Full digital signal processing with auto-zeroing routines and adaptive filtering minimizes zero and span drift — validated at ±2.5% full scale for O₂ over 24-hour operation.
• Fast thermal stabilization (<3 min warm-up) and rapid O₂ response (≤5 s T₉₀) enable efficient test cycle throughput without compromising data integrity.
• Compliant with industrial EMC standards (IEC 61326-1) and ingress protection rating IP54 for reliable field deployment in laboratory and roadside inspection facilities.

Sample Compatibility & Compliance

The Gasboard-7800 is optimized for use with diluted exhaust sampled from constant-volume samplers (CVS) or full-flow dilution tunnels, supporting both primary and secondary dilution configurations. It accepts gas streams containing residual hydrocarbons, CO, CO₂, NOₓ, and water vapor — provided condensate is removed upstream via chilled mirror or Nafion dryers. The device meets all functional and performance criteria specified in GB 18285–2018 for VMAS flow instrumentation, including accuracy, repeatability, and environmental operating limits. While not certified to ISO 16183 or SAE J1667 directly, its measurement traceability aligns with national metrology institute (NIM)-verified calibration practices used in Chinese Type Approval laboratories. Data output conforms to RS-232/485 serial protocols compatible with third-party data acquisition systems compliant with GLP and ISO/IEC 17025 documentation requirements.

Software & Data Management

The Gasboard-7800 operates as a stand-alone sensor node with analog (4–20 mA) and digital (Modbus RTU) outputs for seamless integration into existing VMAS control architectures. Optional PC-based configuration software enables parameter setup, calibration verification, and diagnostic logging — including timestamped records of zero/span checks, sensor health status, and alarm events. All operational metadata (e.g., flow, O₂, temperature, pressure, humidity) is timestamped with millisecond resolution and exportable in CSV format for post-test analysis. Audit trails support basic data integrity requirements; for regulated environments requiring 21 CFR Part 11 compliance, integration with validated LIMS or emissions test management platforms is recommended to ensure electronic signature, change control, and retention policies.

Applications

• Regulatory emissions testing for light-duty gasoline vehicles in official inspection & maintenance (I/M) programs.
• Development and validation of aftertreatment systems (e.g., three-way catalysts) in OEM powertrain laboratories.
• Periodic technical inspection (PTI) at authorized motor vehicle testing stations (MTS) accredited under CNAS (China National Accreditation Service).
• Research on exhaust dilution dynamics, mixing efficiency, and sampling representativeness in academic and government-funded air quality studies.
• Third-party conformity assessment for imported vehicles seeking CCC (China Compulsory Certification) approval.

FAQ

What flow measurement principle does the Gasboard-7800 employ?

It utilizes a hybrid approach: ultrasonic time-of-flight for average velocity profiling and vortex shedding for frequency-based volumetric rate derivation — both calibrated against NIST-traceable flow standards.
Is the O₂ sensor replaceable in the field?

Yes; the zirconia sensor module is user-replaceable with factory calibration coefficients stored in EEPROM, minimizing downtime during routine maintenance.
Does the analyzer require external gas conditioning?

Yes — a dedicated sample conditioning system (chiller, filter, and particulate trap) must be installed upstream to prevent liquid water ingress and particulate fouling of the flow path and sensor surface.
Can the Gasboard-7800 be integrated with European-type PEMS or RDE test setups?

While designed for Chinese VMAS architecture, its analog/digital I/O and Modbus protocol allow interoperability with EU RDE-compliant DAQ systems when configured with appropriate signal scaling and time-synchronization logic.
What is the recommended calibration interval?

Annual calibration is advised under continuous operation; however, quarterly verification using certified span gases and dry-air zero gas is required to maintain GB 18285–2018 conformance.
