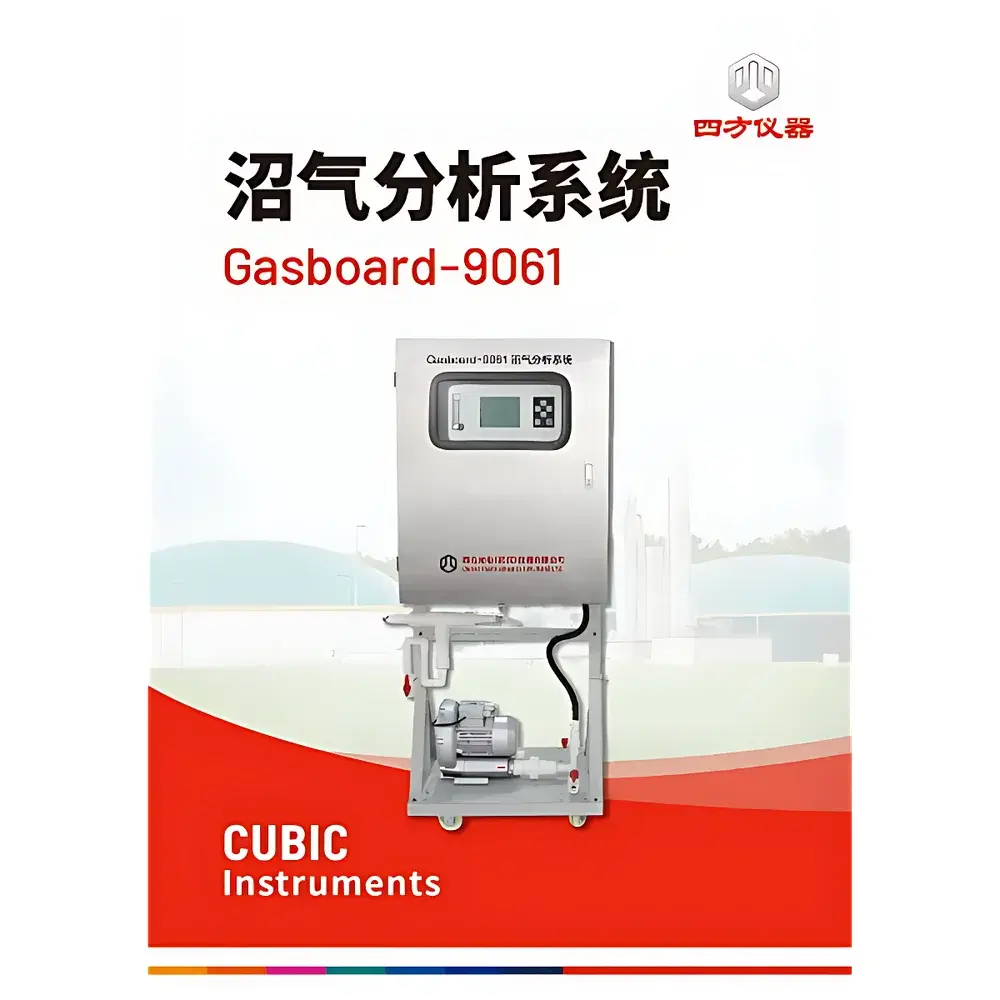

CUBIC INSTRUMENTS Gasboard-9061 Biogas Analysis System

Overview

The CUBIC INSTRUMENTS Gasboard-9061 Biogas Analysis System is an engineered solution for continuous, reliable measurement of key biogas constituents—methane (CH₄), carbon dioxide (CO₂), hydrogen sulfide (H₂S), and oxygen (O₂)—in demanding anaerobic digestion environments. Unlike conventional extractive analyzers requiring extensive external gas conditioning, the Gasboard-9061 implements a patented in-situ dilution methodology that actively mitigates two primary operational challenges: water vapor condensation and H₂S-induced sensor poisoning. By precisely metering and mixing sample gas with dry, inert dilution air using integrated ultrasonic flow sensors, the system reduces partial pressure of water vapor below dew point and lowers H₂S concentration to levels compatible with long-term electrochemical sensor stability. This eliminates the need for refrigerated dryers, permeation dryers, or chemical scrubbers—reducing both capital cost and maintenance overhead. The core detection architecture combines NDIR spectroscopy for CH₄, CO₂, and O₂ (with dual-beam compensation for optical drift) and a temperature-compensated electrochemical cell for H₂S quantification, ensuring trace-level sensitivity and high reproducibility under variable ambient conditions.

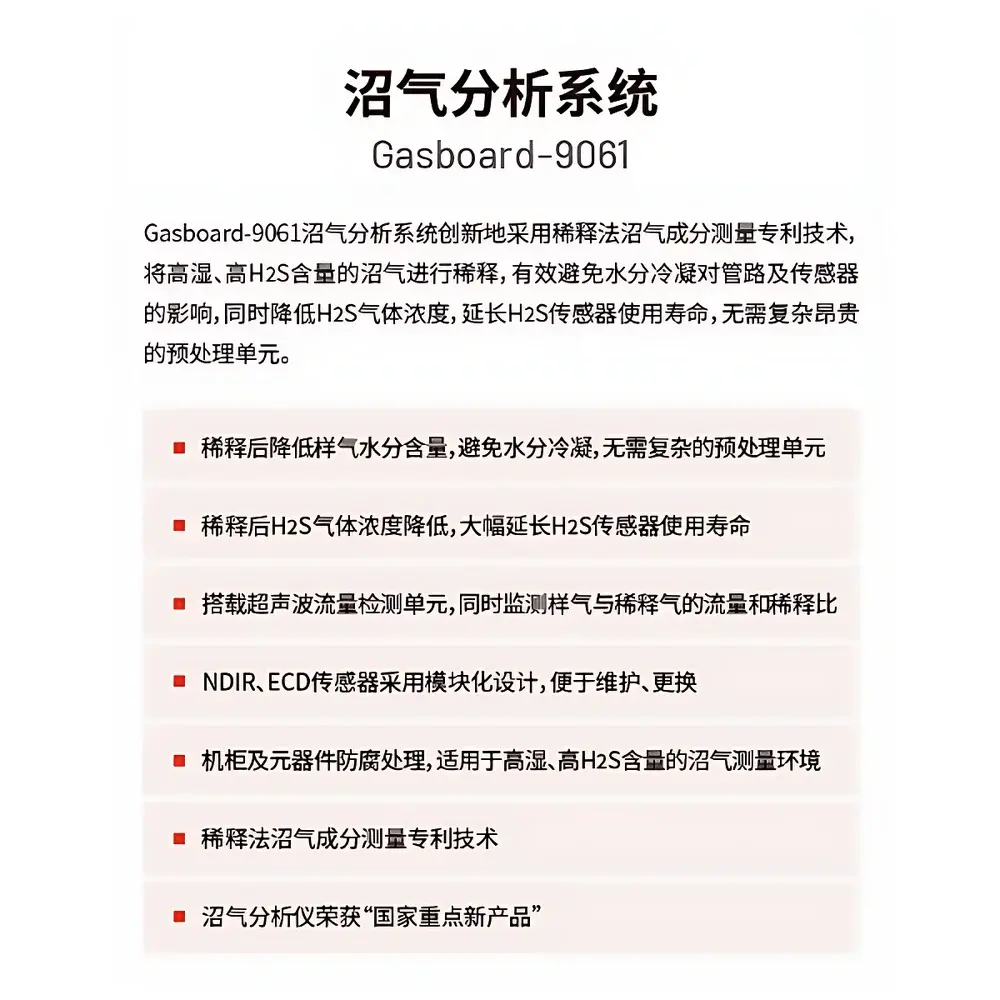

Key Features

• Patented on-board dilution technology enables direct sampling of raw, humid, high-H₂S biogas without external pre-treatment units
• Ultrasonic dual-channel flow measurement ensures accurate real-time control of sample-to-dilution ratio (1:1 to 1:10 configurable), critical for maintaining analytical linearity and calibration integrity
• Modular NDIR and ECD sensor cartridges allow field-replaceable component swaps with minimal downtime and no recalibration required for module exchange
• Corrosion-resistant cabinet construction (electroless nickel-plated chassis, PTFE-sealed fittings, stainless-steel internal manifolds) rated for continuous operation in H₂S-rich, >90% RH environments
• Embedded microprocessor with self-diagnostic routines monitors sensor health, flow consistency, pressure stability, and optical path integrity
• Compliant with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emission) standards for industrial installation

Sample Compatibility & Compliance

The Gasboard-9061 is validated for use with untreated biogas streams from municipal wastewater digesters, agricultural AD plants (swine/poultry manure), landfill gas collection systems, food waste co-digestion facilities, and lignocellulosic biomass reactors. It accommodates inlet pressures from 2 to 50 kPa and operates within ambient temperatures of −10 °C to +50 °C. Sample gas must be free of particulates (>1 µm filtration recommended upstream) and aerosol oil mist; the dilution process inherently suppresses condensate formation downstream of the mixing chamber. While not certified for Class I Div 1 hazardous locations, the system meets IP54 ingress protection and may be installed in ventilated enclosures compliant with NEC Article 500 for non-classified zones. Data logging and reporting functions support alignment with ISO 16435 (biogas quality monitoring) and EU Directive 2009/28/EC sustainability criteria verification protocols.

Software & Data Management

The embedded firmware supports Modbus RTU (RS-485/RS-232) and 4–20 mA analog outputs for integration into SCADA, DCS, or PLC-based process control systems. Optional USB interface enables local configuration and data export in CSV format. Internal memory stores up to 30 days of 1-minute averaged concentration values with timestamps. Audit trail functionality records all parameter changes, calibration events, and system alerts—supporting GLP-aligned operational documentation. Remote diagnostics via optional Ethernet module facilitate predictive maintenance scheduling based on sensor signal decay trends and flow deviation thresholds.

Applications

• Real-time optimization of digester loading rates and hydraulic retention time in municipal wastewater treatment plants
• Feedstock composition monitoring and co-digestion ratio control in farm-scale biogas facilities
• Landfill gas recovery efficiency assessment and flare compliance reporting per EPA 40 CFR Part 60 Subpart WWW
• Quality assurance of upgraded biomethane prior to grid injection (meeting EN 16723-1 specifications for CH₄ ≥ 95% and H₂S ≤ 5 ppm)
• Process validation during commissioning and performance testing of new anaerobic digestion installations
• Research-grade gas composition tracking in pilot-scale AD reactors studying inhibition thresholds and microbial kinetics

FAQ

Does the Gasboard-9061 require zero/span calibration gas cylinders?
Yes—periodic verification using certified CH₄/N₂, CO₂/N₂, O₂/N₂, and H₂S/N₂ standard gases is required per ISO 14644-1 guidelines; typical interval is every 30 days for critical applications.
Can the instrument operate continuously without manual intervention?
Yes—the system supports unattended 24/7 operation with automatic dilution ratio adjustment, sensor drift compensation, and fault-triggered alarm outputs (relay contacts or digital flags).
Is the dilution ratio fixed or adjustable?
Adjustable via configuration software: user-selectable ratios from 1:1 (undiluted) to 1:10, optimized per site-specific H₂S and moisture load.
What maintenance is required beyond sensor replacement?
Annual inspection of ultrasonic transducers, filter integrity check, and verification of pressure regulator setpoints; no optical alignment or internal cleaning required under normal operating conditions.
Does the system meet FDA 21 CFR Part 11 requirements for electronic records?
Not natively—audit trail data is timestamped and immutable but lacks electronic signature capability; third-party middleware integration is recommended for regulated pharmaceutical or biofuel certification workflows.
