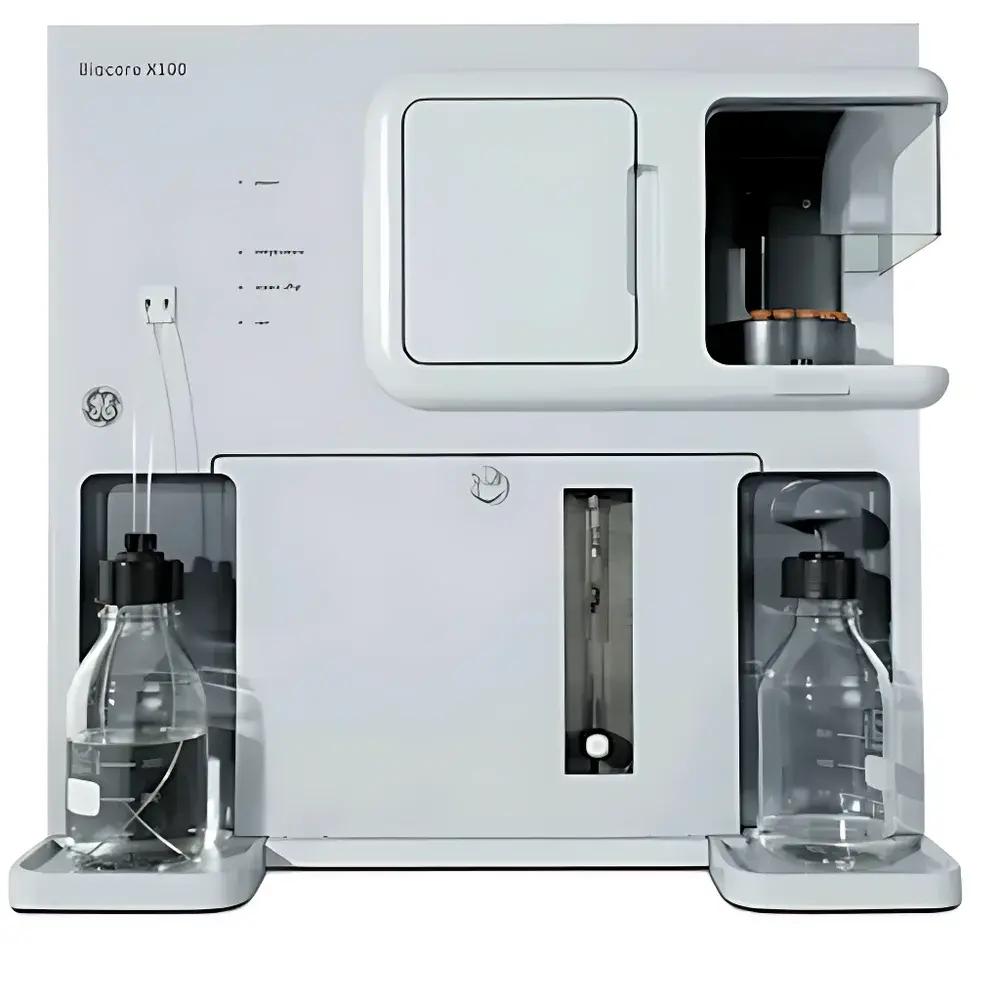

Cytiva Biacore X100 Surface Plasmon Resonance (SPR) Molecular Interaction Analyzer

Overview

The Cytiva Biacore X100 is a benchtop surface plasmon resonance (SPR) biosensor system engineered for label-free, real-time analysis of biomolecular interactions. Leveraging the physical phenomenon of SPR—where changes in refractive index at a gold sensor surface are quantified upon binding-induced mass accumulation—the Biacore X100 enables precise measurement of association and dissociation kinetics, equilibrium binding affinity (KD), analyte concentration, and binding specificity. Designed for academic research laboratories, biopharma R&D groups, and translational science units, it delivers quantitative interaction data without requiring fluorescent, enzymatic, or radioactive labeling. Its modular architecture supports both discovery-phase screening and mechanistic validation workflows, making it suitable for characterizing protein–protein, protein–small molecule, antibody–antigen, nucleic acid–ligand, and even cell-surface receptor engagements under physiologically relevant buffer conditions.

Key Features

• Real-time, label-free detection with high sensitivity across a broad dynamic range (pM to mM)

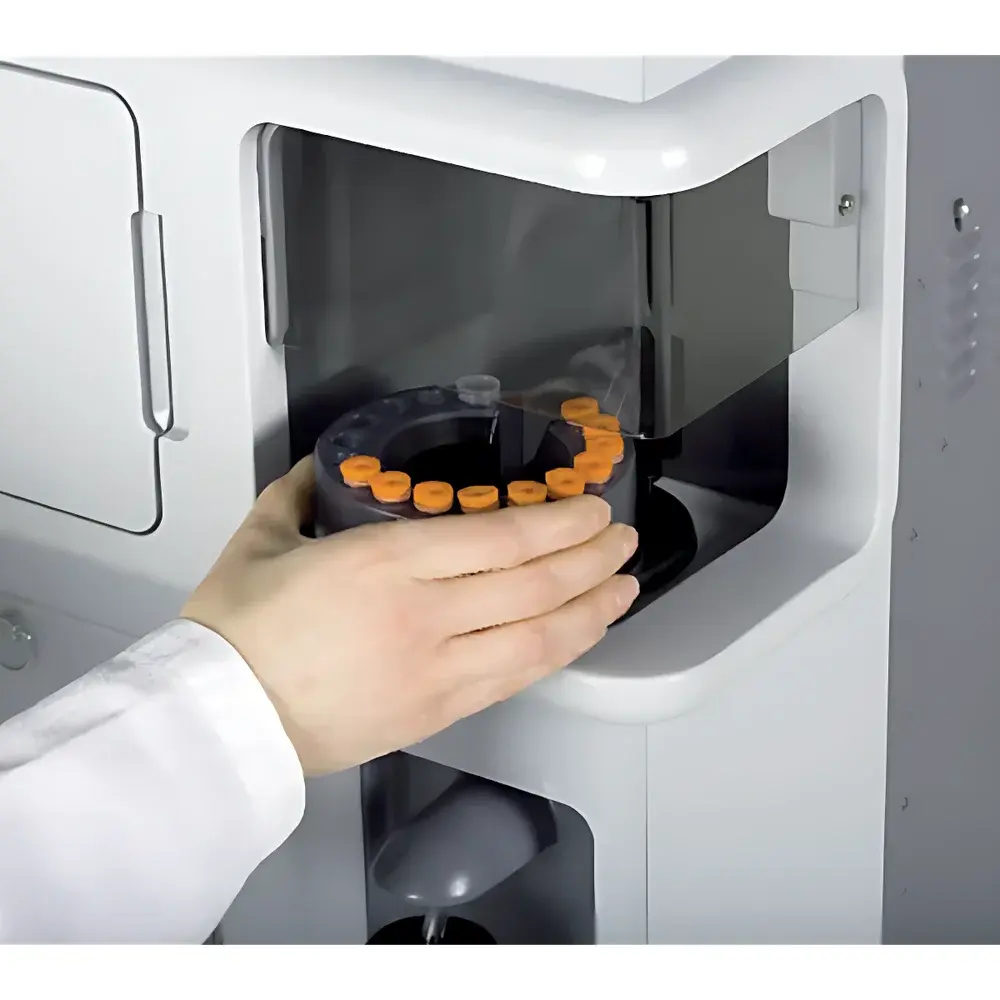

• Multi-channel fluidic system enabling parallel analysis of up to 15 samples per run with automated sample injection
• Precise temperature control (4–40 °C) for kinetic studies under defined thermal conditions
• Integrated workflow-guided software with intuitive experimental setup wizards and real-time quality feedback via color-coded “traffic light” indicators
• Pre-configured assay templates for common interaction types (e.g., sandwich, inhibition, competition, steady-state affinity)
• Robust sensor chip compatibility—including CM5, SA, NTA, and C1 surfaces—for immobilization strategies tailored to diverse biomolecule classes
• Low sample consumption design optimized for precious biological reagents and clinical specimens

Sample Compatibility & Compliance

The Biacore X100 accommodates a wide spectrum of analytes and matrices, including purified proteins, monoclonal antibodies, peptides, oligonucleotides, carbohydrates, lipids, viral particles, whole cells, and complex biological fluids such as serum, plasma, ascites, cell culture supernatants, tissue lysates, and homogenates. Its surface chemistry flexibility and built-in reference subtraction functionality mitigate matrix interference, supporting reliable quantification even in minimally processed samples. The system complies with GLP/GMP-aligned operational principles and supports audit-trail-enabled data handling in accordance with FDA 21 CFR Part 11 requirements when deployed with validated software configurations. All sensor chips and reagents meet ISO 13485-certified manufacturing standards, and assay protocols may be aligned with ICH Q5E, USP <1032>, and ASTM E2974-15 guidelines for biomolecular interaction characterization.

Software & Data Management

Biacore Evaluation Software provides comprehensive tools for sensorgram processing, global fitting of kinetic models (1:1 Langmuir, bivalent analyte, heterogeneous ligand, mass transport limitation), steady-state affinity calculation, and concentration analysis. Raw data files (.txt and .bic format) are stored with full metadata, including instrument parameters, user annotations, and timestamped audit trails. Export options include CSV, PDF reports, and structured XML for LIMS integration. The software supports version-controlled method templates, user role-based access control, and electronic signature capability for regulated environments. Optional Biacore Insight software extends capabilities with advanced statistical analysis, batch processing, and customizable reporting modules compliant with ALCOA+ data integrity principles.

Applications

• Characterization of therapeutic antibody binding kinetics and epitope binning
• Validation of target engagement for small-molecule drug candidates
• Mapping structure–function relationships in mutant protein variants
• Quantitative assessment of biomarker–ligand interactions in serum or plasma
• Analysis of signal transduction complex formation and disassembly dynamics
• Development and optimization of immunoassays and diagnostic capture systems
• Binding stoichiometry and avidity evaluation for multivalent interactions

FAQ

What types of biomolecules can be analyzed on the Biacore X100?
Proteins, antibodies, peptides, nucleic acids, carbohydrates, lipids, viruses, and whole cells—either purified or in complex biological matrices such as serum, plasma, or cell lysates.
Is the system compatible with GxP-regulated environments?
Yes, when configured with appropriate software settings, electronic signatures, and audit trail logging, the Biacore X100 supports compliance with FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 requirements.
How does the Biacore X100 handle regeneration of sensor surfaces?
It supports programmable regeneration sequences using low-pH buffers, chaotropic agents, or mild detergents—optimized per ligand–analyte pair to maintain surface activity over multiple cycles.
Can kinetic data be extracted from complex binding mechanisms?
Yes, the evaluation software includes global fitting algorithms for heterogeneous ligand, conformational change, and mass transport–influenced models—enabling mechanistic interpretation beyond simple 1:1 binding.
What level of technical support is available post-installation?
Cytiva offers OptiRun service plans with tiered response times, preventive maintenance scheduling, remote diagnostics, and application-specific training—scalable to laboratory operational needs and regulatory expectations.
