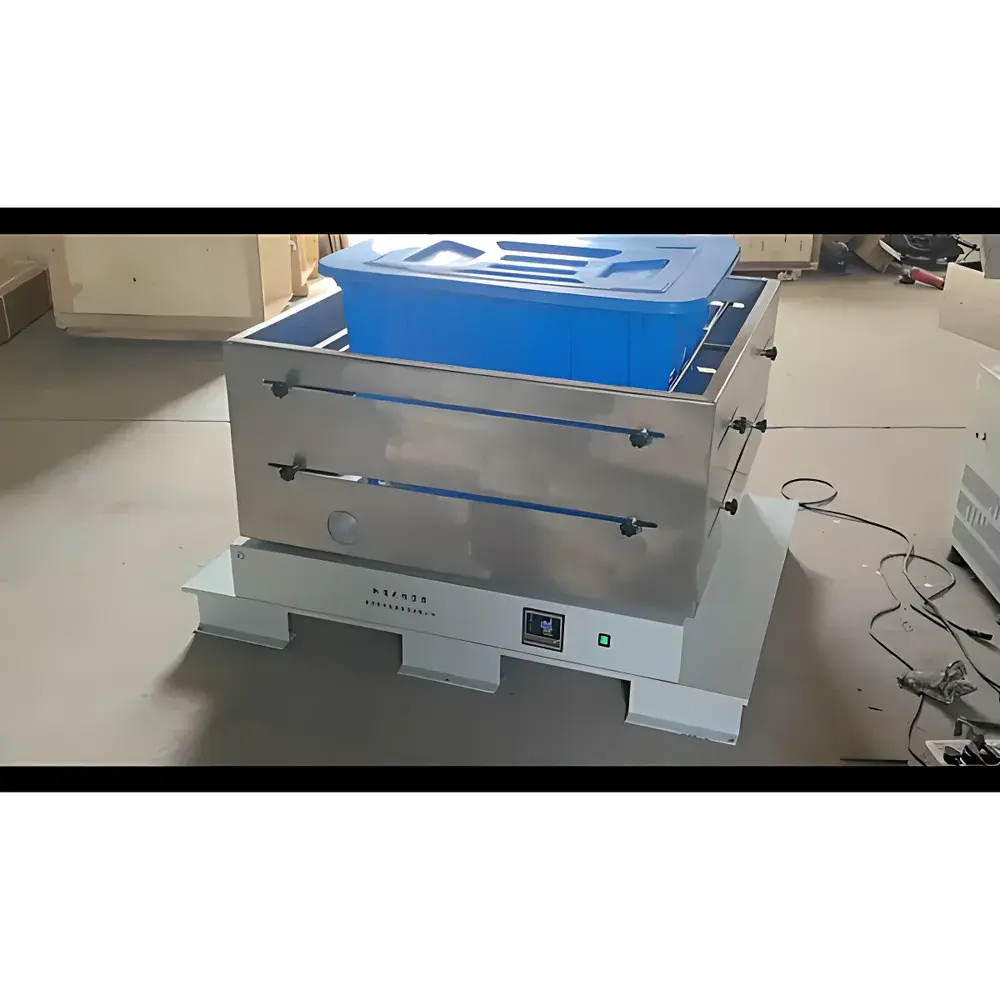

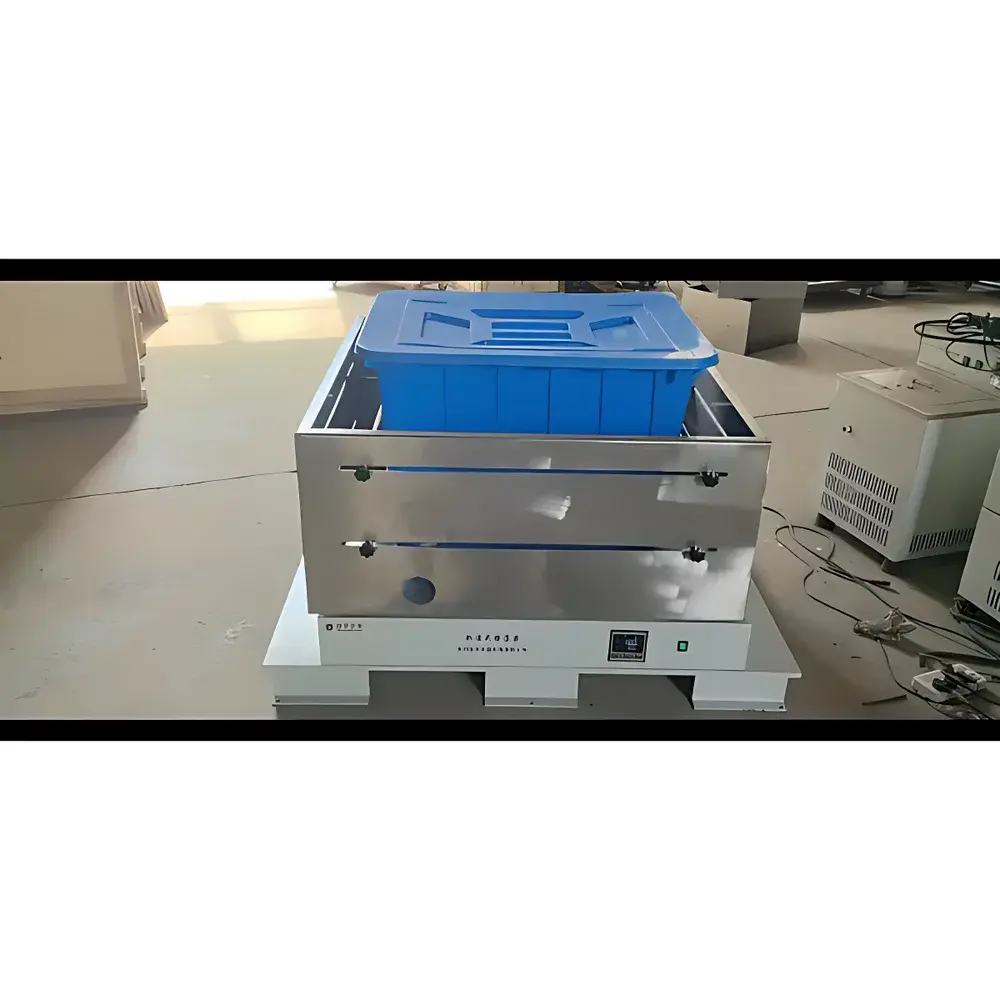

CZGY TT-G110H Orbital Shaker

Overview

The CZGY TT-G110H Orbital Shaker is a heavy-duty, open-frame orbital shaker engineered for high-stability mixing of large-volume or non-standard laboratory vessels under ambient conditions. Unlike incubated or refrigerated shakers, the TT-G110H operates at room temperature and leverages a robust mechanical architecture optimized for consistent orbital motion—defined by a fixed 30 mm diameter circular trajectory—across its full speed range (10–250 rpm). Its core motion principle follows standardized orbital agitation as defined in ASTM D2489 and ISO 8573-1 for uniform suspension homogenization, making it suitable for applications requiring reproducible shear profiles without thermal modulation. The unit employs a high-torque (3 N·m) servo motor paired with dual-loop closed-loop control (speed + current feedback), ensuring minimal speed drift (< ±1 rpm) across load variations—from empty platforms to fully loaded configurations with multiple flasks or custom trays.

Key Features

• High-torque servo drive system delivering stable rotational output even under asymmetric or off-center loading conditions
• Dual-loop digital control architecture enabling precise speed regulation and rapid response to inertia-induced fluctuations
• Large-format stainless steel platform (1100 × 1100 mm) with eight integrated parallel rails for secure vessel alignment and lateral stability
• Adjustable timer function supporting both minute- and hour-based operation (0–9999 units), displayed via backlit LCD interface with real-time status feedback
• Reinforced structural base fabricated from thick-gauge cold-rolled steel and finished with industrial-grade epoxy powder coating for corrosion resistance and long-term rigidity
• Modular design allowing customization of orbit amplitude (standard 30 mm; optional 20/40 mm upon request) and platform dimensions to accommodate specialized vessel arrays

Sample Compatibility & Compliance

The TT-G110H accommodates a wide range of container formats—including Erlenmeyer flasks (up to 5 L), culture bottles, multi-well plates (with adapter frames), and custom bioreactor vessels—without requiring clamps or fasteners due to its rail-guided orbital geometry. It complies with electromagnetic compatibility standards EN 61000-6-3 (emission) and EN 61000-6-2 (immunity), and meets mechanical safety requirements per EN 61010-1 for laboratory equipment. While not certified for GLP/GMP environments out-of-the-box, its deterministic speed control, audit-ready timer logging, and absence of firmware-upgradable logic make it suitable for SOP-driven workflows where traceability is maintained externally. It is not designed for use in classified hazardous locations (e.g., Class I Div 1) or under regulated temperature-controlled conditions (e.g., USP compounding).

Software & Data Management

The TT-G110H operates via embedded firmware with no external PC dependency. All operational parameters—including set speed, elapsed time, remaining time, and real-time rpm—are accessible through the front-panel LCD display. No proprietary software, USB connectivity, or data export functionality is included; however, the timer’s internal counter supports manual logbook integration and batch documentation in accordance with ISO/IEC 17025 clause 7.7 (record control). For laboratories requiring electronic records compliant with FDA 21 CFR Part 11, third-party data acquisition systems (e.g., LabVIEW-compatible analog voltage output modules) may be interfaced via optional 0–10 V analog signal taps (available on request).

Applications

• Cell suspension culture in non-adherent mammalian or insect cell lines during expansion phases
• Homogenization of viscous reagent blends (e.g., agarose gels, polymer solutions, antibody conjugates)
• Extraction protocols involving solid-phase matrices (soil, tissue, biofilm) in environmental or clinical microbiology labs
• Pre-analytical sample preparation for HPLC, ELISA, or NGS library construction workflows
• Long-duration shaking of fermentation broths or enzymatic reaction mixtures where thermal stability is not required
• Teaching laboratories performing kinetics experiments or standard curve generation under controlled agitation

FAQ

Is the TT-G110H suitable for use inside a CO₂ incubator?

No. It is an ambient-only shaker with no temperature regulation or sealed enclosure, and its electronics are not rated for high-humidity or elevated-CO₂ environments.
Can I mount microplate carriers or tube racks directly onto the platform?

Yes—the 304 stainless steel surface and rail configuration support aftermarket universal carriers; CZGY offers OEM-compatible adapters for 96-well, 384-well, and 15/50 mL conical tube formats.
Does the unit include overload protection or automatic shutdown?

Yes. Integrated motor current monitoring triggers immediate stop-and-hold if torque exceeds 3.5 N·m for >2 seconds, preventing mechanical stress during jamming or severe imbalance.
What is the expected service life under continuous 24/7 operation?

Rated for ≥20,000 hours of cumulative runtime when operated within specified load limits (max 80 kg distributed mass) and maintained per manufacturer guidelines (biannual lubrication of rail guides, annual servo calibration).
Is technical documentation available in English with full electrical schematics?

Yes. English-language user manuals, safety compliance reports (CE DoC), and mechanical drawings are provided upon order confirmation; full schematic diagrams require NDA execution due to proprietary drive topology.
