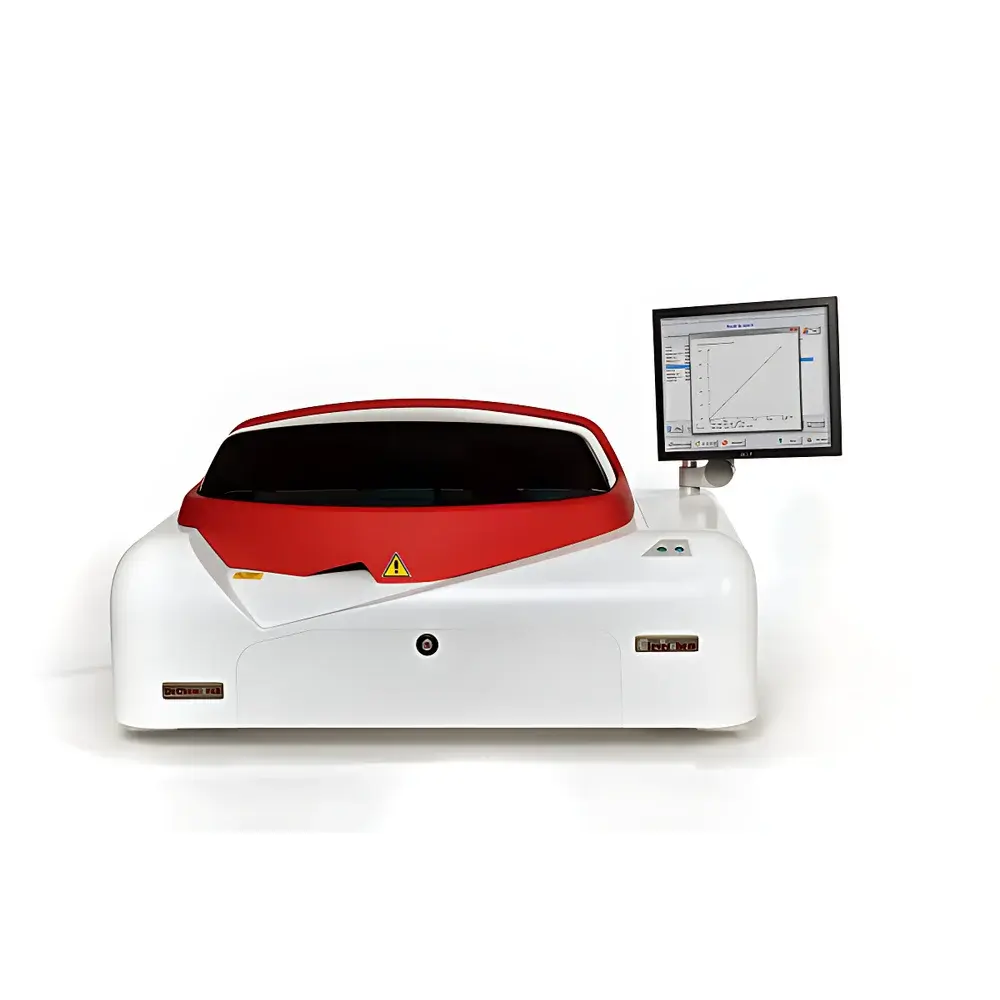

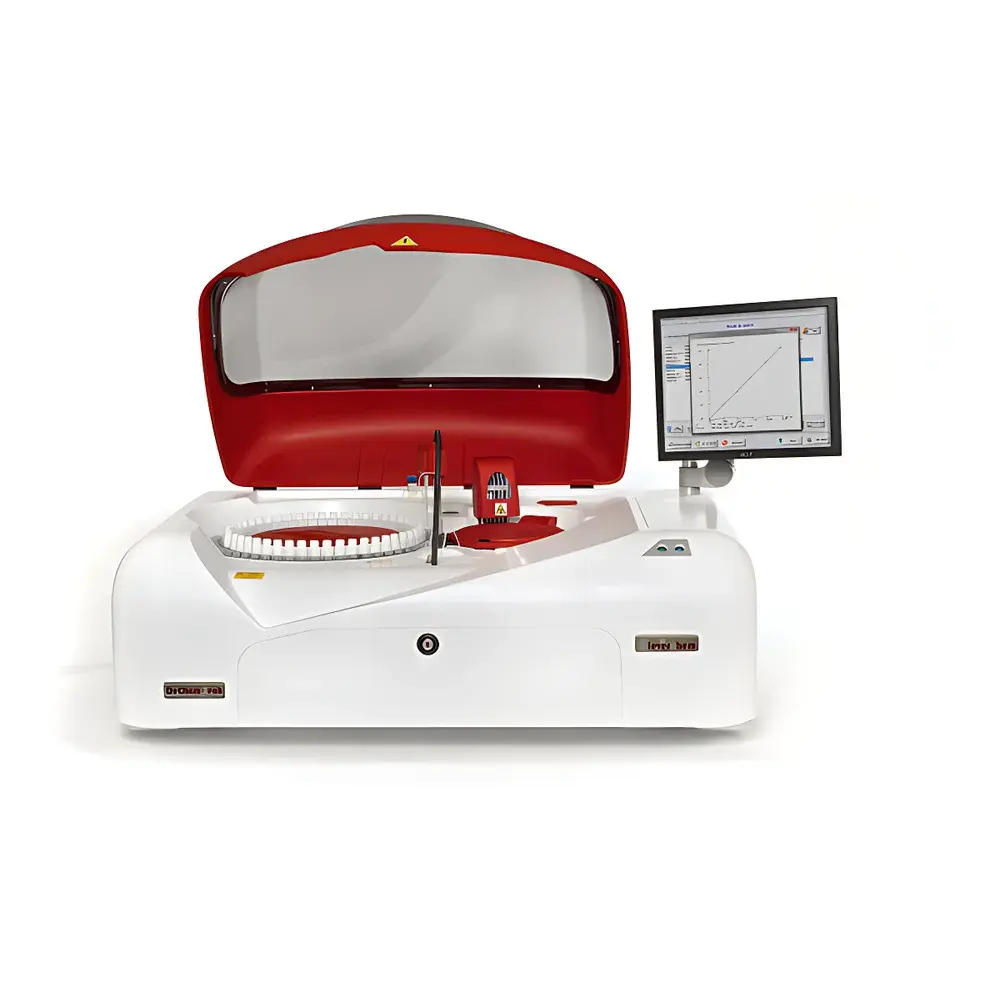

DeChem-Tech CleverChem 380Plus Fully Automated Discrete Analyzer for Soil Analysis

Overview

The DeChem-Tech CleverChem 380Plus is a fully automated discrete analyzer engineered for high-throughput, regulatory-compliant soil nutrient and contaminant analysis. It implements standardized wet-chemistry principles—specifically segmented, controlled-colorimetric reactions—in a precisely orchestrated, computer-driven workflow. Unlike continuous-flow or flow-injection systems, the CleverChem 380Plus performs true discrete analysis: each sample and reagent combination is processed individually in a dedicated quartz cuvette, eliminating cross-contamination and enabling method flexibility across diverse analytes. The system replicates manual colorimetric protocols—including sample extraction, reagent addition, timed incubation, color development, and photometric quantification—at industrial scale. Absorbance is measured at user-selectable wavelengths (340–880 nm) using a high-stability tungsten-halogen light source and thermoelectrically stabilized photodiode detector. Calibration curves are generated in real time using onboard standard series, and concentration calculations apply Beer-Lambert law-derived algorithms with matrix-matched blank correction (sample blank + reagent blank). Designed for environmental laboratories operating under ISO/IEC 17025, EPA Contract Lab Program (CLP), or China’s CMA accreditation framework, the instrument delivers traceable, auditable results suitable for regulatory reporting.

Key Features

• Fully automated discrete analysis platform with 119-sample capacity and up to 350 determinations per hour—achievable via parallelized reaction timing and optimized fluidic sequencing.

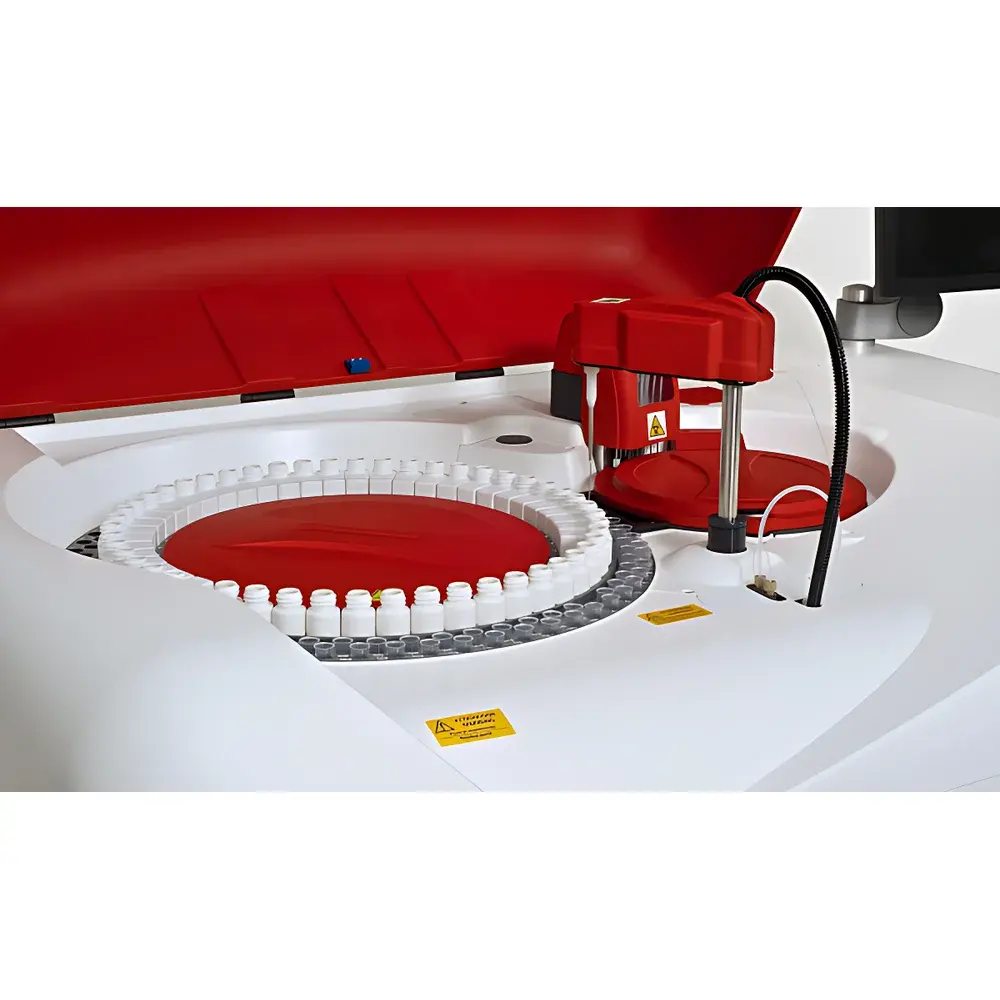

• 64-position quartz cuvette carousel with 1 cm optical pathlength, reusable after rigorous 8-step ultrasonic cleaning and post-wash optical verification to ensure baseline transmission stability ≥99.8%.
• Precision microdispensing modules calibrated to ISO 8655-5: volumetric accuracy ±0.5% at 10 µL, repeatability CV < 0.3% across full 1–450 µL range for both samples and reagents.
• Integrated 1 mL dilution module enabling on-the-fly, in-cuvette serial dilutions up to 100×—critical for handling heterogeneous soil extracts exceeding linear dynamic range without manual intervention.
• Refrigerated 49-position reagent carousel (2–8 °C, optional activation) with level sensors and low-reagent alerts; compatible with commercially available domestic and international reagents meeting ASTM D511/D512/D7262 specifications.
• Sealed waste management system with liquid-level sensing, vapor-trapping cap, and overflow prevention—ensuring compliance with OSHA HCS and EU CLP hazard communication standards.

Sample Compatibility & Compliance

The CleverChem 380Plus accepts clarified soil extracts prepared per ISO 11260 (ammonium-N), ISO 13878 (total N), EPA Method 300.0 (nitrate/nitrite), EPA Method 353.2 (phosphate), and GB/T 32736–2016 (available phosphorus). It accommodates aqueous extracts from air-dried, sieved (<2 mm) soils, including those with elevated turbidity or organic load—enabled by programmable centrifugation-integrated pre-analysis steps (external interface). All validated methods conform to data integrity requirements of FDA 21 CFR Part 11 when paired with optional electronic signature and audit trail software modules. System performance verification follows ISO/IEC 17025 Annex A.5: linearity (R² ≥ 0.999), limit of quantitation (LOQ) verified per IUPAC guidelines, and inter-day precision ≤3.5% RSD for key nutrients (NO₃⁻, NH₄⁺, PO₄³⁻).

Software & Data Management

The embedded Windows-based CleverChem Control Suite provides dual-language (English/Chinese) operation with role-based access control, full electronic lab notebook (ELN) functionality, and configurable audit trails meeting ALCOA+ principles. Raw absorbance data, calibration logs, wash cycles, error flags, and maintenance timestamps are stored in encrypted SQLite databases with automatic daily backup export. Method templates support ISO-defined reaction kinetics (e.g., 10-min phosphate molybdenum blue development at 37 °C), and QC rules enforce Westgard multi-rules for control sample acceptance. Export formats include CSV, PDF analytical reports, and LIMS-ready XML (ASTM E1384-compliant). Optional 21 CFR Part 11 compliance package includes digital signatures, biometric login, and immutable record retention.

Applications

• Regulatory soil testing for agricultural land classification (e.g., nitrate leaching risk assessment per EU Nitrates Directive).
• Contaminated site characterization: quantification of sulfate, chloride, boron, and sulfide in brownfield remediation monitoring.
• Long-term ecological research: high-frequency temporal profiling of bioavailable N/P/K dynamics in experimental plots.
• Method development labs validating alternative extraction protocols against ISO reference methods.
• Contract testing facilities serving municipal wastewater sludge reuse programs requiring simultaneous total and extractable P speciation.

FAQ

Does the CleverChem 380Plus require dedicated exhaust ventilation?
No—its sealed reagent/sample handling and vapor-trapped waste system eliminate need for external fume hood integration. Ambient laboratory ventilation per ASHRAE 110 suffices.
Can it analyze digested soil samples for total element content?
Yes—when coupled with certified microwave digestion systems (e.g., Milestone ETHOS UP), the analyzer quantifies total N (via persulfate oxidation), total P (acid hydrolysis), and other elements using adapted colorimetric endpoints.
Is method transfer from manual protocols straightforward?
Yes—DeChem-Tech provides validated method conversion kits with kinetic parameter mapping (incubation time, temperature, wavelength) and equivalence studies per ISO 17511.
What maintenance intervals are recommended?
Daily: optical window wipe, waste container replacement. Weekly: ultrasonic bath cleaning solution refresh. Quarterly: pipette calibration verification and cuvette transmission check. Annual: full fluidic system pressure test and lamp output validation.
How is data integrity ensured during power interruption?
The system features uninterruptible power supply (UPS)-ready architecture with auto-resume capability: all active assays pause, retain position and reagent status, and resume post-reboot without data loss or sample misassignment.
