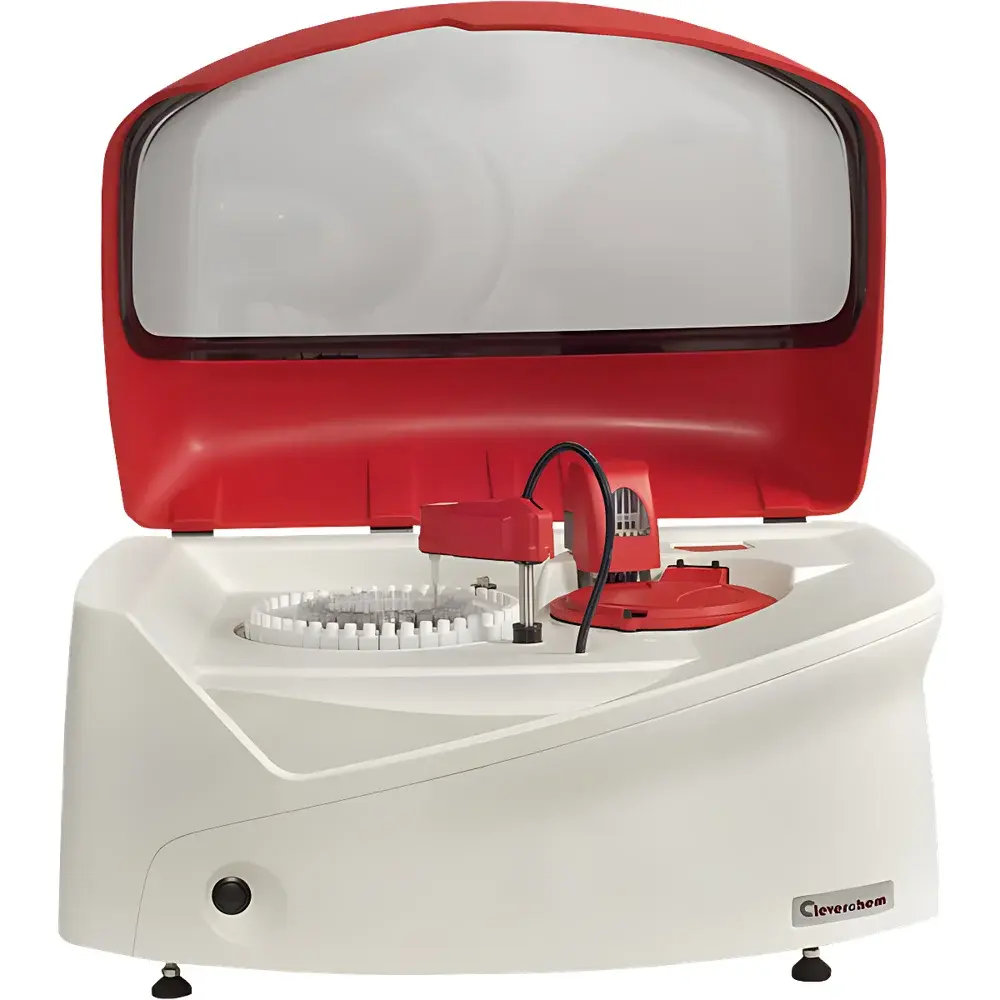

DeChem-Tech CleverChem Anna Fully Automated Discrete Analyzer for Soil Analysis

Overview

The DeChem-Tech CleverChem Anna is a fully automated discrete analyzer engineered for high-throughput, standardized chemical analysis of soil extracts and environmental matrices. It implements the principle of photometric discrete analysis—mimicking manual colorimetric protocols with robotic precision. In each analytical cycle, precisely metered volumes of soil extract, reagent, and chromogenic agent are delivered into a temperature-stabilized quartz cuvette. A stable color reaction develops in situ, and absorbance is measured at defined wavelengths using a high-stability tungsten-halogen light source and silicon photodiode detector. Concentration is calculated via a dynamically generated calibration curve, applying Beer-Lambert law principles. Unlike continuous-flow or segmented-flow systems, the CleverChem Anna employs true discrete analysis: each sample and standard is processed independently in its own cuvette, eliminating cross-contamination risk and enabling flexible method sequencing without carryover.

Key Features

• Fully automated workflow: sample aspiration, reagent dispensing, on-cuvette dilution (up to 100×), incubation, photometric measurement, and ultrasonic cuvette cleaning—all under software control.
• High-capacity sample handling: 49-position sample carousel compatible with standard 16 mm borosilicate tubes; supports unattended batch processing overnight.
• 31-reagent carrier with optional 4–10 °C refrigeration, preserving reagent stability for extended method runs.
• 64-position quartz cuvette tray (1 cm path length) with automated optical validation prior to reuse—ensuring consistent photometric performance across thousands of measurements.
• Integrated 8-step ultrasonic cleaning station with rinse, sonication, drying, and post-cleaning absorbance verification to guarantee optical cleanliness before each new assay.
• Intelligent liquid level sensing: real-time monitoring of sample volume, reagent stock, wash solution, and waste capacity—triggering audible/visual alerts and automatic pause on critical depletion.
• Low-volume consumption architecture: 1–400 µL sample and 1–450 µL reagent delivery enables up to 30× reagent savings versus conventional wet chemistry methods—reducing both operational cost and hazardous waste generation.

Sample Compatibility & Compliance

The CleverChem Anna is optimized for aqueous soil extracts prepared per ISO 11260 (ammonium), ISO 14253 (nitrate/nitrite), ISO 13536 (phosphate), and EPA Method 353.2 (total phosphorus). It accommodates turbid or particulate-laden extracts following centrifugation or filtration (0.45 µm). All pre-programmed soil methods—including ammonium-N, nitrate-N, nitrite-N, orthophosphate, silicate, sulfate, chloride, alkalinity, boron, total nitrogen (via persulfate digestion integration), and total phosphorus—are aligned with ISO, ASTM D512/D515/D7279, US EPA, and China’s GB/T 32722–2016 and GB/T 22105 series. The system supports full audit trail functionality, electronic signatures, and secure user access levels—meeting GLP and GMP documentation requirements per FDA 21 CFR Part 11 when configured with appropriate IT controls.

Software & Data Management

CleverChem Control Software (v5.x) provides a dual-language interface (English/Chinese) with intuitive method editor, real-time run monitoring, and integrated QC tools—including drift correction, blank subtraction (sample blank + reagent blank), and dynamic outlier detection. All raw absorbance values, calibration parameters, and instrument logs are stored in an encrypted SQLite database with timestamped metadata. Export formats include CSV, PDF analytical reports, and LIMS-ready XML. Data backup, version-controlled method libraries, and configurable electronic signature workflows ensure traceability from sample intake to final report—critical for accredited environmental laboratories undergoing ISO/IEC 17025 audits.

Applications

The CleverChem Anna serves as a core platform for soil fertility assessment, contamination screening, and regulatory compliance testing in agricultural research stations, environmental consultancies, government soil labs, and university departments. Typical use cases include routine monitoring of nitrogen speciation (NH₄⁺, NO₃⁻, NO₂⁻) in fertilized fields; rapid phosphate and boron profiling for crop nutrient management; sulfate and chloride quantification in saline soils; and alkalinity/silicate analysis in geochemical surveys. Its modularity also supports adaptation to water, sludge, and plant tissue extracts—enabling cross-matrix method transfer without hardware modification.

FAQ

What sample preparation is required prior to analysis?
Soil samples must be extracted using standardized protocols (e.g., CaCl₂ for available nutrients, KCl for exchangeable cations, or acid digestion for total elements), followed by centrifugation or filtration to remove suspended solids. Extracts should be clear and free of particulates before loading.

Can the system perform method validation per ISO/IEC 17025 requirements?
Yes—when operated with documented SOPs, calibrated photometer, certified reference materials, and enabled audit trail, the CleverChem Anna supports full method validation including precision (repeatability, intermediate precision), trueness (spike recovery), LOD/LOQ, and linearity assessment.

Is third-party reagent compatibility supported?
All reagents—including domestic Chinese brands—can be used provided they meet purity specifications (e.g., ACS grade or higher) and yield equivalent color development kinetics and stability as specified in validated methods.

How is carryover prevented between samples?
Carryover is eliminated through discrete cuvette-based analysis, physical separation of sample/reagent lines, positive-displacement syringes, and mandatory ultrasonic cleaning with optical verification before each cuvette reuse.

What maintenance intervals are recommended?
Daily: waste tank emptying, wash solution replenishment. Weekly: cuvette tray inspection and cleaning. Quarterly: photometer wavelength verification and syringe calibration. Annual: full preventive maintenance by certified DeChem-Tech service engineer.
