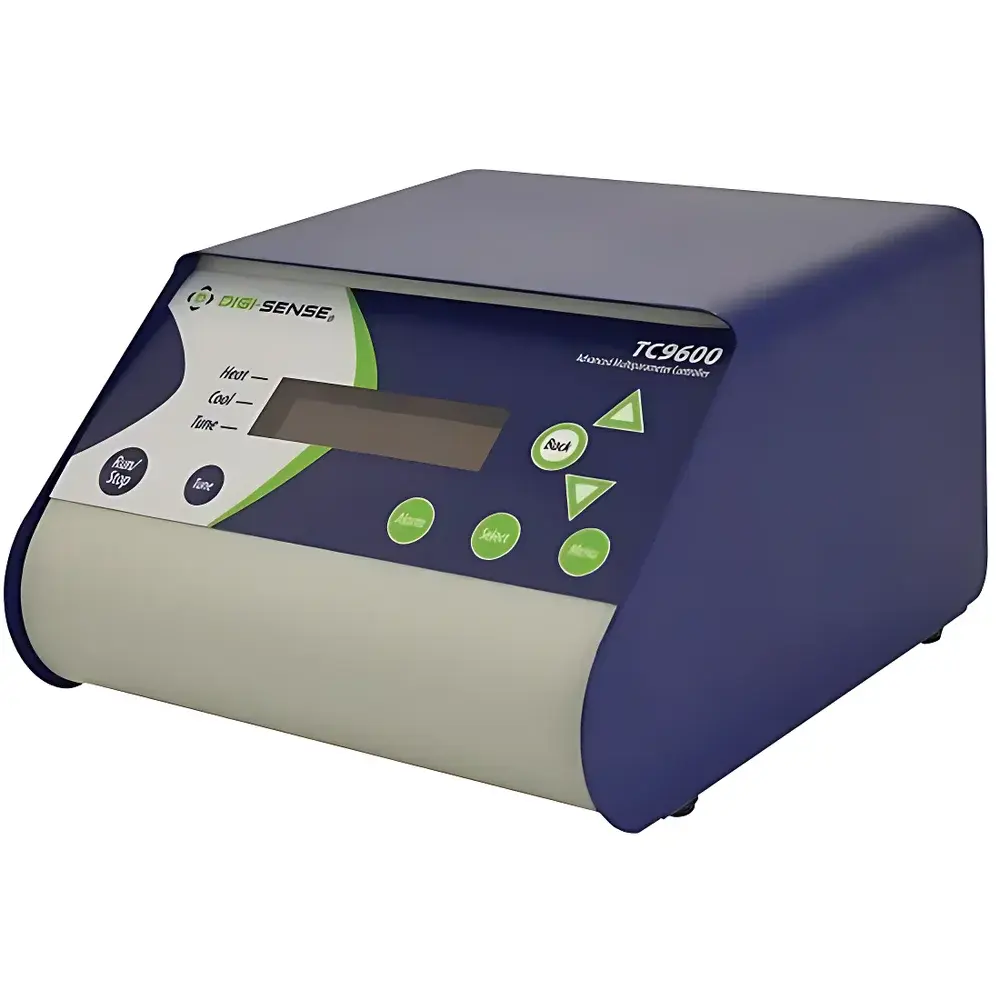

Digi-Sense TC9100 / TC9600 Benchtop Temperature Controller
| Brand | Digi-Sense |
|---|---|
| Origin | USA |
| Model | TC9100 / TC9600 |
| Input Types | Thermocouple (J, K, N, R, S, T, B, E), RTD, Thermistor |
| Control Output 1 | 230 VAC, 10 A max power receptacle |
| Control Output 2 | SPDT relay (24 VAC/VDC, 1 A max) |
| Alarm Output | Yes (TC9600) |
| Communication Interface | USB (TC9600 only) |
| Accuracy | ±0.1% of span (J/K/T/E/N), ±0.2% of span (B/R/S), ±0.7°F (±0.5°C) for thermistors |
| Resolution | 0.1° below ±99.9° and above 999.9° |
| Temperature Range | −200°C to +1800°C (−328°F to +2502°F) |
| Display | OLED, dual-line |
| Enclosure Dimensions | 203.2 mm (W) × 127 mm (H) × 228.6 mm (D) |
| Power Supply | 230 VAC |
| Compliance | CE-marked, IEC 61000-4-2/4/5/6 (EMC), UL/CSA recognized components |
| Safety Features | Loop-break alarm, over-temperature cutoff, programmable timer shutdown, independent fusing for meter and output socket, audible/visual overrange indication |
Overview
The Digi-Sense TC9100 and TC9600 are precision-engineered benchtop temperature controllers designed for single-loop thermal regulation in laboratory, pilot-scale, and light industrial environments. These microprocessor-based instruments implement proportional-integral-derivative (PID) control logic to maintain user-defined setpoints with high reproducibility across wide thermal ranges—from cryogenic conditions (−200°C) to high-temperature furnace applications (+1800°C). Unlike basic on/off thermostats, the TC9100/TC9600 series supports auto-tuning algorithms that empirically determine optimal PID parameters without requiring manual loop characterization—reducing commissioning time and minimizing overshoot or oscillation during transient thermal events. The controllers accept inputs from eight standard thermocouple types (J, K, N, R, S, T, B, E), platinum RTDs (e.g., Pt100), and NTC/PTC thermistors, enabling seamless integration into diverse thermal systems including environmental chambers, calibration baths, reaction blocks, and material testing ovens. Dual-line OLED display provides simultaneous readout of process variable (PV) and setpoint (SP), along with real-time status indicators for output activation, alarm conditions, and control mode.
Key Features
- Configurable control modes: On/Off, P-only, PI, PID, and auto-tuned PID with adaptive parameter optimization
- Dual-line OLED display with backlight for high-contrast readability under varied ambient lighting
- Universal sensor compatibility: J/K/N/R/S/T/B/E thermocouples, 2-/3-/4-wire RTDs, and thermistors (NTC/PTC)
- Two independent control outputs: High-power 230 VAC/10 A receptacle (for direct heater connection) and SPDT relay (24 VAC/VDC, 1 A) for auxiliary devices or safety interlocks
- Comprehensive safety architecture: Loop-break detection, over-temperature limit shutdown, programmable safety timer, dedicated fuses for meter and output circuits, and dual-mode (audible + visual) overrange alarm
- Non-volatile memory retains all configuration settings—including PID coefficients, setpoints, ramp/soak profiles, and unit preferences—through power cycles
- Ergonomic benchtop housing with perforated mounting grille for secure installation inside fume hoods or enclosures
- TC9600 variant includes USB 2.0 interface compliant with CDC ACM class for host communication and firmware updates
Sample Compatibility & Compliance
The TC9100/TC9600 controllers accommodate a broad spectrum of thermal measurement and actuation configurations. Sensor input flexibility ensures compatibility with legacy and modern temperature probes used in ASTM E220, ISO 17025-accredited calibration labs, and GMP-compliant manufacturing processes. The units meet electromagnetic compatibility requirements per IEC 61000-4-2 (ESD), -4-4 (EFT), -4-5 (surge), and -4-6 (conducted RF immunity), minimizing signal corruption in electrically noisy environments. All models incorporate safety-rated components certified to UL 61010-1 and CSA C22.2 No. 61010-1 standards. While not FDA 21 CFR Part 11–validated out-of-the-box, the TC9600’s USB interface and deterministic data logging behavior support integration into validated systems when paired with compliant third-party software and procedural controls (e.g., audit trail generation, electronic signatures).
Software & Data Management
The TC9600 ships with free Windows-compatible configuration and monitoring software supporting real-time plotting of PV and SP trajectories, manual setpoint adjustment, ramp/soak profile programming (up to 9 segments, 16 steps total), and export of timestamped CSV datasets. The application implements context-sensitive help and intuitive wizard-driven setup for non-specialist users. USB communication uses standard CDC ACM drivers—no proprietary runtime libraries required. Data integrity is preserved via cyclic redundancy check (CRC) validation during transmission. Although onboard data logging is not implemented, the software enables continuous acquisition at user-defined intervals (100 ms to 60 s), suitable for thermal stability studies, qualification protocols (IQ/OQ/PQ), and comparative analysis against reference standards. Exported files comply with GLP documentation requirements when stored with metadata (operator ID, instrument ID, calibration date).
Applications
- Calibration laboratories: Maintaining stable bath temperatures for thermometer and probe verification per ISO/IEC 17025
- Materials science: Controlling annealing, sintering, or thermal cycling furnaces in metallurgy and ceramics R&D
- Pharmaceutical QA/QC: Regulating incubators, stability chambers, and dissolution apparatus per USP and ICH Q1 guidelines
- Electronics reliability testing: Managing thermal shock profiles for component burn-in and HALT/HASS procedures
- Academic research: Providing precise thermal environments for polymer rheology, catalyst testing, and electrochemical cell conditioning
- Food safety labs: Supporting pasteurization validation and thermal death time (TDT) curve generation
FAQ
What sensor types are supported by the TC9100 and TC9600?
Both models accept J, K, N, R, S, T, B, and E thermocouples; 2-, 3-, or 4-wire RTDs (e.g., Pt100, Pt1000); and standard NTC/PTC thermistors.
Does the TC9100 include USB connectivity?
No—USB output is exclusive to the TC9600 model. The TC9100 is a standalone controller with no digital communication interface.
Can the controller operate in Kelvin or Rankine units?
Yes—temperature units are fully configurable between °C, °F, K, and °R via front-panel menu navigation.
Is external power required for the relay output?
The SPDT relay (Output 2) is self-powered; no external excitation voltage is needed—it switches up to 24 VAC/VDC at 1 A.
How is over-temperature protection implemented?
A dedicated hardware watchdog monitors PV against a user-configurable upper limit; if exceeded, the controller immediately de-energizes both outputs and activates audible/visible alarms.
Are calibration certificates included with shipment?
Factory calibration data (as-found/as-left reports) is provided; NIST-traceable certification is available as an optional add-on service.
