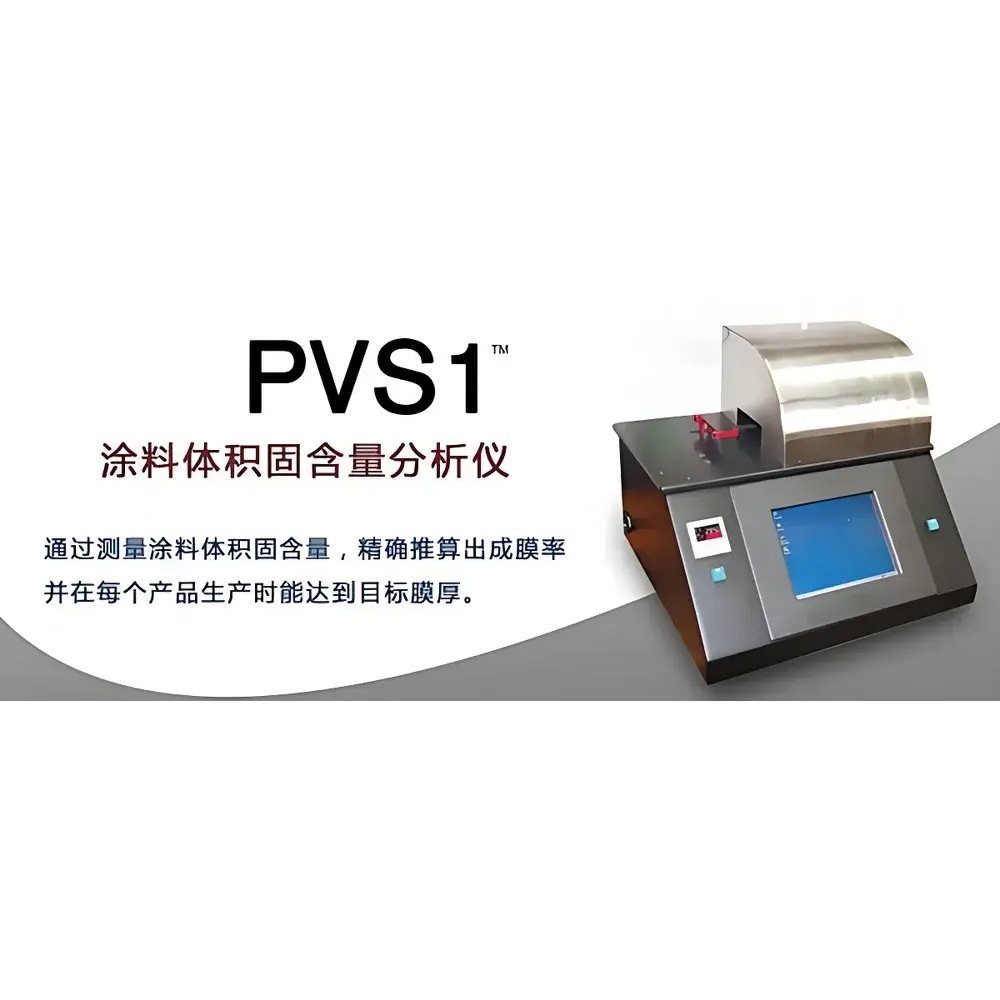

DJH Wolf PVS1 Coating Volume Solids Analyzer
| Brand | DJH Designs |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | PVS1 |
| Pricing | Available Upon Request |
Overview
The DJH Wolf PVS1 Coating Volume Solids Analyzer is a precision benchtop instrument engineered for rapid, non-destructive determination of volume solids content in liquid coatings—including paints, varnishes, lacquers, and industrial primers. It operates on the principle of buoyancy-based density comparison, leveraging ASTM D2697–23 and ISO 3233–2:2021 methodologies to quantify the volume fraction of non-volatile components after controlled solvent evaporation under standardized thermal conditions. Unlike gravimetric methods requiring extended drying cycles and operator intervention, the PVS1 integrates an integrated microbalance, temperature-stabilized oven chamber, and automated mass-to-volume conversion algorithm—enabling repeatable volume solids measurement in under 12 minutes per sample. This capability directly supports film thickness predictability, material yield optimization, and VOC compliance verification across R&D, QC, and production environments.
Key Features
- Automated dual-stage thermal protocol: Pre-conditioning at 23 °C ± 0.5 °C followed by controlled solvent removal at 110 °C ± 1 °C (adjustable per ASTM/ISO requirements)
- High-resolution microbalance with 0.0001 g repeatability and internal calibration traceable to NIST standards
- Integrated volumetric correction for temperature-induced density drift using real-time ambient sensor feedback
- Touchscreen HMI with guided workflow navigation, user-defined method storage (up to 50 protocols), and audit-ready timestamped logs
- Robust stainless-steel sample chamber with inert atmosphere option (N₂ purge) for oxygen-sensitive or thermally labile formulations
- Compliance-ready design: Supports 21 CFR Part 11–compliant electronic signatures and audit trail export when paired with optional DJH DataVault software
Sample Compatibility & Compliance
The PVS1 accommodates standard ASTM D2697 test cups (40 mL capacity) and accepts viscous, thixotropic, or pigment-loaded coatings with viscosities up to 50,000 mPa·s (Brookfield LVT @ 6 rpm). It is validated for waterborne, solventborne, and high-solids UV-curable systems. Regulatory alignment includes full support for ISO 3233–2:2021 Annex A (volume solids by density method), ASTM D2697–23 Section 7 (calculation procedure), and EU Directive 2004/42/EC VOC calculation frameworks. All firmware and calibration routines are documented per GLP and GMP Annex 11 requirements, enabling direct integration into quality management systems subject to FDA, EMA, or Health Canada inspection.
Software & Data Management
The embedded operating system records raw mass data, chamber temperature profiles, and final volume solids (%) with metadata (operator ID, sample ID, method version, environmental RH/T). Export options include CSV, PDF analytical reports, and XML for LIMS ingestion. When connected to DJH DataVault (v3.2+), the system enables role-based access control, electronic signature workflows, and immutable audit trails meeting 21 CFR Part 11 Subpart B requirements—including record retention, change history, and electronic record authenticity verification. Raw datasets retain full traceability to calibration certificates and environmental logs for regulatory submission readiness.
Applications
- Predictive film thickness modeling during formulation development
- Batch release testing for automotive OEM coating suppliers (e.g., ED-coat, clearcoats)
- VOC content validation for EPA Method 24 and EU Paints Directive reporting
- Process troubleshooting in coil coating and can manufacturing lines
- Raw material qualification—verifying supplier-provided volume solids specifications
- Supporting IATF 16949 clause 8.5.1.2 (process validation for coating application)
FAQ
What standards does the PVS1 comply with for volume solids measurement?
ASTM D2697–23, ISO 3233–2:2021, and EN 933–10 for density-based solids quantification.
Can the PVS1 measure high-viscosity epoxy primers without dilution?
Yes—validated for undiluted samples up to 50,000 mPa·s; cup geometry and thermal ramp profile prevent splattering or skin formation.
Is external calibration required between runs?
No—internal motorized calibration weight performs automatic verification before each analysis cycle.
Does the instrument support multi-language UI for global labs?
English and French interfaces are pre-installed; German, Spanish, and Japanese language packs available via firmware update.
How is data integrity ensured during power interruption?
Non-volatile memory retains all active method parameters and partial run data; analysis resumes automatically upon power restoration.
