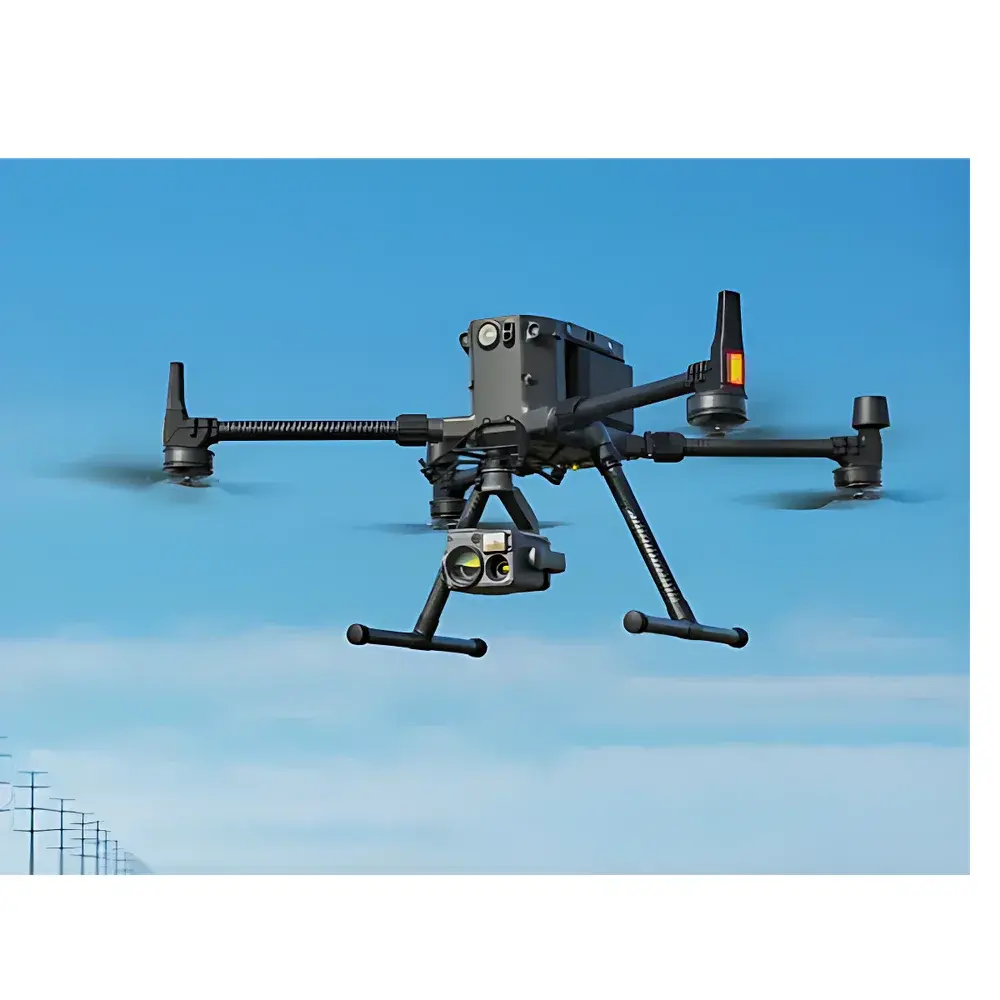

DJI Matrice 300 RTK Industrial Quadcopter Drone

Overview

The DJI Matrice 300 RTK is an industrial-grade quadcopter platform engineered for high-reliability environmental remote sensing and telemetry operations in demanding field conditions. Built on a modular, carbon fiber composite airframe, it implements dual-band GNSS (GPS, GLONASS, BeiDou, Galileo) with real-time kinematic (RTK) positioning to achieve centimeter-level georeferencing accuracy—critical for repeatable ecological monitoring, land cover classification, and change detection across multi-temporal surveys. Its flight architecture supports simultaneous integration of heterogeneous payloads—including multispectral, hyperspectral, thermal infrared, oblique, and lightweight LiDAR sensors—enabling synchronized acquisition of spectral, geometric, and thermal data streams within a single mission. Designed for operational continuity in complex terrain and variable meteorological environments, the M300 RTK operates at altitudes up to 7000 m with high-altitude propellers and maintains stable hover performance under wind loads up to 15 m/s.

Key Features

• Triple-redundant IMU, barometer, and compass systems ensure fail-safe attitude estimation and flight stability during extended environmental surveys.
• Dual-operator control mode enables collaborative mission execution—one pilot manages flight dynamics while the second controls sensor operation and real-time data annotation.
• Intelligent waypoint navigation with precise re-flight capability supports standardized transect-based monitoring of wetlands, forest canopies, or coastal zones over successive growing seasons.
• Onboard vision and infrared perception systems provide obstacle avoidance in all six directions (front, rear, left, right, up, down), enabling safe autonomous operation in vegetated or topographically constrained areas without GPS signal degradation.
• Hot-swappable dual battery system permits uninterrupted mission continuity—batteries may be replaced mid-deployment without powering down flight controllers or sensor modules.
• IP45-rated enclosure protects internal electronics against dust ingress and water splashing, meeting minimum environmental durability requirements for outdoor ecological telemetry applications.

Sample Compatibility & Compliance

The M300 RTK serves as a certified airborne platform for third-party environmental sensors compliant with DJI’s Payload SDK v3.4+ and OSDK 4.0+. It interfaces seamlessly with OEM payloads adhering to CE, FCC, and SRRC regulatory frameworks. While the airframe itself does not carry ISO/IEC 17025 accreditation, its RTK positioning subsystem meets the traceability and repeatability thresholds required for data submission under national environmental monitoring protocols (e.g., China’s HJ 1237–2021, US EPA Method 100.1 for aerial survey validation). All flight logs, GNSS metadata, and sensor timestamps are recorded with UTC-synchronized precision, supporting audit-ready documentation per GLP-aligned field data collection workflows.

Software & Data Management

Flight planning, telemetry monitoring, and payload control are managed through DJI Pilot—a cross-platform application compatible with Android tablets and ruggedized Windows devices. Mission parameters, including geotagged image capture intervals, spectral band selection, and LiDAR point cloud density settings, are programmable via XML-based mission templates. Raw sensor data streams are stored on removable microSD cards (up to 128 GB) with embedded EXIF/XMP metadata containing precise GNSS coordinates, altitude, yaw/pitch/roll angles, and sensor calibration IDs. Post-mission processing integrates with industry-standard photogrammetry and radiometric correction pipelines (e.g., Pix4Dmapper, Agisoft Metashape, ENVI) and supports export formats compliant with OGC SensorML and ISO 19115 metadata schemas.

Applications

• Long-term phenological tracking of vegetation indices (NDVI, NDRE, CIred-edge) across agricultural catchments and protected natural reserves.
• Thermal anomaly mapping for wildfire risk assessment and post-fire regeneration analysis using calibrated microbolometer arrays.
• High-resolution digital surface model (DSM) generation via photogrammetric structure-from-motion (SfM) for erosion monitoring and watershed delineation.
• Multi-temporal change detection in mangrove ecosystems using fused RGB-NIR-SWIR spectral stacks acquired from hyperspectral payloads.
• Airborne methane plume localization and quantification when integrated with miniaturized open-path gas analyzers (OPGA) and wind vector modeling.

FAQ

Does the M300 RTK support third-party LiDAR integration for forestry biomass estimation?
Yes—the platform is validated for use with Velodyne VLP-16, Riegl VUX-1LR, and Livox Avia LiDAR modules via DJI’s Payload SDK, enabling direct time-synchronized point cloud registration with GNSS/IMU data.
Can flight logs be exported in CSV or JSON format for integration into institutional GIS databases?
All flight telemetry—including position, attitude, velocity, battery status, and sensor trigger events—is exportable in timestamped CSV format via DJI Assistant 2 desktop software.
Is the aircraft certified for BVLOS (Beyond Visual Line of Sight) operations under EASA or FAA Part 107 regulations?
The M300 RTK meets hardware prerequisites for BVLOS; however, operational authorization requires site-specific risk assessment, detect-and-avoid (DAA) system validation, and approval from local civil aviation authorities.
What level of radiometric calibration is supported for multispectral cameras mounted on this platform?
The drone provides stable gimbal stabilization (±0.01° RMS) and synchronized shutter triggering, enabling external reflectance panel-based calibration workflows compliant with ASTM E2597 and ISO 12232 standards.
How is firmware updated across fleets deployed across multiple ecological monitoring stations?
Firmware distribution is centrally managed via DJI FlightHub 2 cloud platform, supporting over-the-air (OTA) updates, version rollback, and compliance reporting for fleet-wide maintenance logs.
