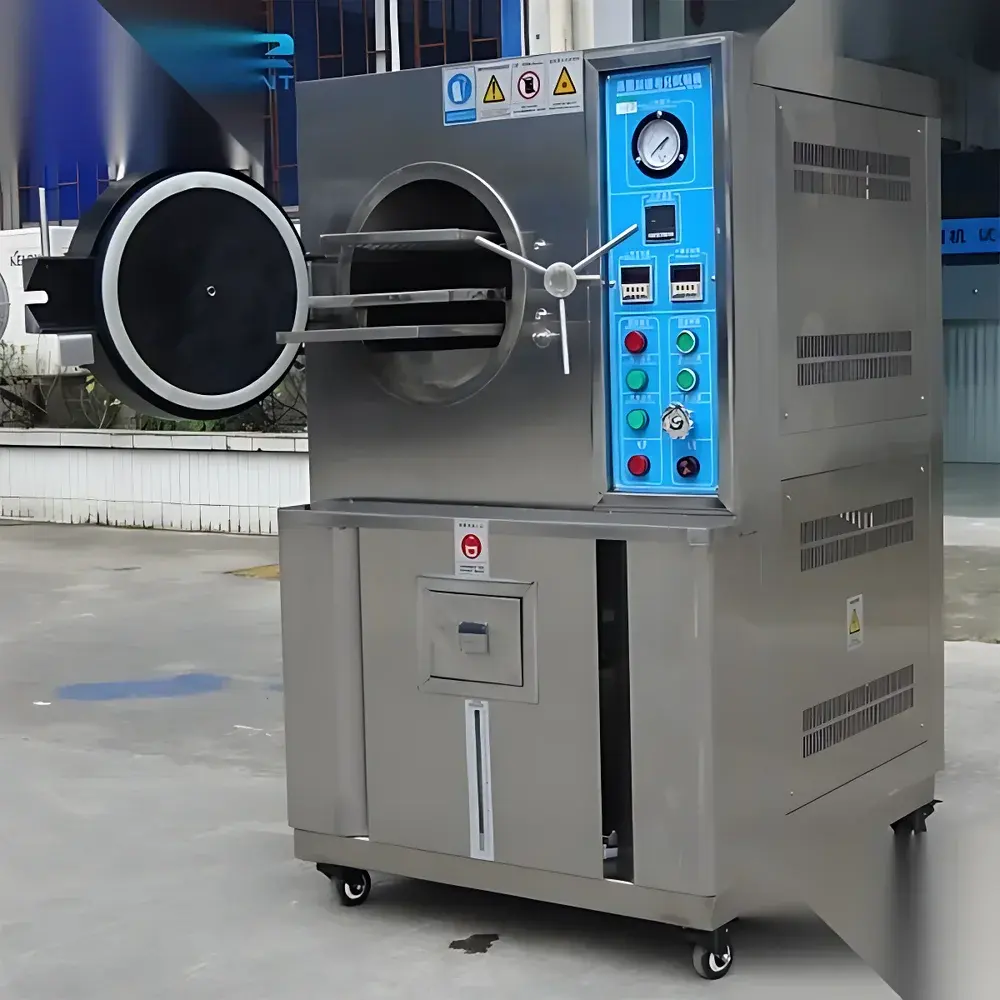

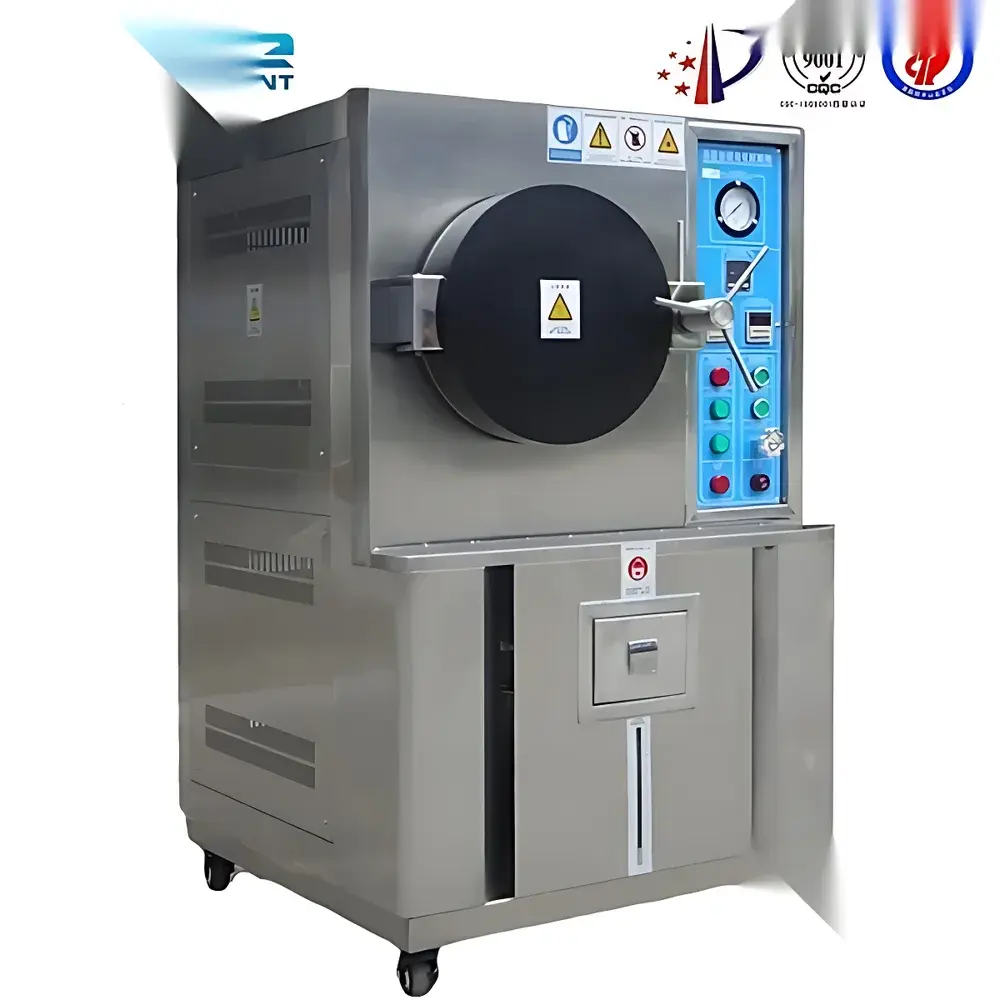

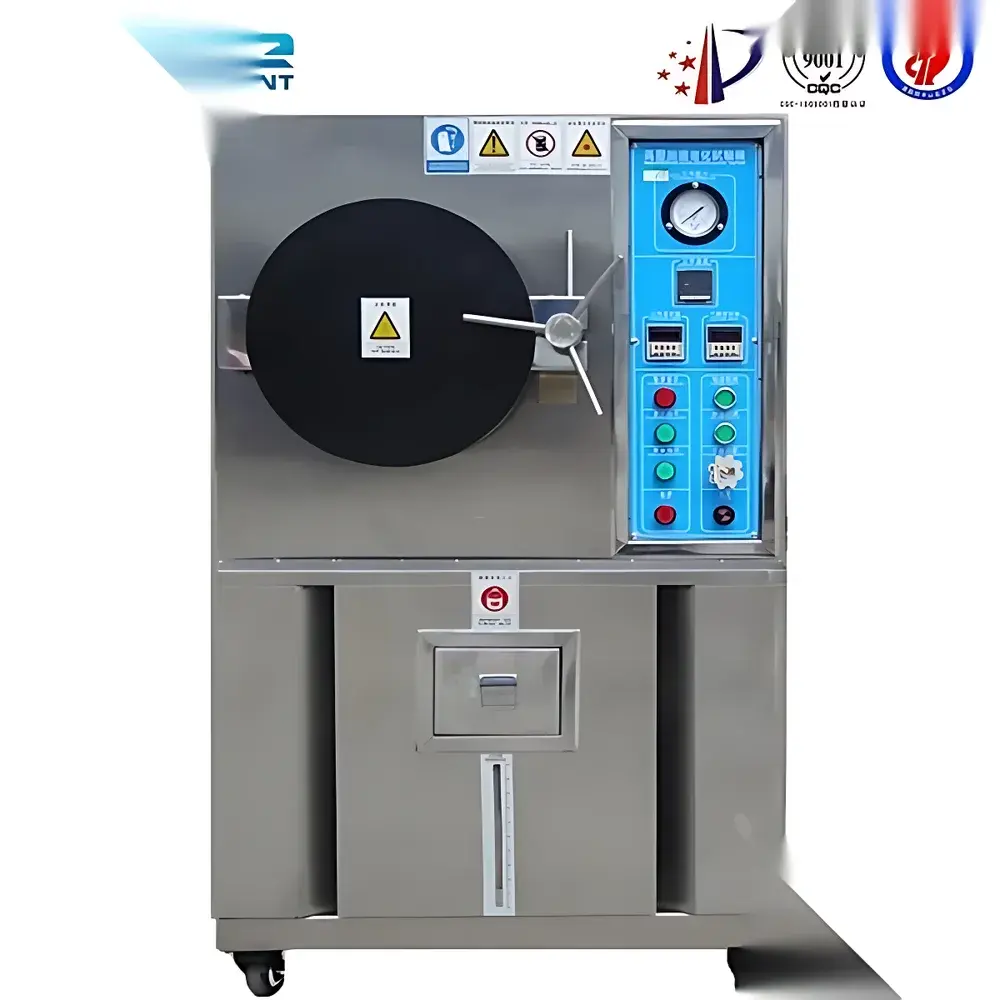

Dongting Lake High-Pressure Aging Chamber

Overview

The Dongting Lake High-Pressure Aging Chamber is an engineered environmental stress test system designed for accelerated aging, sterilization validation, and material stability assessment under controlled high-pressure saturated steam conditions. It operates on the principle of pressurized saturated steam autoclaving—leveraging elevated temperature and pressure to accelerate hydrolytic degradation, polymer cross-linking, or microbial inactivation kinetics in accordance with standardized thermal aging protocols. Unlike conventional ovens or humidity chambers, this unit maintains a fully saturated vapor environment at pressures up to 2.8 kg/cm² (gauge), corresponding to saturation temperatures exceeding 130°C—enabling rapid simulation of long-term service conditions for medical devices, packaging materials, elastomers, and pharmaceutical primary containers. Its horizontal cylindrical chamber geometry minimizes condensate pooling and ensures uniform thermal distribution while enhancing operator safety during loading/unloading.

Key Features

• Horizontal cylindrical inner chamber design (Ø250 × 450 mm or Ø350 × 500 mm) optimized for ergonomic sample access and reduced condensation accumulation during pressurized cycles.
• Integrated safety interlock system combining real-time pressure sensing, temperature monitoring, and mechanical door locking: the circular door gasket seals tighter under internal overpressure, and the door remains mechanically locked until chamber pressure drops below atmospheric level.
• Automated operational sequence—including programmable shutdown, controlled depressurization, vacuum break, and timed water replenishment—supports unattended operation for up to 100 hours per fill; optional continuous auto-refill module available upon request.
• Vacuum-assisted air purge cycle prior to steam generation ensures removal of ambient oxygen and particulates, delivering high-purity saturated steam essential for reproducible aging outcomes and ISO 11134-compliant validation studies.
• Double-walled construction: inner chamber fabricated from corrosion-resistant SUS304 stainless steel; outer casing from SECC cold-rolled steel with electrostatic powder coating for durability and cleanroom-compatible surface finish.

Sample Compatibility & Compliance

The chamber accommodates rigid and semi-rigid samples including but not limited to IV bags, syringe barrels, silicone tubing, polyolefin films, rubber stoppers, and sterilization pouches. Its pressure-temperature profile aligns with key international standards for accelerated aging and sterilization process development, including ASTM F1980 (accelerated aging of sterile barrier systems), ISO 11134 (validation of moist heat sterilization), and ISO 11607-1 (packaging for terminally sterilized medical devices). The system supports GLP-compliant documentation when integrated with external data loggers meeting FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

While the base configuration includes a microprocessor-based PID controller with digital display and manual program setup, optional Ethernet-enabled controllers provide RS485/Modbus RTU or TCP/IP connectivity for integration into centralized lab management platforms. All cycle parameters—including setpoints, actual temperature/pressure traces, dwell times, and alarm events—are timestamped and exportable as CSV files. Audit trail functionality (with user login, parameter change logging, and electronic signature capability) is available via validated software add-ons compliant with GMP Annex 11 and ISO/IEC 17025 data integrity requirements.

Applications

• Accelerated shelf-life prediction of medical device packaging per ASTM F1980 and ISO 11607-2.
• Validation of steam sterilization cycles for reusable surgical instruments and implants.
• Hydrolytic stability testing of biodegradable polymers (e.g., PLGA, PCL) under accelerated moisture exposure.
• Accelerated corrosion testing of coated metallic components in high-humidity, high-pressure environments.
• Stability qualification of pharmaceutical container-closure systems under ICH Q5C guidelines.

FAQ

What safety certifications does this chamber meet?

The unit conforms to IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and incorporates dual redundant pressure relief valves rated to 4.0 kg/cm². CE marking is provided upon request for EU-market deployment.

Can the chamber be used for dry heat applications?

No—it is specifically engineered for saturated steam environments only. Dry heat operation is not supported due to absence of forced-air circulation and lack of low-humidity control mechanisms.

Is remote monitoring supported out of the box?

Standard models include local HMI with real-time trend display. Remote monitoring requires optional communication modules and third-party SCADA or LIMS integration.

What maintenance intervals are recommended?

Daily visual inspection of door seal integrity; quarterly calibration of temperature and pressure transducers using NIST-traceable references; annual verification of safety valve setpoints by certified technician.
