Double Helix 3D Super-Resolution Imaging System – Single-Molecule Localization Microscope

Overview

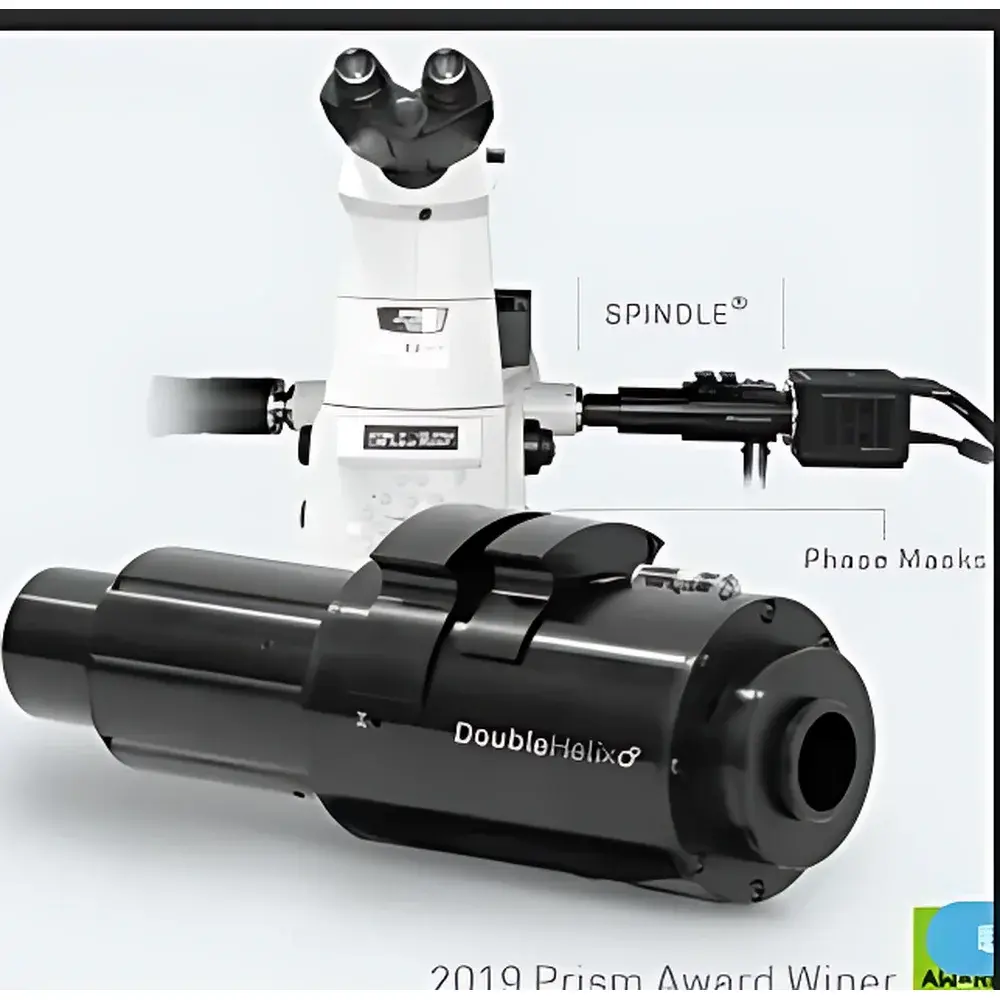

The Double Helix 3D Super-Resolution Imaging System is a precision-engineered optical add-on module designed for single-molecule localization microscopy (SMLM) with true three-dimensional (3D) nanoscale resolution. Unlike conventional widefield or confocal microscopes limited by the diffraction barrier (~200 nm laterally, ~500–700 nm axially), this system leverages patented Double Helix Point Spread Function (DH-PSF) engineering to encode axial (z) position information directly into the spatial orientation of a dual-lobe emission pattern. When integrated into an existing inverted or upright research-grade microscope, the DH-PSF module—inserted at the pupil plane via the SPINDLE™ relay optics—transforms emitted fluorescence from individual fluorophores (e.g., Alexa Fluor dyes, organic fluorophores, or photoactivatable proteins such as mEos4b or Dronpa) into a rotationally symmetric double-helix image. The angular separation between the two lobes correlates linearly with the emitter’s axial displacement relative to the focal plane, enabling simultaneous high-precision (< 30 nm lateral, 2 µm usable axial range), making it particularly suitable for volumetric reconstruction of dense subcellular structures—including nuclear pore complexes, cytoskeletal networks, synaptic vesicle clusters, and chromatin domains.

Key Features

• Patented Double Helix PSF optical encoding for robust, calibration-free 3D single-molecule localization
• Modular SPINDLE™ optical relay architecture compatible with standard C-mount interfaces and commercial scientific microscopes (Nikon Ti2, Olympus IX83, Zeiss Axio Observer, etc.)
• Interchangeable phase mask cartridges optimized for specific emission bands (488 nm, 561 nm, 640 nm) and signal-to-noise requirements
• No moving parts—mechanically stable alignment maintained across x-, y-, and z-dimensions of the pupil plane
• Built-in pupil-plane correction optics ensuring precise telecentricity and conjugation with objective back aperture
• Dual-lobe detection efficiency > 95% across visible and near-IR spectral ranges
• Integrated bypass mode for rapid transition between conventional 2D imaging and 3D SMLM workflows
• Compact footprint (< 120 mm × 80 mm × 65 mm) enabling installation in space-constrained optical tables or enclosed microscope enclosures

Sample Compatibility & Compliance

The Double Helix system is validated for use with fixed and live-cell preparations labeled with standard organic dyes (e.g., Alexa Fluor 647, Cy5), quantum dots, and genetically encoded photoactivatable/ photoswitchable fluorescent proteins (PA-FPs). It supports standard mounting media (e.g., Prolong Diamond, Vectashield) and immersion objectives (oil, water, glycerol). All optical components meet ISO 10110 surface quality standards; mechanical housings comply with RoHS and CE directives. The system architecture supports GLP/GMP-aligned experimental traceability when used with 3DTRAX™ software configured for audit-trail logging per FDA 21 CFR Part 11 requirements.

Software & Data Management

3DTRAX™ is a Fiji/ImageJ plugin developed specifically for DH-PSF data processing. It provides end-to-end workflow support: raw frame alignment and drift correction, single-molecule fitting using maximum-likelihood estimation (MLE), 3D localization reconstruction, density-based clustering, temporal trajectory linking, and volumetric rendering. Output formats include HDF5 (for long-term archival), CSV (for statistical analysis in Python/R), and OME-TIFF (for interoperability with Bio-Formats). Batch processing pipelines support parallelized computation on multi-core CPUs or GPU-accelerated environments. Calibration files are stored with metadata tags (wavelength, magnification, pixel size, phase mask ID) to ensure reproducibility across instruments and laboratories.

Applications

• Quantitative 3D mapping of protein nanodomains in plasma membranes and organelle contact sites
• Time-resolved tracking of intracellular cargo transport (e.g., mRNA granules, endosomes) over micrometer-scale volumes
• Structural analysis of multiprotein assemblies such as centrioles, nuclear pores, and postsynaptic densities
• Correlative super-resolution imaging combined with cryo-EM or electron tomography ground-truth validation
• Materials science applications including nanoscale defect mapping in 2D materials and polymer nanostructures
• Development of quantitative biomarkers based on 3D molecular stoichiometry and spatial heterogeneity

FAQ

What microscope configurations are supported?
The Double Helix module is compatible with most inverted and upright research microscopes equipped with a side port or camera port supporting C-mount or F-mount adapters. Standard 20×–100× objectives (NA ≥ 1.25) are recommended.
Is laser safety certification included?
The module itself contains no active light sources; laser safety compliance remains the responsibility of the host microscope’s illumination system and must adhere to IEC 60825-1 Class 3B/4 requirements.
Can 3DTRAX™ be used with non-Double Helix datasets?
No—3DTRAX™ is specifically optimized for DH-PSF point spread function modeling and does not support astigmatism-based or biplane-based 3D SMLM modalities.
What is the typical localization precision under physiological conditions?
With > 2000 photons per molecule and background ≤ 10 e⁻/pixel/frame, typical precisions are 15–25 nm (lateral) and 35–45 nm (axial) at 100× magnification and 16 µm² field of view.
Does the system require specialized training for operation?
Basic installation and alignment can be completed in under 30 minutes using provided alignment targets and video-guided protocols; advanced analysis training is available through online workshops and documented Jupyter notebooks.
