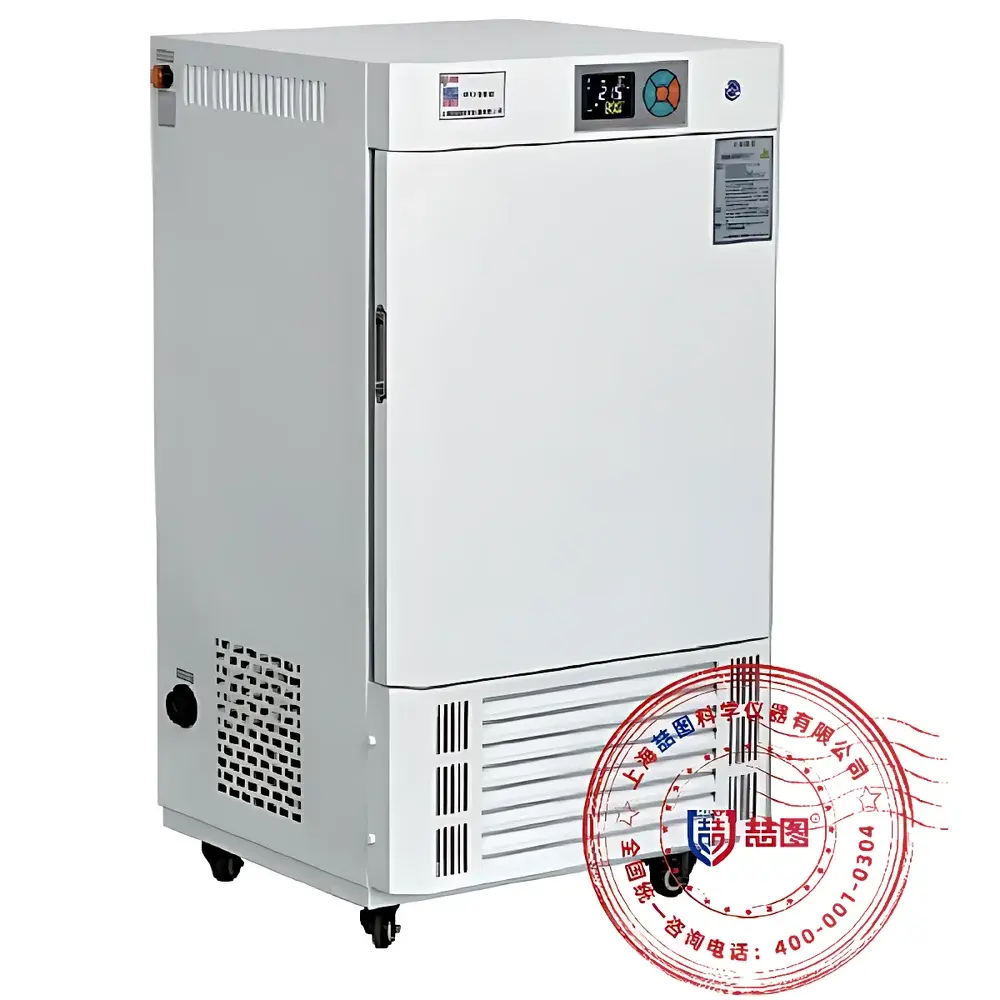

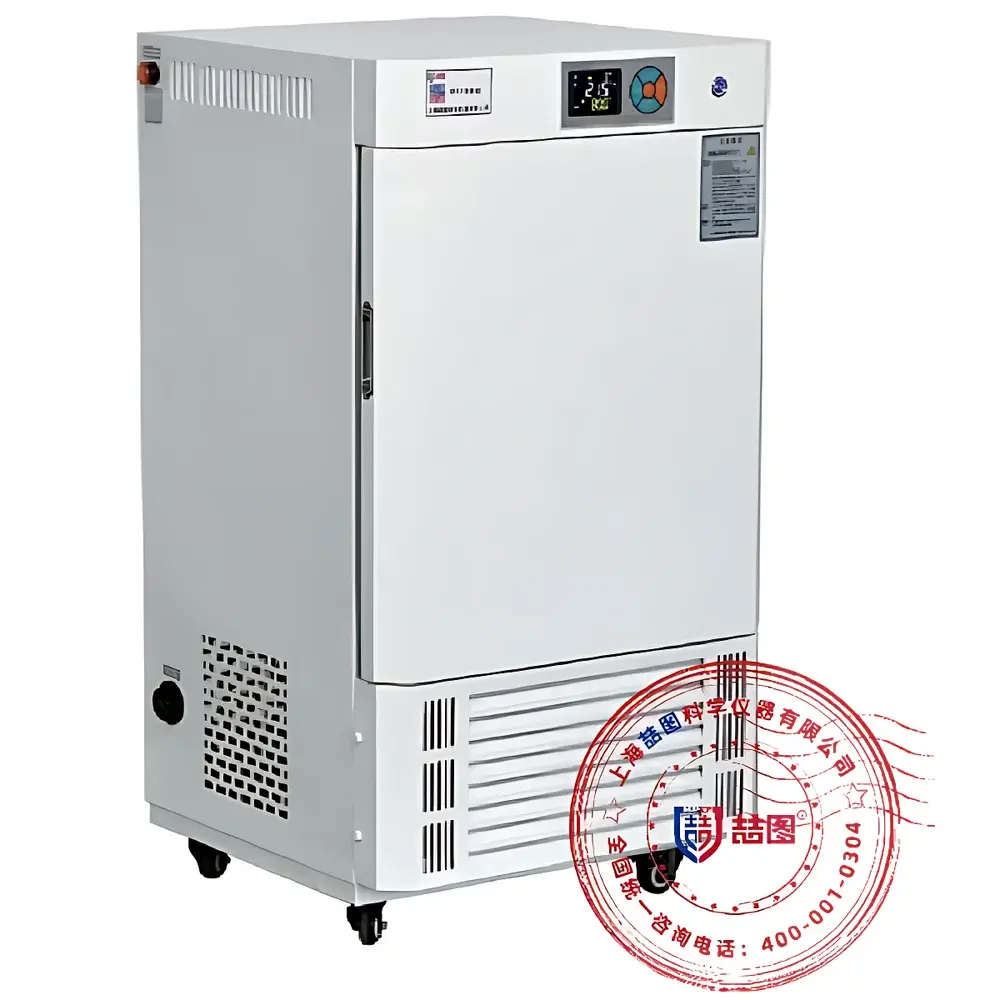

DRETOP BD6-150 Integrated BOD Incubation and Analysis System

Overview

The DRETOP BD6-150 Integrated BOD Incubation and Analysis System is a fully self-contained, dual-function instrument engineered for precise biochemical oxygen demand (BOD) quantification and controlled microbial incubation in compliance with standard environmental testing protocols—including ASTM D5210, ISO 5815-1:2019, and EPA Method 405.1. It implements the manometric (pressure-difference) principle: dissolved oxygen consumption by microorganisms in sealed BOD bottles generates a measurable pressure differential across a gas-permeable membrane, which is converted into real-time BOD concentration (mg/L) without mercury or chemical titration. Unlike dilution-based methods, the BD6-150 supports direct measurement across its full 0–4000 mg/L range—eliminating manual dilution errors and enabling unattended, multi-day (1–30 day) kinetic profiling. Its integrated incubator maintains a stable 20 °C ±1 °C environment—aligned with ISO-defined BOD₅ standard conditions—while ensuring uniform airflow via optimized forced convection and high-efficiency refrigeration using R134a-free, environmentally compliant refrigerant.

Key Features

• Simultaneous operation of up to six independent BOD measurement channels—each with dedicated pressure transducers, temperature compensation, and autonomous start/stop timing;
• Microprocessor-controlled incubation chamber (480 × 390 × 780 mm) featuring adjustable stainless-steel shelving, electrostatically coated exterior, and mirror-finish 304 stainless steel interior for corrosion resistance and ease of decontamination;
• 30-segment programmable incubation profile support—including ramp-hold cycles—for non-BOD applications such as microbial growth studies, seed germination, or fungal culture;
• Intelligent power management: automatic parameter retention during power interruption, restart recovery with timestamped continuity, and compressor protection logic (start delay, off-cycle interval);
• Touchscreen interface with intuitive graphical navigation; real-time BOD concentration display, automatic curve generation (BOD vs. time), and on-device data export via USB;
• Non-mercury, maintenance-minimized sensor architecture—no electrolyte refills, no electrode calibration drift, and <2% long-term signal drift over 12 months under routine use.

Sample Compatibility & Compliance

The BD6-150 accommodates standard 580 mL BOD bottles conforming to APHA 2540 G specifications. Its pressure-difference detection system is insensitive to sample turbidity, color, or suspended solids—making it suitable for raw wastewater, treated effluent, surface water, and industrial process streams without pre-filtration. The system meets GLP documentation requirements through built-in audit trail functionality (optional RS485 enables integration with LIMS), and supports 21 CFR Part 11-compliant electronic records when paired with validated software configurations. All thermal and analytical performance parameters are verified per IEC 61000-4 electromagnetic compatibility standards and CE-marked for laboratory use within the EU.

Software & Data Management

Data acquisition, visualization, and reporting are handled via embedded firmware supporting CSV export, time-series graphing, and BOD₅, BOD_u, and reaction rate constant (k) calculations. Internal memory retains ≥10 years of timestamped measurements (≥100,000 data points) with battery-backed SRAM. Optional RS485 communication enables remote monitoring and centralized data aggregation in multi-unit installations. USB host capability permits direct transfer to external drives or PC-based analysis platforms (e.g., MATLAB, Python pandas). Firmware updates are delivered via signed binary packages with SHA-256 verification to ensure integrity and traceability.

Applications

• Regulatory BOD₅ compliance testing for municipal wastewater discharge permits (e.g., NPDES);
• Biodegradability assessment of industrial effluents and emerging contaminants (e.g., pharmaceuticals, surfactants);
• Activated sludge respirometry and toxicity screening (e.g., IC₅₀ determination);
• Environmental impact assessments requiring standardized aerobic biodegradation kinetics;
• Academic research in microbial ecology, bioremediation, and wastewater treatment optimization;
• Quality control in pharmaceutical manufacturing where organic load monitoring of process water is mandated under USP and EP 2.2.43.

FAQ

What BOD standard methods does the BD6-150 comply with?
It is validated for ASTM D5210, ISO 5815-1:2019, and EPA Method 405.1—supporting both BOD₅ and extended incubation protocols.
Can samples be added mid-incubation without disrupting ongoing tests?
Yes—each of the six channels operates independently; new bottles may be inserted and initiated at any time without affecting active measurements.
Is temperature uniformity verified across the entire chamber volume?
Yes—per IEC 60068-3-5, spatial uniformity is certified at ±0.5 °C (max deviation) at 20 °C setpoint, confirmed via 9-point NIST-traceable probe mapping.
How is data integrity ensured for regulatory submissions?
All measurements include embedded timestamps, operator ID fields (via login), and immutable event logs—including door openings, parameter changes, and power events—enabling full audit readiness.
What maintenance is required beyond routine cleaning?
Annual verification of pressure transducer linearity and incubator temperature uniformity is recommended; no consumables or recalibration kits are required under normal operating conditions.
