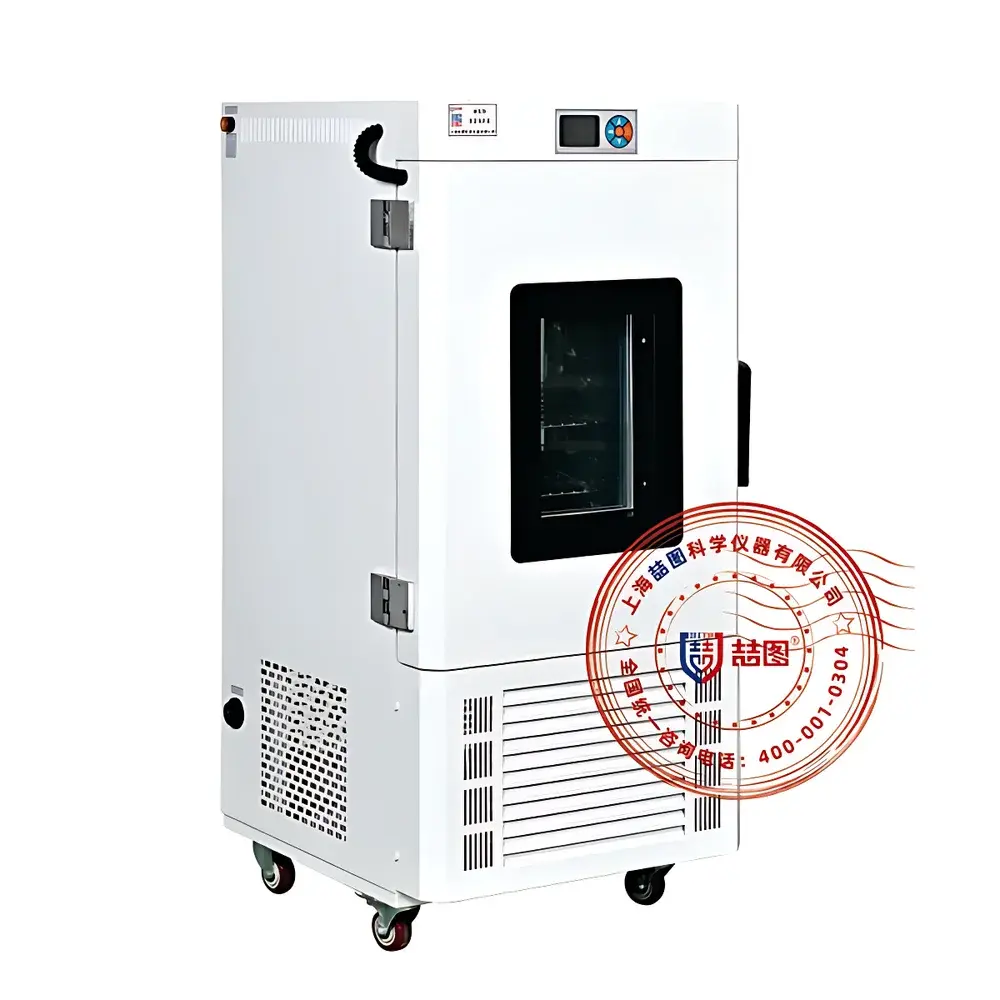

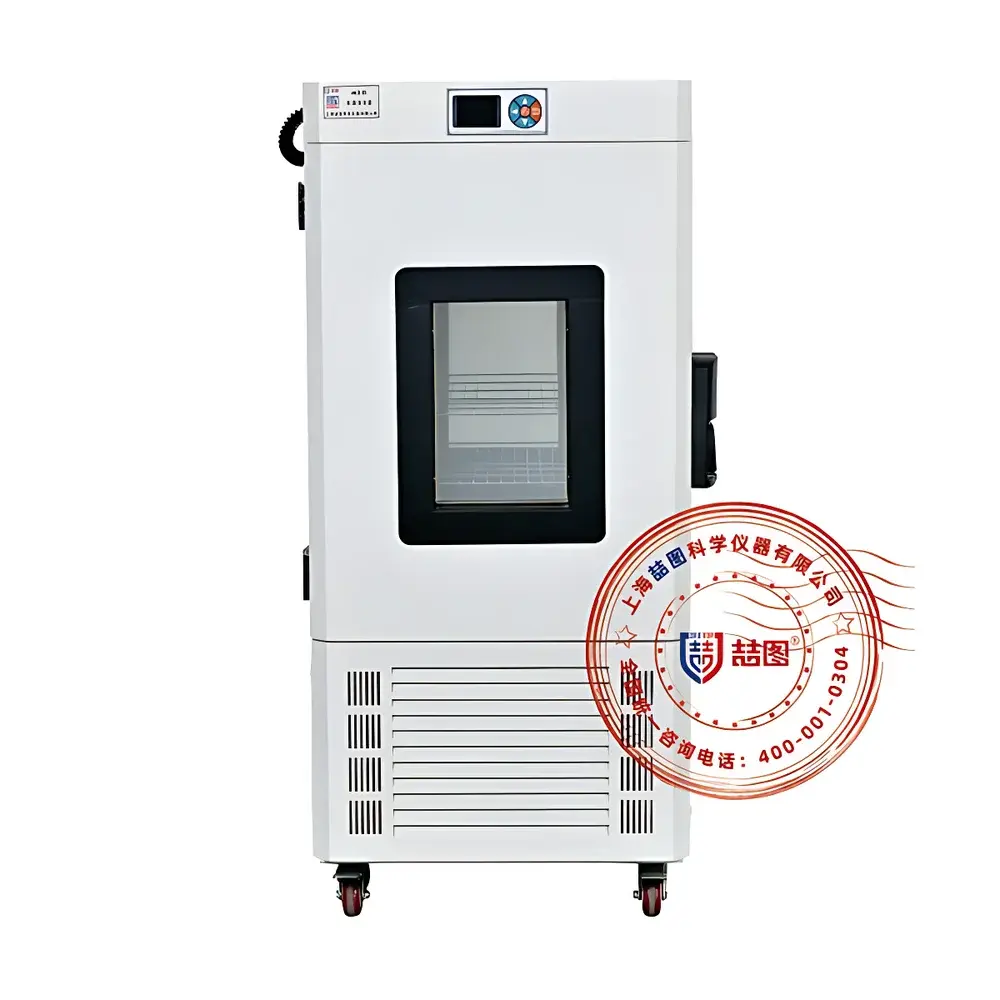

DRETOP DW-250CB Low-Temperature Incubator

Overview

The DRETOP DW-250CB Low-Temperature Incubator is an engineered environmental control system designed for precise, stable, and reproducible temperature management across demanding life science and industrial testing applications. Unlike general-purpose refrigerated cabinets, this unit integrates air-jacketed heating with dual-stage compressor-based refrigeration—enabling continuous operation from −40 °C to +65 °C with high thermal stability. Its architecture follows the fundamental principles of convective heat transfer optimization: a dedicated axial-flow fan system, combined with an internally optimized airflow channel, ensures uniform air circulation throughout the chamber volume. This design mitigates cold spots and stratification—critical for sensitive biological samples such as cryopreserved cell cultures, thermolabile reagents, or temperature-sensitive electronic components undergoing accelerated aging tests. The incubator complies with core functional expectations outlined in ISO 15197 (in vitro diagnostic devices), ASTM E2573 (environmental test chambers), and supports GLP-compliant workflows through configurable alarm thresholds and parameter retention during power interruption.

Key Features

• Microprocessor-based P.I.D temperature controller with 0.1 °C resolution and ±0.5 °C fluctuation tolerance—engineered for long-term stability under variable ambient loads.
• Air-jacketed heating system provides rapid, non-condensing warmth without introducing moisture into the chamber; paired with a high-efficiency hermetic compressor using R134a refrigerant (CFC-free, compliant with Montreal Protocol Annex A Group II requirements).

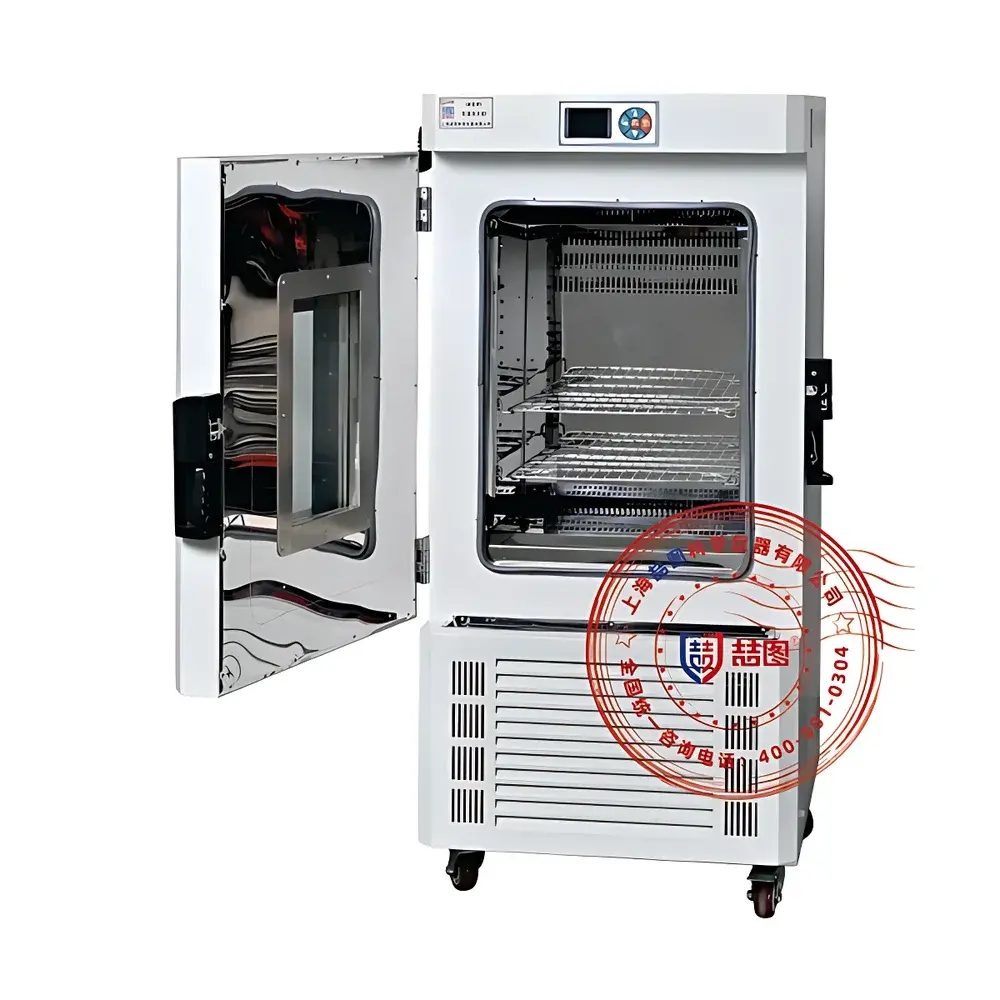

• Structural integrity: 1.2 mm cold-rolled steel outer shell with electrostatic powder coating; 304 stainless steel interior chamber and fully removable, height-adjustable shelves for autoclave-compatible cleaning and validation.
• Integrated observation window with resistive door-heating element prevents condensation and fogging—ensuring uninterrupted visual monitoring during low-temperature operation.
• Mechanical key-lock door mechanism safeguards sample integrity against unauthorized access—a requirement frequently cited in ISO/IEC 17025-accredited laboratories and pharmaceutical QC environments.
• Modular refrigeration assembly includes compressor start-delay logic, cycle-interval protection, and automatic restart after power recovery—extending service life and reducing maintenance frequency.

Sample Compatibility & Compliance

The DW-250CB accommodates a broad spectrum of sample formats: standard Petri dishes, multi-well plates, serum bottles (up to 500 mL), cryovials stored in racks, and industrial PCB assemblies. Its chamber geometry (680 × 550 × 950 mm internal) allows vertical stacking of stacked shelf configurations while maintaining ≥100 mm clearance from rear and side walls—facilitating laminar airflow distribution per ICH Q5C guidance on storage condition qualification. The unit meets electromagnetic compatibility standards per EN 61326-1 and safety requirements under EN 61010-1 for laboratory equipment. While not certified to UL 471 or NSF/ANSI 456, its construction aligns with baseline mechanical and thermal safety expectations for Class II laboratory incubators operating below 0 °C.

Software & Data Management

The embedded controller supports real-time logging of setpoint, actual temperature, and alarm status to internal flash memory (retention >10 years at 25 °C). Optional RS485 interface enables integration with LabVIEW, SCADA, or LIMS platforms via Modbus RTU protocol—supporting audit-trail generation for FDA 21 CFR Part 11–aligned environments when paired with validated third-party software. Time-stamped event logs include door-open duration, temperature excursions beyond user-defined limits (configurable hysteresis), and compressor runtime—providing traceability essential for ISO 13485 medical device storage validation or USP pharmaceutical cold chain documentation.

Applications

• Long-term storage and viability assessment of primary human cells, hybridomas, and stem cell lines at sub-zero temperatures (−20 °C to −40 °C).
• Stability testing of biologics, vaccines, and excipients per ICH Q1A(R2) guidelines under controlled low-temperature stress conditions.
• Environmental stress screening of microelectronics and optoelectronic components per JEDEC JESD22-A119 (cold storage) and MIL-STD-810H Method 502.7.
• Cultivation of psychrophilic microorganisms and enzymatic assays requiring tightly regulated sub-ambient reaction environments.
• Pre-conditioning of polymer composites and adhesives prior to mechanical testing per ASTM D618.

FAQ

What is the minimum achievable temperature, and how long does it take to reach −40 °C from ambient?
The unit achieves −40 °C nominal under standard lab conditions (25 °C, 50% RH) within approximately 180 minutes when empty and door-closed. Actual ramp time varies with load mass, container thermal mass, and ambient humidity.
Is the temperature uniformity specification available for the DW-250CB model?
DRETOP does not publish a validated temperature uniformity value for this model. Users requiring ISO 14644-1–level spatial mapping should perform in-house qualification using calibrated thermistors or data loggers per IQ/OQ protocols.
Can the unit be configured for remote monitoring and alarm notification?
Yes—via optional RS485 communication module, enabling connection to building management systems (BMS) or custom alert services (e.g., email/SMS triggers via external gateway) when integrated with compatible middleware.
Does the DW-250CB support GMP-compliant calibration and maintenance records?
The hardware supports calibration traceability (NIST-traceable probe input available upon request), and all operational events are timestamped. Full GMP compliance requires implementation of procedural controls (SOPs), change control, and periodic performance verification—not inherent to the device alone.
Are spare parts such as door gaskets, shelves, or compressor modules available internationally?
DRETOP maintains a global spare parts inventory network; lead times average 4–6 weeks for non-stock items. OEM replacement compressors and control boards are supplied with CE-marked certification documentation.
