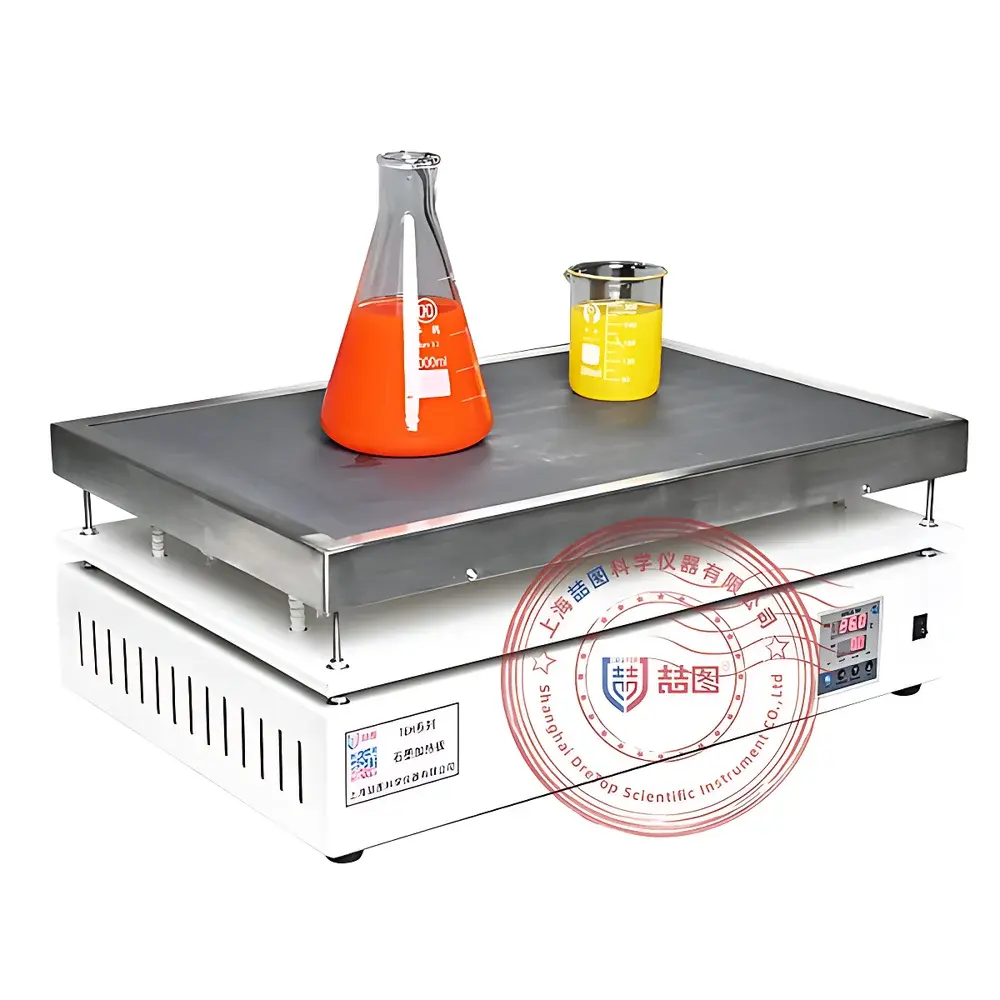

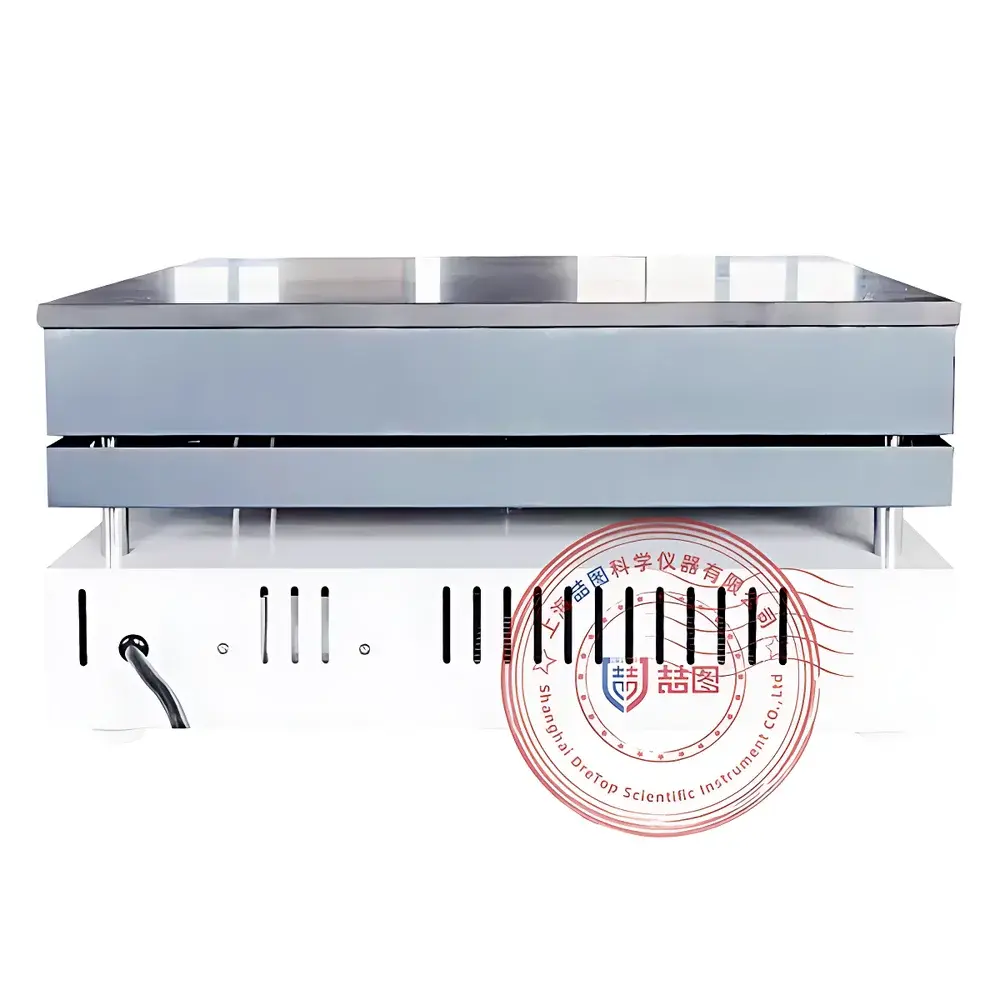

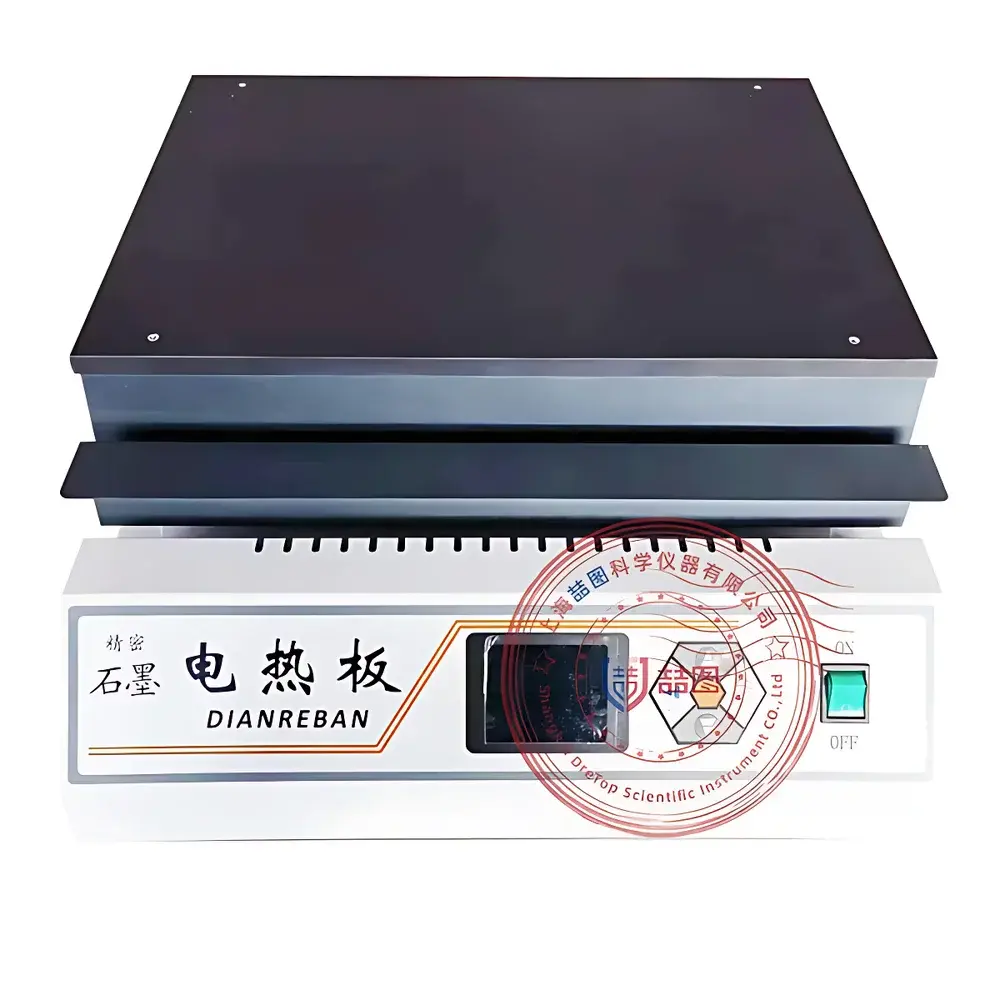

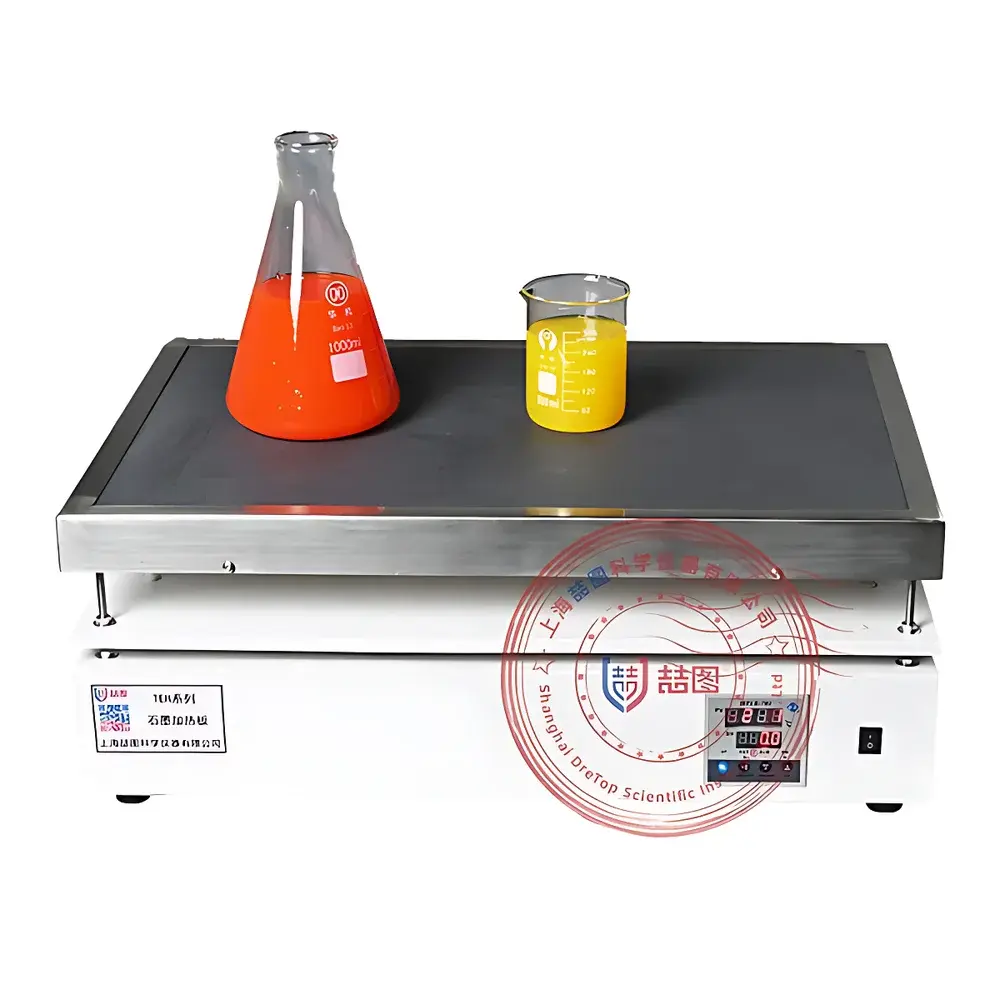

DRETOP EH50-4535 Graphite Heating Block Plate

Overview

The DRETOP EH50-4535 Graphite Heating Block Plate is a high-performance, laboratory-grade conductive heating platform engineered for precise, uniform, and chemically resistant thermal treatment of samples during sample preparation, acid digestion, evaporation, concentration, and controlled thermal reactions. Unlike conventional metal-sheathed electric hot plates, the EH50-4535 employs an isotropically pressed, ultra-high-purity graphite block as its primary heating element and surface—offering exceptional thermal conductivity (≥120 W/m·K), outstanding resistance to aggressive reagents (including concentrated HNO₃, HF, HCl, H₂SO₄, and aqua regia), and long-term dimensional stability at sustained temperatures up to 500 °C. Its operational principle relies on resistive Joule heating embedded within the graphite matrix, coupled with real-time feedback from a calibrated Pt100 sensor positioned beneath the heating zone. This architecture enables closed-loop PID regulation with minimal thermal lag, ensuring stable setpoint maintenance even under variable load conditions typical in multi-vessel digestion workflows.

Key Features

• Isostatically pressed, high-density graphite heating surface (purity ≥99.99%) providing corrosion resistance to strong acids, alkalis, and oxidizing agents—ideal for EPA Method 3050B/3051A/3052 and ISO 11466 sample digestion protocols.
• Microprocessor-controlled PID temperature regulation with ±0.1 °C control accuracy and ±0.5 °C steady-state fluctuation—validated across the full operating range (RT + 20 °C to 500 °C).
• 4000 W high-power heating system with solid-state relay (SSR) switching—eliminates mechanical contact wear, ensures zero electrical noise, and supports uninterrupted operation inside fume hoods or Class II biosafety cabinets.
• Uniform heating profile across the entire 450 × 350 mm active zone—verified per ASTM E2208 for thermal uniformity—enabling simultaneous processing of up to 12–16 digestion vessels (e.g., Teflon® PFA or quartz tubes) without inter-vial temperature deviation.
• Integrated safety architecture including dual-stage overtemperature cutoff (hardware + software), thermocouple break detection (open-circuit alarm), and non-contact voltage isolation compliant with IEC 61010-1:2010 Ed.3 for laboratory electrical equipment.
• Front-panel digital interface with intuitive parameter navigation, real-time temperature logging (optional via RS485), and user-configurable ramp-hold profiles for method-driven thermal programs.

Sample Compatibility & Compliance

The EH50-4535 accommodates standard digestion vessels (15–100 mL capacity), borosilicate glass beakers, quartz crucibles, and polymer labware (e.g., PFA, ETFE, PP). Its inert graphite surface eliminates metal ion leaching—critical for trace-metal analysis (ICP-MS, AAS) where contamination thresholds are sub-ppt. The unit meets CE marking requirements under the Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU). It supports GLP-compliant documentation when paired with external data loggers; optional firmware upgrade enables 21 CFR Part 11–compliant audit trails for regulated QC/QA environments in pharmaceutical and food safety laboratories.

Software & Data Management

While the EH50-4535 operates autonomously via its built-in microcontroller, it features an RS485 serial port (Modbus RTU protocol) for integration into centralized lab automation systems. Third-party SCADA or LIMS platforms can monitor real-time temperature, power status, alarm events, and elapsed run time. Optional DRETOP LabLink™ software (Windows-based) provides graphical trend visualization, CSV export, and configurable alarm notifications—supporting ISO/IEC 17025 clause 5.9.1 requirements for instrument data integrity and traceability.

Applications

• Acid digestion of environmental soils, sediments, and sludge per EPA SW-846 Methods 3050B, 3051A, and 3052.
• Sample pre-concentration and solvent evaporation in food contaminant testing (e.g., pesticide residue, heavy metals).
• Controlled thermal decomposition of biological tissues and clinical specimens prior to elemental analysis.
• Standardization of calibration standards for atomic spectroscopy (ICP-OES, GF-AAS).
• Heating baths for reflux, hydrolysis, and derivatization reactions in organic synthesis and method development.
• Supporting ASTM D5191, ISO 3405, and IP 125 boiling point determinations requiring stable, uniform heat input.

FAQ

What is the maximum continuous operating temperature of the EH50-4535?
The unit is rated for continuous operation at 500 °C—verified under load with NIST-traceable calibration and documented thermal aging tests exceeding 2,000 hours.
Can the EH50-4535 be used with hydrofluoric acid (HF)?
Yes—the isostatic graphite surface is chemically inert to HF below 200 °C; however, prolonged exposure above this temperature requires validation per internal SOPs due to potential carbon fluorination at elevated thermal stress.
Does the EH50-4535 support programmable temperature ramps?
Yes—via optional LabLink™ software or Modbus command set, users may define multi-step ramp-hold sequences with slope control (°C/min) and dwell time (minutes/hours).
Is the heating surface replaceable?
The graphite block is field-replaceable using standard M4 fasteners and alignment dowels; DRETOP supplies certified replacement blocks with factory calibration certificates.
How is temperature uniformity validated across the plate?
Uniformity is verified using a 9-point grid (per ASTM E2208) with calibrated Pt100 probes; test reports show ≤±0.1 °C deviation at 200 °C and ≤±0.3 °C at 450 °C across the central 400 × 300 mm zone.
