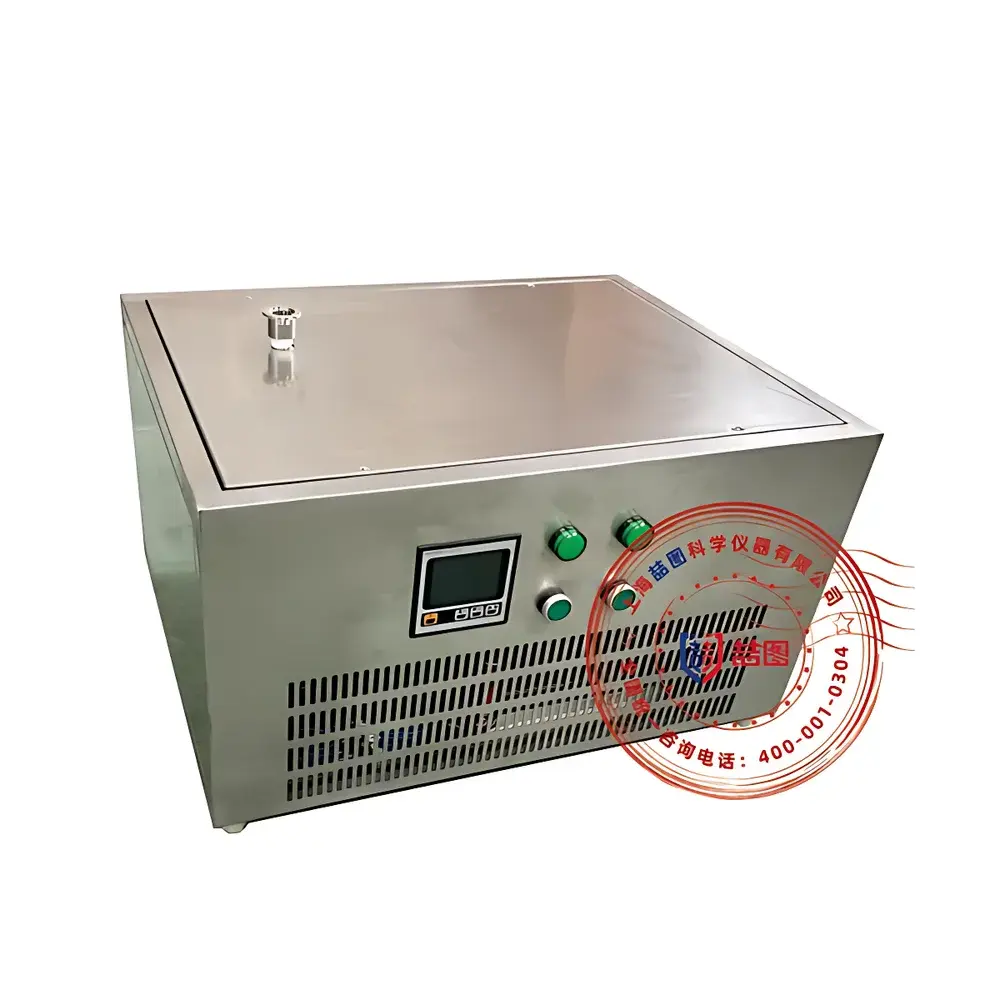

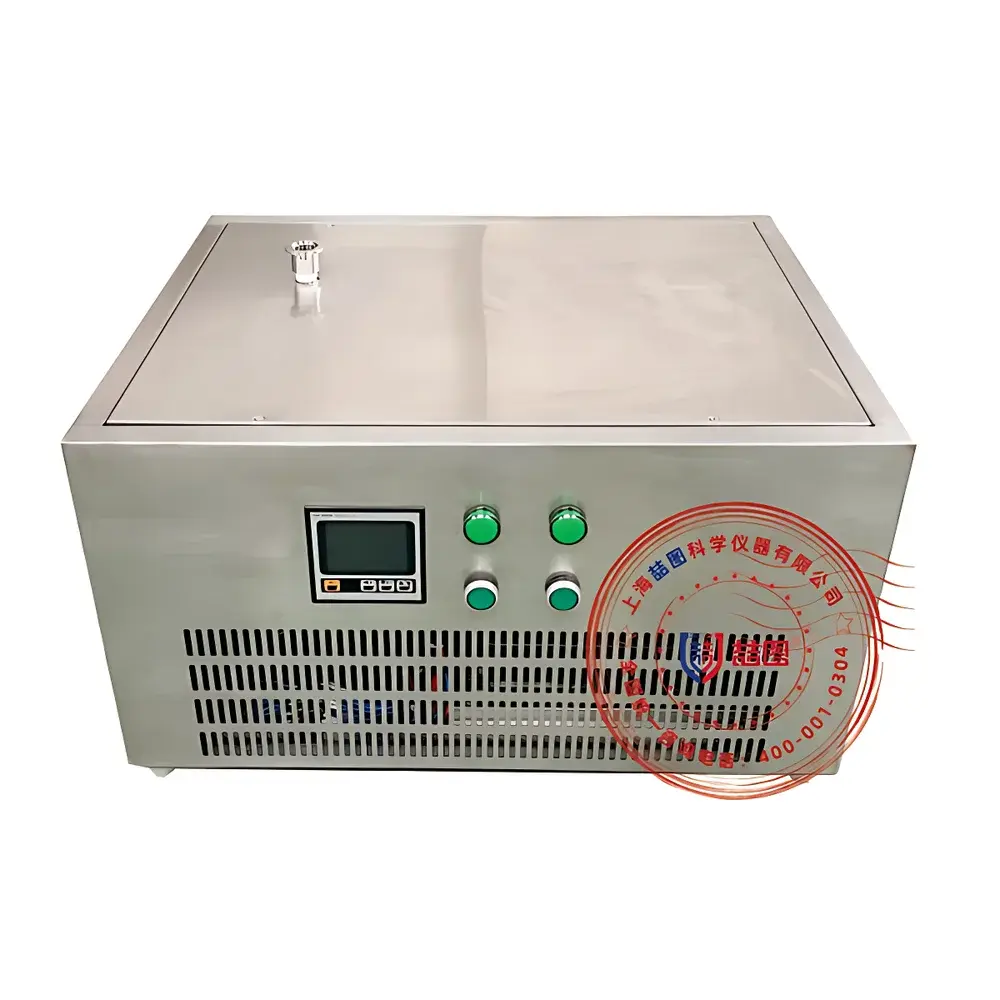

DRETOP EW40-20 Cold Trap

Overview

The DRETOP EW40-20 Cold Trap is a high-efficiency, compressor-cooled condensation trap engineered for integration between vacuum chambers (e.g., freeze dryers, rotary evaporators, vacuum ovens) and primary vacuum pumps. It operates on the principle of cryogenic condensation—rapidly cooling incoming vapor streams to temperatures well below their dew points, thereby converting volatile components (water, solvents, acidic or corrosive vapors) into liquid or solid phase within a sealed, chemically inert collection chamber. This physical separation prevents condensable species from reaching the vacuum pump’s oil reservoir or mechanical components, mitigating oil contamination, vapor backstreaming, and premature pump degradation. Designed for sustained operation under continuous or intermittent vacuum loads, the EW40-20 delivers stable −40°C no-load temperature performance, enabling reliable capture of low-boiling solvents (e.g., acetone, methanol, ethyl acetate) and aggressive process byproducts (e.g., HCl, HF, acetic acid) commonly encountered in pharmaceutical lyophilization, semiconductor CVD/etching, analytical instrument protection, and VOC preconcentration workflows.

Key Features

• Compressor-Based Deep-Cooling Architecture: Utilizes a sealed, high-reliability refrigeration system delivering consistent −40°C operating temperature at the condensing surface—critical for high-efficiency capture of solvents with boiling points below 80°C.
• 304 Stainless Steel Condensate Chamber: Precision-polished interior ensures non-reactivity with aqueous, alcoholic, and mildly acidic vapors; optional 316L stainless steel or electropolished + passivated variants available for enhanced corrosion resistance in halogenated or oxidizing environments.
• Integrated Dual-Stage Protection: Combines primary cryo-condensation with a secondary particulate/gas filter (standard), reducing fine aerosol carryover and extending downstream pump service intervals.
• LCD Digital Temperature Monitoring: Real-time display of cold finger or chamber surface temperature enables precise synchronization with vacuum initiation—preventing premature pump exposure to uncondensed vapor during system startup or load transients.
• Ergonomic Service Design: Front-access drain valve with PTFE-sealed ball mechanism allows safe, drip-free evacuation of collected condensate; chamber geometry supports full drainage and rapid cleaning without disassembly.
• Flexible Installation Footprint: Compact footprint (750 × 680 × 660 mm) accommodates benchtop, floor-standing, or fume hood deployment—ideal for space-constrained labs or ISO-classified cleanroom peripheries.

Sample Compatibility & Compliance

The EW40-20 is validated for use with water, alcohols (ethanol, isopropanol), ketones (acetone, MEK), esters (ethyl acetate), chlorinated solvents (DCM, chloroform), and low-concentration acidic gases (HCl, HF, SO₂) when operated within specified ambient conditions (5–25°C, ≤50% RH). Its 304 stainless steel construction complies with ASTM A240 and meets general requirements for Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) ancillary equipment. While not intrinsically rated for explosion-proof zones, it may be deployed in Class I, Division 2 environments when paired with appropriate pump and electrical interlocks. The unit supports traceable temperature logging when integrated with external data acquisition systems compliant with FDA 21 CFR Part 11 audit trail requirements.

Software & Data Management

The EW40-20 operates as a standalone hardware device with no embedded firmware or network interface. Temperature readout is local-only via its LCD module. However, its analog temperature output signal (0–5 V or 4–20 mA, optional upon request) is compatible with third-party SCADA, LabVIEW, or DeltaV systems for centralized monitoring and alarm triggering. Users deploying the cold trap in regulated environments are advised to document calibration procedures (per ISO/IEC 17025) and maintain maintenance logs—including compressor runtime, defrost cycles, and drain valve actuation—to satisfy internal QA audits and regulatory inspections (e.g., EU Annex 11, USP ).

Applications

• Pharmaceutical Freeze Drying: Prevents water vapor ingress into oil-sealed rotary vane pumps during primary drying—reducing oil change frequency and maintaining ≤10⁻² mbar base pressure stability across multi-day cycles.
• Organic Synthesis & Solvent Recovery: Captures >95% of ethanol, acetone, or THF vapors during rotary evaporation, enabling quantitative recovery and minimizing VOC emissions per EPA Method 25A compliance protocols.
• Materials Science Vacuum Deposition: Traps unreacted metal precursors and reaction byproducts (e.g., TiCl₄ hydrolysis products) in e-beam evaporation or sputtering systems—preserving turbo pump bearings and maintaining ultra-high vacuum (<10⁻⁶ mbar) integrity.
• Analytical Instrument Protection: Installed upstream of mass spectrometer inlet pumps or residual gas analyzers to eliminate solvent-induced baseline drift and detector fouling.
• Environmental VOC Preconcentration: Coupled with thermal desorption units for trapping and subsequent analysis of ppb-level benzene, toluene, and xylene in ambient air sampling applications (ASTM D5197, TO-17).

FAQ

What is the lowest achievable temperature at the cold finger surface under typical load conditions?
Under continuous vapor load (e.g., 500 mL/min of saturated acetone at 25°C), the cold finger surface stabilizes at approximately −35°C. No-load performance is rated at −40°C per IEC 61000-4-2 test conditions.
Can the EW40-20 be used with aggressive halogenated solvents such as carbon tetrachloride or chlorobenzene?
Yes—when equipped with the optional 316L stainless steel chamber and fluorocarbon-compatible seals. Standard 304 construction is suitable for short-term exposure; prolonged use requires material compatibility verification per NACE MR0175/ISO 15156.
Is automatic defrost functionality included?
No—the EW40-20 features manual defrost initiation via front-panel switch. Defrost cycle elevates chamber temperature to 80°C for ≤15 minutes, melting accumulated frost without thermal shock to the refrigeration system.
Does the unit include vacuum gauging capability?
No—vacuum measurement must be performed externally using a compatible Pirani or capacitance manometer installed upstream or downstream of the cold trap.
What maintenance schedule is recommended for optimal longevity?
Compressor oil level and refrigerant charge should be verified annually; condensate chamber and drain valve inspected after every 50 operational hours or before each new solvent batch; secondary filter replaced every 6 months or after visible clogging.
