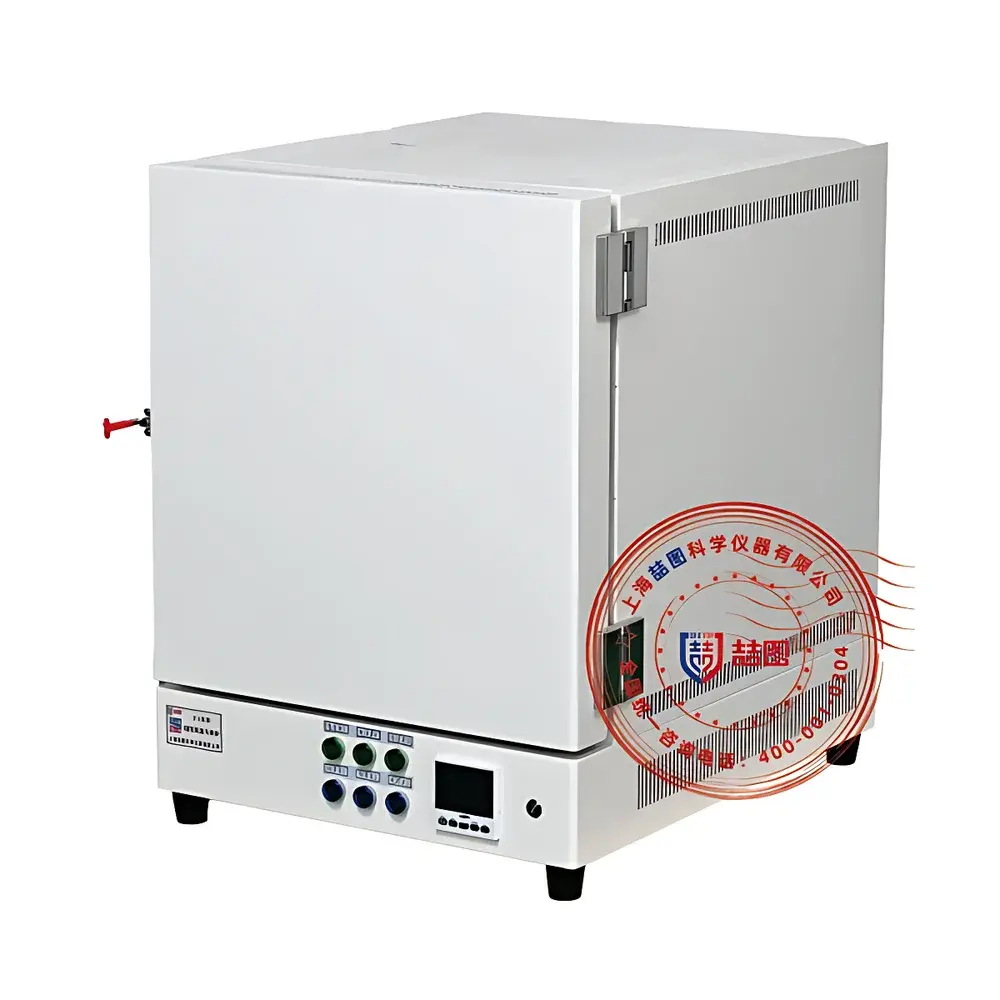

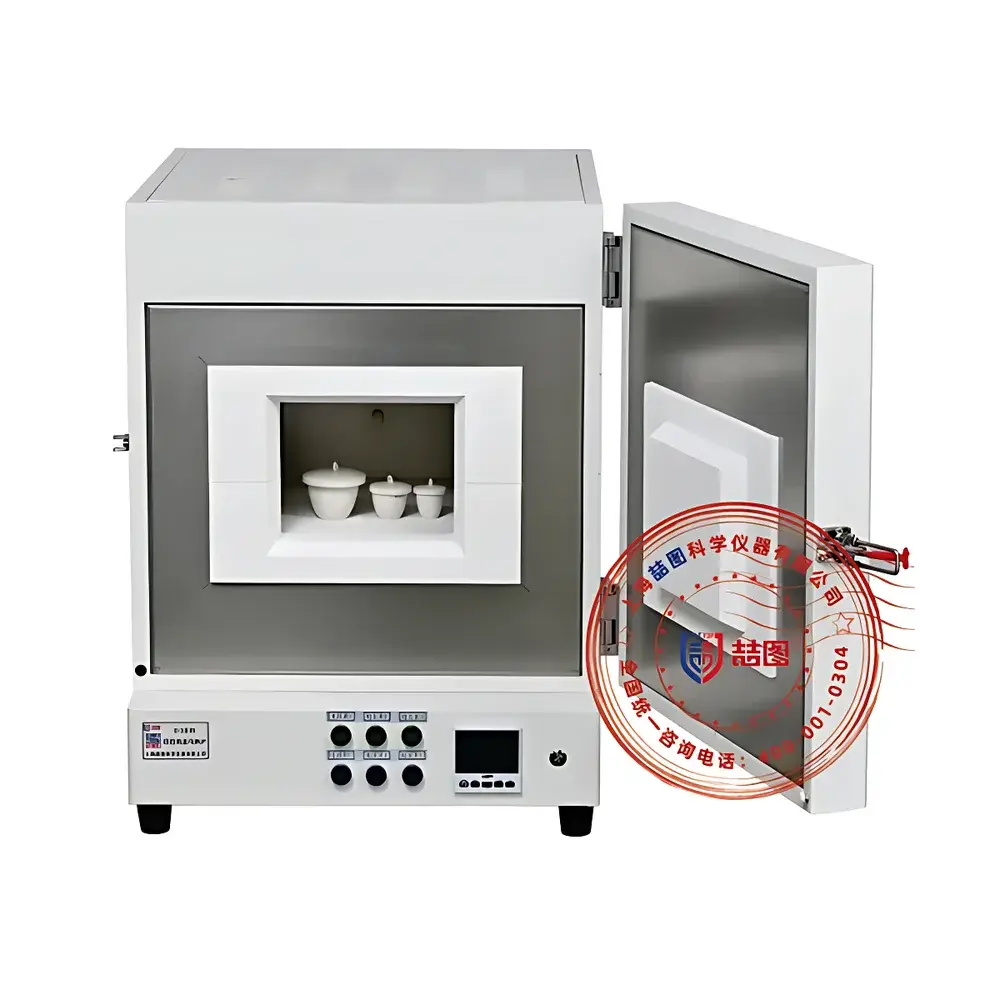

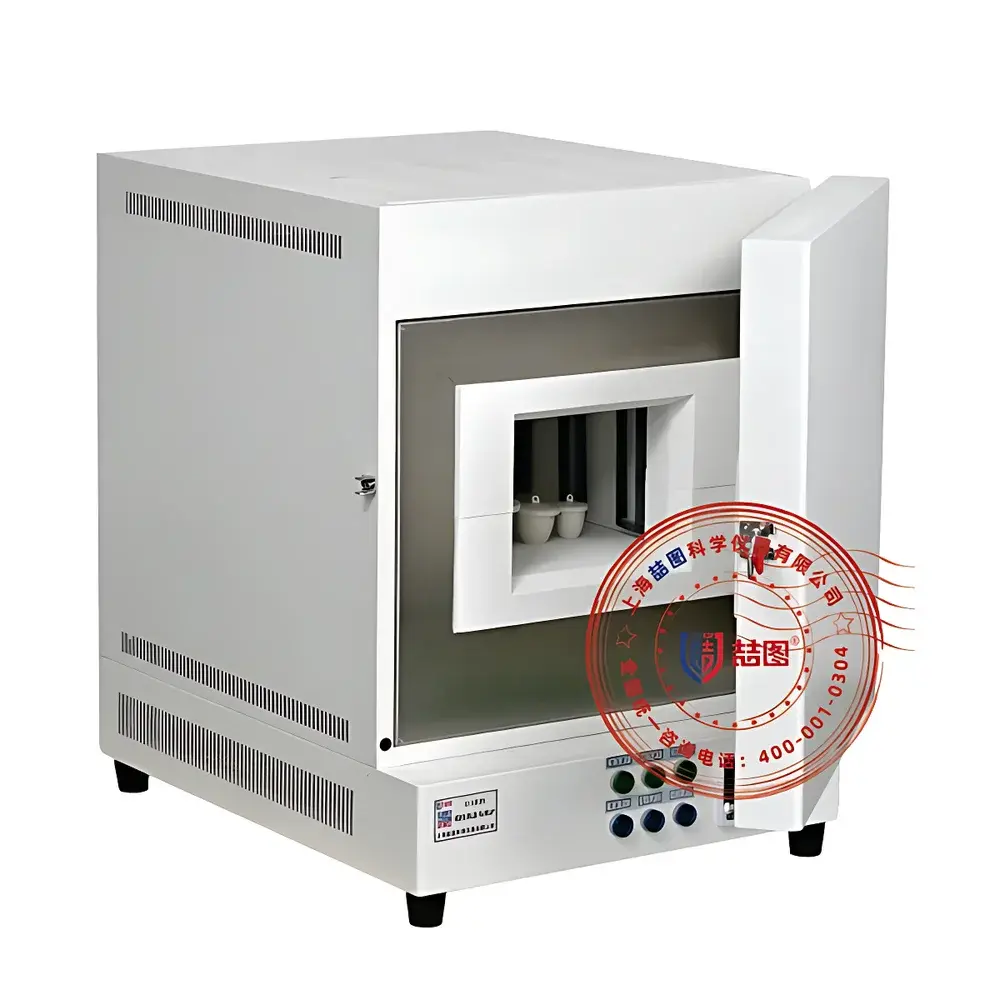

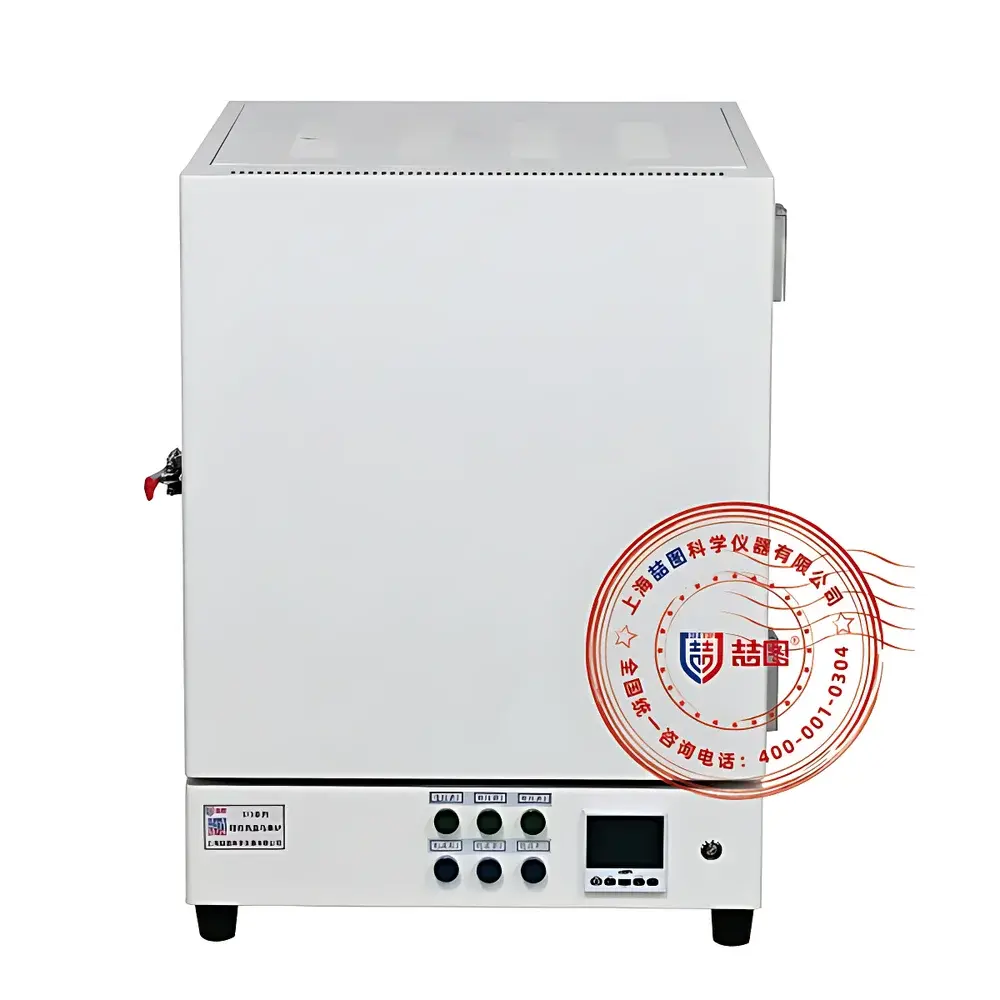

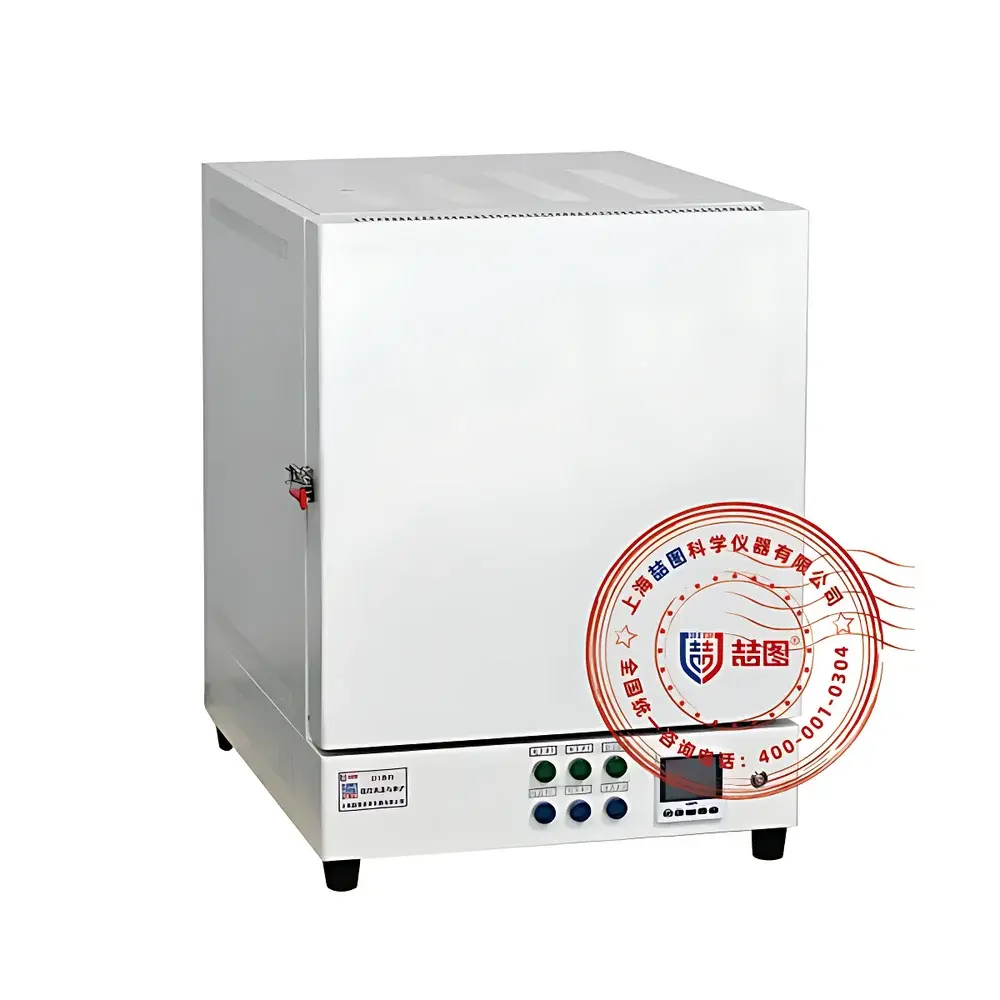

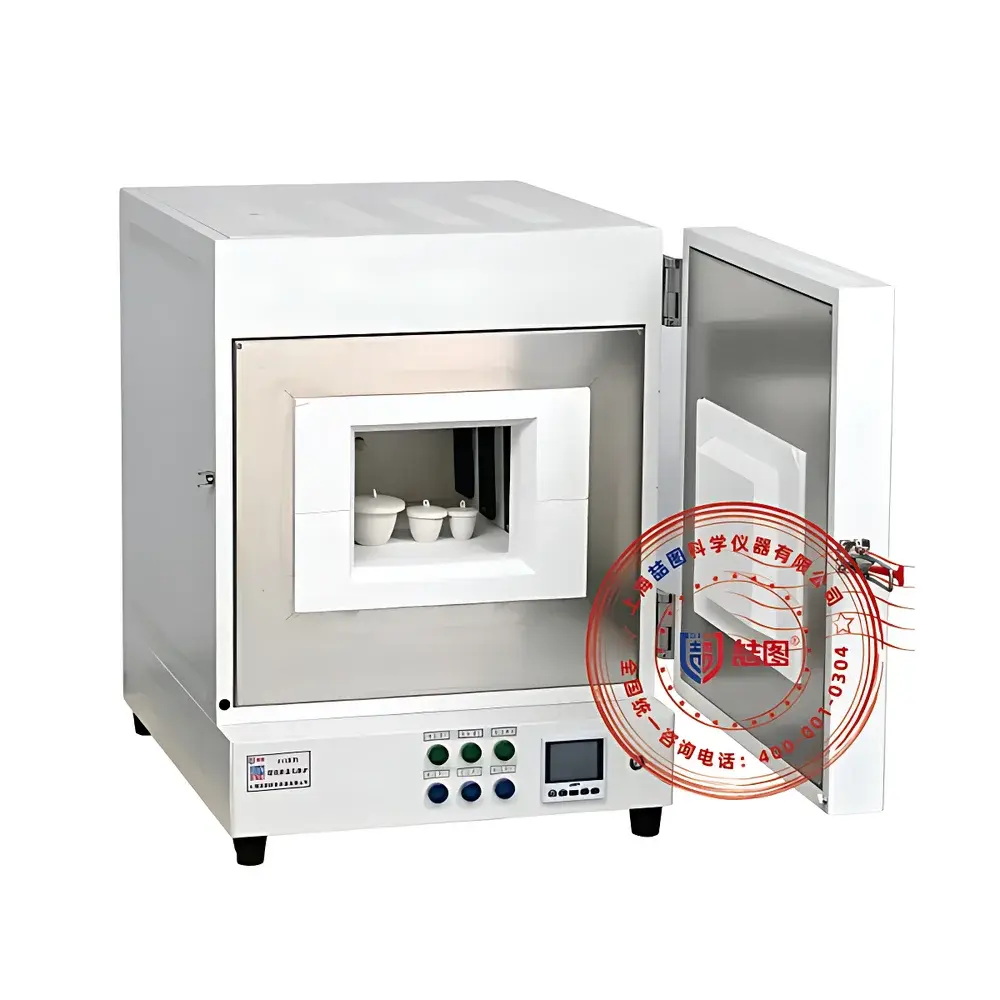

DRETOP GD10-36Pro Track-Mounted Carriage Muffle Furnace

Overview

The DRETOP GD10-36Pro is a high-performance track-mounted carriage muffle furnace engineered for precision thermal processing in research laboratories, materials science facilities, and quality control environments. Unlike conventional box-type furnaces, the GD10-36Pro integrates a motorized rail-guided loading trolley that enables safe, repeatable insertion and extraction of heavy or temperature-sensitive samples without manual handling near the hot zone. Its core architecture employs vacuum-microporous ceramic fiber insulation—reducing thermal mass by over 60% compared to traditional refractory brick linings—thereby enabling rapid heat-up rates and exceptional energy efficiency. The furnace operates on a robust triple-wall radiant heating principle: spiral-wound nickel-chromium-molybdenum alloy elements are embedded symmetrically across the left, right, and rear chamber walls, generating uniform volumetric heat distribution. This configuration achieves ≤±2 °C radial and axial temperature uniformity across the full 36 L working volume at 1000 °C, as verified per ASTM E220 calibration methodology.

Key Features

• Track-mounted carriage system with low-friction linear rails and position-locking mechanism for reproducible sample placement and thermal history consistency
• PLC-based programmable logic controller supporting up to 30 segmented ramp-soak profiles, with user-defined heating/cooling rates (0.1–20 °C/min), hold times (1–9999 min), and automatic shutdown
• Dual-stage overtemperature protection: primary PID-controlled cutoff at setpoint +5 °C and secondary independent mechanical limiter at 1050 °C
• Door interlock circuit interrupts power within 100 ms upon opening; resumes heating automatically after closure with retained program state and memory retention during power interruption
• Integrated digital voltage/current meters (0–500 V / 0–60 A) with real-time display and fault logging for predictive maintenance and electrical safety auditing
• Phosphate-conversion coated steel enclosure with high-temp epoxy powder coating (≥200 µm thickness), rated IP20 for laboratory ambient conditions
• Front-access ceramic viewing port (optional) with heat-resistant quartz glass (up to 1200 °C) for visual process monitoring without thermal disturbance

Sample Compatibility & Compliance

The GD10-36Pro accommodates standard crucibles (alumina, silicon carbide, platinum), graphite boats, and custom fixtures up to 280 mm × 380 mm × 280 mm. Its ceramic fiber chamber (rated continuous use to 1000 °C) resists thermal shock from repeated quench cycles and exhibits negligible outgassing under inert or reducing atmospheres. The furnace meets structural requirements for ISO/IEC 17025-accredited labs performing thermal gravimetric analysis (TGA) pre-treatment, ash content determination (ASTM D3174), metallographic specimen annealing (ASTM E112), and ceramic sintering (ISO 10545-1). Optional inert gas purging (via integrated N₂/Ar inlet valve and exhaust chimney) supports controlled-atmosphere applications compliant with FDA 21 CFR Part 11 data integrity standards when paired with TC-series touchscreen controllers and audit-trail-enabled software.

Software & Data Management

When configured with the optional TC-series color touchscreen controller, the GD10-36Pro delivers full traceability: multi-level password-protected access (Operator/Engineer/Administrator), timestamped event logs (door openings, alarms, profile execution), and exportable CSV-formatted temperature/time datasets via USB or RS485 Modbus RTU protocol. The embedded firmware supports seamless integration into LIMS and MES platforms through OPC UA-compatible gateways. All recorded data includes metadata such as ambient temperature compensation values, actual vs. setpoint deviation history, and heater duty cycle analytics—enabling statistical process control (SPC) charting per ISO 7870-2. Firmware updates are performed offline via SD card to maintain cybersecurity compliance in regulated environments.

Applications

• Thermal treatment of advanced ceramics, including sintering of zirconia, alumina, and silicon nitride compacts under air or N₂
• Heat treatment of metallic alloys: solution annealing of stainless steels (ASTM A959), stress relieving of tool steels, and tempering of hardened components
• Preparation of reference materials for elemental analysis (ICP-OES, XRF) via controlled ashing of biological, polymer, or environmental samples
• Crystallization and phase transformation studies of lithium-ion battery cathode precursors (e.g., NMC, LFP) under programmable thermal gradients
• Microstructural homogenization of nanocomposites prior to SEM/TEM sample preparation
• Calibration and verification of thermocouples (Type K, S, R) per ASTM E230 and IEC 60584-2

FAQ

What is the maximum recommended load weight for the track-mounted carriage?
The carriage system is rated for continuous operation with loads up to 25 kg. For optimal thermal uniformity and mechanical longevity, DRETOP recommends maintaining ≤20 kg during high-temperature cycling (>800 °C).
Can the GD10-36Pro be validated for GMP-compliant processes?
Yes—when equipped with TC-series controller, RS485 interface, and optional 4G data logger, the system supports IQ/OQ/PQ documentation packages aligned with Annex 15 and ASTM E2500. Full calibration certificates (NIST-traceable) and UCL/LCL uncertainty budgets are available upon request.
Is furnace atmosphere control possible without modifying the base unit?
The standard GD10-36Pro includes threaded ports (¼” NPT) on the rear wall for direct integration of inert gas inlets and exhaust chimneys. No internal modification is required; all gas-handling accessories are field-installable using provided mounting kits.
How does the ceramic fiber insulation perform under repeated thermal cycling?
DRETOP’s high-purity alumina-silica ceramic fiber board (density: 180–220 kg/m³) demonstrates <0.5% linear shrinkage after 100 cycles between RT and 1000 °C, as certified per ISO 14488. No binder migration or dust generation occurs under normal operating conditions.
What maintenance intervals are recommended for the PLC control system?
Annual verification of thermocouple input accuracy (±0.5 °C tolerance), biannual inspection of contactor contacts and cooling fan operation, and quarterly cleaning of air intake filters are specified in the OEM maintenance schedule (Document Ref: GD10-36Pro-MNT-Rev.3.1).
