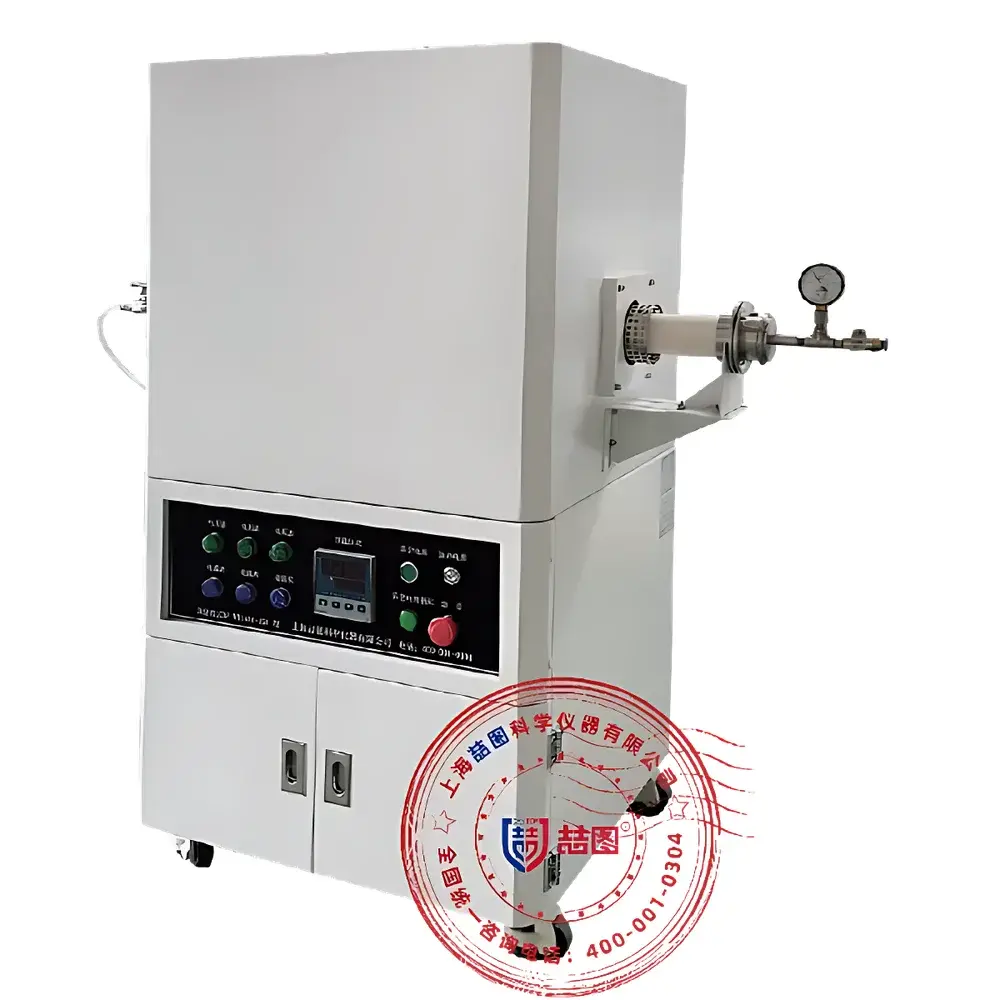

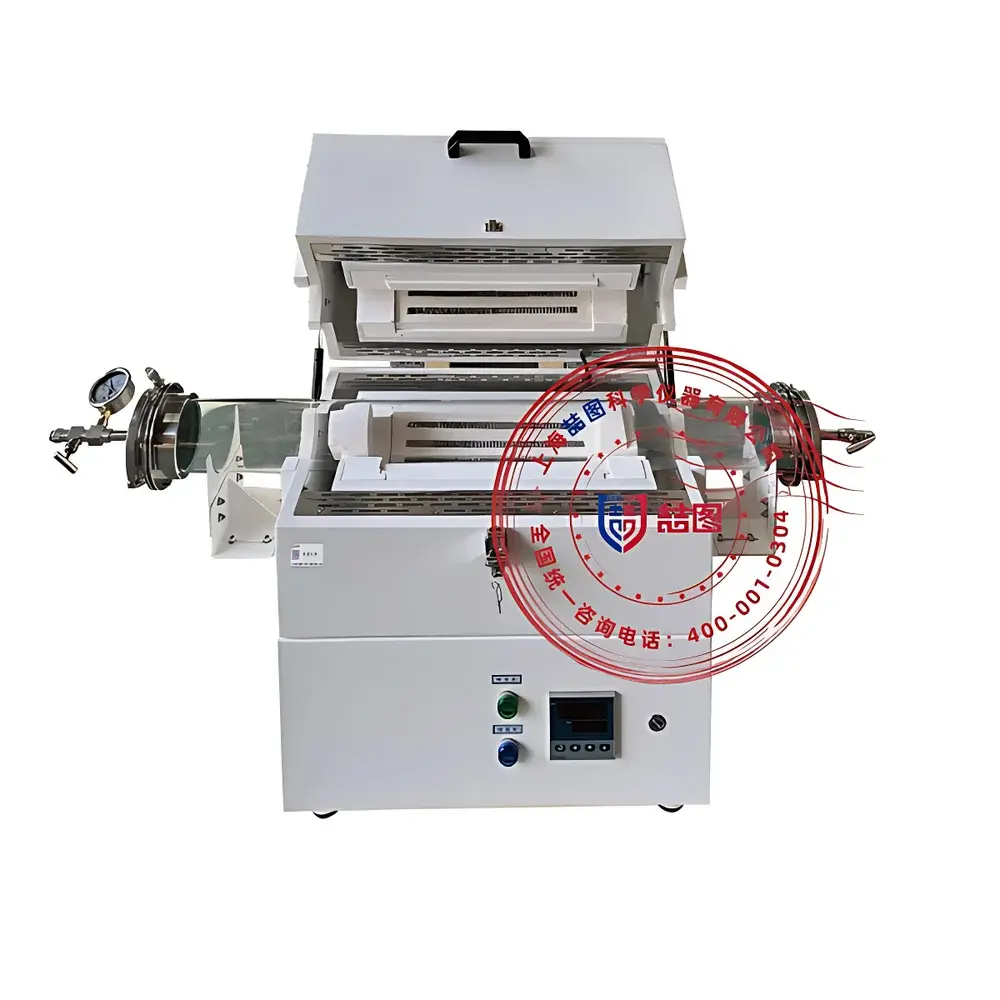

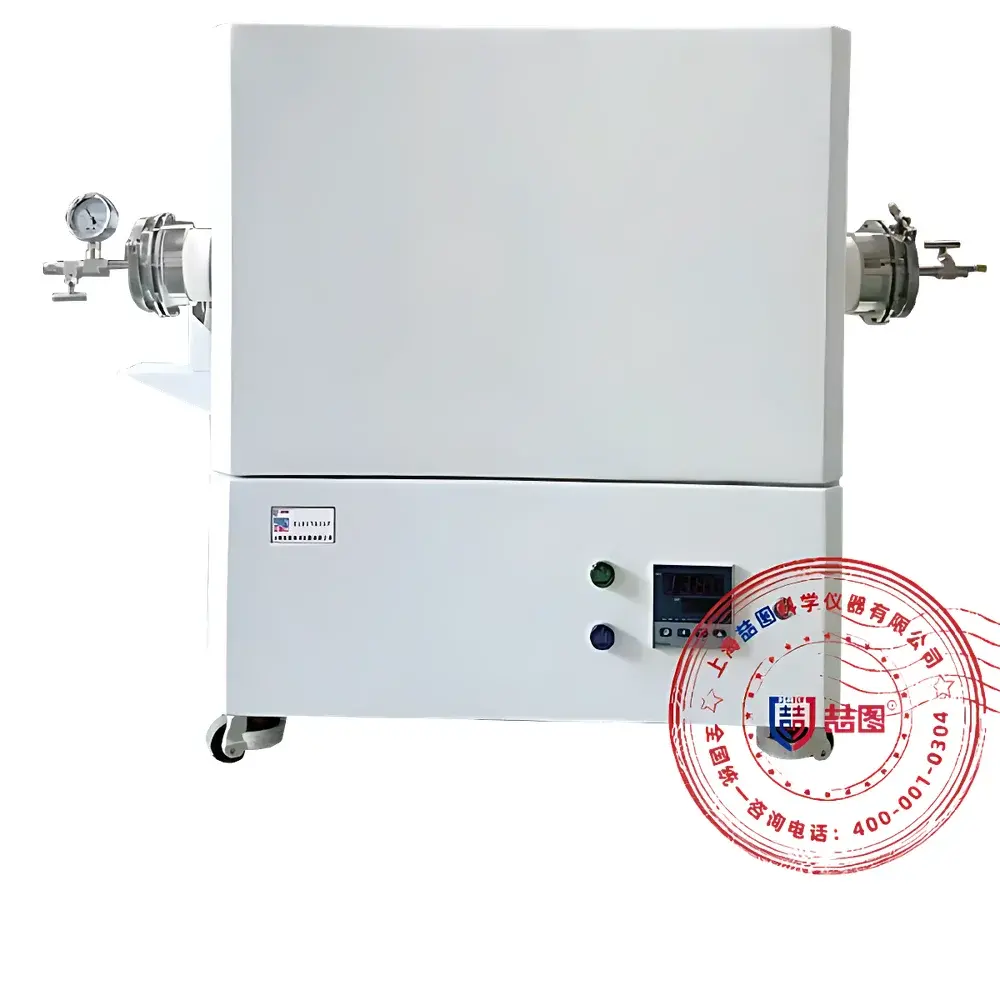

DRETOP GS14-0610B High-Temperature Vacuum Tube Furnace

Overview

The DRETOP GS14-0610B is a horizontally oriented, high-temperature vacuum tube furnace engineered for precision thermal processing under controlled atmospheres and sub-atmospheric pressure conditions. It operates on resistive heating principles using silicon carbide (SiC) rods, delivering stable and uniform thermal profiles across its 1000 mm-long heated zone. Designed for laboratory-scale synthesis, annealing, sintering, and heat treatment of advanced materials, the furnace supports both vacuum environments (down to ≤10⁻³ mbar with compatible pumping systems) and programmable gas atmospheres—including inert (N₂, Ar), reducing (H₂), and custom gas mixtures—via dual KF-25 stainless steel flanges with double O-ring sealing. Its operating temperature range spans from ambient +50 °C to 1400 °C (recommended continuous use ≤1300 °C), making it suitable for applications requiring high-purity thermal environments, such as ceramic sintering, CVD precursor decomposition, battery electrode calcination, and metallurgical phase transformation studies.

Key Features

• High-stability alumina ceramic tube (99.7% Al₂O₃) with low thermal expansion coefficient and excellent resistance to thermal shock, chemical corrosion, and mechanical wear.
• Robust SiC heating elements rated for long-term operation at 1400 °C, offering high emissivity, consistent resistance, and minimal aging-induced drift.
• Multi-segment programmable PID controller enabling up to 30-step temperature ramps, holds, and cooling profiles—fully compliant with ASTM E220 and ISO/IEC 17025 traceability requirements when calibrated with NIST-traceable thermocouples.
• Integrated safety architecture including over-temperature cutoff (±5 °C setpoint deviation), thermocouple failure detection, automatic power interruption upon furnace door actuation, and GFCI-protected electrical supply.
• Optimized thermal insulation using vacuum-formed polycrystalline mullite fiber modules, achieving surface temperatures <45 °C at 1400 °C internal operation—reducing energy consumption by ~35% compared to traditional refractory brick designs.
• KF-25 quick-connect stainless steel flanges with dual Viton®/Kalrez® compression seals ensure repeatable vacuum integrity; side-mounted gas inlets support mass flow controller (MFC)-regulated atmosphere introduction.

Sample Compatibility & Compliance

The GS14-0610B accommodates cylindrical samples up to Ø58 mm in diameter and 900 mm in length, compatible with crucibles, boats, and sample holders fabricated from graphite, alumina, silicon nitride, or quartz (for lower-temperature pre-treatments). Its design conforms to key international standards governing laboratory thermal equipment: IEC 61000-6-3 (EMC emissions), IEC 61000-6-2 (immunity), UL 61010-1 / CSA C22.2 No. 61010-1 (electrical safety), and ISO 15190:2020 (laboratory safety management). When equipped with audit-trail-enabled controllers and calibrated Class 1 thermocouples, the system supports GLP and GMP workflows per FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

The furnace integrates with DRETOP’s optional PC-based control software (compatible with Windows 10/11), enabling real-time temperature logging, remote parameter adjustment, and automated report generation in CSV/PDF formats. All temperature profiles, alarm events, and operational logs are timestamped and stored with user-defined metadata—facilitating full experimental traceability. Data export complies with ASTM E1447 and ISO/IEC 17025 documentation guidelines. Optional RS485 Modbus RTU or Ethernet TCP/IP interfaces allow integration into centralized lab automation platforms (e.g., LabVantage, Thermo Fisher SampleManager).

Applications

This furnace serves critical roles in academic and industrial R&D laboratories conducting: lithium-ion battery cathode/anode material calcination (e.g., LiCoO₂, NMC, Si/C composites); ceramic matrix composite (CMC) densification; metal injection molding (MIM) and ceramic injection molding (CIM) debinding/sintering; carbon fiber oxidative stabilization and carbonization; thin-film deposition via thermal CVD; nanoparticle synthesis and annealing; semiconductor substrate outgassing; and high-temperature phase diagram studies. Its vacuum-atmosphere flexibility also supports research in hydrogen storage materials, superconducting oxide fabrication, and nuclear fuel pellet sintering.

FAQ

What vacuum level can the GS14-0610B achieve?

With a compatible two-stage rotary vane pump (e.g., Edwards RV8), the system typically reaches ≤1×10⁻³ mbar. For higher vacuum performance (≤1×10⁻⁵ mbar), a turbomolecular pump upgrade is recommended.
Is the furnace compatible with hydrogen gas?

Yes—when configured with H₂-rated seals, leak-tested flanges, and integrated flame arrestors and gas detectors per EN 60079-10-1, the system supports safe H₂ operation up to 5% concentration in N₂ carrier gas.
Can I perform rapid thermal processing (RTP) with this unit?

While optimized for controlled ramp/soak protocols, the GS14-0610B achieves ≤15 °C/min heating rates up to 1000 °C; for true RTP (<100 °C/sec), dedicated lamp-heated systems are advised.
What calibration documentation is provided?

Each unit ships with a factory calibration certificate referencing NIST-traceable standards; optional UKAS-accredited calibration services are available upon request.
Are replacement tubes and heating elements stocked internationally?

DRETOP maintains regional spares hubs in Germany, Singapore, and the USA; alumina tubes and SiC rods are standard catalog items with typical lead times of 2–3 weeks.
