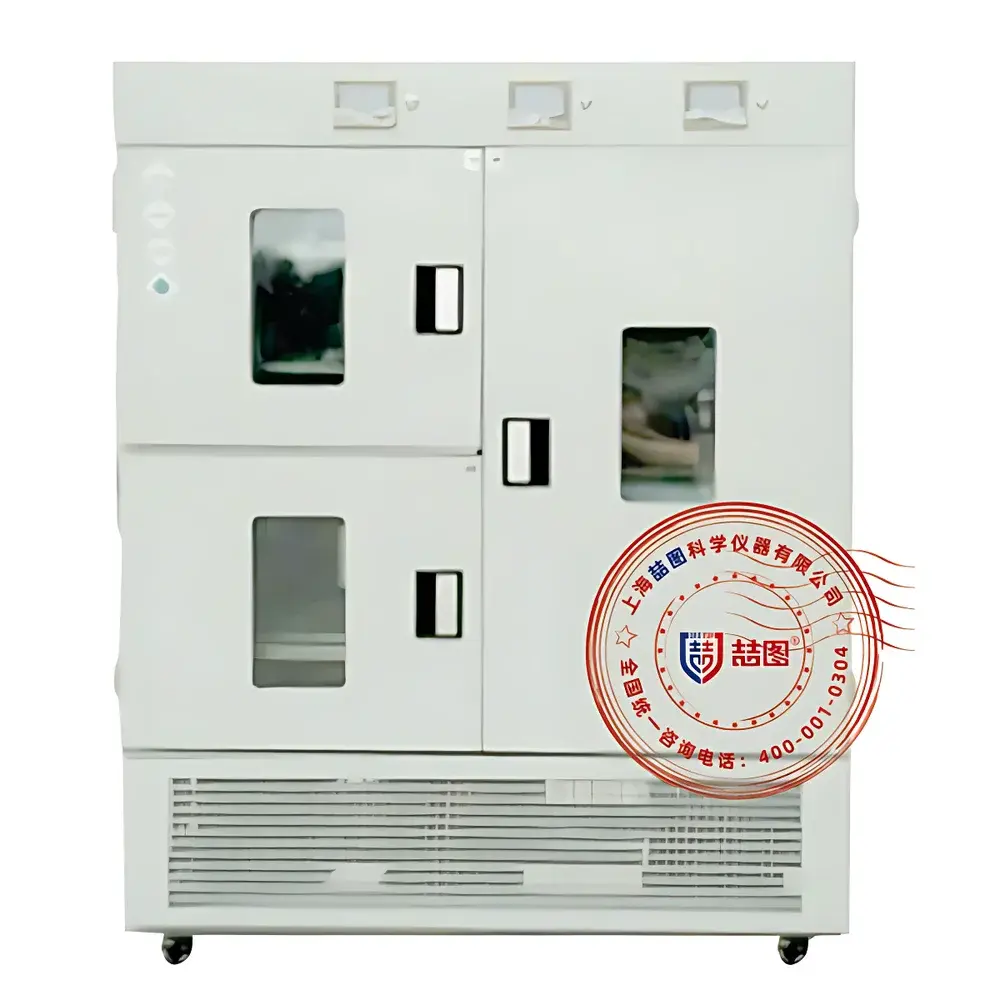

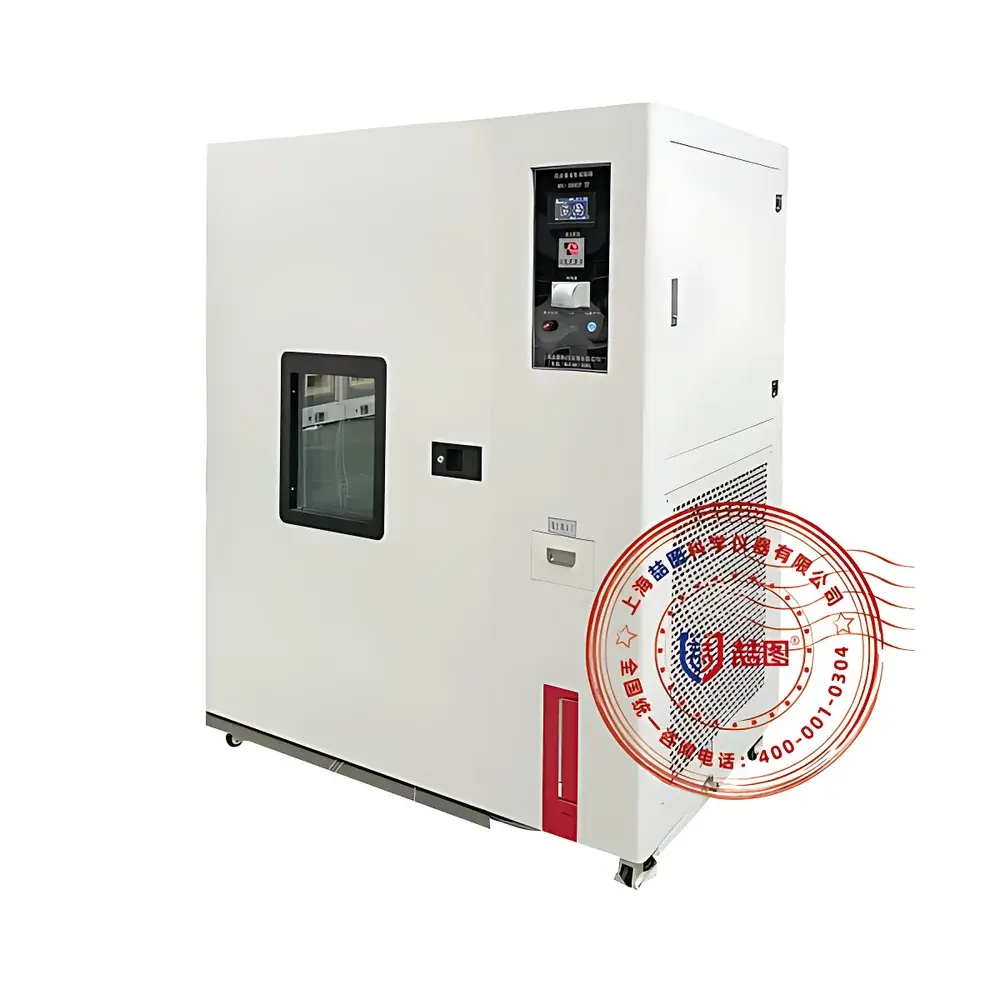

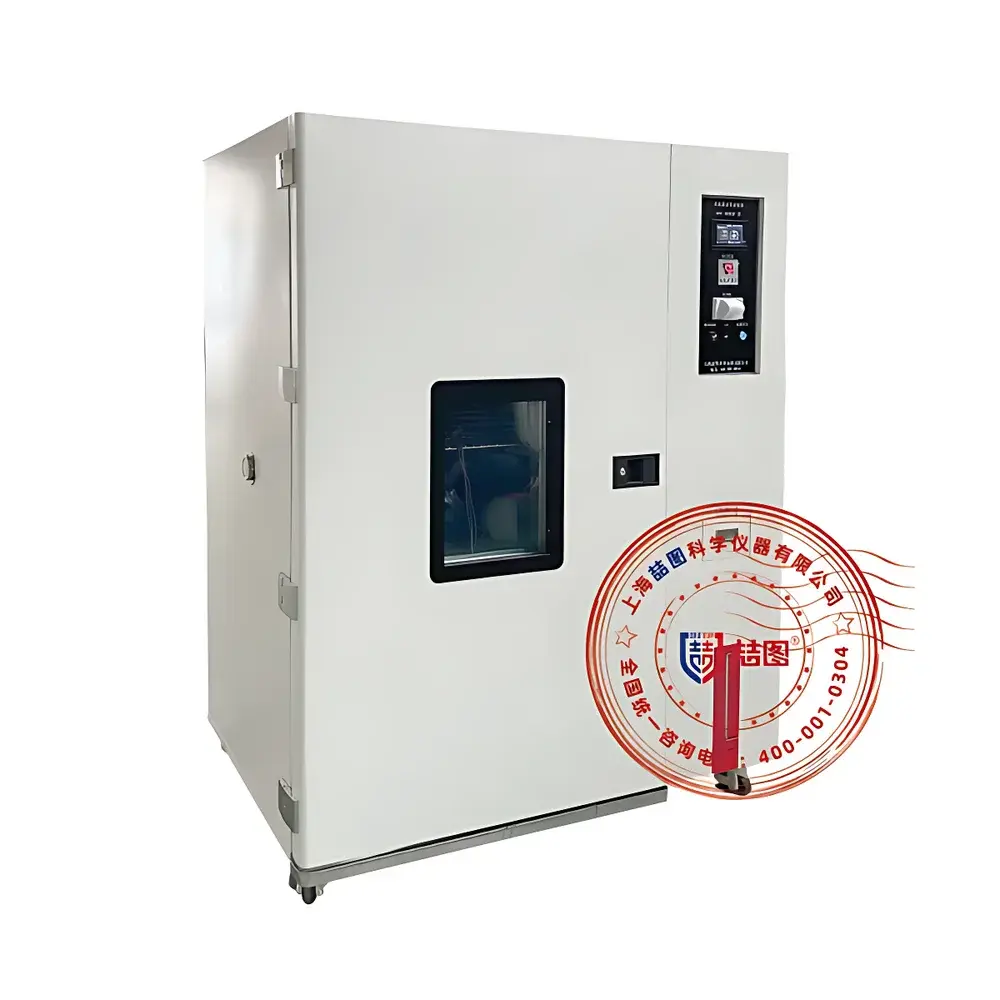

DRETOP MC-500 Pharmaceutical Stability Testing Chamber

Overview

The DRETOP MC-500 Pharmaceutical Stability Testing Chamber is an ISO/ICH-compliant environmental simulation system engineered for regulatory-grade stability studies in accordance with ICH Q1A(R3), Q5C, and USP <1151>. It precisely replicates controlled temperature, humidity, and photometric conditions required for long-term, accelerated, intermediate, and photostability testing of pharmaceuticals, biologics, and active pharmaceutical ingredients (APIs). Designed to meet the stringent requirements of GMP-compliant laboratories, the MC-500 integrates a robust dual-loop climate control architecture—featuring independent PID-regulated heating, refrigeration, and humidification subsystems—ensuring stable operation over extended durations (≥12 months) without performance drift. Its chamber core operates within a validated range of 0–65 °C (±0.5 °C fluctuation, ±1.5 °C uniformity) and 30–95% RH (±3–5% RH deviation), fully supporting ICH-defined storage conditions including 25 °C/60% RH (long-term), 40 °C/75% RH (accelerated), and 40 °C/≤25% RH (dry heat). The system adheres to GB/T 10586–2006, ASTM E145–22, and ISO 17025-accredited calibration traceability standards.

Key Features

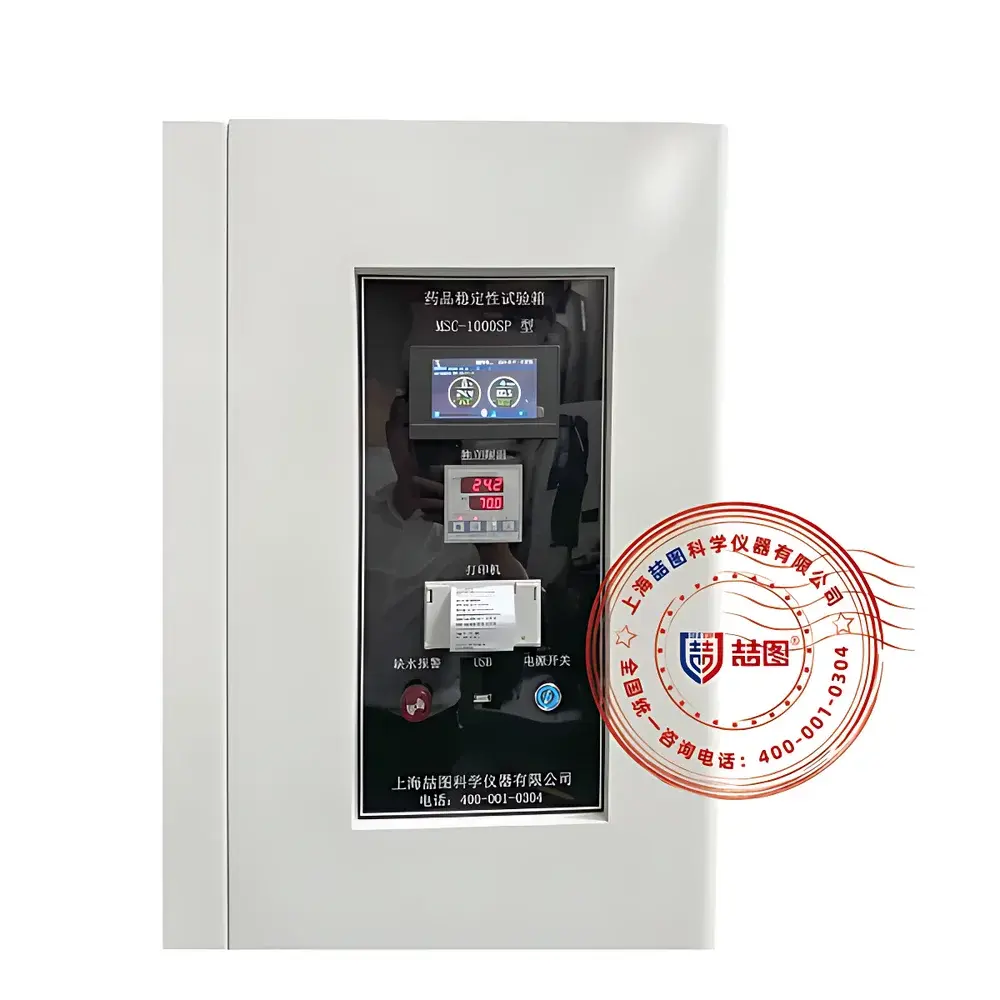

• 7-inch full-color capacitive touchscreen interface with intuitive graphical navigation, real-time trend plotting, and bilingual (English/Chinese) language support—configured by default for English-language operation in international deployments.
• Three-tier user permission management (Operator / Administrator / Engineer) with password-protected role assignment, audit trail logging, and electronic signature capability—fully compliant with FDA 21 CFR Part 11 and EU Annex 11 data integrity requirements.
• Advanced program logic engine supporting up to 999 multi-segment protocols (100 segments per program), each configurable with ramp rates, dwell times, temperature setpoints, humidity targets, and illumination intensity—all synchronized with internal real-time clock and calendar.
• Dual-compressor refrigeration architecture (II-type configuration) enabling automatic failover, uninterrupted operation during defrost cycles, and consistent thermal-hygrometric stability under high-load or extreme ambient conditions.
• Electropolished 304 stainless steel interior with radius-corner construction, removable adjustable shelves, and silicone gasket sealing—designed for repeatable cleaning validation per ISO 14644-1 Class 7 cleanroom-compatible maintenance protocols.
• Integrated safety redundancy: dual independent temperature monitoring (main controller + hardware-limited cutoff), triple fault protection (leakage current, compressor overheat, power overload), and auto-recovery upon power resumption—preserving experimental continuity and sample integrity.

Sample Compatibility & Compliance

The MC-500 accommodates diverse pharmaceutical packaging formats—including blister packs, vials, syringes, sachets, and bulk containers—within its 500 L working volume (700 × 700 × 1020 mm W×D×H). Its uniformly distributed airflow design minimizes thermal gradients across all shelf levels, ensuring representative exposure for heterogeneous sample arrays. All operational parameters comply with ICH Q5C photostability guidance when equipped with optional LED-based illumination modules (e.g., S-series digital lux control or X-series multi-spectral UV/Vis/IR sources). Optional vertical illumination (V-series) eliminates direct beam incidence on samples while maintaining ≥90% irradiance uniformity across multi-layer racks—critical for light-sensitive biologics and monoclonal antibodies. The chamber meets mechanical and electrical safety standards per IEC 61010-1 and carries CE marking for EMC and LVD conformity.

Software & Data Management

Data acquisition and reporting are governed by embedded firmware compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Temperature, humidity, program stage, alarm events, and user actions are timestamped and stored internally with ≥12-month retention capacity. Historical datasets export directly to Excel (.xlsx) or CSV via USB 2.0 port—with column headers, UTC timestamps, and metadata tags preserved for audit readiness. RS485 Modbus RTU interface enables seamless integration with laboratory information management systems (LIMS), MES platforms, and cloud-based monitoring dashboards. Optional remote cloud connectivity (Y-module) supports encrypted MQTT telemetry, mobile push notifications, and over-the-air firmware updates—facilitating centralized fleet management across geographically dispersed R&D or QC sites.

Applications

• ICH Q1A(R3)-mandated stability protocols: long-term (25 °C/60% RH, 12 months), accelerated (40 °C/75% RH, 6 months), and intermediate (30 °C/65% RH) studies.
• Photostability assessment per ICH Q5C using calibrated visible-light (4500 ±500 lx), UV-A (320–400 nm), or full-spectrum irradiation profiles.
• Excipient compatibility screening, formulation degradation kinetics, and container-closure interaction analysis under stress conditions.
• GMP batch release qualification, shelf-life extension studies, and post-approval change management (PACM) documentation.
• Biologics stability evaluation—including lyophilized mAbs, viral vectors, and mRNA-LNPs—under low-temperature/high-humidity regimes mimicking global distribution logistics.

FAQ

Does the MC-500 support 21 CFR Part 11 compliance?
Yes—the system includes electronic signature workflows, immutable audit trails, role-based access controls, and data encryption at rest and in transit when configured with optional software modules.
Can it perform simultaneous temperature/humidity/light stress testing?
Yes—multi-parameter coupling is fully supported; e.g., 40 °C/75% RH/1.2 million lux-hours exposure can be executed as a single programmed sequence.
Is third-party IQ/OQ/PQ validation support available?
Yes—DRETOP provides GMP-aligned 3Q documentation packages (T-code option), including protocol templates, test scripts, deviation logs, and summary reports aligned with ISO 13485 and PIC/S PI 007-6 guidelines.
What is the maximum allowable load for continuous 24/7 operation?
The II-type dual-compressor configuration is rated for indefinite unattended operation at ≤85% nominal capacity—validated per MTBF >100,000 hours for critical components (compressor, fan motor, PID controller).
How is calibration traceability maintained?
Each unit ships with a CNAS-accredited calibration certificate (MC option) covering temperature, humidity, and illuminance sensors—traceable to NIM (National Institute of Metrology, China) and cross-validated against NIST SRM references.
