DRETOP MK12-7.2P Cat-Eye View Muffle Furnace

Overview

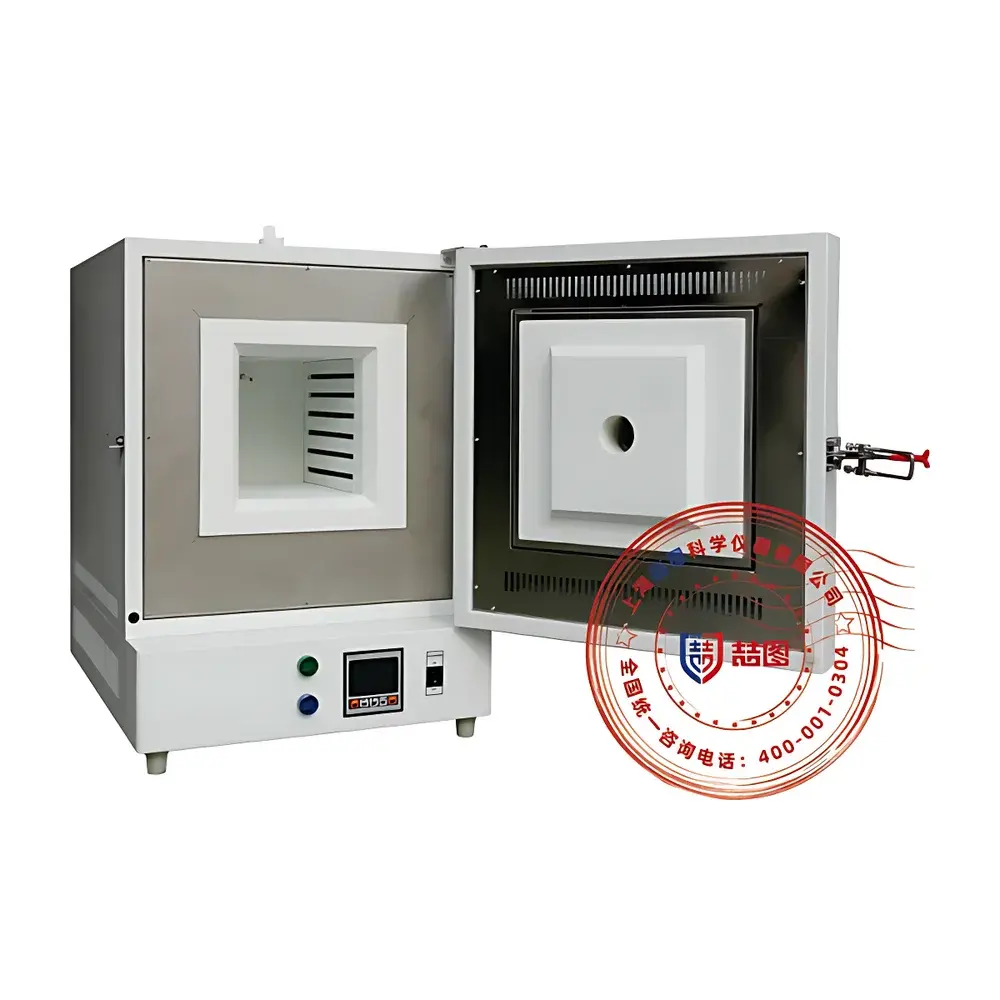

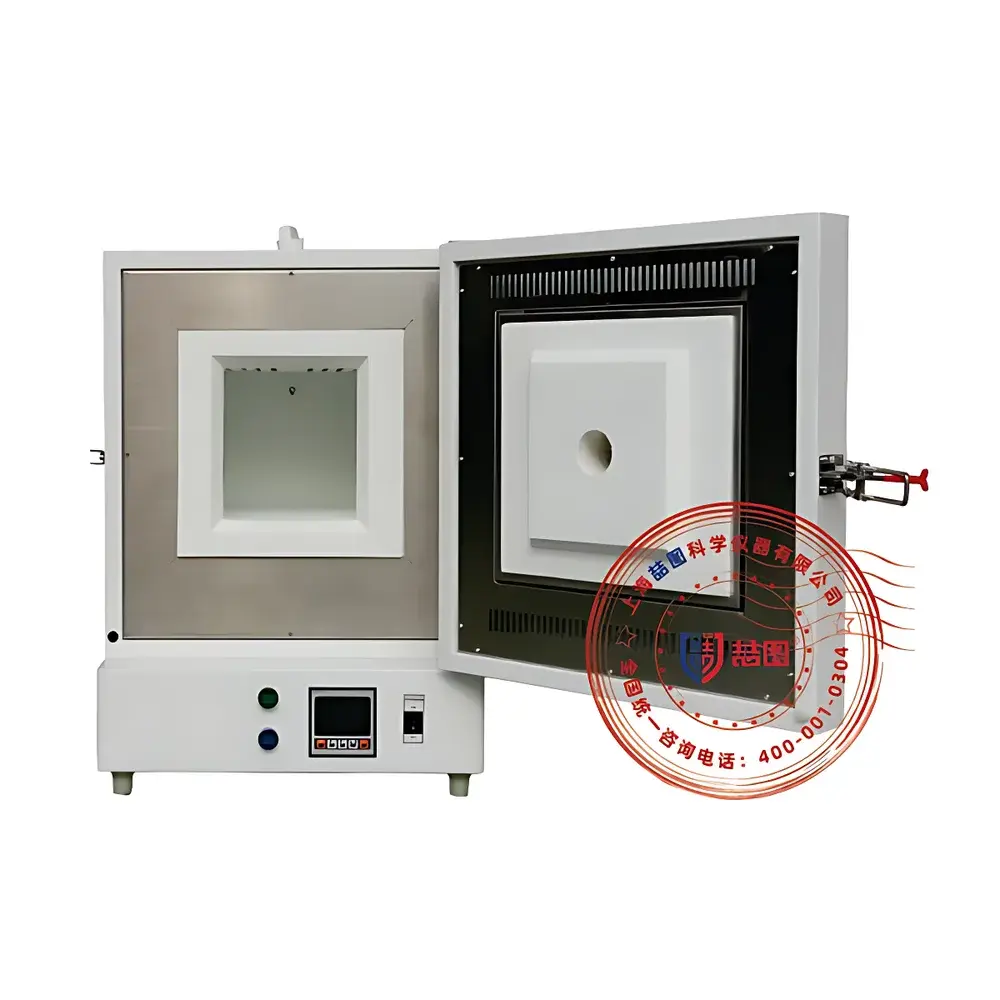

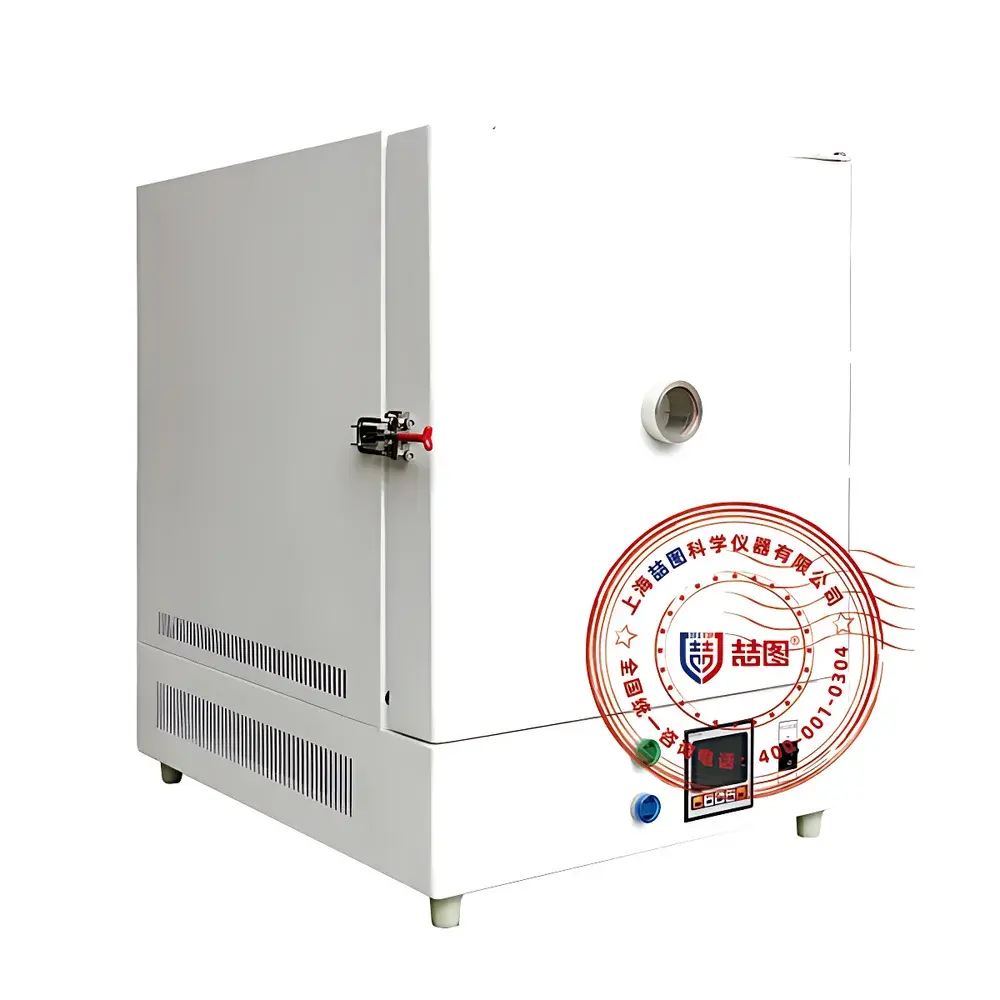

The DRETOP MK12-7.2P Cat-Eye View Muffle Furnace is a precision-engineered box-type high-temperature furnace designed for controlled thermal processing in analytical laboratories, materials research facilities, and quality control environments. Utilizing vacuum-microporous ceramic fiber insulation and triple-wall heating architecture, it achieves rapid, uniform heat distribution with minimal thermal mass and energy consumption. The furnace operates on the principle of radiant heat transfer within an electrically isolated chamber, eliminating direct contact between samples and heating elements—ensuring contamination-free, oxidation-controlled thermal treatment. Its maximum operating temperature of 1200 °C supports applications ranging from ashing and calcination to sintering of advanced ceramics, metallurgical annealing, and thermal stability testing of nanomaterials. The integrated 50 mm diameter cat-eye quartz viewport enables real-time visual monitoring of sample behavior—including color transition, phase change, or sintering dynamics—without compromising chamber integrity or temperature stability.

Key Features

• Triple-wall heating configuration with high-temperature alloy heating elements wound in spiral geometry across lateral and rear chamber walls—enhancing radial and axial temperature uniformity.

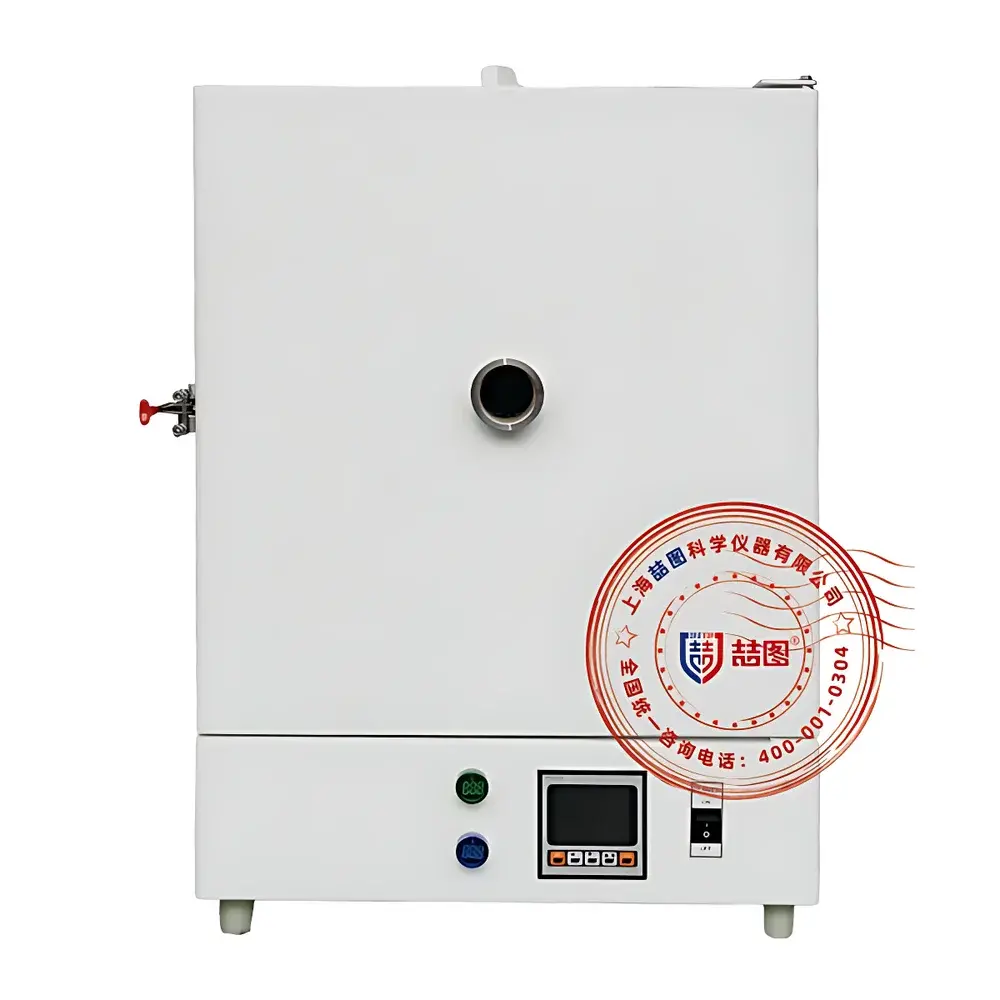

• Patented cat-eye quartz viewport (50 mm Ø) with multi-layer anti-reflective coating and integrated thermal shielding—maintaining optical clarity while minimizing surface temperature rise at the viewing interface.
• 30-stage programmable PID controller with ramp-soak-hold capability; supports user-defined heating/cooling rates, dwell times, and automatic shutdown upon cycle completion.
• Door-interlocked safety circuit: power is immediately de-energized upon door opening and resumes only after full closure and system re-initialization—preventing thermal shock and operator exposure.
• Dual-stage over-temperature protection: primary control loop + independent mechanical limit switch; supplemented by real-time digital voltage/current monitoring for early detection of electrical anomalies.
• Robust enclosure with phosphate conversion coating and high-temp epoxy powder finish; ergonomic front-panel layout with recessed controls and heat-resistant bezel.
• Thermal management system includes front-mounted air-cooled heat sinks and passive convection channels—reducing external casing temperature to <60 °C during continuous operation at 1200 °C.

Sample Compatibility & Compliance

The MK12-7.2P accommodates standard crucibles (alumina, quartz, silicon carbide), ceramic boats, and refractory trays up to 180 mm in height. Its 8.4 L chamber volume and 200 × 300 × 140 mm internal dimensions support batch processing of powders, granules, thin films, and small metallic components. The furnace complies with fundamental design principles referenced in ASTM E1142 (Standard Terminology Relating to Thermal Analysis), ISO 8573-1 (compressed air purity for optional inert gas purging), and IEC 61000-6-3 (EMC emission limits). When configured with optional RS485 Modbus RTU interface and audit-trail-enabled software (e.g., DRETOP LabLink v3.2), it supports data integrity requirements aligned with FDA 21 CFR Part 11 for electronic records in regulated QC/QA workflows.

Software & Data Management

The MK12-7.2P TP-series controller features embedded firmware supporting USB data export (CSV format) of time-temperature profiles, setpoint logs, and alarm history. Optional LabLink software provides remote monitoring via Ethernet/Wi-Fi, configurable user roles (operator, supervisor, administrator), and automated report generation compliant with GLP documentation standards. All temperature events—including deviations exceeding ±1.5 °C from setpoint—are timestamped and stored with device ID and operator login metadata. Firmware updates are delivered via signed binary packages to ensure traceability and prevent unauthorized modification.

Applications

• Quantitative ash content determination per AOAC 942.05 and ASTM D3174 for coal, biomass, and food matrices.
• Pre-sintering and final densification of oxide ceramics (e.g., Al₂O₃, ZrO₂), ferrites, and piezoelectric PZT compositions.
• Controlled atmosphere heat treatment using optional inert gas inlet valve (N₂, Ar) for preventing oxidation during annealing of copper alloys or Ti-based powders.
• Thermal gravimetric analysis (TGA) correlation studies—paired with standalone TGA instruments to validate weight-loss onset temperatures.
• Calibration of thermocouples (Type S, R, B) and reference materials (e.g., NIST SRM 720e) under ISO/IEC 17025-accredited conditions.
• Residue removal from crucibles and labware in semiconductor metrology cleanrooms—leveraging low particulate emission design.

FAQ

What is the temperature uniformity specification across the working zone?
At 1200 °C, the furnace maintains ±3 °C deviation within a 100 × 100 × 80 mm central zone (per ISO 9001 calibration protocol using 9-point thermocouple mapping).
Can the cat-eye window withstand repeated thermal cycling to 1200 °C?
Yes—the fused quartz viewport is rated for >5000 cycles between ambient and 1200 °C, with integrated thermal buffer layers reducing thermal stress at the mounting flange.
Is the controller compatible with LIMS integration?
Via optional RS485 Modbus RTU or Ethernet TCP/IP interface, enabling bidirectional communication with major LIMS platforms including Thermo Fisher SampleManager and LabVantage.
Does the furnace meet CE or UKCA marking requirements?
The MK12-7.2P conforms to EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions); CE marking applies to units shipped with EU-spec power input (230 V/50 Hz). UKCA compliance requires site-specific conformity assessment.
What maintenance intervals are recommended for optimal performance?
Ceramic fiber integrity inspection every 6 months; thermocouple calibration annually or per 200 operational hours—whichever occurs first; door gasket replacement every 18 months under daily use.
