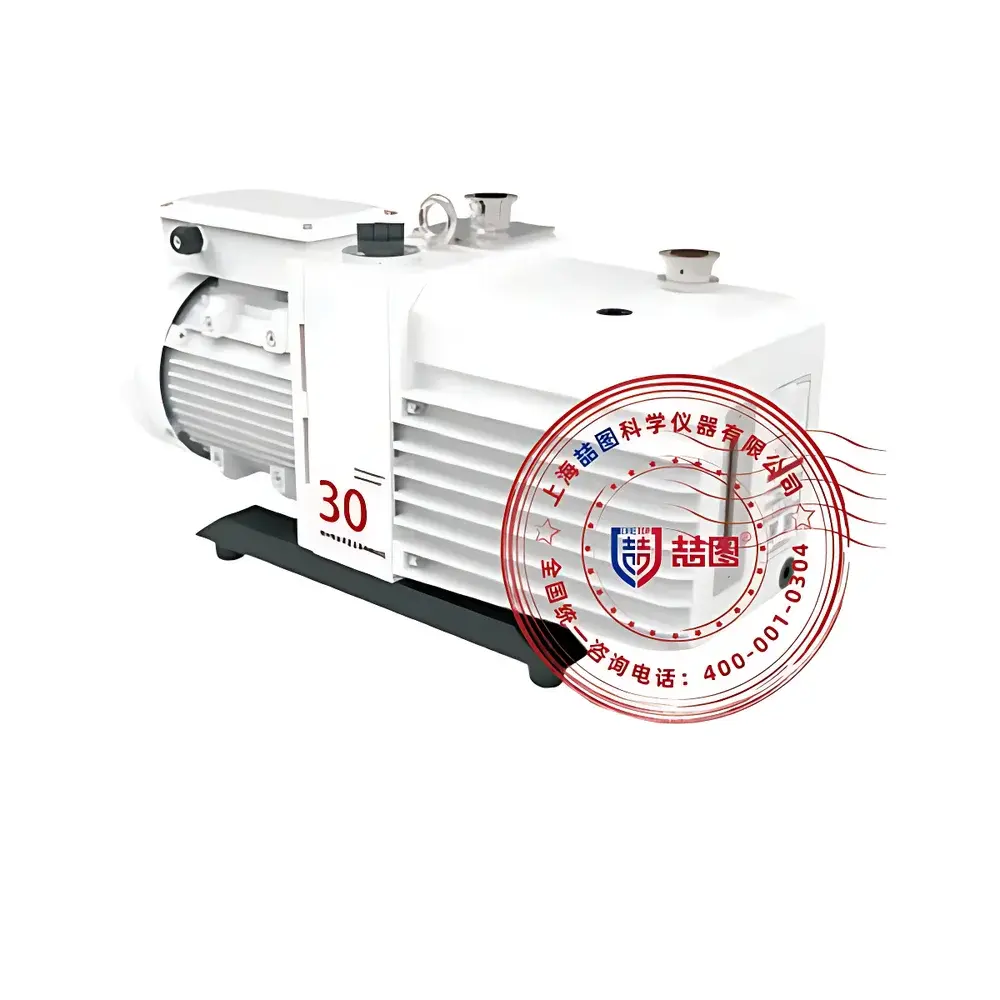

DRETOP NEX-DF16 Dual-Stage Oil-Lubricated Rotary Vane Vacuum Pump

Overview

The DRETOP NEX-DF16 is a dual-stage, oil-lubricated rotary vane vacuum pump engineered for stable, reliable, and corrosion-resilient operation in medium-vacuum applications (10⁰–10⁻¹ Pa range). It operates on the fundamental principle of positive displacement: rotating vanes within an eccentrically mounted rotor compress gas between the rotor surface and pump chamber wall, expelling it through the exhaust port after two sequential compression stages. This architecture delivers higher ultimate vacuum and improved water vapor tolerance compared to single-stage designs. The NEX-DF16 is optimized for use as a primary (fore) pump in hybrid vacuum systems—serving as the backing stage for diffusion pumps, turbomolecular pumps, or cryopumps—and is equally effective as a standalone unit for drying, degassing, impregnation, vacuum filtration, and low-pressure thermal processing. Its design prioritizes operational continuity in environments where ambient humidity, trace acidic vapors, or intermittent condensable loads are present—common in semiconductor packaging support, optical coating pre-chambers, R&D laboratories, and materials synthesis workflows.

Key Features

• Corrosion-Resistant Construction: Critical internal components—including 316L stainless steel tension springs and high-purity fluoroelastomer (FKM) seals—are selected for proven resistance to weak acids, oxidizing agents, and chlorinated compounds. The pump body features a specialized protective coating that inhibits pitting and offers partial self-cleaning properties under dynamic flow conditions.
• Dual-Stage Compression Architecture: Achieves lower ultimate pressure (≤8 Pa at full gas ballast closure) and higher pumping efficiency across the 1–100 Pa operating band, particularly advantageous when handling mixtures containing water vapor or light organics.
• Integrated Gas Ballast System: Multi-position adjustable gas ballast valve enables precise control over vapor handling capacity. When activated, controlled air admission dilutes condensable vapors before final compression, preventing oil emulsification and maintaining lubricant integrity during humid or solvent-rich duty cycles.
• Forced-Air Thermal Management: Engineered airflow path and thermally optimized motor winding allow continuous operation at rated load without external water cooling—reducing infrastructure dependencies and simplifying installation in mobile or space-constrained settings.
• Positive-Pressure Oil Circulation: An internal gear-type oil pump maintains consistent lubricant delivery to bearings and vanes even at elevated inlet pressures (up to 10 Torr), ensuring mechanical stability and minimizing wear during startup or transient load conditions.
• Anti-Backstreaming Protection: Automatic oil-line shutoff combined with reverse-gas purge via the gas ballast channel prevents back-diffusion of oil vapor into the vacuum chamber upon shutdown—preserving cleanliness in sensitive downstream equipment such as electron-beam welders or thin-film deposition tools.

Sample Compatibility & Compliance

The NEX-DF16 is compatible with non-reactive, non-polymerizing gases and vapors commonly encountered in laboratory and light industrial vacuum processes. It is not suitable for pumping explosive, highly toxic, or polymerizable substances (e.g., acetylene, isocyanates, monomers) without prior engineering review and auxiliary trapping. While not certified to ATEX or IECEx standards, its IP54 enclosure provides protection against dust ingress and water splashing—meeting general-purpose indoor laboratory and factory floor requirements. For regulated environments, the pump supports GLP/GMP-aligned operational documentation; however, it does not include FDA 21 CFR Part 11-compliant audit trails or electronic signature functionality. Users integrating this pump into validated systems should perform IQ/OQ protocols per ISO 9001 and ASTM F2626-22 (Standard Guide for Vacuum System Qualification).

Software & Data Management

The NEX-DF16 operates as a stand-alone electromechanical device with no embedded digital controller or communication interface (e.g., RS-485, Modbus, or Ethernet). All operational parameters—including motor status, thermal cut-off activation, and gas ballast position—are monitored manually or via external instrumentation (e.g., Pirani or capacitance manometers). Integration into automated vacuum systems requires third-party PLC-level control logic and analog/digital I/O modules. DRETOP provides mechanical mounting templates, porting schematics, and oil service guidelines in English-language technical documentation compliant with ISO 8573-1 (compressed air purity classes) and ISO 21509 (vacuum pump terminology). Firmware updates or remote diagnostics are not applicable.

Applications

• Vacuum drying ovens and freeze dryers requiring stable 1–10 Pa base pressure
• Pre-evacuation and roughing stages in physical vapor deposition (PVD) and sputtering systems
• De-airing of adhesives, resins, and composite matrix materials prior to curing
• Soil and sediment degassing in environmental testing laboratories
• Leak testing of sealed enclosures using pressure-rise or helium accumulation methods
• Support vacuum for electron microscopy sample preparation chambers
• Evaporative concentration of aqueous and mild organic extracts in pharmaceutical QC labs

FAQ

Is the NEX-DF16 suitable for pumping corrosive process gases like HCl or Cl₂?
No. While its 316L springs and FKM seals offer enhanced resistance to weak acids and oxidizers, it is not rated for continuous exposure to concentrated HCl, Cl₂, HF, or aqua regia. For such environments, DRETOP recommends its dry screw vacuum pump series with ceramic-coated rotors and PTFE-composite housing.
What type of vacuum oil is recommended for the NEX-DF16?
Use only ISO VG 68 or equivalent high-refinement mineral-based vacuum oils meeting DIN 51506 VDL specifications. Synthetic ester or polyalphaolefin (PAO) oils may be used if compatibility with FKM seals is verified by the oil manufacturer.
Can the pump be operated continuously at its maximum pumping speed?
Yes—provided ambient temperature remains ≤40°C, ventilation is unobstructed, and the gas ballast is adjusted appropriately for the process load. Continuous operation above 40°C ambient requires supplemental forced-air cooling or derating per DRETOP’s thermal derating curve (available in Technical Manual Rev. 3.1).
Does the NEX-DF16 comply with EU RoHS or REACH regulations?
Yes. All materials of construction, including pump oil (when supplied by DRETOP), conform to Directive 2011/65/EU (RoHS II) and Regulation (EC) No. 1907/2006 (REACH), with SVHC declarations available upon request.
What maintenance intervals are recommended for routine servicing?
Oil change every 500 operating hours or 6 months (whichever occurs first); vane inspection and replacement every 3,000–5,000 hours depending on duty cycle and contaminant exposure; full bearing service at 8,000 hours or per vibration analysis trending.
