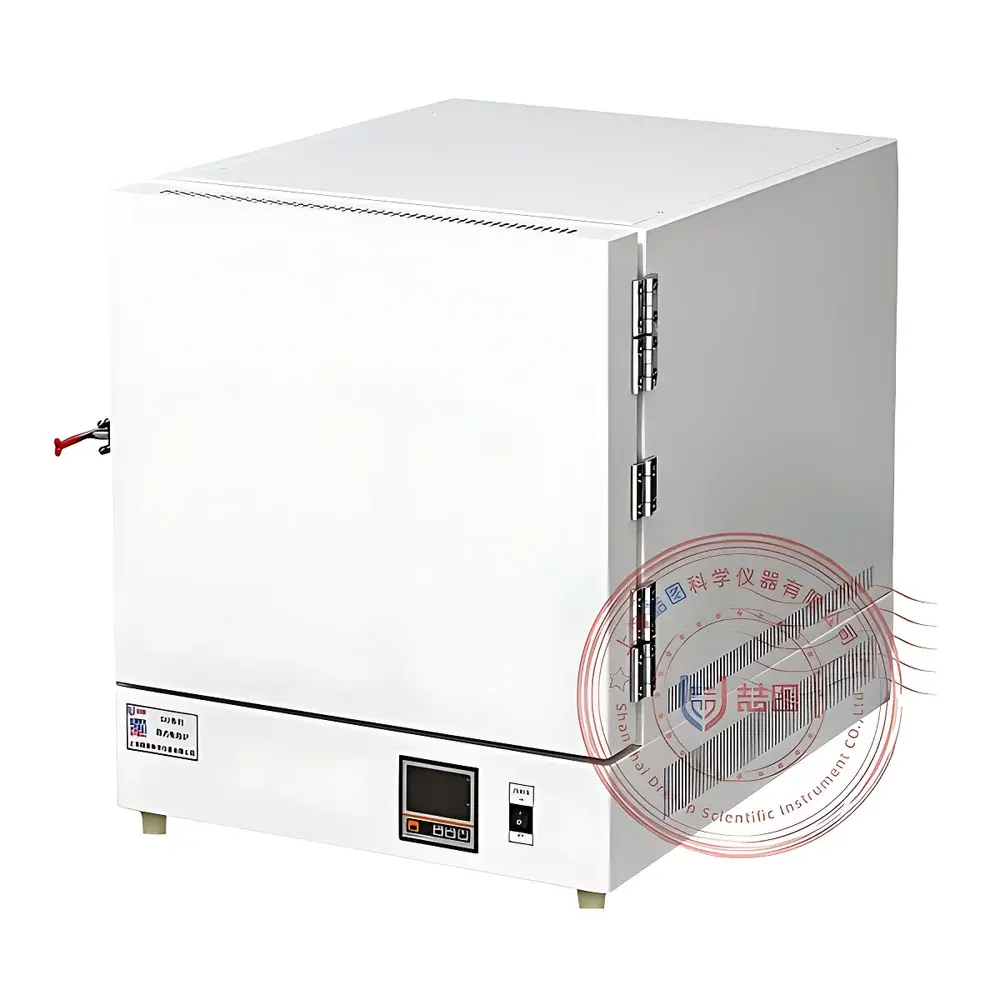

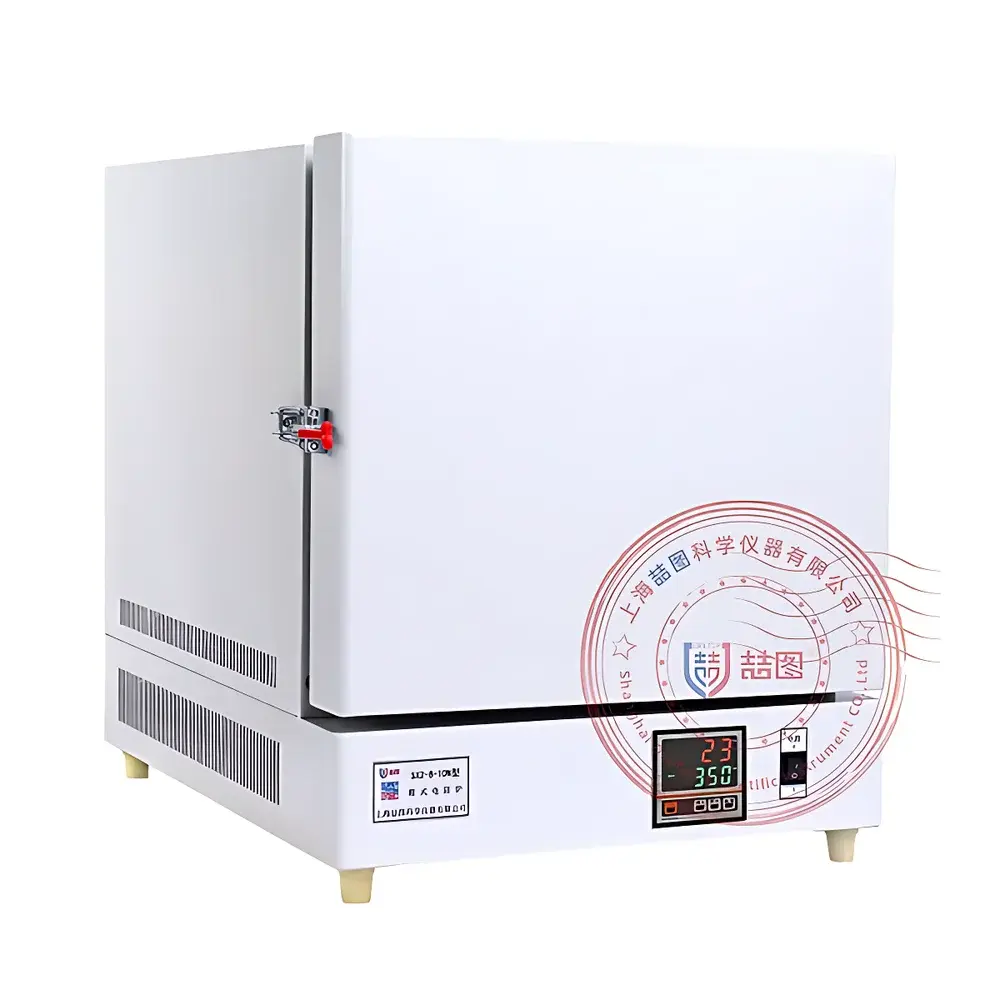

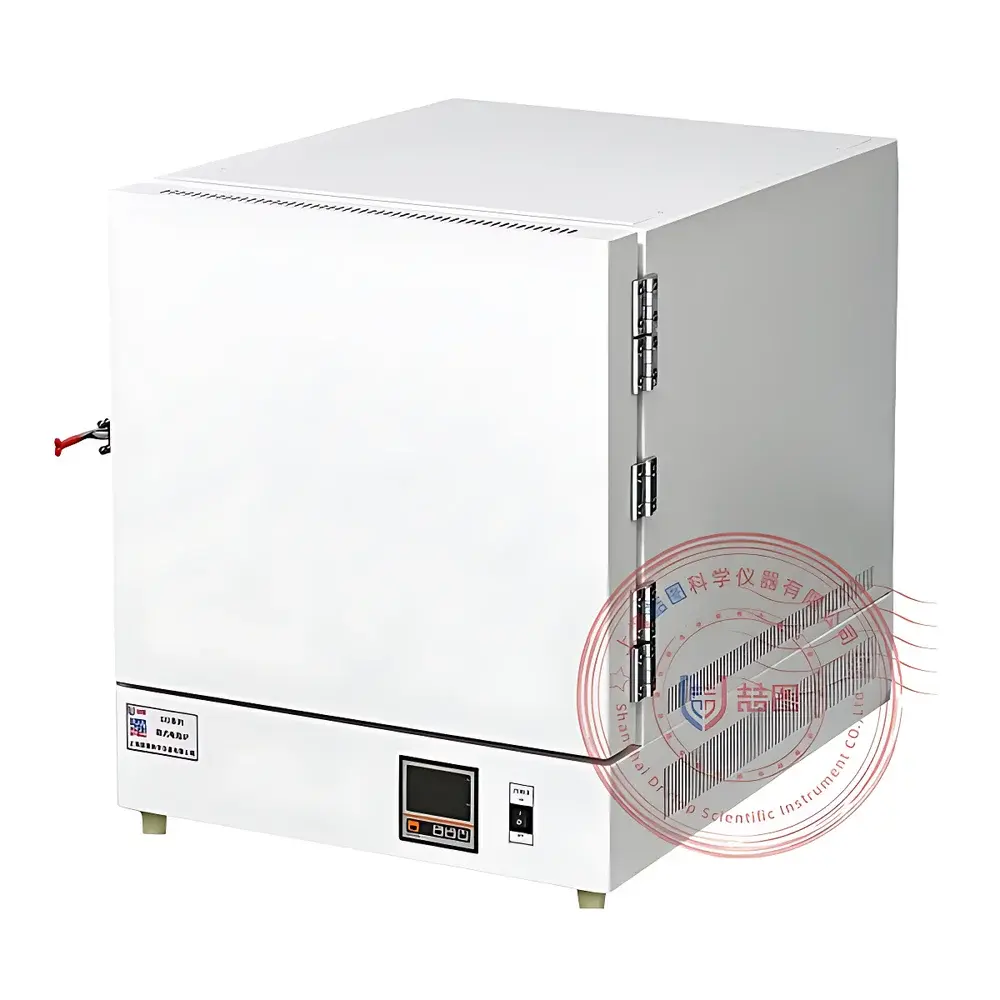

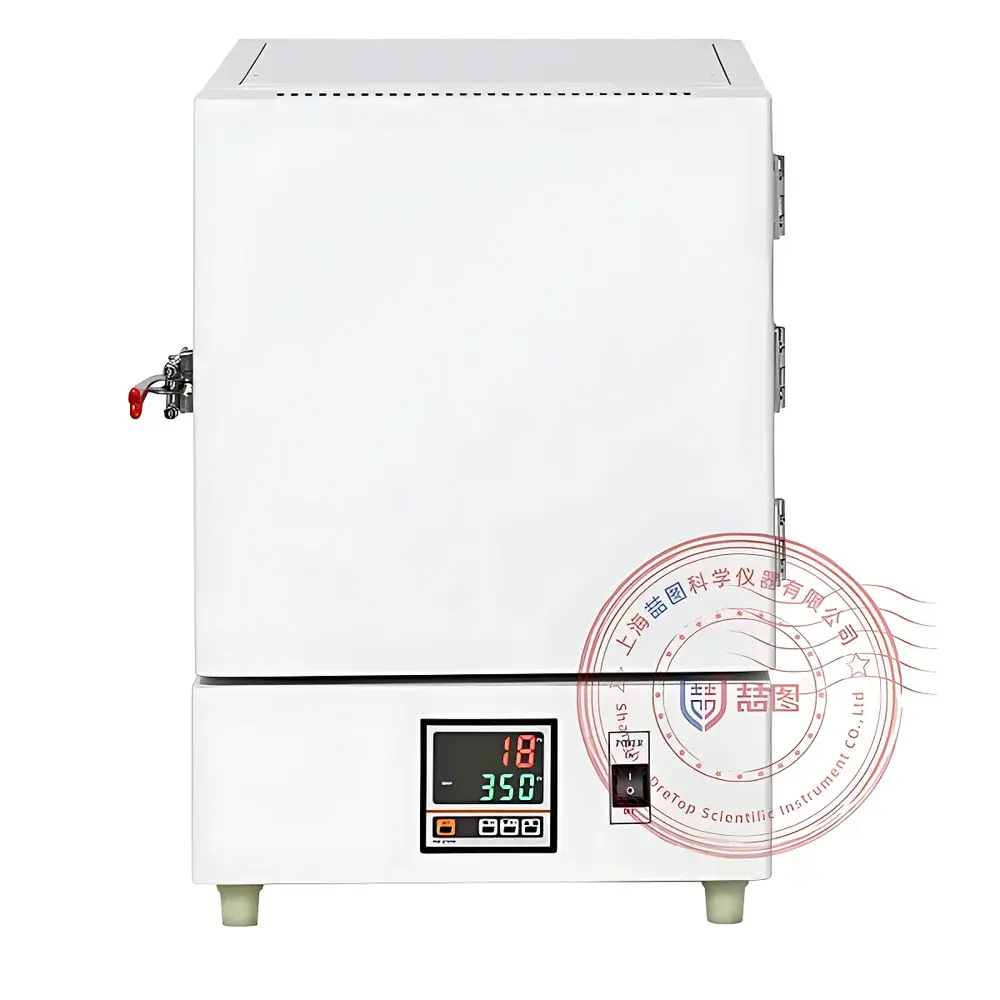

DRETOP SX-12-12N Benchtop Box-Type High-Temperature Muffle Furnace

Overview

The DRETOP SX-12-12N is a benchtop box-type muffle furnace engineered for precision thermal processing in research laboratories and industrial quality control environments. Operating on resistive heating principles, it utilizes high-purity nickel-chromium alloy wire wound in optimized spiral configurations across three internal chamber walls—ensuring uniform radiant heat distribution and minimizing axial or radial thermal gradients. With a maximum operating temperature of 1200 °C and a verified control stability of ±1 °C under steady-state conditions, the furnace supports critical applications including ash content determination (ASTM D3174, ISO 1171), loss-on-ignition (LOI) analysis, ceramic sintering, catalyst calcination, and pre-treatment of geochemical and metallurgical samples. Its robust refractory brick-lined chamber—lightweight yet thermally inert—delivers low thermal mass and rapid thermal response, while the double-layer insulated steel housing minimizes surface temperature rise during extended operation. Unlike tubular furnaces, the SX-12-12N is fundamentally a box-type configuration; references to “hybrid box/tube” functionality in legacy marketing materials reflect optional front-access port configurations (e.g., Ø20 mm quartz tube insertion via sealed aperture), not structural duality.

Key Features

• Triple-wall heating architecture: Heating elements embedded in side and rear refractory walls generate multidirectional radiation, achieving ≤±3 °C uniformity across the full 30 L working volume at 1000 °C (measured per IEC 60584-2 using 9-point thermocouple mapping).
• Microprocessor-based PID controller with N-series monochrome LCD interface: Supports 30-segment programmable ramp-soak profiles, automatic power cutoff on door opening, and real-time voltage/current monitoring via integrated digital ammeter/voltmeter.
• Dual-stage overtemperature protection: Primary limit switch (mechanical) + secondary solid-state relay cutoff (setpoint adjustable up to 1250 °C), both independently wired and fail-safe.
• Ergonomic front-loading design with reinforced stainless-steel door seal: Patented latch mechanism ensures <0.5 mm gap tolerance between door and chamber rim, reducing convective heat loss and improving repeatability in gravimetric assays.
• Thermally compensated ambient sensing: Built-in reference sensor auto-adjusts initial ramp rate based on lab ambient, reducing time-to-target by up to 12% versus fixed-start algorithms.
• Industrial-grade enclosure: Phosphate conversion coating + high-temp epoxy powder coating (200 µm thickness) provides corrosion resistance per ISO 9227 salt-spray testing (1000 h).

Sample Compatibility & Compliance

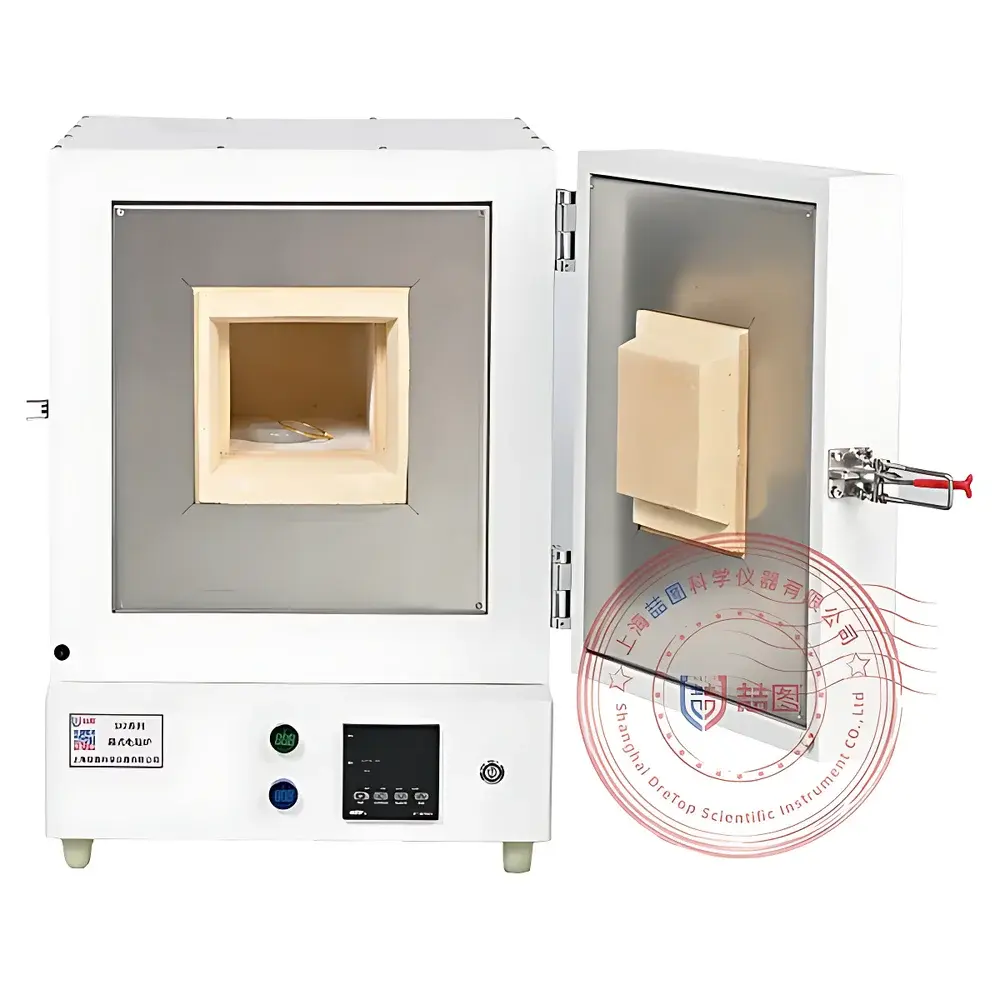

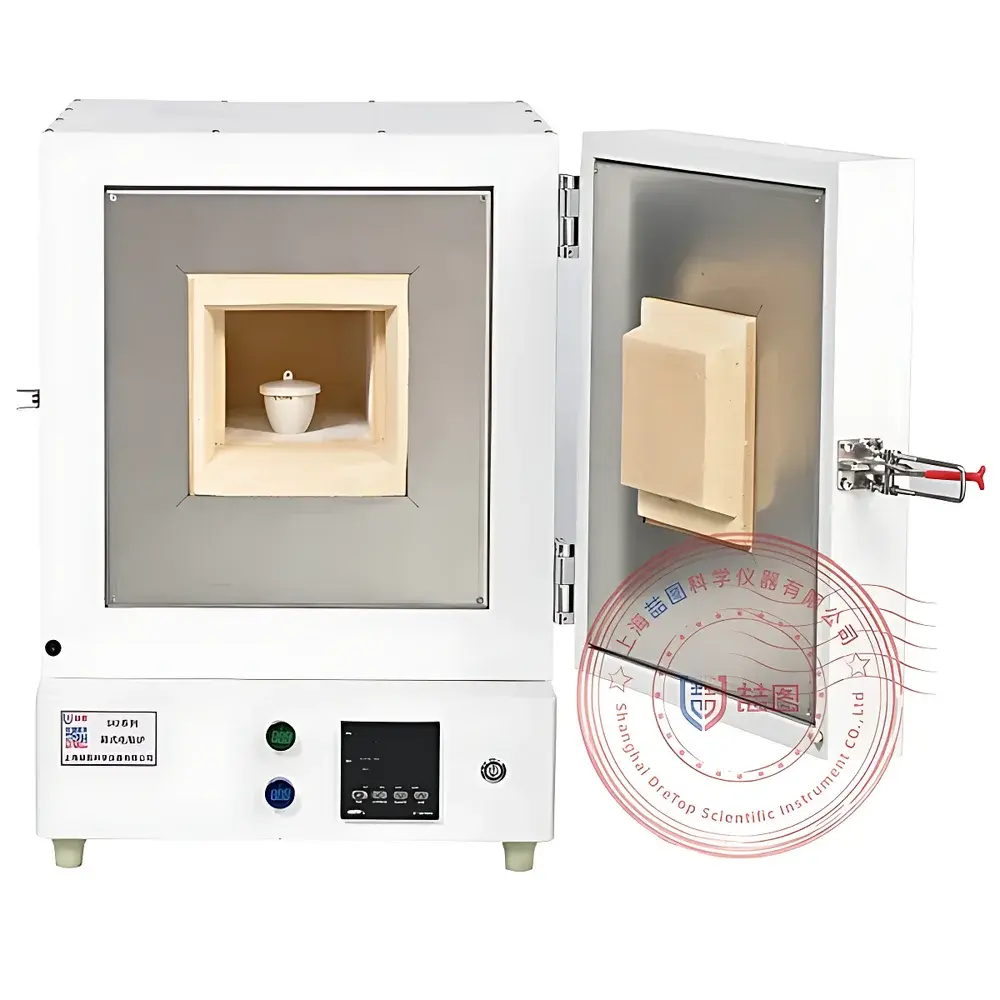

The SX-12-12N accommodates standard crucibles (alumina, platinum, graphite), ceramic boats, and silica trays up to 280 mm × 480 mm footprint. Its 300 × 500 × 200 mm internal cavity permits simultaneous processing of multiple ASTM E1729-compliant sample sets. The furnace meets electromagnetic compatibility requirements per EN 61326-1 and conforms to safety standards aligned with IEC 61010-1 for laboratory electrical equipment. While not certified to UL 746C or CSA C22.2 No. 61010-1 out-of-the-box, its wiring topology, grounding scheme, and component derating support third-party validation for GMP/GLP-regulated labs. Optional RS485 Modbus RTU interface enables integration into centralized LIMS or SCADA systems with audit-trail-capable data logging (when paired with external compliant recorder).

Software & Data Management

The base N-series controller provides local parameter storage (up to 10 user-defined programs) with non-volatile memory retaining settings after power interruption. For advanced traceability, the NC-series color touchscreen upgrade (optional) adds password-protected engineering access levels (Operator / Technician / Administrator), real-time temperature curve visualization, CSV export via USB, and timestamped event logging—including door open/close cycles, alarm triggers, and setpoint modifications. All firmware adheres to deterministic timing constraints, ensuring cycle reproducibility within ±0.5 min over 100 consecutive runs. Data exports comply with FDA 21 CFR Part 11 readiness when deployed with validated external software platforms.

Applications

• Coal and coke analysis: Ash fusion temperature determination (ASTM D1857), volatile matter quantification (ASTM D3175), sulfur residue testing.
• Cement and clinker processing: Free lime measurement (EN 196-2), sulfate content evaluation post-calcination.
• Pharmaceutical excipient validation: Residual solvent removal, polymorph stabilization studies under inert atmosphere (with optional gas inlet kit).
• Environmental testing: Total organic carbon (TOC) oxidation in soil/sediment matrices (EPA Method 9060A), heavy metal recovery from filter media.
• Materials science: Pre-oxidation of Ni-based superalloys, annealing of Fe–Si laminations, densification of YSZ electrolytes.

FAQ

Is the SX-12-12N suitable for inert-atmosphere processing?
Yes—when equipped with the optional inert gas inlet valve (rated for N₂, Ar, or forming gas up to 0.1 MPa), and used with appropriate venting (e.g., chimney accessory), it supports controlled-atmosphere sintering and reduction protocols.
Can this furnace be integrated into an automated lab workflow?
The RS485 interface (optional) enables bidirectional communication with PLCs or LIMS via Modbus RTU, supporting remote start/stop, setpoint adjustment, and status polling.
What is the expected service life of the heating elements?
Under continuous operation at ≤1100 °C with proper thermal cycling (≤3 cycles/day), nickel-chromium elements typically exceed 8,000 hours of functional lifespan per IEC 60068-2-40 accelerated aging tests.
Does the furnace include calibration documentation?
Factory calibration certificate (traceable to NIM China) is provided; users must perform periodic verification using NIST-traceable reference thermocouples per ISO/IEC 17025 guidelines.
Is the “hybrid box/tube” designation functionally accurate?
No—the SX-12-12N is a box furnace. The “hybrid” label refers solely to an optional front-panel aperture (Ø20 mm) allowing limited insertion of small-diameter quartz tubes; it does not support longitudinal gas flow or tube-specific thermal profiles.
