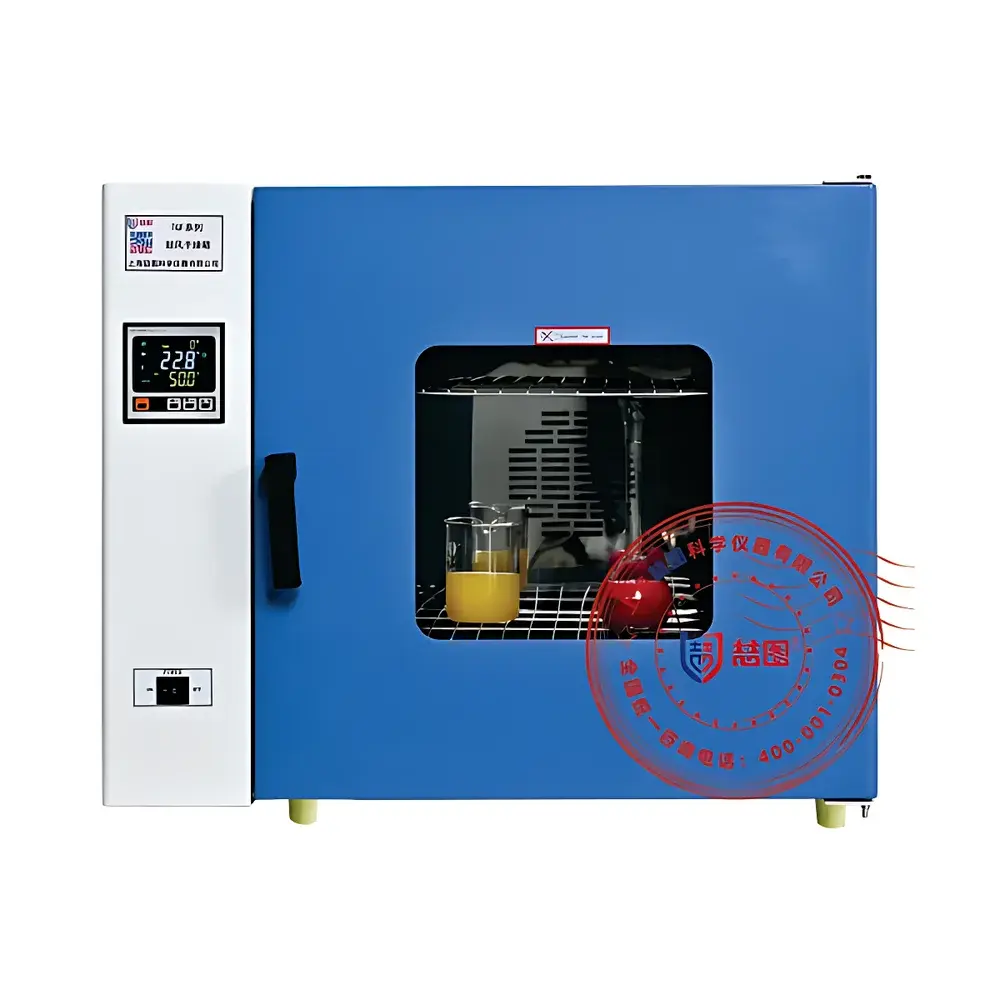

DRETOP TGF-9010A Forced-Air Drying Oven

Overview

The DRETOP TGF-9010A Forced-Air Drying Oven is a compact, benchtop-class laboratory drying system engineered for precision thermal processing of non-volatile, non-flammable samples under atmospheric conditions. It operates on the principle of forced convection—using a high-reliability centrifugal fan and optimized internal airflow channels—to ensure rapid heat transfer and uniform temperature distribution across the working chamber. Designed for routine laboratory workflows in academic research, pharmaceutical QC, food science, materials testing, and biomedical device sterilization, the TGF-9010A delivers stable, repeatable thermal environments without vacuum or inert gas requirements. Its RT+10°C to 250°C operational range supports applications including moisture determination (per ASTM D2240, ISO 293), dry-heat sterilization of glassware (in accordance with USP and ISO 17665-1), polymer curing, residual solvent removal, and thermal stability assessment of excipients and active pharmaceutical ingredients (APIs).

Key Features

• Microprocessor-based P.I.D. temperature controller with 0.1°C resolution and ±1.0°C fluctuation tolerance—engineered for high reproducibility in time-critical thermal protocols.
• Triple-color LCD display showing real-time setpoint, actual chamber temperature, and elapsed timer—all visible at a glance; intuitive menu navigation with error-code diagnostics (e.g., E01 = sensor open circuit, E02 = overtemperature).
• Dual-stage rotary door lock with high-compression silicone gasket (synthetic high-temp silicone, rated to 300°C), ensuring long-term sealing integrity and minimal thermal leakage.
• Double-layer tempered glass observation window with anti-fog coating—enabling continuous visual monitoring without compromising thermal stability or operator safety.
• Removable and height-adjustable stainless steel shelves (1 standard shelf included); smooth drawer-style tray insertion/retraction mechanism for ergonomic sample handling.
• Self-recovering power-loss protection: automatically resumes prior setpoint, timer value, and control parameters after unexpected AC interruption—critical for GLP-compliant unattended operation.
• Independent overtemperature cut-off circuit with audible/visual alarm—meets IEC 61010-1 Class II safety requirements for laboratory electrical equipment.

Sample Compatibility & Compliance

The TGF-9010A accommodates standard laboratory glassware (e.g., Petri dishes, weighing bottles, crucibles), metal trays, ceramic substrates, and polymer test specimens up to 250 × 260 × 250 mm in footprint. It is certified for use with non-hazardous, non-explosive, and non-solvent-based materials only—consistent with OSHA 29 CFR 1910.1200 and EU CLP Regulation Annex VI classification. The 304 stainless steel interior resists corrosion from saline residues, weak acids, and alkaline cleaning agents—supporting compliance with ISO 15190:2020 (laboratory safety management) and FDA 21 CFR Part 11 when paired with optional data-logging accessories. Dry-heat sterilization cycles (e.g., 160°C for 120 min) align with EN 554 and ISO 17665-1 validation frameworks.

Software & Data Management

While the base unit features embedded firmware without network connectivity, optional accessories extend its traceability and audit readiness: a USB data export port enables direct logging of temperature/time profiles to FAT32-formatted USB drives (CSV format); an RS-485 interface supports Modbus RTU communication for integration into centralized LabVantage or LabWare LIMS environments; and an optional programmable controller (up to 30 segments) provides ramp-soak-hold profiles compliant with ASTM E2024 thermal validation guidelines. All timestamped events—including setpoint changes, alarms, and power recovery—are stored locally with 30-day circular memory, satisfying basic ALCOA+ data integrity principles for non-GMP laboratories.

Applications

• Moisture content analysis per AOAC 950.46 and ISO 554:1976 (standard atmosphere conditioning).
• Dry-heat depyrogenation of glass vials and stainless steel components in biopharmaceutical manufacturing support labs.
• Thermal aging studies of elastomers and composites (ASTM D573, ISO 188).
• Baking of thin-film coatings and sintering pre-treatment for ceramic substrates.
• Residual solvent evaporation from HPLC vial inserts and GC sample preparation plates.
• Pre-conditioning of filter membranes and chromatography columns prior to performance testing.

FAQ

Is the TGF-9010A suitable for sterilizing surgical instruments?
No—this model is not validated for medical device sterilization per ISO 17665 or AAMI ST38. It is intended for dry-heat treatment of labware and non-critical surfaces only.
Can the oven operate continuously at 250°C for extended periods?
Yes—the heating elements, insulation, and fan motor are rated for uninterrupted operation at maximum setpoint; however, periodic verification of temperature uniformity (e.g., quarterly per ISO/IEC 17025) is recommended.
Does it support external data acquisition via analog output?
Not natively; analog 0–5 V or 4–20 mA outputs require the optional RS-485-to-Modbus gateway module.
What is the maximum load weight per shelf?
Each 304 stainless steel shelf is rated for 15 kg distributed load; total chamber load must not obstruct airflow or exceed 80% internal volume occupancy.
Is calibration documentation provided with shipment?
A factory calibration certificate (traceable to NIM, China) is included; users should perform in-house verification using a NIST-traceable reference thermometer before first use and at defined intervals thereafter.
