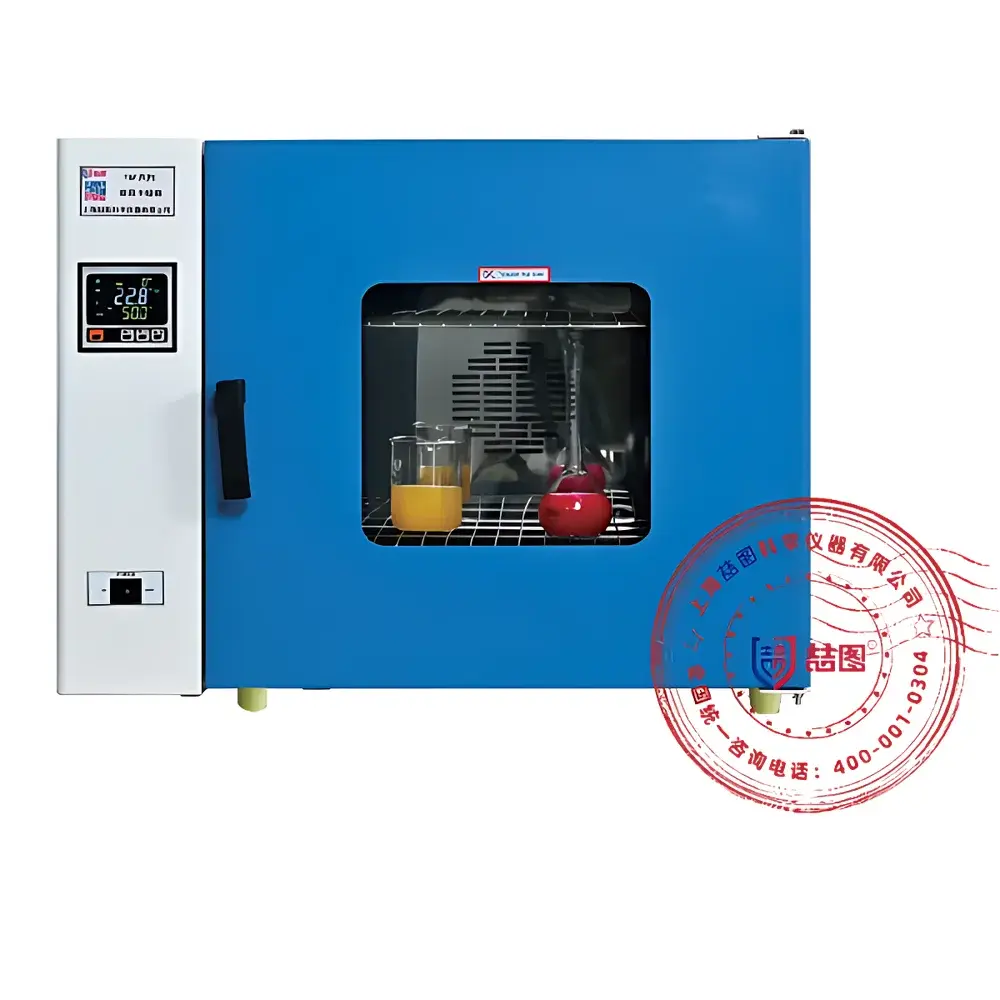

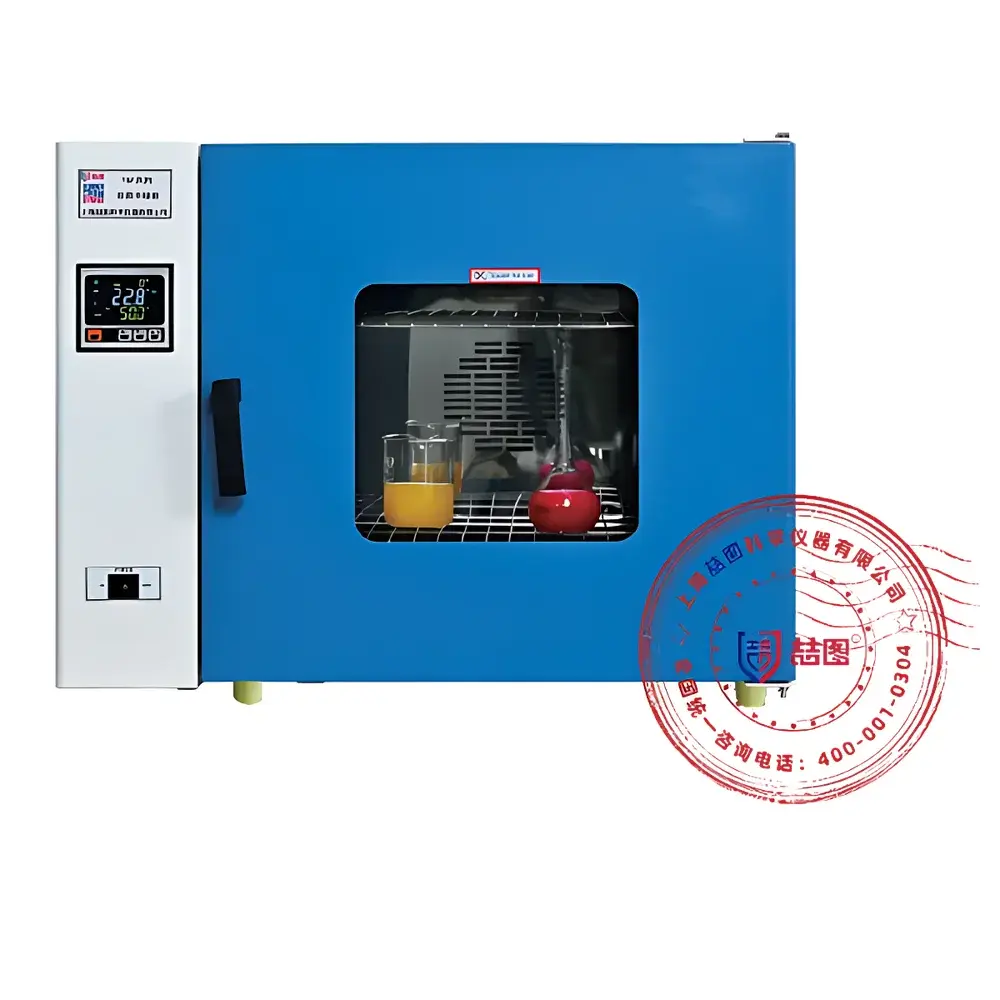

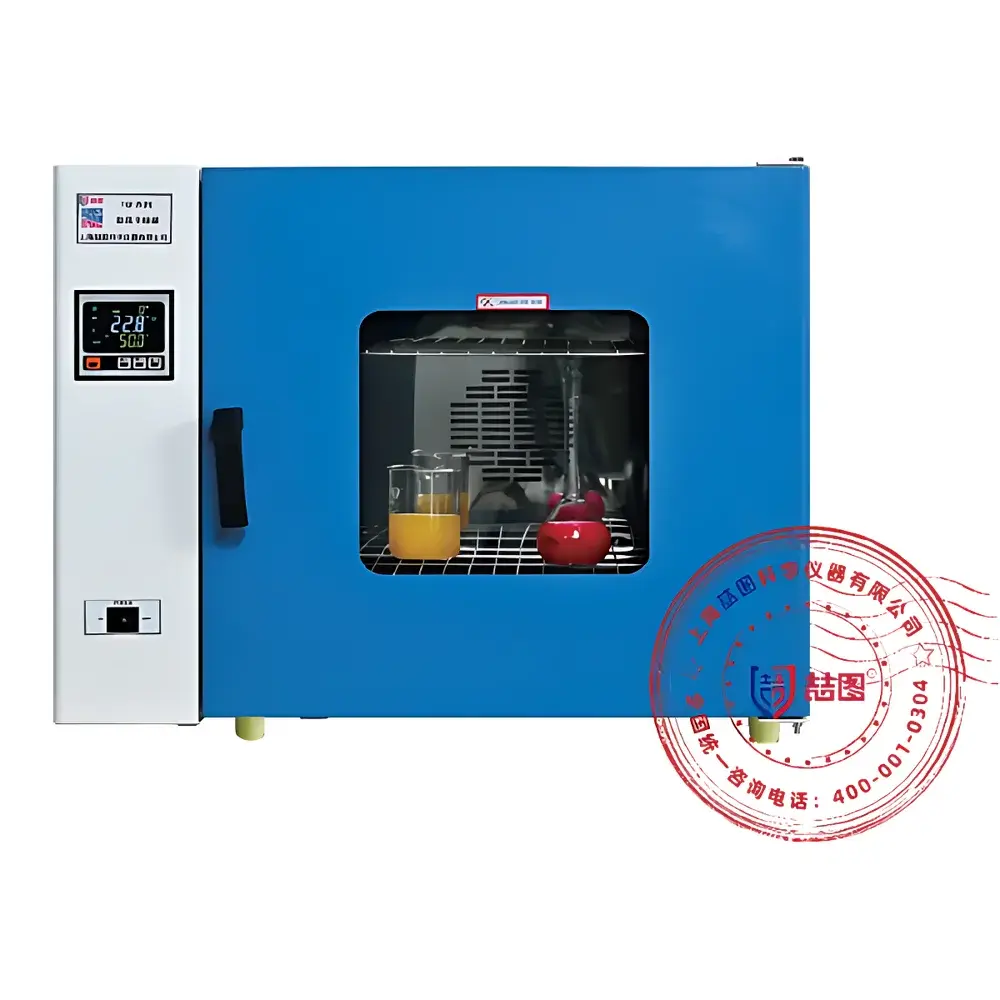

DRETOP TGF-9023A Forced-Air Constant-Temperature Drying Oven

Overview

The DRETOP TGF-9023A is a precision-engineered benchtop forced-air drying oven designed for routine thermal processing in laboratories, quality control environments, and R&D facilities. It operates on the principle of convective heat transfer via a calibrated axial fan-driven air circulation system, ensuring consistent thermal distribution across the working chamber. Unlike natural convection ovens, this model actively homogenizes airflow using a rear-mounted blower and strategically positioned baffle plates—minimizing thermal stratification and enabling reliable drying, baking, sterilization, and moisture removal of samples with high reproducibility. Its operational envelope spans from ambient +10°C up to 300°C, making it suitable for applications ranging from polymer curing and pharmaceutical residual solvent evaporation to microbiological media preparation and inert material conditioning. The unit complies with general laboratory safety standards for Class II electrical equipment (IEC 61010-1), and its structural design supports long-term stability under continuous operation at elevated temperatures.

Key Features

• Mirror-finish stainless steel interior chamber (340 × 330 × 320 mm) resistant to corrosion, oxidation, and repeated cleaning cycles;
• Microprocessor-based P.I.D. temperature controller with 0.1°C resolution, real-time digital display, and programmable timer (1–9999 minutes);
• Forced-air circulation system with adjustable airflow velocity and automatic internal humidity venting to prevent condensation buildup;
• Energy-efficient silicone rubber door seal reducing thermal leakage by up to 45%, validated per ISO 8502-12 thermal insulation performance guidelines;
• Over-temperature deviation protection with configurable alarm threshold and audible/visual alert;
• Power-loss recovery function retaining user-defined parameters during unexpected shutdowns;
• Ergonomic front-loading design with reinforced tempered glass observation window (large viewing area) and smooth-glide door mechanism;
• Exterior housing constructed from cold-rolled steel with electrostatic epoxy powder coating for mechanical durability and chemical resistance.

Sample Compatibility & Compliance

The TGF-9023A accommodates standard laboratory sample containers—including Petri dishes, weighing boats, aluminum pans, glass vials, and ceramic crucibles—within its 30 L nominal chamber volume. It supports non-hazardous, non-explosive, and non-volatile materials only; flammable solvents or reactive chemicals require alternative containment or vacuum-assisted drying systems. While not certified for GMP or FDA 21 CFR Part 11 compliance out-of-the-box, the oven can be integrated into GLP-aligned workflows when paired with external data loggers and audit-trail-capable software (e.g., via optional RS485/USB interface). It meets basic requirements for ASTM D1654 (coating drying evaluation), ISO 712 (moisture content in cereals), and USP (sterile product drying validation protocols) when operated within specified thermal uniformity tolerances.

Software & Data Management

The base configuration includes an embedded LCD interface with intuitive menu navigation and real-time temperature logging (local display only). Optional digital enhancements expand traceability and remote monitoring capabilities: an RS485 port enables integration with SCADA or LIMS platforms using Modbus RTU protocol; a USB interface supports firmware updates and raw temperature/time export to CSV format; a color touchscreen variant provides graphical temperature curve visualization and multi-step ramp-soak profiles. When configured with the optional wireless SMS alarm module, users receive immediate notifications upon deviation from setpoints—critical for unattended overnight operations. All optional peripherals are CE-marked and operate within the same EMC and safety framework as the main unit.

Applications

• Drying of filter papers, soil samples, and biological tissues prior to gravimetric analysis;
• Baking of ceramic substrates, printed circuit boards, and thin-film coatings;
• Pre-conditioning of hygroscopic reference standards (e.g., potassium hydrogen phthalate) per ISO/IEC 17025 calibration requirements;
• Heat treatment of metallographic specimens before etching or microscopy;
• Depyrogenation of glassware and stainless-steel tools at ≥250°C for sterile processing areas;
• Accelerated aging studies of polymers and adhesives under controlled thermal stress;
• Residual solvent removal from pharmaceutical intermediates in compliance with ICH Q5C stability guidelines.

FAQ

Is the TGF-9023A suitable for sterilization of medical devices?
No—it is not classified as a sterilizer per ISO 17665 or EN 285. It may be used for depyrogenation or pre-sterilization drying but lacks validated cycle mapping, steam injection, or pressure control required for terminal sterilization.
Can the oven be operated continuously at 300°C?
Yes, the unit is rated for sustained operation at maximum temperature, provided ambient conditions remain within 5–45°C and ventilation clearance (≥10 cm on all sides) is maintained.
Does the oven support NIST-traceable calibration?
The controller accepts external PT100 probe input for third-party calibration verification; however, factory calibration certificates are not included unless requested as an add-on service.
What is the maximum load capacity for uniform heating?
For optimal temperature uniformity (±2.5°C), loading should not exceed 70% of chamber volume with evenly distributed items; dense or stacked configurations require extended equilibration time.
Are replacement shelves and seals available as spare parts?
Yes—DRETOP supplies OEM-certified stainless steel shelves (part #TGF-SH30), silicone door gaskets (part #TGF-GSK30), and fan assemblies with documented service life specifications.
