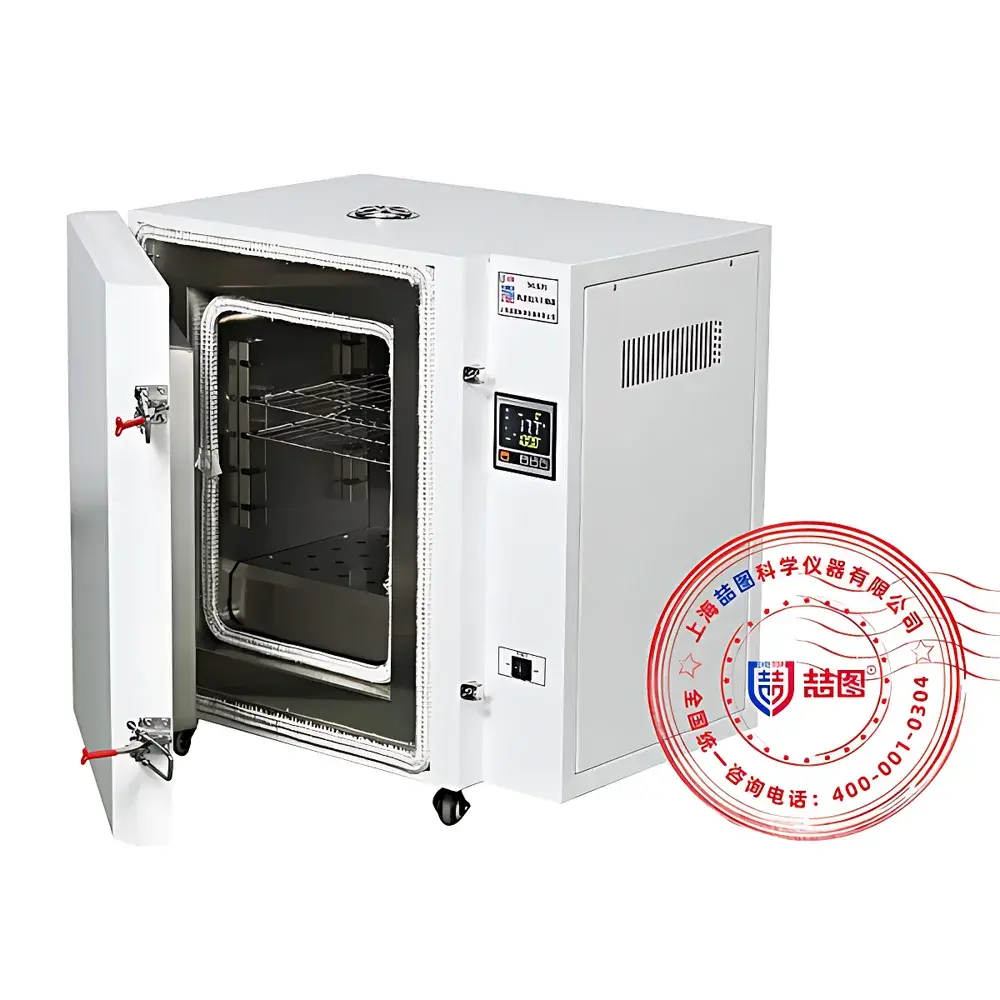

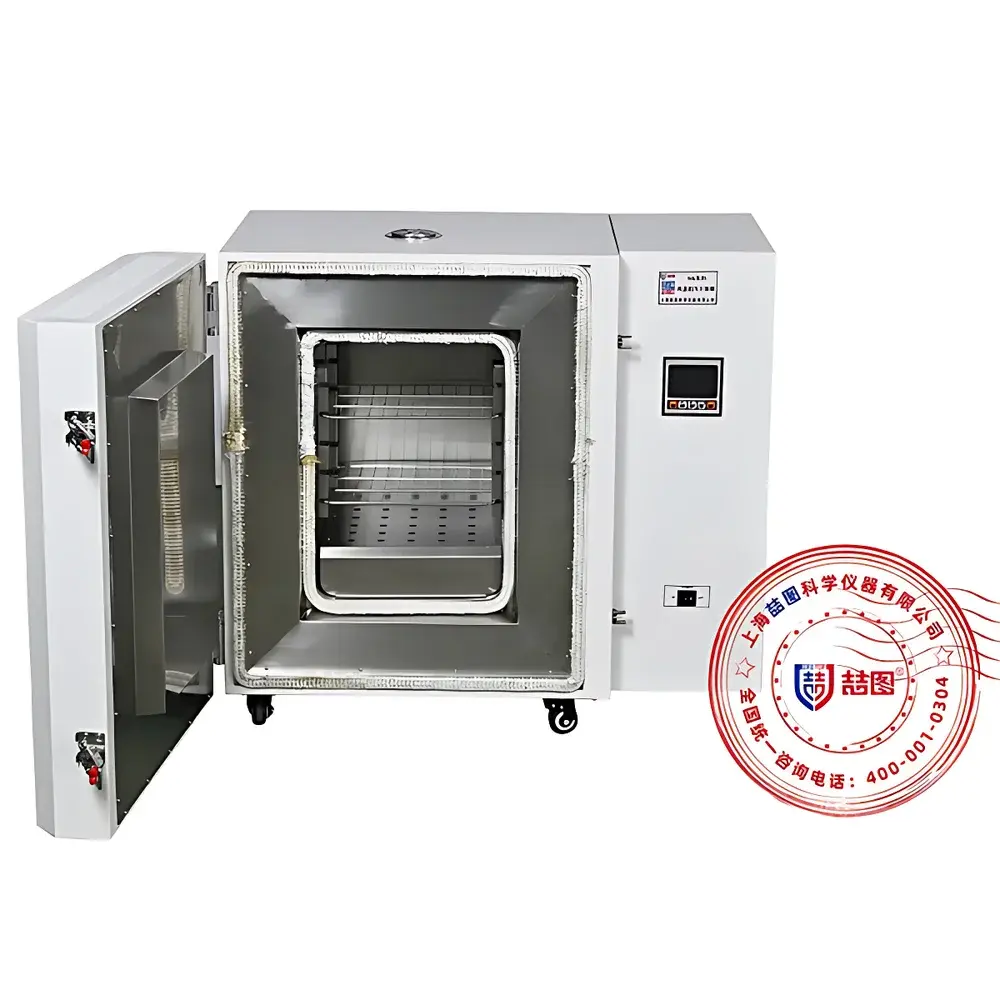

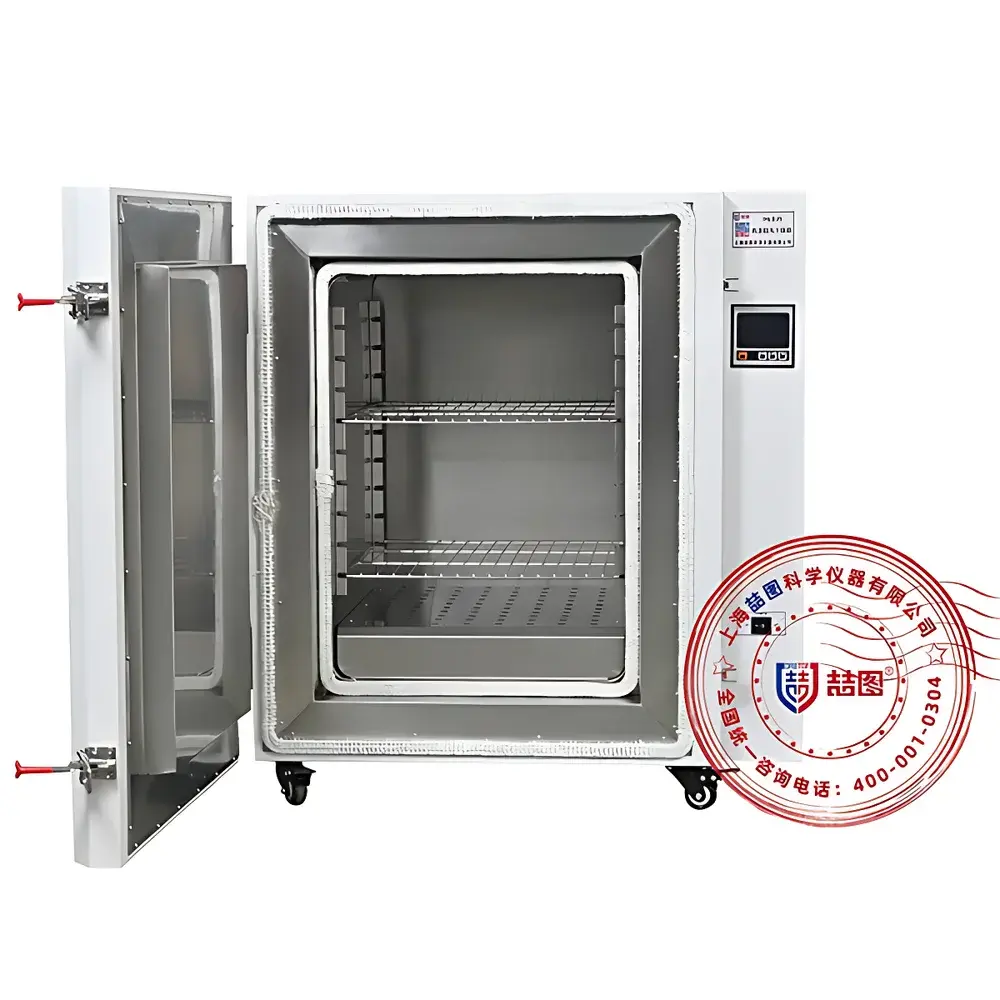

DRETOP TGF Series Forced-Air Drying Oven

Overview

The DRETOP TGF Series Forced-Air Drying Oven is an engineered solution for precise, repeatable thermal processing of non-volatile, non-flammable samples in research laboratories, quality control environments, and industrial production settings. Based on the principle of forced convection heating—where a high-temperature-stable centrifugal blower circulates heated air through a calibrated wind tunnel—the TGF series ensures rapid heat transfer and minimized thermal stratification across the working chamber. Designed for applications requiring controlled dehydration, sterilization, thermal stabilization, or post-processing conditioning, this oven complies with fundamental thermal management requirements outlined in ISO 17025-accredited laboratory practices and aligns with general-purpose drying protocols referenced in ASTM E145 (Standard Practice for Gravity-Convection and Forced-Ventilation Ovens) and USP (Sterility Assurance for Dry Heat Sterilization). Its compact horizontal chassis, side-mounted digital controller, and modular internal architecture make it suitable for benchtop integration in space-constrained labs without compromising thermal performance or operational safety.

Key Features

• Microprocessor-based P.I.D. temperature controller with 0.1°C resolution, real-time deviation compensation, and programmable over-temperature cut-off protection.
• Dual-layer tempered glass observation window with wide-angle visibility and integrated anti-fog design for uninterrupted sample monitoring under thermal load.
• Optimized air duct geometry and rear-mounted high-temp fan (rated for continuous operation up to 300°C) ensure uniform airflow distribution and minimize hot/cold spots—validated at ±2.5°C uniformity (empty, 100°C).
• Double-stage rotary door lock mechanism with high-elasticity silicone gasket (synthetic high-temp silicone rubber, deformation-resistant up to 350°C) guarantees long-term sealing integrity and energy efficiency.
• Self-diagnostic system with alphanumeric fault code display on the backlit LCD interface enables rapid troubleshooting and reduces instrument downtime.
• Power-loss recovery function retains set parameters—including target temperature, timer value, and alarm thresholds—upon re-energization, ensuring process continuity in unstable utility environments.
• Electrostatically coated carbon steel exterior and mirror-polished 304 stainless steel interior resist corrosion, facilitate cleaning, and meet basic GLP-compliant surface hygiene standards.

Sample Compatibility & Compliance

The TGF series accommodates a broad range of inert and thermally stable materials including glassware, ceramic substrates, metal components, polymer films, pharmaceutical excipients, botanical extracts, and microbiological culture vessels. It is explicitly unsuitable for flammable solvents, volatile organic compounds (VOCs), or pyrophoric substances. The oven meets CE marking requirements for electrical safety (EN 61000-6-3, EN 61000-6-4) and thermal equipment classification per IEC 61010-1. While not certified for medical device sterilization under ISO 13485 or FDA 21 CFR Part 820, its dry-heat performance supports validation studies for depyrogenation (e.g., glass vial treatment per USP ) and pre-sterilization drying steps in GMP-aligned workflows. Optional independent over-temperature limiter satisfies dual-control redundancy requirements defined in ISO/IEC 17025 Clause 6.4.8.

Software & Data Management

The base configuration includes a stand-alone microcontroller with embedded firmware supporting timer-based operation (1–9999 minutes), deviation alarms, and manual parameter recall. Optional upgrades expand data traceability and regulatory readiness: USB data export enables time-stamped temperature logs (CSV format) for audit trails; RS-485 Modbus RTU interface permits integration into centralized SCADA or LIMS platforms; programmable multi-segment controllers support up to 30-step thermal profiles with ramp/soak logic. All optional modules comply with ALCOA+ principles—ensuring attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available records—when deployed within validated systems adhering to FDA 21 CFR Part 11 (electronic signatures) and EU Annex 11 (computerized system validation).

Applications

• Drying of analytical samples prior to gravimetric analysis (e.g., moisture content determination per AOAC 950.46 or ASTM D2231).
• Conditioning of reference standards and calibration weights in metrology labs.
• Thermal aging of electronic components and printed circuit boards per IPC-TM-650 2.6.7.
• Pre-sterilization drying of stainless steel surgical instruments and glass labware in hospital central supply departments.
• Baking of thin-film coatings, catalyst supports, and ceramic green bodies in materials science R&D.
• Moisture removal from coal, soil, and agricultural feedstock for proximate analysis (ASTM D3173, D3174).

FAQ

What is the maximum operating temperature for the TGF series?
The TGF series supports a maximum chamber temperature of 300°C, with selected models rated for sustained operation at 250°C or 300°C—clearly indicated in model nomenclature (e.g., TGF-9245AH).

Does the oven support validation documentation for IQ/OQ/PQ protocols?
Yes—while the base unit does not ship with formal qualification documents, its stable thermal profile, digital logging capability (via optional USB or RS-485), and mechanical reproducibility enable straightforward IQ/OQ execution using third-party validation templates aligned with ISO/IEC 17025 or GAMP5.

Can the TGF oven be used for dry-heat sterilization of medical devices?
It may be employed for depyrogenation or pre-sterilization drying but is not certified as a Class B or Class S sterilizer per EN 285 or ISO 17665. Users must perform full cycle validation—including biological indicator challenge tests—to demonstrate lethality for specific loads.

Is the interior lighting compliant with explosion-proof requirements?
No—the TGF series lacks ATEX or IECEx certification and is not intended for use in hazardous locations classified under NEC Article 500 or IEC 60079.

What maintenance intervals are recommended for the forced-air system?
Inspect the fan inlet filter and internal ductwork every 200 operating hours; clean with lint-free cloth and isopropyl alcohol. Verify door seal compression annually or after 5,000 door cycles using feeler gauges per manufacturer’s service manual.
