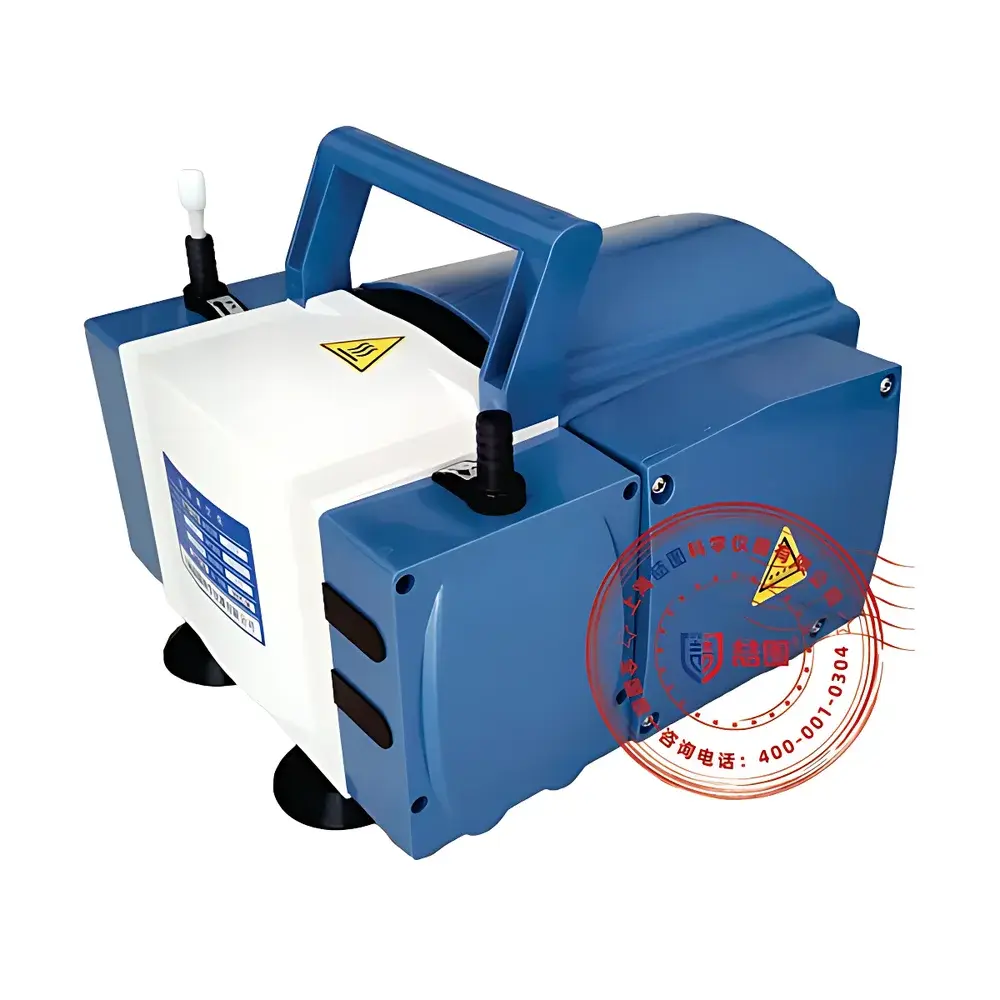

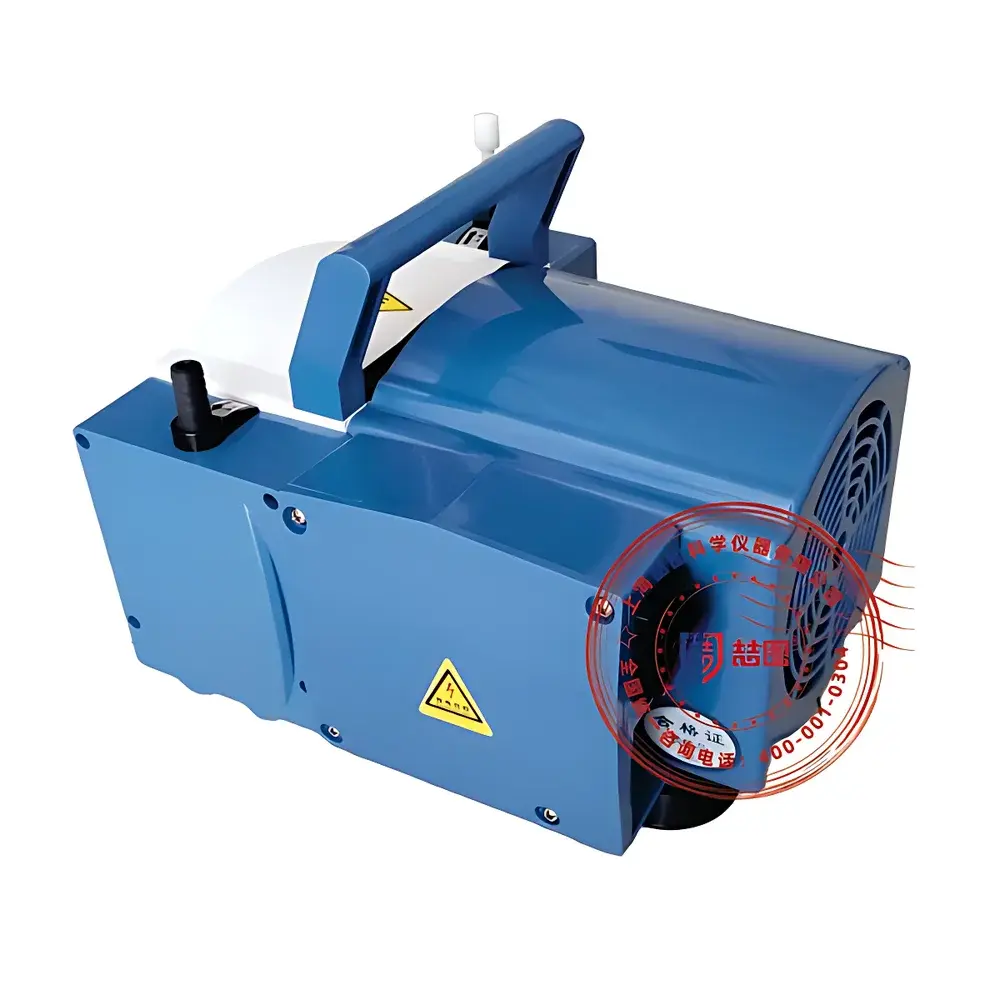

DRETOP TGM-3095F-II Corrosion-Resistant Diaphragm Vacuum Pump

Overview

The DRETOP TGM-3095F-II is an oil-free, corrosion-resistant diaphragm vacuum pump engineered for laboratories and industrial facilities requiring chemically inert, contamination-free vacuum generation in aggressive chemical environments. Unlike rotary vane or piston pumps, this unit operates on a positive displacement principle using a flexible PTFE-coated diaphragm actuated by an eccentric cam mechanism—eliminating internal lubricants and preventing fluid contact with mechanical drive components. Its sealed, non-contact fluid path ensures zero oil carryover, making it suitable for applications demanding high-purity vacuum conditions, such as solvent removal in analytical sample preparation, vacuum drying of pH-sensitive pharmaceuticals, and inert gas purging in semiconductor process tools. Designed to meet the operational rigor of ISO/IEC 17025-accredited labs and GMP-compliant manufacturing suites, the TGM-3095F-II delivers stable vacuum performance across fluctuating ambient temperatures (10–40 °C) and supply voltage tolerances (±10% of 220 V AC, 50 Hz).

Key Features

• Chemically resistant wetted materials: Diaphragm and valve plates constructed from virgin polytetrafluoroethylene (PTFE); gas chamber, inlet/outlet fittings, and internal tubing fabricated from fluorinated elastomers (FFKM) and fluoropolymer composites (PTFE + carbon fiber), ensuring compatibility with weak acids (e.g., acetic, phosphoric), weak bases (e.g., sodium bicarbonate, ammonium hydroxide), and polar organic solvents (e.g., acetone, methanol, THF).
• Thermally optimized motor assembly: 160 W induction motor with enhanced airflow design featuring oversized axial fan blades and directional vent channels; surface temperature remains ≤50 °C under continuous duty, mitigating thermal degradation of elastomeric seals and extending service intervals.
• Low-vibration mechanical architecture: Precision-balanced crankshaft and dual-spring diaphragm suspension system reduce operational vibration amplitude to <0.8 mm/s (RMS), enabling stable integration beneath sensitive instrumentation such as mass spectrometers and microbalance systems.
• Compact footprint and service-oriented layout: Overall dimensions of 315 × 135 × 210 mm (W×D×H) facilitate benchtop or under-cabinet installation; modular housing allows tool-free access to diaphragm and valve assemblies for routine maintenance without disassembling the motor block.
• Noise-reduced acoustic enclosure: Integrated sound-dampening foam lining and vibration-isolating rubber feet achieve sound pressure levels ≤52 dB(A) at 1 m distance—compliant with OSHA 29 CFR 1910.95 workplace noise exposure guidelines.

Sample Compatibility & Compliance

The TGM-3095F-II is validated for use with aqueous solutions up to pH 2–12, halogenated hydrocarbons (e.g., chloroform, dichloromethane), and oxidizing agents including hydrogen peroxide (<30%) and sodium hypochlorite (<10%). It is not rated for hydrofluoric acid, fuming nitric acid, or molten alkali metals. All wetted parts comply with USP Class VI biocompatibility testing and FDA 21 CFR 177.1550 (fluoropolymer food-contact compliance). The pump meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and conforms to IEC 61000-6-3 emission limits for laboratory-grade equipment. Documentation includes full material traceability certificates and RoHS 2011/65/EU declaration of conformity.

Software & Data Management

As a standalone analog vacuum source, the TGM-3095F-II does not incorporate digital control or embedded firmware. However, its 220 V AC input enables seamless integration with external programmable logic controllers (PLCs) or vacuum monitoring systems via optional pressure transducer outputs (0–10 V or 4–20 mA signal interface kits, sold separately). For GLP/GMP audit readiness, users may pair the pump with third-party vacuum loggers compliant with FDA 21 CFR Part 11 (electronic records and signatures), supporting time-stamped pressure trend logging, alarm thresholds, and exportable CSV reports for batch record retention.

Applications

• Lab-scale evaporation: Primary vacuum source for rotary evaporators (up to 5 L capacity), vacuum concentrators, and freeze dryers in pharmaceutical R&D and natural product isolation.
• Chromatography support: Backing pump for turbomolecular pumps in GC-MS and LC-MS systems; provides consistent rough vacuum (≤–95 kPa) essential for ion source stability and detector baseline reproducibility.
• Process vacuum in regulated manufacturing: Solvent recovery in API synthesis, vacuum-assisted filling of sterile vials, and lyophilization cycle support under Annex 1 (EU GMP) environmental controls.
• Environmental testing: Vacuum dehydration of soil/water samples prior to EPA Method 5035A analysis; corrosive gas sampling in stack emission monitoring per ASTM D6784-22.
• Electronics fabrication: Vacuum hold-down for photomask alignment stages and residue-free drying of wafer substrates after wet etch processes.

FAQ

What vacuum level can the TGM-3095F-II achieve under standard conditions?
The pump achieves an ultimate vacuum pressure of –95 kPa (absolute), equivalent to ~5 kPa residual pressure or ~37.5 Torr, measured at 23 °C ambient temperature and sea-level atmospheric pressure using a calibrated capacitance manometer.
Is this pump suitable for continuous 24/7 operation?
Yes—its thermally managed motor and reinforced diaphragm design are rated for uninterrupted duty cycles exceeding 10,000 hours when operated within specified ambient conditions (10–40 °C, relative humidity <80%, non-condensing) and maintained per the manufacturer’s service schedule.
Can I connect this pump directly to a vacuum oven or filtration manifold?
Yes—standardized 8 mm (inlet) and 10 mm (outlet) barbed ports accept reinforced silicone or fluoropolymer tubing (e.g., FEP or PFA); recommended maximum hose length is 2 m to maintain pumping speed integrity.
Does the pump require periodic oil changes or lubrication?
No—this is a fully oil-free design; no internal lubricants are used in the pumping chamber, motor bearings, or transmission components.
What is the expected service life of the PTFE diaphragm under typical lab usage?
Under normal load conditions (≤70% of max pumping speed, ambient temperature <35 °C), the diaphragm exhibits a mean time between failures (MTBF) of ≥8,000 operating hours, corresponding to approximately 3–5 years of average academic or QC lab usage (8 h/day, 5 days/week).
