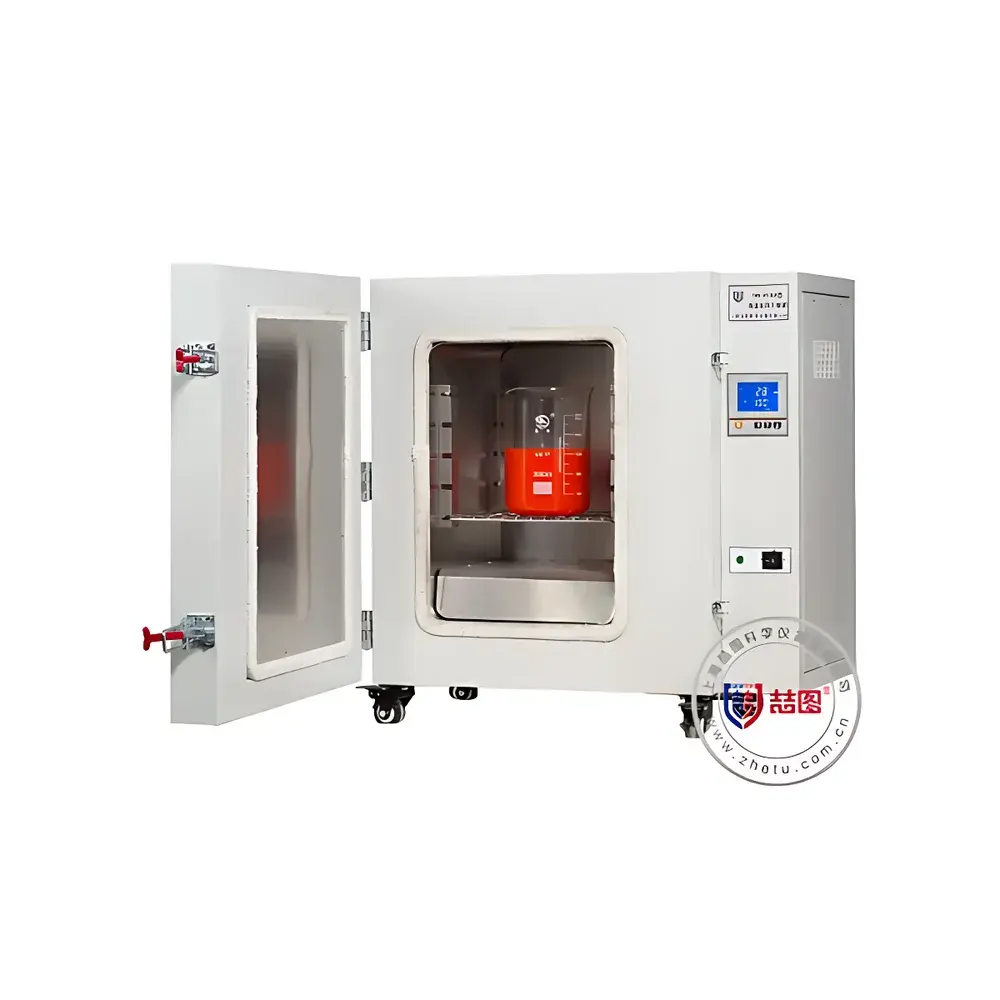

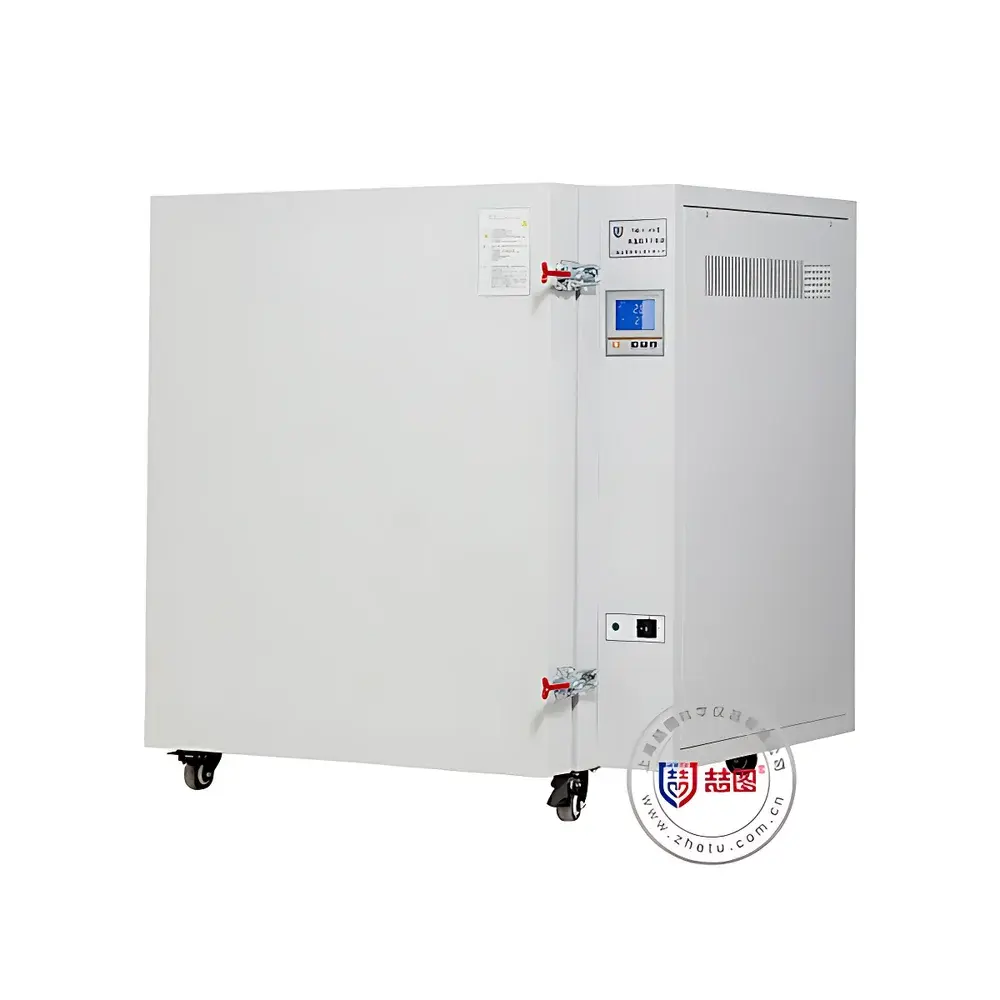

DRETOP THG-9038AP High-Temperature Forced-Air Drying Oven

Overview

The DRETOP THG-9038AP is a precision-engineered high-temperature forced-air drying oven designed for laboratory and industrial applications requiring stable, uniform thermal environments up to 400 °C. It operates on the principle of forced convection—using a high-efficiency, low-noise centrifugal blower and dual-channel airflow architecture to ensure rapid heat transfer and minimal thermal stratification across the working chamber. Unlike natural convection ovens, this model delivers consistent temperature distribution critical for material conditioning, pre-baking of components, thermal aging studies, catalyst activation, and moisture removal from refractory or ceramic precursors. Its robust construction—including a SUS304 brushed stainless steel interior, high-density fiberglass insulation, and high-temperature silicone door gasket—ensures long-term dimensional stability and thermal integrity under sustained elevated temperatures. The unit complies with general safety requirements outlined in IEC 61010-1 for electrical equipment used in laboratory environments.

Key Features

• Microprocessor-based P.I.D. temperature controller with K-type thermocouple feedback, offering ±1 °C fluctuation and 0.1 °C resolution for repeatable thermal profiles.
• Dual-stage rotary door lock mechanism ensures tight compression against the high-temperature silicone seal, minimizing heat loss and maintaining chamber integrity at 400 °C.
• Intelligent self-diagnostic system displays real-time fault codes on the backlit LCD interface, enabling rapid troubleshooting without external service tools.
• Programmable timer (1–9999 minutes) with automatic shutdown; optional multi-segment programmable controller available for ramp-soak-hold thermal cycling.
• Two adjustable, perforated stainless steel trays with tool-free height adjustment and full removal capability—optimized for flexible sample loading and cleaning access.
• Comprehensive safety architecture: independent mechanical overtemperature cutoff, ground-fault circuit interruption, thermal overload protection, and non-volatile memory retention for setpoints and timers after power interruption.
• Low-noise, high-torque motor paired with multi-blade impeller ensures continuous airflow stability even during extended operation at maximum temperature.
• Electrostatically coated mild steel exterior and corrosion-resistant inner chamber provide durability under routine lab handling and chemical exposure conditions.

Sample Compatibility & Compliance

The THG-9038AP accommodates a wide range of sample formats—including crucibles, petri dishes, metal substrates, ceramic wafers, polymer pellets, and glassware—within its 30 L chamber volume. Its uniform heating profile (±2.5 °C at 100 °C, validated per ASTM E2203 and ISO 17025 calibration guidelines) supports standardized procedures such as ASTM D1654 (coating drying), ISO 712 (moisture content in cereals), and USP (sterile product depyrogenation validation). While not intrinsically rated for hazardous atmospheres, the oven may be integrated into GMP/GLP workflows when equipped with optional 485 communication modules and audit-trail-capable software (compliant with FDA 21 CFR Part 11 when paired with validated third-party data acquisition systems).

Software & Data Management

Standard configuration includes an embedded LCD interface supporting real-time display of setpoint, actual temperature, elapsed time, and error status—all in tri-color coding for immediate visual assessment. Optional upgrades include USB data export (via FAT32-formatted flash drive), RS485 Modbus RTU connectivity for SCADA integration, and analog output (4–20 mA) for external chart recording. When fitted with the optional color touchscreen controller, users gain access to up to 32 programmable segments, event-triggered logging, password-protected parameter modification, and CSV-formatted temperature/time export. All digital interfaces support timestamped data storage with configurable sampling intervals (1 s to 60 s), facilitating traceability in regulated quality systems.

Applications

• Thermal stabilization of high-purity oxides and battery cathode materials prior to sintering
• Pre-drying of silica gel, molecular sieves, and desiccant media
• Accelerated aging tests for aerospace composites and encapsulant resins
• Residual solvent removal from pharmaceutical intermediates under controlled inert gas purging (when fitted with optional inlet/outlet ports)
• Calibration and verification of thermocouples and RTDs in metrology labs
• Post-curing of epoxy-coated electrical components and PCB assemblies
• Heat treatment of calibration standards for thermal imaging systems

FAQ

What is the maximum operating temperature and how is it maintained?
The THG-9038AP is rated for continuous operation up to 400 °C. Temperature stability is achieved via a P.I.D.-controlled SSR (Solid-State Relay) heating circuit coupled with dual K-type sensor redundancy and active airflow modulation.
Is vacuum capability available for this model?
No—the THG-9038AP is a forced-air convection oven and does not incorporate vacuum functionality. For vacuum drying applications, DRETOP offers separate models in the ZK series.
Can the oven be validated for IQ/OQ/PQ protocols?
Yes—its mechanical design, sensor layout, and control architecture support installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) per ISO/IEC 17025 and ASTM E2203. Documentation packages and factory calibration certificates are available upon request.
What maintenance is required for long-term reliability?
Routine maintenance includes quarterly inspection of door gasket integrity, biannual cleaning of air intake filters, and annual verification of thermocouple accuracy using NIST-traceable reference standards.
Does the unit comply with electromagnetic compatibility (EMC) directives?
Yes—the THG-9038AP meets EN 61326-1 (2013) for EMC in laboratory environments and carries CE marking for EU market compliance.
