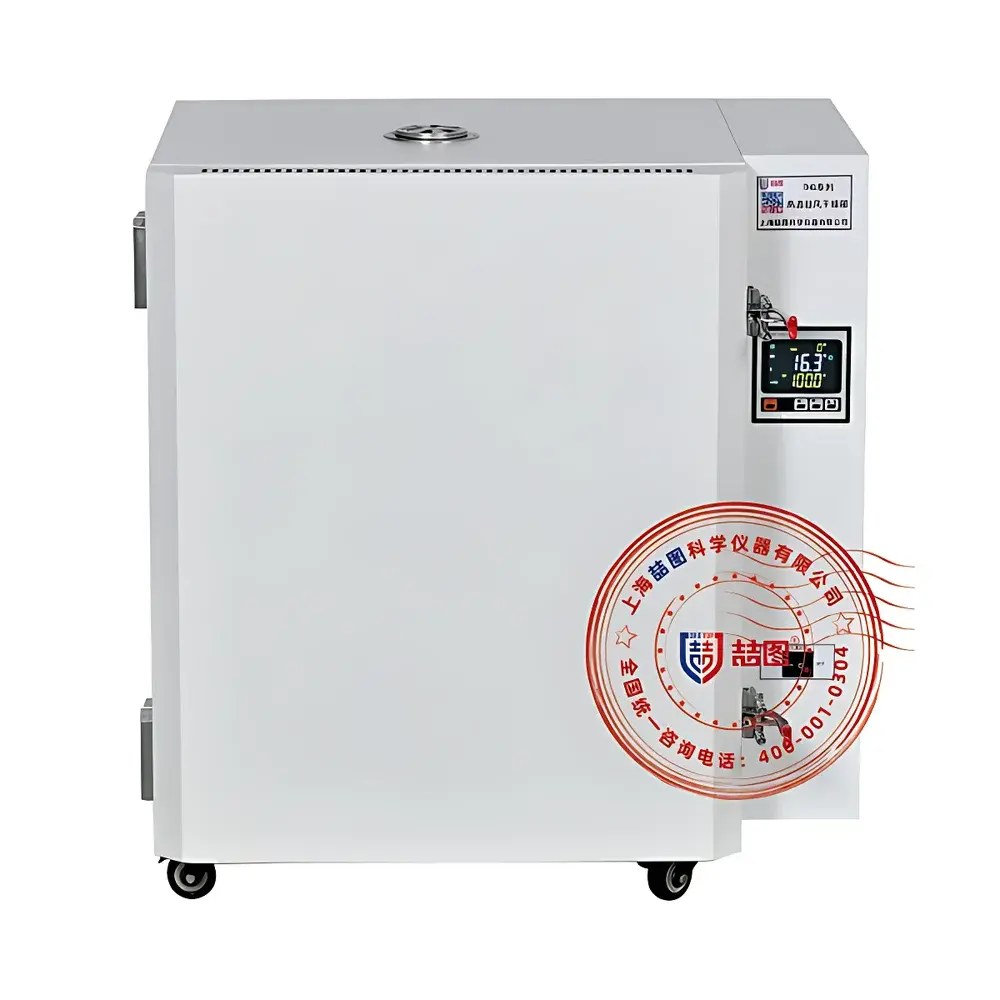

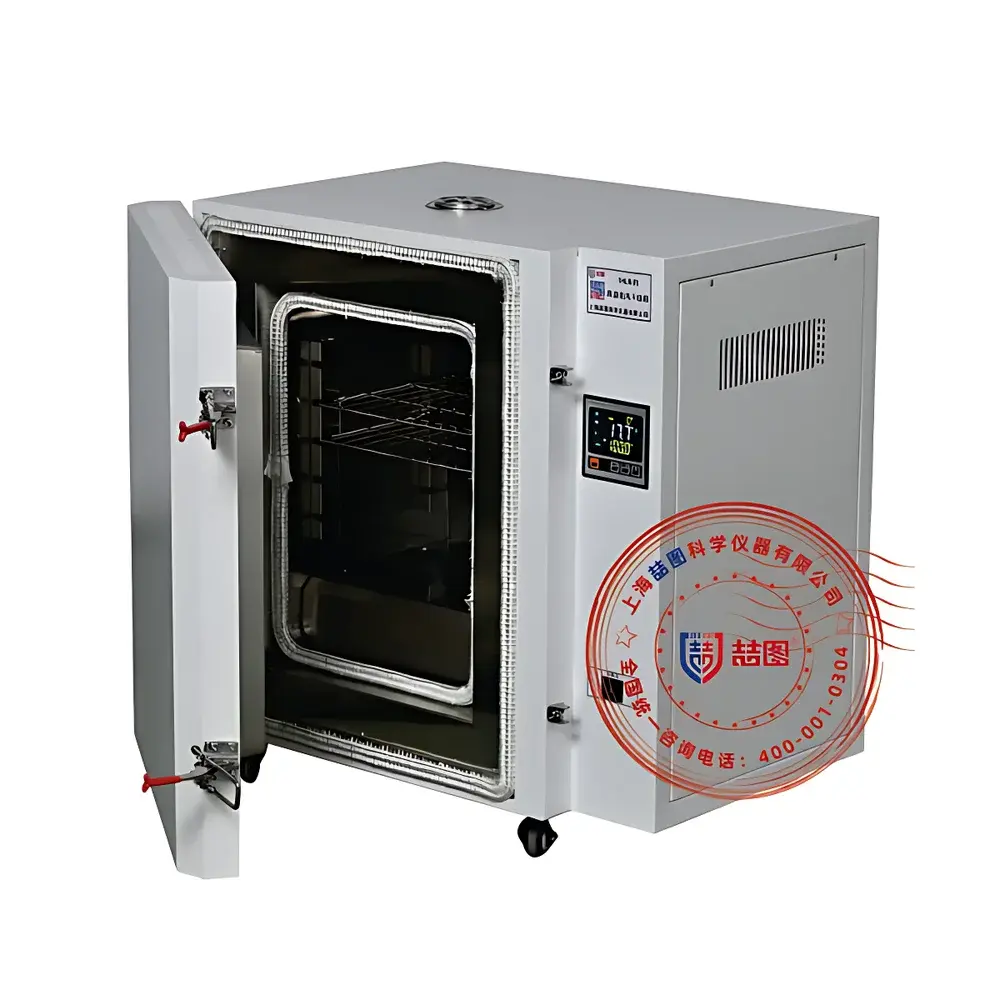

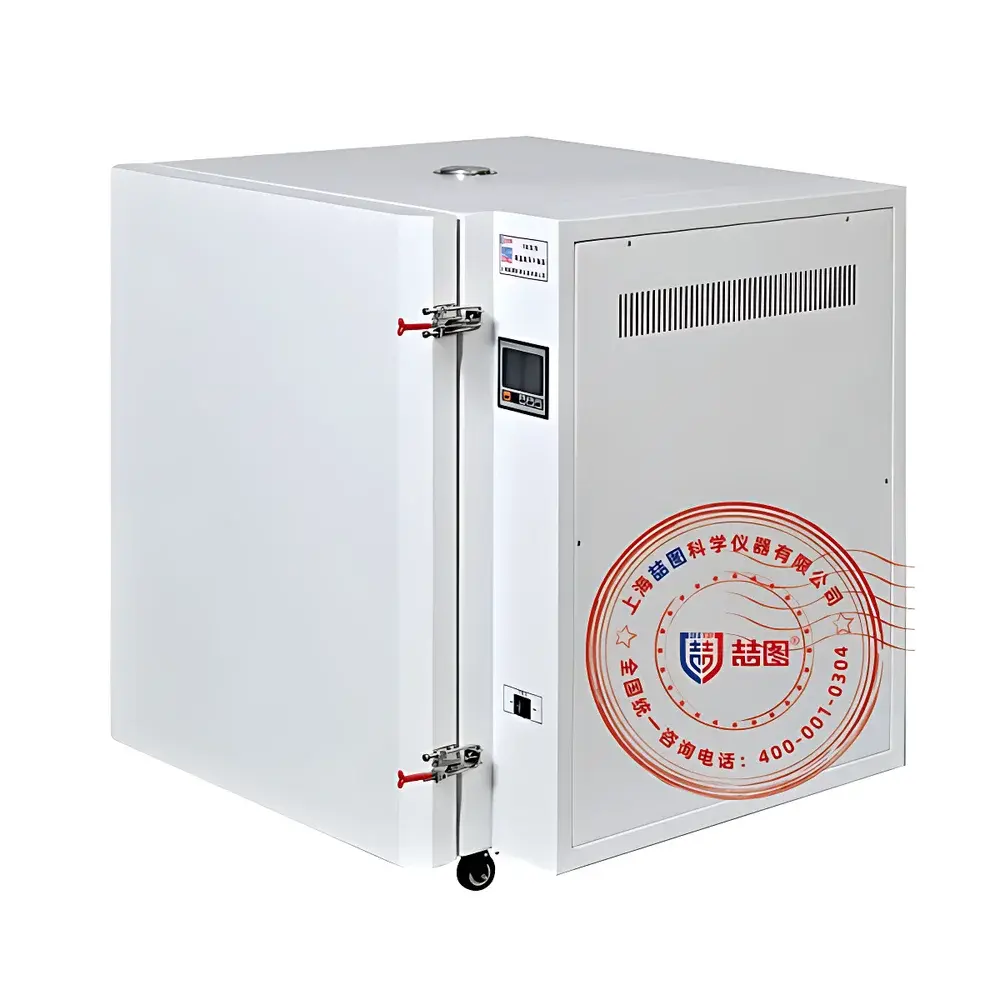

DRETOP THG-9039A High-Temperature Forced-Air Drying Oven

Overview

The DRETOP THG-9039A is a high-temperature forced-air drying oven engineered for precision thermal processing in research laboratories, quality control environments, and industrial R&D settings. It operates on the principle of forced convection heating—utilizing a dual-air-channel system and high-efficiency centrifugal blower to circulate heated air uniformly across the chamber. This architecture ensures rapid heat-up times, minimal thermal overshoot, and stable setpoint maintenance—critical for applications requiring reproducible high-temperature exposure between ambient +20°C and 500°C. Unlike natural convection ovens, the THG-9039A’s actively regulated airflow mitigates stratification effects, enabling consistent thermal treatment of samples regardless of placement within the 30 L working volume. Its design adheres to fundamental thermodynamic requirements for ISO/IEC 17025-compliant thermal validation protocols and supports GLP-aligned documentation workflows when integrated with optional data logging interfaces.

Key Features

• Microprocessor-based PID temperature controller with digital LCD interface, offering real-time display of setpoint, actual temperature, and elapsed time in tri-color backlight for enhanced readability;
• Self-diagnostic function with alphanumeric fault code reporting—enabling rapid identification of sensor failure, heater open-circuit, or fan stall conditions;
• Dual-stage overtemperature protection: primary microcontroller-based deviation alarm + optional independent mechanical limit controller (available as accessory) for fail-safe shutdown;
• Brushed stainless steel (SUS304) interior with seamless welded corners and removable, height-adjustable wire shelves—designed for chemical resistance, cleanability, and long-term dimensional stability at elevated temperatures;
• Electrostatically coated cold-rolled steel exterior with high-density glass fiber insulation—minimizing surface temperature rise and reducing standby energy consumption;
• High-torque, low-noise AC motor driving multi-blade centrifugal impeller; optimized duct geometry ensures laminar yet turbulent-free airflow distribution without localized hot spots;
• Integrated silicone rubber door gasket rated for continuous operation up to 500°C—exhibiting low compression set and resistance to thermal aging per ASTM D1418.

Sample Compatibility & Compliance

The THG-9039A accommodates standard laboratory ware including porcelain crucibles, stainless steel trays, quartz boats, and ceramic saggars—compatible with both inert and mildly oxidizing atmospheres. Its chamber geometry and airflow profile support uniform thermal exposure for powder drying, pre-baking of substrates, residual solvent removal, and accelerated aging tests per ASTM E145, ISO 2812-3, and USP . While not rated for vacuum or inert gas purging (no standard porting or pressure rating), it complies with IEC 61010-1:2010 safety requirements for electrical equipment used in laboratory environments. The unit meets CE marking criteria for electromagnetic compatibility (EN 61326-1) and carries factory calibration documentation traceable to NIST-certified reference standards.

Software & Data Management

The base configuration includes a programmable timer (1–9999 minutes) with auto-shutdown functionality. Optional accessories expand data integrity and audit readiness: an RS-485 serial interface enables Modbus RTU communication with SCADA or LIMS platforms; USB data export allows direct transfer of temperature logs to portable storage devices; and a certified 485-to-USB converter supports compliant CSV file generation for FDA 21 CFR Part 11–aligned electronic records. When equipped with the optional color touchscreen controller, users may define up to 30 segmented ramp-soak profiles with slope rate limiting, event-triggered alarms, and password-protected parameter modification—supporting IQ/OQ validation templates required under GMP Annex 15.

Applications

• Materials Science: Pre-sintering of ceramic green bodies, annealing of metal alloys, ash content determination (ASTM D3174), and binder burnout in composite manufacturing;
• Pharmaceuticals: Sterilization of glassware and stainless steel components, moisture content analysis per USP , and thermal degradation studies of excipients;
• Electronics: PCB pre-baking prior to conformal coating, desiccation of hygroscopic packaging materials, and curing of high-temperature epoxies;
• Academic Research: Kinetic studies of thermal decomposition reactions, catalyst activation, and gravimetric analysis using thermogravimetric coupling;
• Quality Assurance: Stability testing of raw materials under accelerated conditions (ICH Q1A), residual solvent verification (ICH Q3C), and shelf-life modeling.

FAQ

What is the maximum continuous operating temperature of the THG-9039A?
The chamber is rated for uninterrupted operation at 500°C, verified via thermocouple mapping per ASTM E742. Exceeding this limit voids warranty and compromises sensor longevity.
Is the oven suitable for use with flammable solvents?
No. This model lacks explosion-proof certification, solvent recovery ports, or intrinsically safe circuitry. It must only be used in well-ventilated areas with non-volatile or aqueous samples.
Can temperature uniformity be validated per ISO 17025 requirements?
Yes. The chamber geometry and forced-air design permit 9-point thermal mapping using calibrated Class A Pt100 probes. Validation reports can be generated using optional data loggers compliant with EN 12830.
Does the unit include factory calibration documentation?
Each THG-9039A ships with a Certificate of Conformance listing as-installed temperature accuracy (±1.0°C at 200°C, ±1.5°C at 500°C) and traceability to national metrology institutes.
What maintenance intervals are recommended for optimal performance?
Blower motor bearings require lubrication every 12 months; door gasket integrity should be inspected quarterly; and internal chamber surfaces should be cleaned after each use involving volatile residues or particulates.
