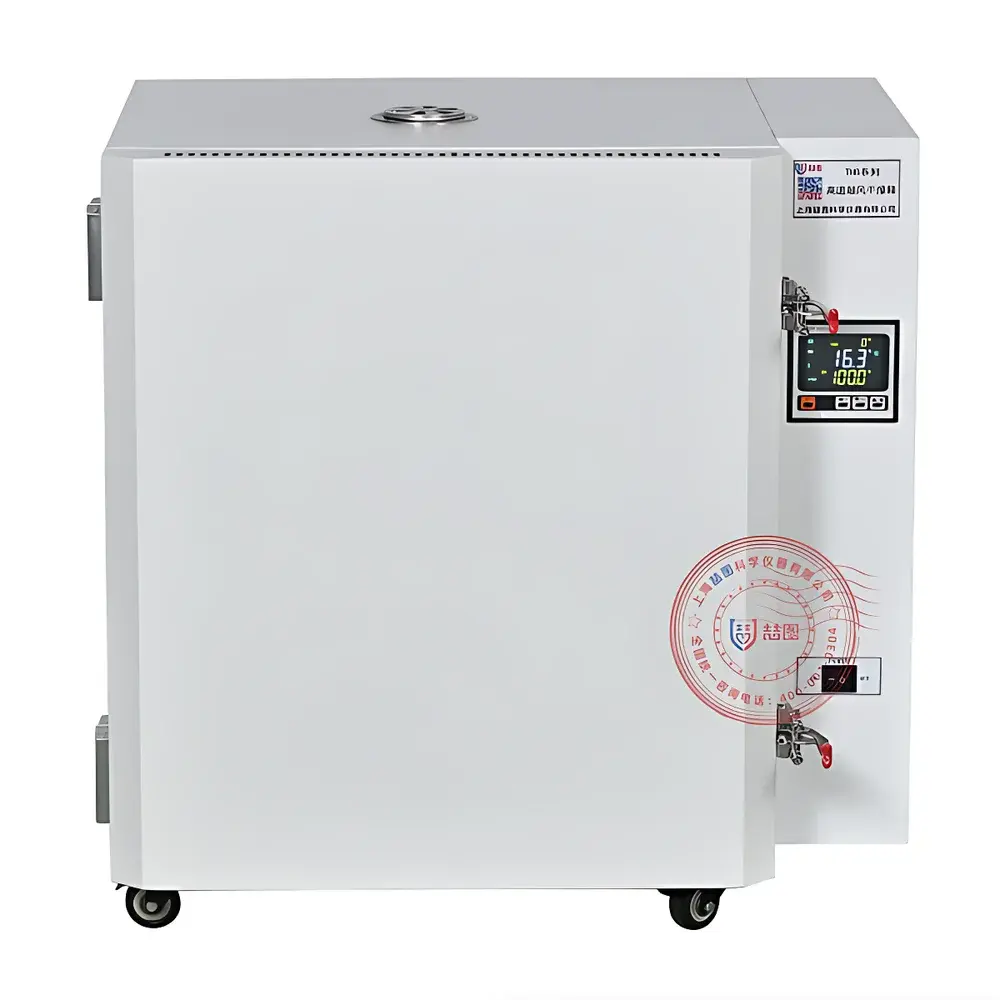

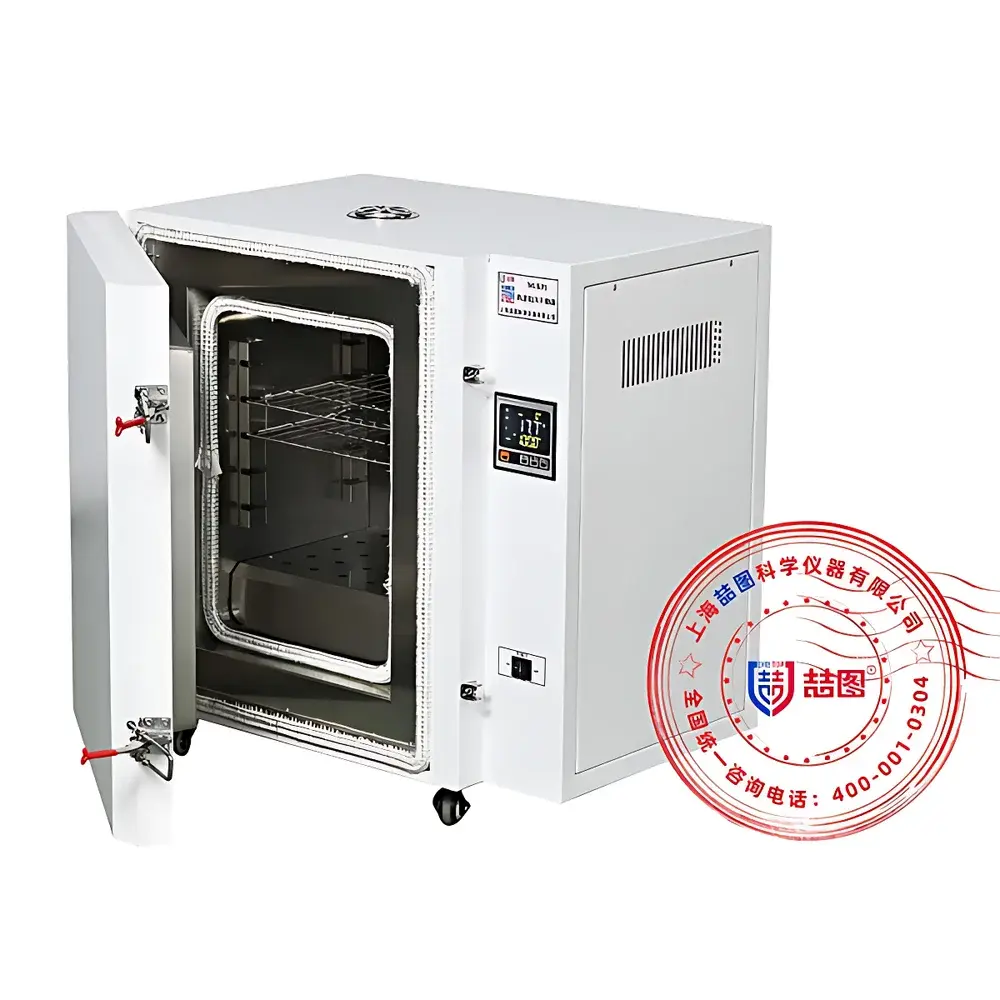

DRETOP THG-9079A High-Temperature Forced-Air Circulating Oven

Overview

The DRETOP THG-9079A is a high-precision, forced-air circulating oven engineered for demanding thermal processing applications in research laboratories, quality control environments, and industrial R&D settings. It operates on the principle of controlled convection heating—utilizing a dual-channel air circulation architecture with a high-efficiency centrifugal blower and optimized internal ducting—to ensure rapid heat-up, exceptional temperature uniformity, and minimal thermal overshoot across its 70 L working chamber. Designed specifically for sustained operation at elevated temperatures up to 500 °C, the THG-9079A meets critical requirements for material stability testing, pre-baking of ceramic substrates, thermal aging of polymers, post-curing of composites, and high-temperature conditioning of electronic components. Its construction adheres to fundamental engineering standards for thermal safety, energy efficiency, and long-term repeatability—making it suitable for use in GLP-compliant workflows where traceability and parameter integrity are essential.

Key Features

• Microprocessor-based P.I.D. temperature controller with K-type thermocouple feedback, delivering ±1 °C fluctuation and 0.1 °C resolution over the full operating range (RT+20 °C to 500 °C)
• Dual-air-channel forced convection system with adjustable multi-blade centrifugal fan and low-noise, high-temp motor rated for continuous duty at 500 °C
• Robust inner chamber fabricated from brushed SUS304 stainless steel with seamless welding and rounded internal corners for ease of cleaning and corrosion resistance
• High-density glass fiber insulation (≥100 mm thickness) combined with high-temperature silicone rubber door gasket (rated to 600 °C) minimizes thermal loss and improves energy efficiency

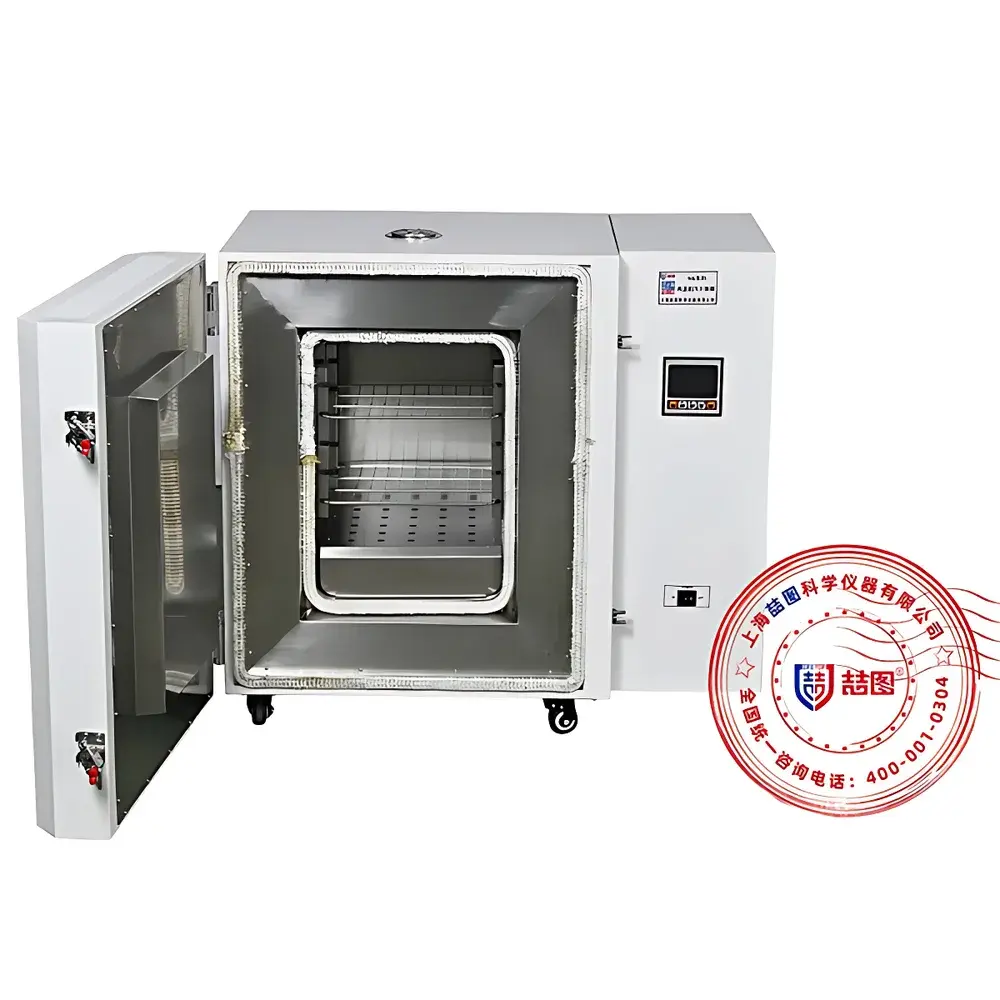

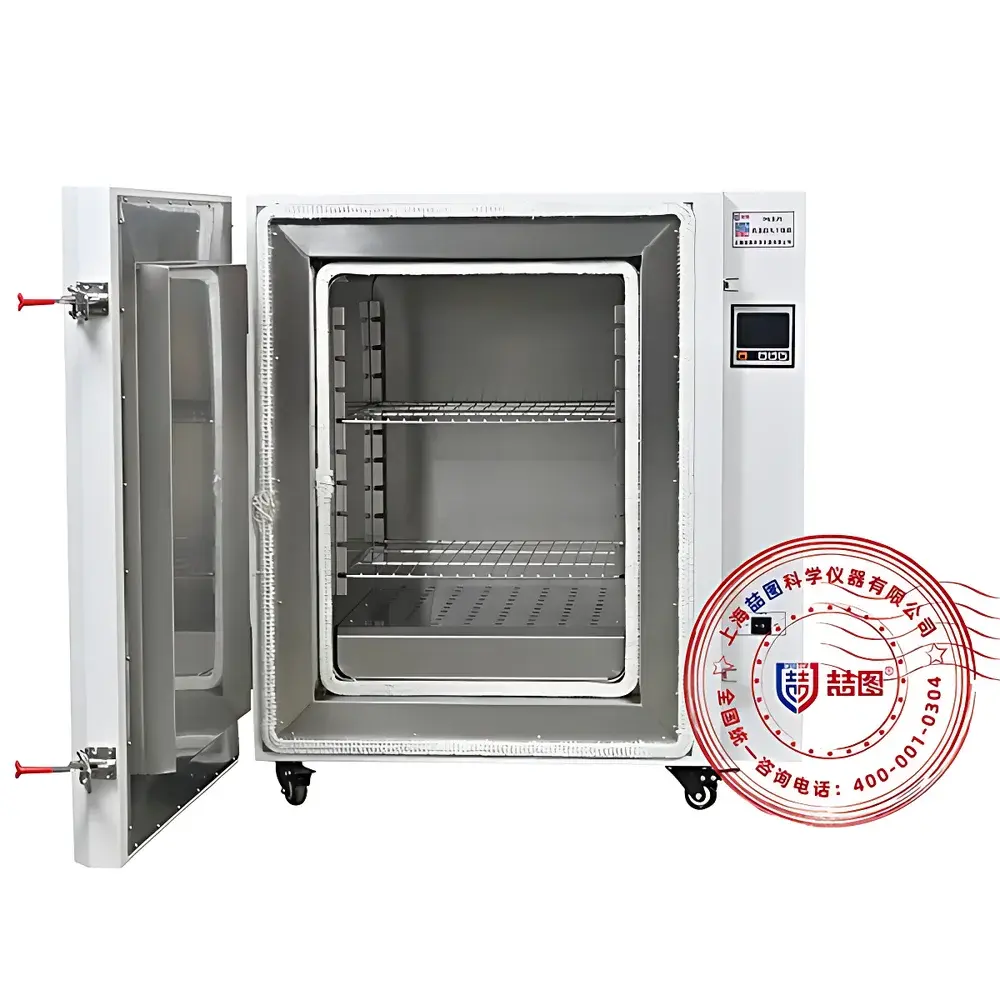

• Two-tier, height-adjustable and removable stainless steel shelves with drawer-style insertion mechanism; shelf spacing optimized for airflow continuity
• Comprehensive safety architecture including independent mechanical over-temperature limiter, real-time fault diagnostics with alphanumeric error codes, and automatic shutdown on power failure with parameter retention
• Front-panel LCD display with tri-color backlighting for simultaneous visualization of setpoint, actual temperature, elapsed time, and alarm status
• Programmable timer (1–9999 minutes) with auto-stop function; optional multi-segment programmable controller available for complex thermal profiles

Sample Compatibility & Compliance

The THG-9079A accommodates a broad spectrum of sample types—including metal alloys, ceramic powders, polymer films, printed circuit boards, pharmaceutical excipients, and geological specimens—without risk of cross-contamination or catalytic surface interaction. Its stainless steel chamber and absence of organic coatings ensure chemical inertness during prolonged exposure to oxidizing atmospheres. The unit complies with general electrical safety requirements per IEC 61010-1 and incorporates design elements aligned with ISO/IEC 17025 calibration traceability practices. While not certified to UL or CE for North American or EU markets out-of-the-box, its architecture supports third-party certification pathways. For regulated environments, optional RS-485 interface enables integration into LabVantage or STARLIMS systems, supporting audit-ready data logging compliant with FDA 21 CFR Part 11 when paired with validated software.

Software & Data Management

Standard configuration includes an embedded microcontroller with non-volatile memory that retains all user-defined parameters—including setpoints, timers, and alarm thresholds—during power interruption. Optional upgrades include a full-color 7-inch capacitive touchscreen HMI with built-in data logging (up to 10,000 records), USB export capability for CSV-formatted temperature/time logs, and RS-485 Modbus RTU support for SCADA-level integration. When connected to external printers via the parallel port option, the oven generates timestamped hardcopy reports of thermal cycles—including ramp rates, dwell durations, and deviation alerts—for inclusion in batch records. All firmware versions undergo version-controlled release cycles with documented change logs, facilitating IQ/OQ validation protocols.

Applications

• Thermal degradation studies of thermoplastics and elastomers per ASTM D3045
• Moisture removal from hygroscopic raw materials prior to spectroscopic analysis
• Pre-conditioning of sensors, MEMS devices, and aerospace-grade adhesives
• Accelerated aging tests of battery electrode coatings under inert or ambient air
• Drying and annealing of thin-film photovoltaic substrates in cleanroom-adjacent labs
• Residue ashing preparation for elemental analysis (e.g., ASTM E1292)
• Stabilization baking of optical lens assemblies prior to coating deposition

FAQ

What is the maximum continuous operating temperature of the THG-9079A?
The unit is rated for continuous operation at 500 °C, verified by thermal mapping per ASTM E742 and supported by its high-temp motor, fan assembly, and chamber insulation.
Does the oven support validation documentation for GMP environments?
Yes—when equipped with the optional programmable controller and RS-485 interface, it supports IQ/OQ protocol execution and provides machine-readable logs compatible with 21 CFR Part 11–compliant software platforms.
Can the THG-9079A be used under inert gas purging?
While not supplied with gas inlet/outlet ports as standard, two 12 mm diameter test ports are factory-installed on the rear panel, enabling safe retrofitting of nitrogen or argon purge lines with appropriate pressure regulation.
Is the temperature uniformity validated across the entire chamber volume?
Yes—per internal verification protocol, temperature uniformity is confirmed at nine spatial points (per ISO 15504 Annex B) at 200 °C, 350 °C, and 500 °C, consistently meeting ±2.5 °C tolerance.
What maintenance intervals are recommended for long-term reliability?
Fan motor bearings require lubrication every 12 months under daily use; door gasket inspection is advised quarterly; and thermocouple calibration should be performed annually using NIST-traceable reference sources.
