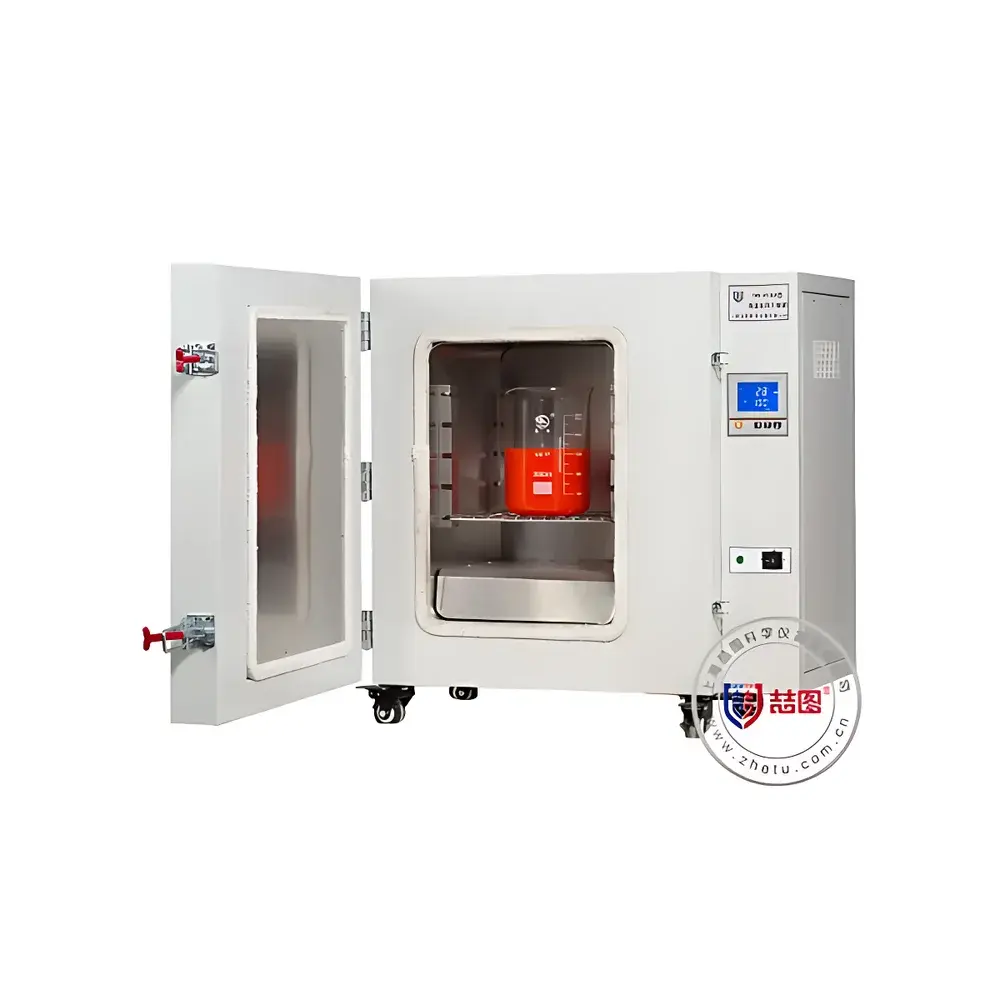

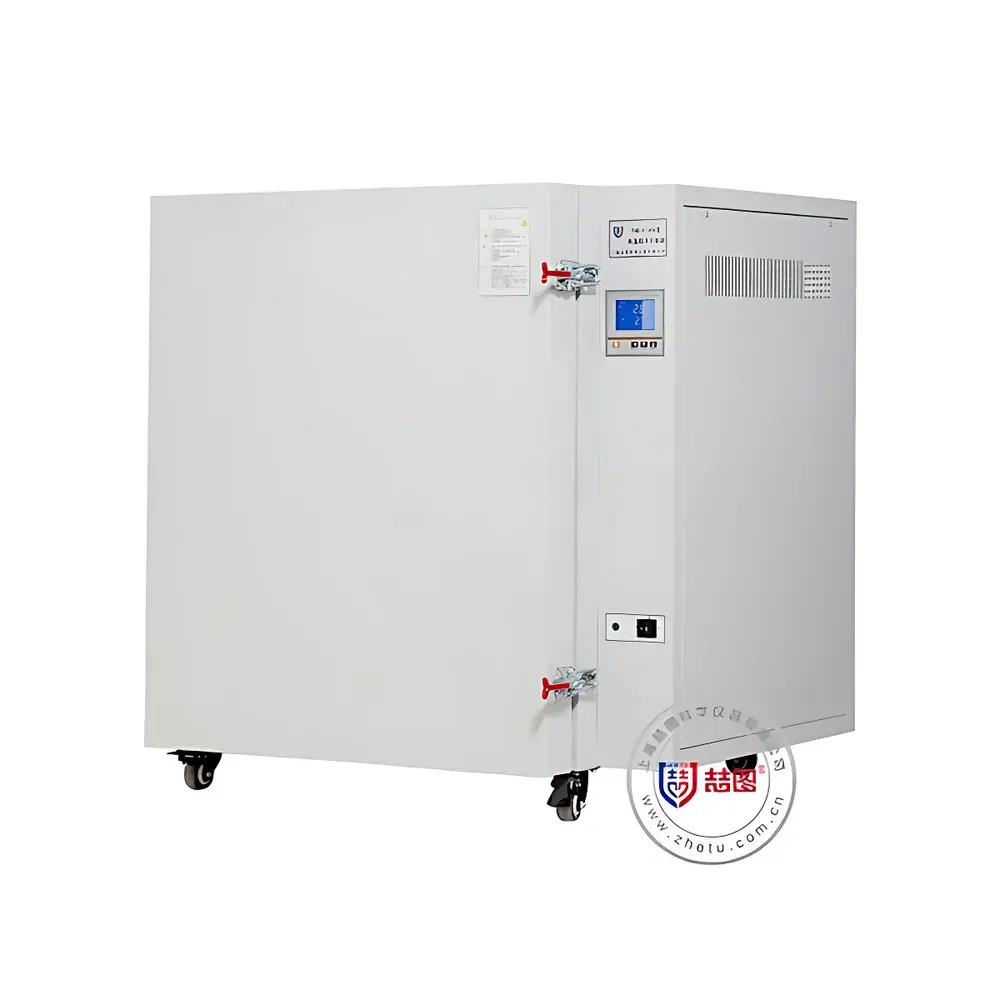

DRETOP THG-9149AP High-Temperature Forced-Air Oven

Overview

The DRETOP THG-9149AP is a high-precision forced-air convection oven engineered for laboratory and industrial applications requiring stable, uniform, and repeatable thermal environments up to 500 °C. It operates on the principle of active air circulation—using a high-efficiency centrifugal blower and dual-path airflow ducting—to ensure rapid heat transfer and minimal thermal stratification across the working chamber. Unlike natural convection ovens, this model maintains strict compliance with ASTM E145 and ISO 17025 requirements for thermal uniformity in heating and drying processes. Its design supports critical workflows including thermal aging of polymers, pre-baking of electronic components, moisture removal from refractory materials, high-temperature curing of composites, and preconditioning of test specimens prior to mechanical or chemical analysis.

Key Features

• Microprocessor-based P.I.D. temperature controller with K-type thermocouple feedback, delivering ±1 °C fluctuation and 0.1 °C resolution for precise setpoint tracking and minimal overshoot.
• Dual-stage rotary door lock mechanism with high-temperature silicone rubber gasket (rated to 600 °C), ensuring long-term sealing integrity and reduced thermal loss.
• Forced-air convection system featuring low-noise, high-temp-rated motor and multi-blade impeller, enabling rapid chamber equilibration and ±2.5 °C uniformity across the full 140 L working volume (450 × 550 × 550 mm).
• Robust chamber construction: interior lined with brushed 304 stainless steel; exterior coated with electrostatically applied epoxy polyester finish; insulation composed of non-combustible fiberglass wool (density ≥ 80 kg/m³) for energy efficiency and fire resistance.
• Intelligent self-diagnostic interface with LCD display showing real-time temperature, setpoint, timer status, and fault codes—enabling immediate identification of sensor failure, heater open-circuit, or controller anomalies.
• Comprehensive safety architecture: independent mechanical over-temperature limiter (adjustable), ground-fault circuit interrupter (GFCI), thermal cutoff fuse, and EEPROM-based parameter retention to preserve settings after unexpected power interruption.
• Modular accessory support including RS-485 Modbus RTU interface, USB data export port, optional color TFT touchscreen controller, programmable multi-segment ramp-soak profiles, and analog output for external data logging systems.

Sample Compatibility & Compliance

The THG-9149AP accommodates a wide range of sample types—including metal alloys, ceramic powders, polymer sheets, printed circuit boards, pharmaceutical excipients, and geological core samples—without risk of cross-contamination or surface oxidation, thanks to its inert stainless-steel chamber and absence of catalytic surfaces. It meets essential regulatory expectations for GLP and GMP environments: temperature mapping validation protocols can be executed per IQ/OQ/PQ guidelines; data integrity is supported via optional audit-trail-enabled controllers compliant with FDA 21 CFR Part 11. The unit conforms to IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its electrical safety complies with IEC 61010-1 for laboratory equipment.

Software & Data Management

While the standard configuration includes a standalone microcontroller with embedded firmware, optional upgrades provide advanced digital integration. The programmable controller supports up to 30 segments with ramp/soak logic, user-defined alarm thresholds, and event-triggered data capture. When equipped with RS-485 or USB interfaces, the oven exports timestamped temperature logs in CSV format compatible with LIMS platforms such as LabWare or Thermo Fisher SampleManager. Optional thermal printer output enables hard-copy generation of validation reports meeting ISO/IEC 17025 documentation standards. All firmware versions undergo periodic security patching and are validated against common cyber-resilience benchmarks for lab instrumentation.

Applications

• Accelerated thermal aging studies of elastomers and thermoplastics per ASTM D573 and ISO 188.
• Pre-drying of gravimetric moisture analysis samples (e.g., soils, catalysts, battery cathode materials) prior to Karl Fischer titration.
• Heat treatment of metallurgical specimens before tensile or hardness testing (ASTM E8/E9).
• Curing of high-performance adhesives and encapsulants used in aerospace and medical device manufacturing.
• Baking of sintered ceramics and powder metallurgy compacts under controlled oxidative atmospheres.
• Stabilization of reference standards and calibration artifacts in metrology labs.
• Residue ashing of organic matrices in environmental and food testing laboratories (AOAC 990.19).

FAQ

What is the maximum recommended continuous operating temperature?
The THG-9149AP is rated for continuous operation at 500 °C. Sustained use above this threshold may compromise heater longevity and thermal seal performance.
Can the oven be validated for IQ/OQ/PQ protocols?
Yes—its stable thermal profile, documented uncertainty budget, and configurable data logging make it suitable for formal qualification under ISO/IEC 17025 and GxP frameworks.
Is vacuum capability available for this model?
No—the THG-9149AP is a forced-air convection oven only. Vacuum functionality requires separate models (e.g., DRETOP ZK series) with reinforced chamber walls and vacuum-rated seals.
How many adjustable shelves does it include?
It ships with two removable, height-adjustable stainless-steel shelves; additional shelves can be ordered separately with standardized mounting brackets.
Does the unit comply with CE marking requirements?
Yes—it carries CE marking per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), verified through third-party notified body assessment.
