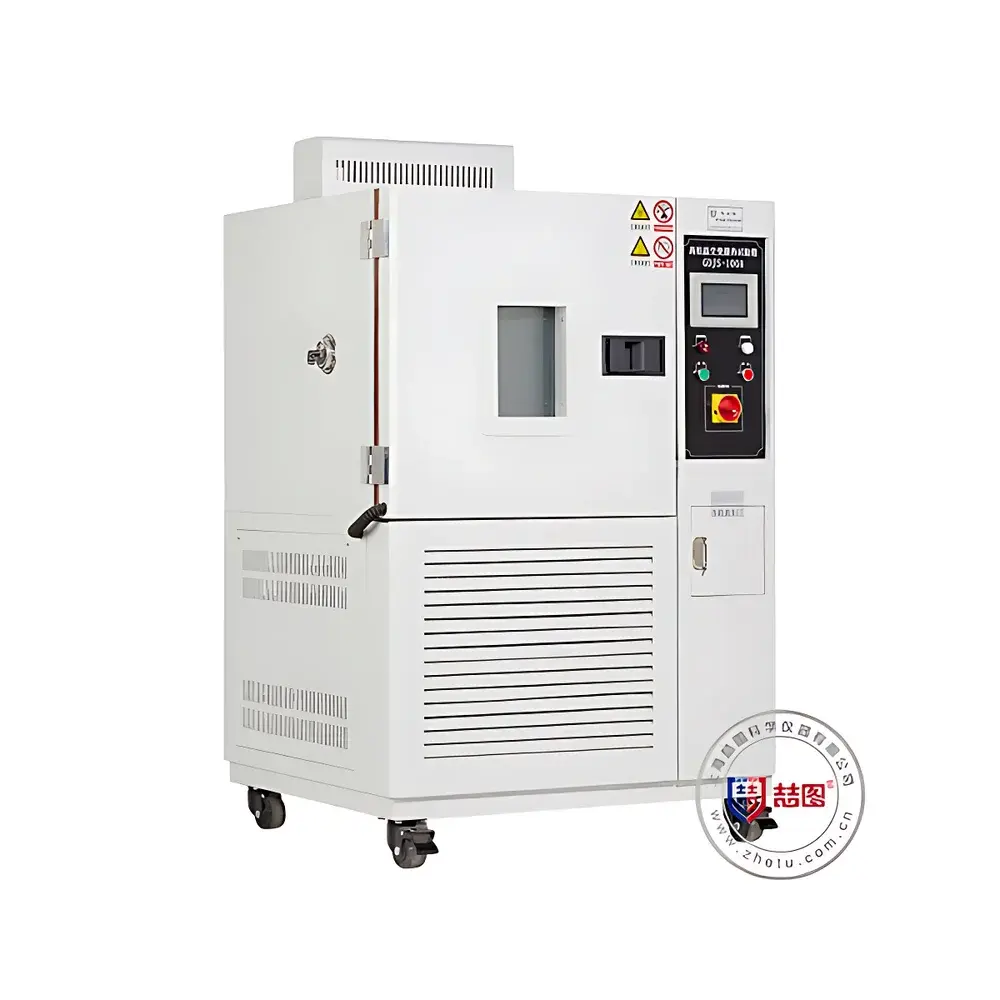

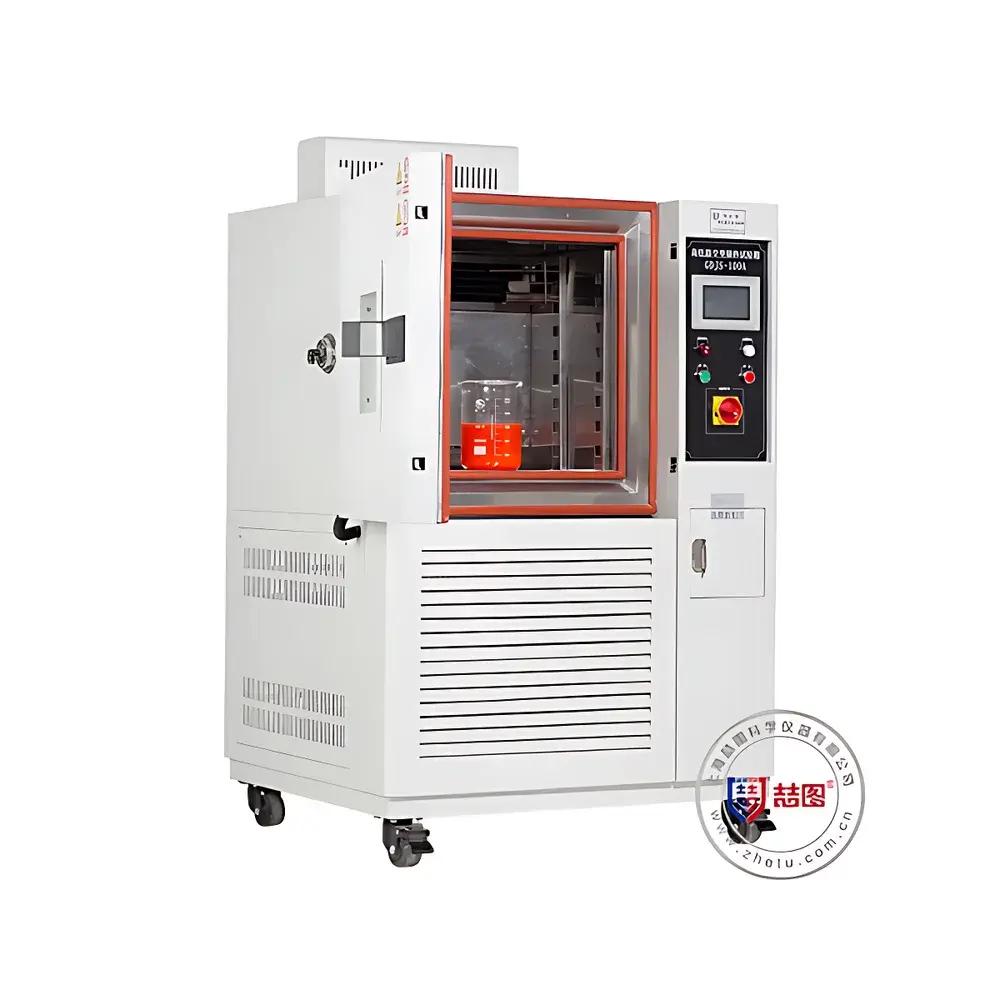

DRETOP THL-D150-II High-Low Temperature Environmental Test Chamber

Overview

The DRETOP THL-D150-II High-Low Temperature Environmental Test Chamber is an engineered thermal stress testing system designed to replicate extreme ambient temperature conditions for reliability validation of industrial components and materials. Based on dual-stage compressor refrigeration architecture and precision PID-controlled resistive heating, the chamber delivers stable, repeatable thermal profiles across a wide operational range of –80 °C to +150 °C. It operates in accordance with fundamental principles of thermal cycling—subjecting test specimens to controlled, programmable transitions between sub-zero cryogenic and elevated thermal states—to assess dimensional stability, mechanical integrity, electrical performance, and material degradation under simulated real-world environmental exposure. This chamber meets the functional requirements of accelerated life testing, qualification testing per IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), and IEC 60068-2-14 (temperature cycling), supporting compliance-driven workflows in electronics, automotive, aerospace, and polymer R&D laboratories.

Key Features

• Color touchscreen controller with 1000 programmable test sequences; each sequence supports up to 100 segments for complex ramp-hold-step profiles.
• Multi-level password protection and role-based access control to prevent unauthorized parameter modification and ensure data traceability.
• Optimized dual-layer forced-air circulation system with centrifugal blower and nickel-chromium alloy heating elements, ensuring uniform thermal distribution (≤2 °C deviation) and rapid thermal recovery after door opening.
• Double-glazed, heated observation window with anti-frost coating prevents condensation and enables continuous visual monitoring without compromising chamber integrity.
• Hermetically sealed, low-GWP refrigeration system using imported compressors and cascaded evaporator-condenser design for reliable operation down to –80 °C.
• Silicone rubber door gasket maintains high sealing performance across the full temperature range, minimizing thermal leakage and energy loss.
• Integrated safety subsystems: over-temperature cut-off, compressor/fan overload protection,漏电 (earth leakage) detection, and automatic power recovery after mains interruption.
• Standard 50 mm diameter test port with EPDM seal allows for powered or signal-carrying feedthrough during active thermal testing.
• PID auto-tuning function dynamically adjusts control parameters to maintain setpoint accuracy under varying load conditions.
• Castor-mounted base with locking mechanism enables flexible positioning and stable anchoring in laboratory or production environments.

Sample Compatibility & Compliance

The THL-D150-II accommodates samples up to 150 L internal volume (500 mm × 500 mm × 600 mm working chamber), with two adjustable stainless-steel shelves included as standard. It supports non-hazardous solid and packaged electronic assemblies, PCBs, sensors, elastomers, adhesives, and metallic components. The chamber is not rated for explosive atmospheres (ATEX/IECEx) or corrosive gas exposure. Its thermal performance aligns with ISO 16750-4 (road vehicles), MIL-STD-810H Method 502.7 (low temperature) and Method 501.7 (high temperature), and supports GLP-compliant documentation when paired with optional RS485/USB data logging interfaces. All controllers log timestamped temperature data with audit trail capability, satisfying basic FDA 21 CFR Part 11 record-keeping expectations for non-clinical laboratory use.

Software & Data Management

The embedded controller provides real-time temperature display, graphical trend visualization, and onboard data storage for ≥30 days of continuous 1-minute interval logging. Export formats include CSV-compatible Excel (.xlsx) files and proprietary binary archives readable via DRETOP’s PC-based analysis software. Optional RS485 or USB interface enables remote monitoring, script-based automation (via Modbus RTU), and integration into centralized lab management systems. Data export includes metadata such as program ID, segment number, setpoint, actual chamber temperature, elapsed time, and alarm status flags—facilitating root-cause analysis in failure investigations. No cloud connectivity or third-party SaaS dependencies are required; all data remains local unless explicitly transferred by the user.

Applications

• Electronics: Thermal shock screening of PCBAs, connectors, and semiconductor packages per JESD22-A104.
• Automotive: Validation of infotainment modules, battery management systems, and sensor housings under climatic extremes.
• Aerospace: Pre-flight environmental stress screening (ESS) of avionics enclosures and composite fasteners.
• Materials Science: Accelerated aging studies of thermoplastics, elastomers, and adhesive bonds.
• Quality Assurance: Incoming inspection of supplier components against contractual thermal specification limits.
• Academic Research: Controlled variable-temperature experimentation in polymer physics, metallurgy, and electrochemical device characterization.

FAQ

What is the maximum allowable sample mass for thermal stability testing?
The chamber is optimized for thermal uniformity with typical loads ≤15 kg. Excessive thermal mass may extend stabilization time and affect uniformity; users should validate performance with representative loads per ISO 17025 calibration guidelines.
Is the THL-D150-II compliant with IEC 60068-2-14 for temperature cycling?
Yes—the controller supports programmable ramp rates (1–3 °C/min heating; 0.7–1 °C/min cooling) and dwell times required for IEC 60068-2-14 Test Nb, provided external verification of chamber performance is conducted per IEC 60068-3-5.
Can the unit be integrated into a facility-wide Building Management System (BMS)?
Via optional RS485 Modbus RTU output, the chamber can transmit temperature data and status signals to compatible BMS platforms for centralized monitoring and alarm escalation.
Does the system support validation documentation (IQ/OQ/PQ)?
DRETOP provides factory calibration certificates and user manuals aligned with GxP expectations. Full IQ/OQ/PQ protocols require site-specific execution by qualified personnel using NIST-traceable reference standards.
What maintenance intervals are recommended for long-term reliability?
Compressor oil and refrigerant levels should be verified annually; air filter cleaning every 3 months; door gasket inspection and silicone lubrication semiannually; and full thermal mapping every 12 months per ISO/IEC 17025 recommendations.
