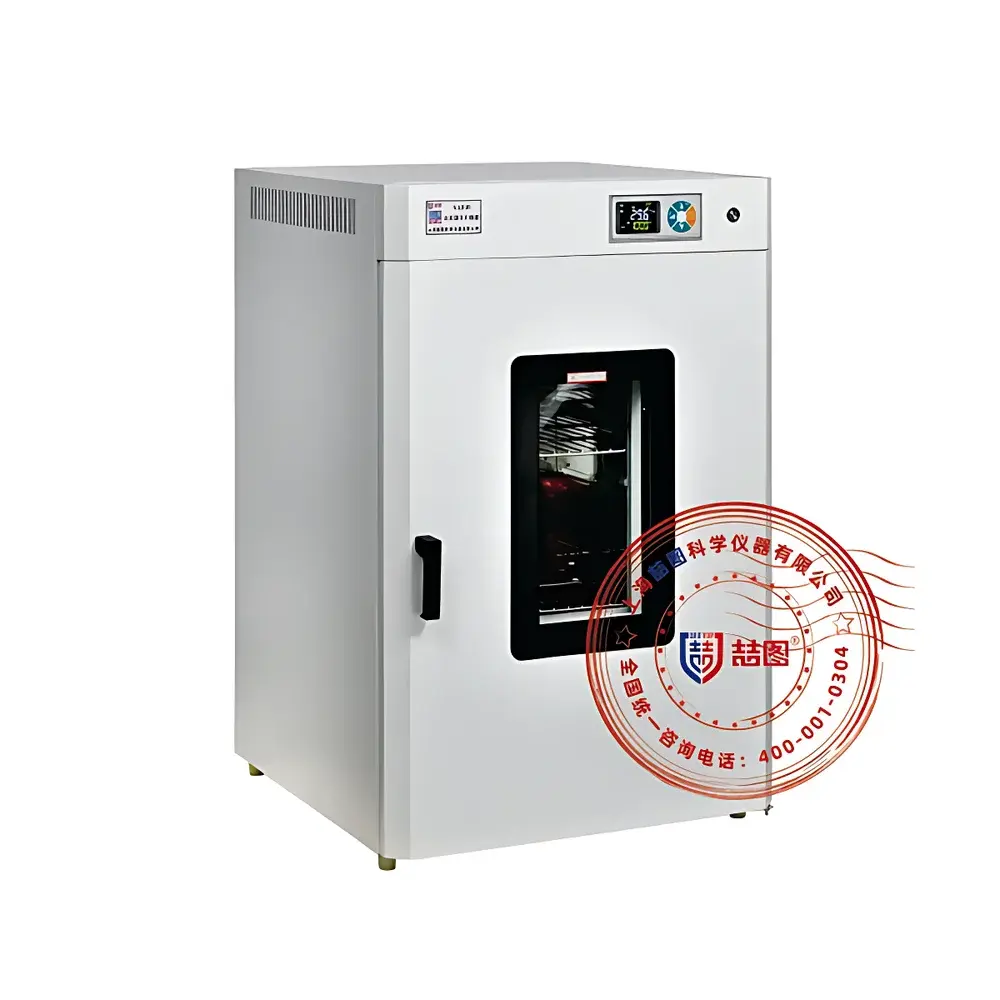

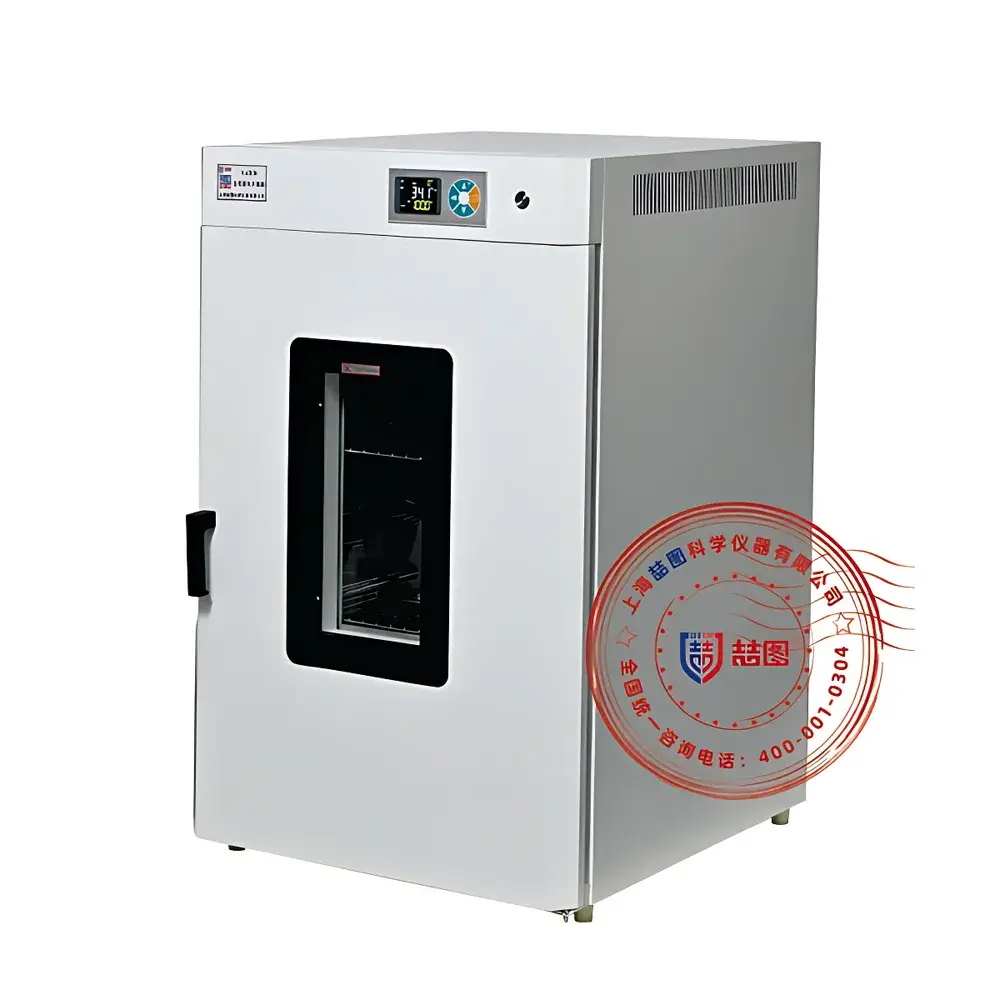

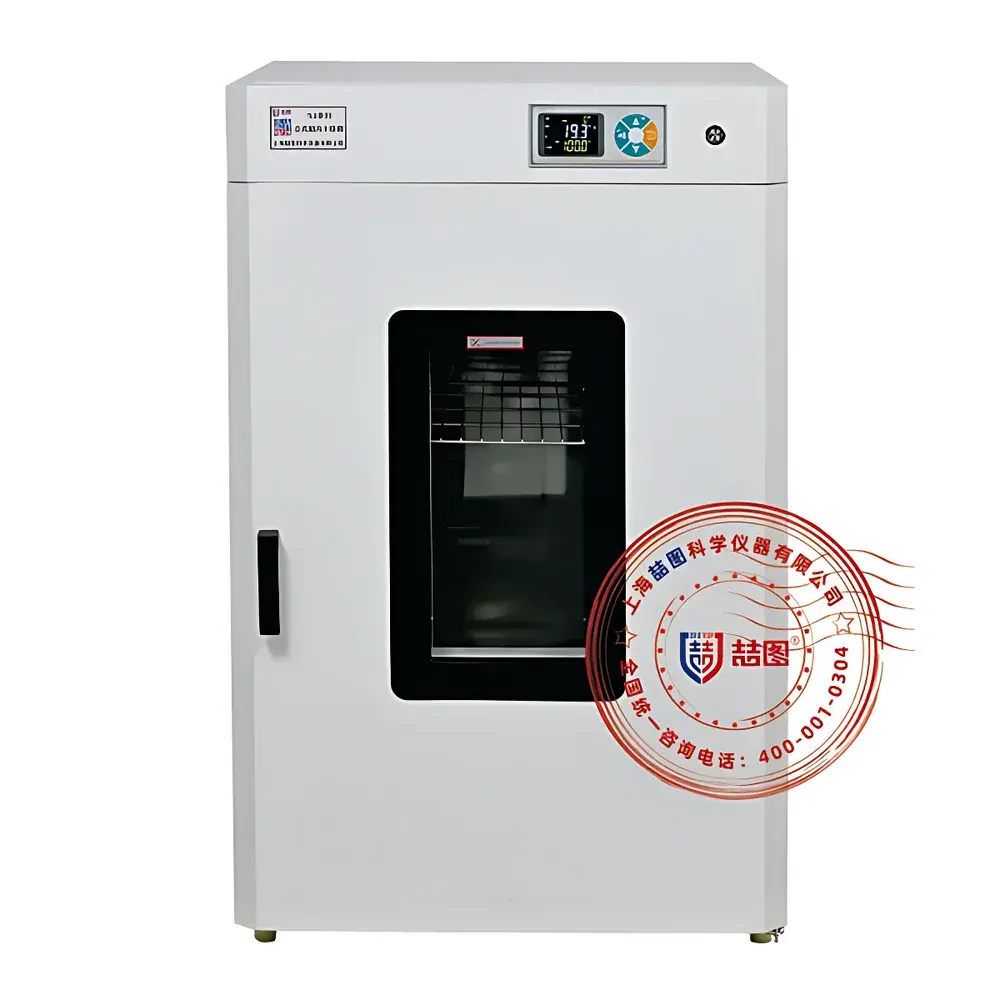

DRETOP TLG-A1040 Vertical Forced-Air Drying Oven

Overview

The DRETOP TLG-A1040 Vertical Forced-Air Drying Oven is an engineered solution for precise, repeatable thermal processing in research laboratories, quality control environments, and industrial R&D settings. Designed around the principle of forced convection heat transfer, the unit employs a high-temperature-rated centrifugal blower and a fully optimized air duct system to ensure uniform thermal distribution across the entire working chamber. Unlike natural convection ovens, the TLG-A1040 actively circulates heated air via a rear-mounted horizontal exhaust duct—enabling controlled venting of volatile byproducts and facilitating integration with external fume extraction systems where required. Its vertical footprint accommodates large-volume drying, aging, and conditioning tasks without compromising floor space efficiency. The chamber’s stainless steel construction (AISI 304), combined with high-performance silicone rubber gaskets and dual-stage mechanical door locking, ensures long-term thermal integrity, corrosion resistance, and operational safety under continuous duty cycles at temperatures up to 250°C.

Key Features

• Microprocessor-based P.I.D. temperature controller with real-time deviation compensation, offering ±0.5°C temperature fluctuation and 0.1°C resolution for stable thermal setpoint maintenance.
• Intelligent LCD interface with tri-color display: green (normal operation), yellow (warning), red (alarm); supports direct fault-code readout for rapid diagnostics and reduced downtime.
• Dual-layer tempered glass observation window with wide-angle visibility and integrated anti-fog coating; enables non-intrusive sample monitoring without thermal disruption.

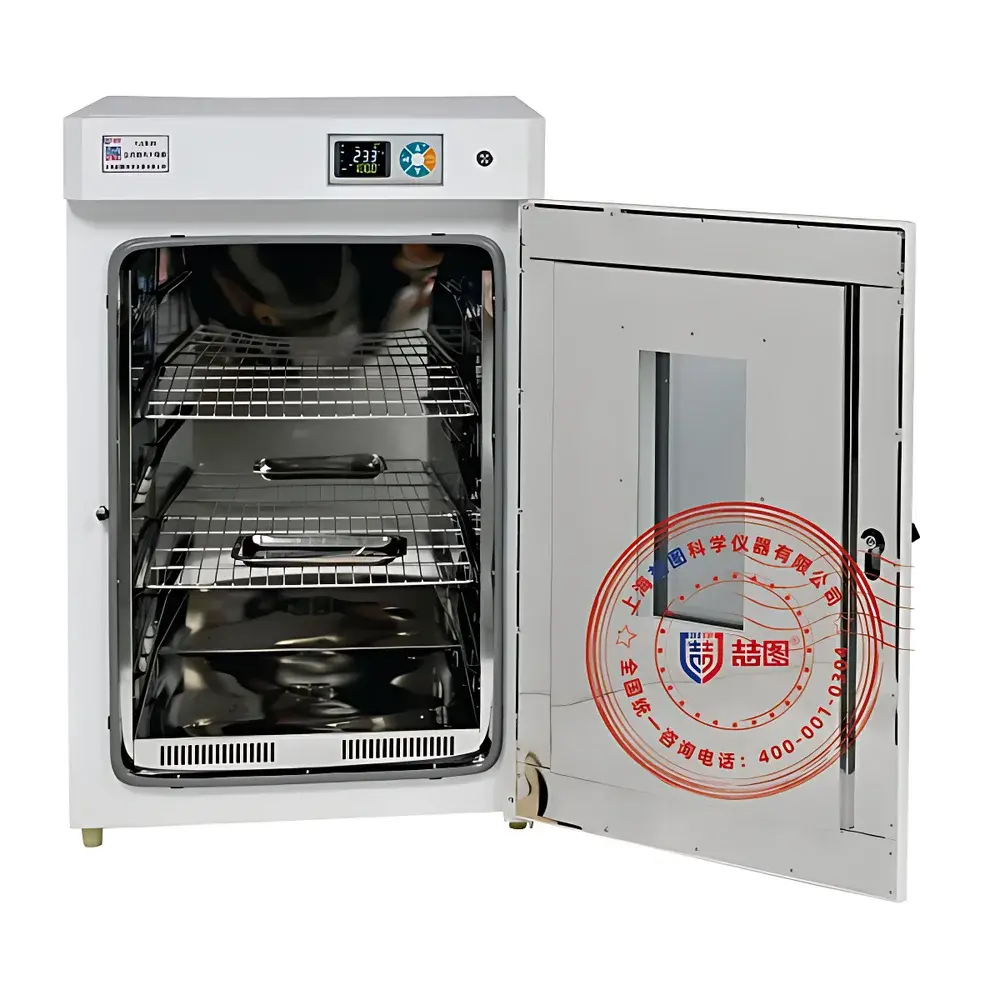

• Adjustable, slide-out stainless steel shelves with tool-free height positioning—designed for easy cleaning, reconfiguration, and compatibility with diverse sample carriers (e.g., Petri dishes, crucibles, PCB trays).
• Independent over-temperature cut-off system compliant with IEC 61000-4-2/4-3 immunity standards; triggers audible/visual alarm and terminates heating if preset limit is exceeded.
• Power-loss recovery function retains user-defined parameters—including timer settings and temperature profiles—after unexpected shutdowns, ensuring experimental continuity and data traceability.

Sample Compatibility & Compliance

The TLG-A1040 supports a broad range of sample types including electronic components (PCBs, sensors), polymer specimens, pharmaceutical excipients, metal coatings, ceramic precursors, and food-grade packaging materials. Its chamber volume (1040 L net) and internal dimensions (1000 × 800 × 1300 mm) accommodate oversized assemblies such as automotive harnesses, aerospace composites, and multi-tier industrial fixtures. The unit conforms to key international safety and performance benchmarks: UL 61010-1 (Electrical Safety for Laboratory Equipment), EN 60529 (IP20 ingress protection), and ISO 17025-relevant environmental conditioning requirements. While not certified for Class I Div 1 hazardous locations, its rear exhaust port allows connection to externally rated ventilation systems per ANSI Z9.5 laboratory ventilation guidelines. All electrical components meet RoHS 2.0 material restrictions, and the silicone door seal complies with FDA 21 CFR 177.2550 for incidental food contact applications.

Software & Data Management

The TLG-A1040 supports optional digital expansion modules aligned with GLP/GMP documentation workflows. A USB data export interface enables time-stamped logging of temperature history (min/max/avg) to FAT32-formatted USB drives, generating CSV files compatible with Excel, MATLAB, and LIMS platforms. Optional RS-485 Modbus RTU communication permits integration into centralized building management systems (BMS) or SCADA networks for remote supervision and audit-ready recordkeeping. When equipped with the programmable controller option, users may define up to 30 segmented ramp-soak cycles with independent rate limits and hold durations—fully compliant with ASTM E145-22 Annex A2 protocols for thermal validation studies. All logged data include timestamp, operator ID (if enabled), and system event flags (e.g., door open, alarm trigger), satisfying 21 CFR Part 11 electronic record integrity requirements when deployed with validated software configurations.

Applications

This drying oven serves critical roles across multiple regulated and non-regulated domains: moisture content determination per ISO 712 and AOAC 934.01; pre-conditioning of test specimens prior to tensile or impact testing (ASTM D638, ISO 527); accelerated aging of polymers and adhesives (ASTM D3045, ISO 2578); residual solvent removal from coated substrates (IPC-CC-830); stabilization of reference standards in metrology labs; and post-curing of composite laminates in aerospace prototyping. In electronics manufacturing, it performs conformal coating curing and solder paste drying per IPC-J-STD-020. Its stable thermal profile and low drift characteristics also support calibration of thermocouples and RTDs in accordance with ISO/IEC 17025 Clause 6.4.2.

FAQ

What is the maximum operating temperature and corresponding safety certification?
The TLG-A1040 is rated for continuous operation up to 250°C. It carries CE marking per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU, with full technical documentation available upon request.
Can the unit be validated for IQ/OQ/PQ protocols?
Yes—the oven’s stable thermal performance, digital logging capability, and configurable alarm thresholds support formal qualification per GAMP5 and ISO 13485 Annex C. DRETOP provides factory-issued calibration certificates traceable to NIM (China National Institute of Metrology).
Is the rear exhaust port compatible with standard lab ductwork?
The 80 mm diameter horizontal outlet is designed for direct coupling to rigid PVC or stainless steel ducting (ISO 13847-compliant), supporting flow rates up to 250 m³/h with minimal backpressure.

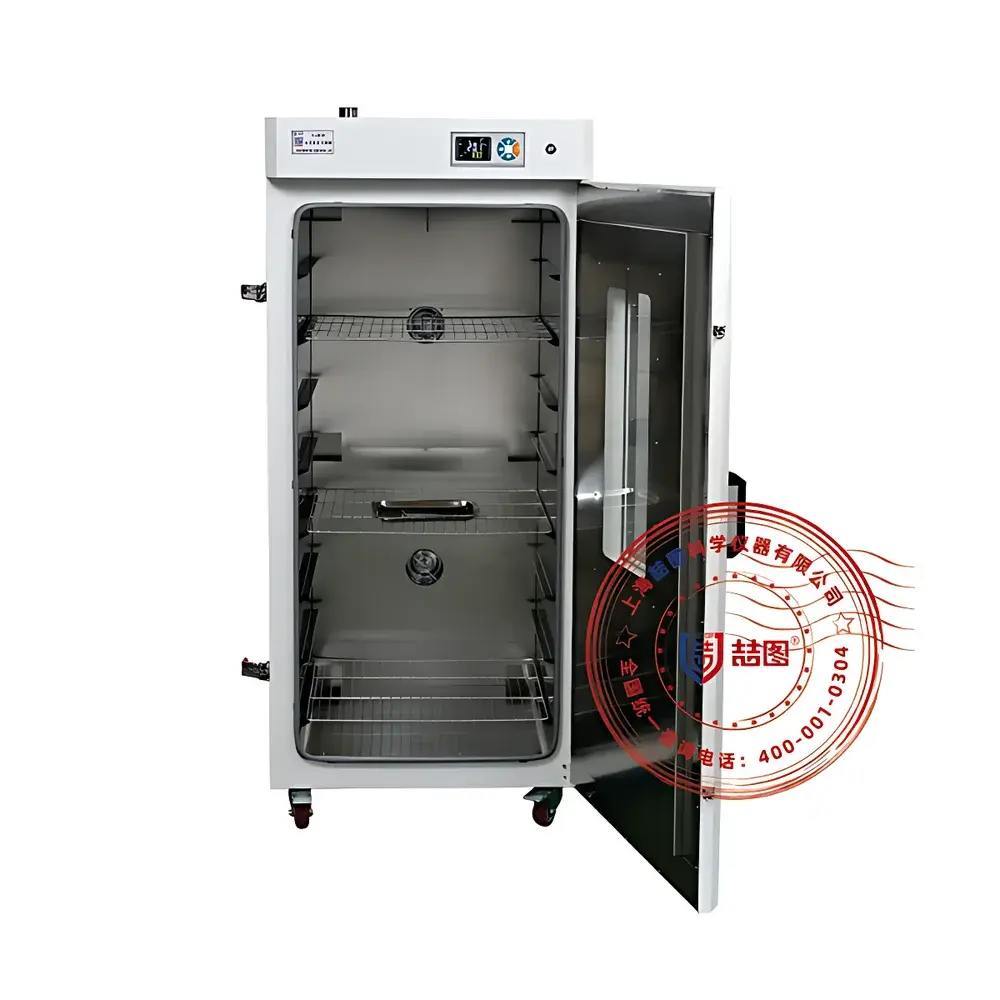

How many shelf positions are standard, and what is the load capacity per shelf?
Four adjustable stainless steel shelves are included, each rated for 25 kg uniformly distributed load. Additional shelves can be ordered with reinforced support brackets.
Does the unit support remote monitoring via Ethernet or Wi-Fi?
Ethernet connectivity is not built-in, but third-party IoT gateways (e.g., Siemens Desigo CC, BACnet/IP converters) may be interfaced via the RS-485 port using custom protocol mapping.
