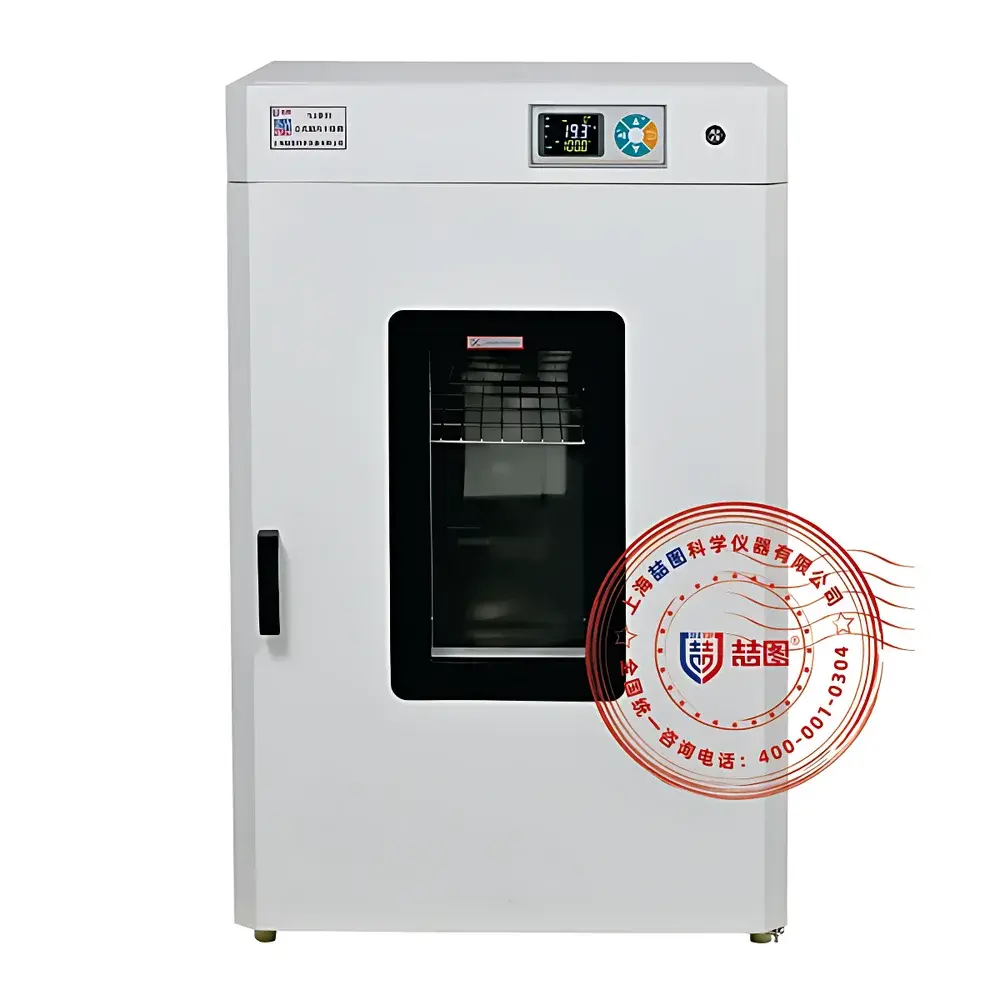

DRETOP TLG-B1040 Vertical Forced-Air Drying Oven

Overview

The DRETOP TLG-B1040 Vertical Forced-Air Drying Oven is an engineered solution for precise, repeatable thermal processing in research, quality control, and production environments. Based on the principle of forced convection heating—where a high-temperature-stable centrifugal blower circulates heated air through a calibrated duct system—the oven ensures rapid temperature ramp-up and spatially consistent thermal distribution across its 1040 L working chamber. Its vertical floor-standing architecture optimizes laboratory floor space while accommodating large-format samples such as automotive components, PCB assemblies, polymer sheets, and bulk chemical batches. The unit operates within a certified temperature range of RT+10°C to 300°C, meeting fundamental thermal stability requirements for ASTM D1654 (corrosion testing), ISO 5725 (accuracy of measurement methods), and USP (thermally driven stability studies). All thermal control logic adheres to IEC 61000-4-30 EMC standards, ensuring operational integrity in electromagnetically dense lab settings.

Key Features

• Microprocessor-based P.I.D. temperature controller with dual-stage over-temperature protection and real-time deviation alarm—compliant with IEC 60519-1 safety guidelines for industrial heating equipment.
• Triple-layer insulated double-glazed observation window with tempered safety glass (25 mm thickness), enabling non-intrusive visual monitoring without thermal leakage or condensation interference.

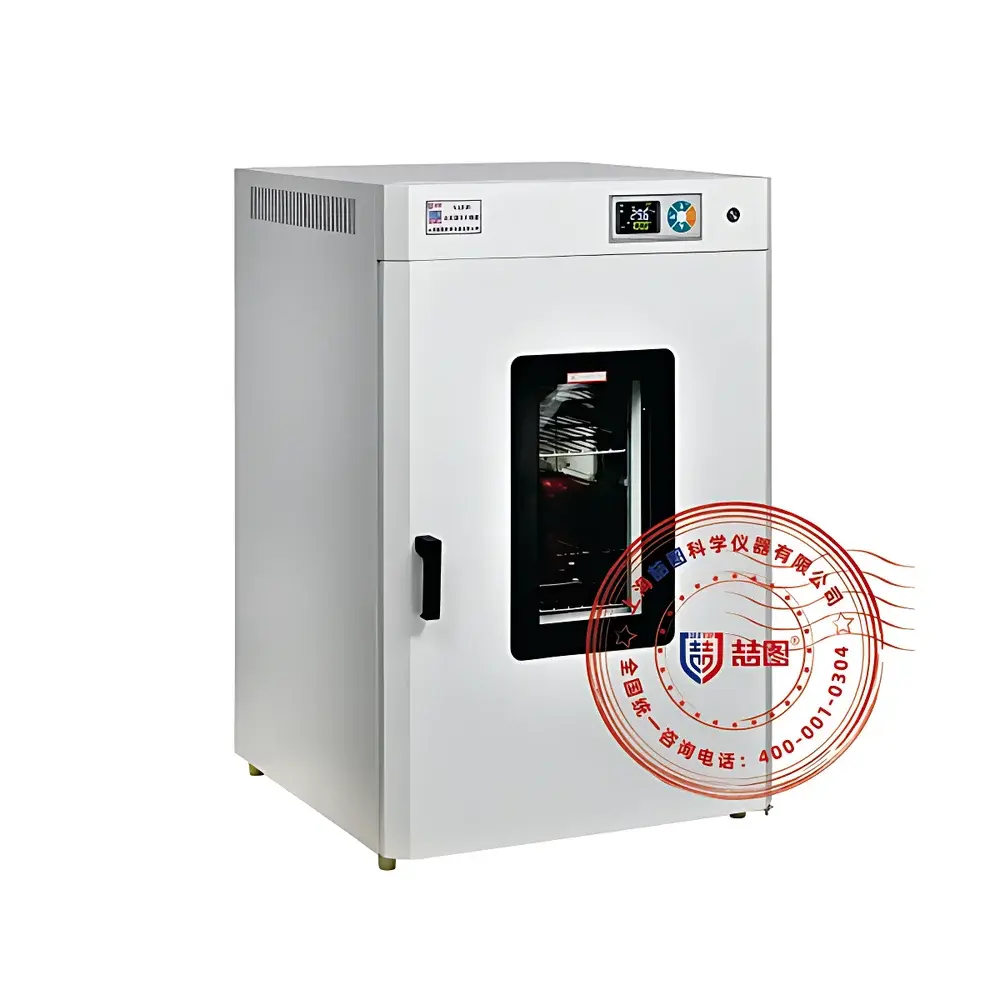

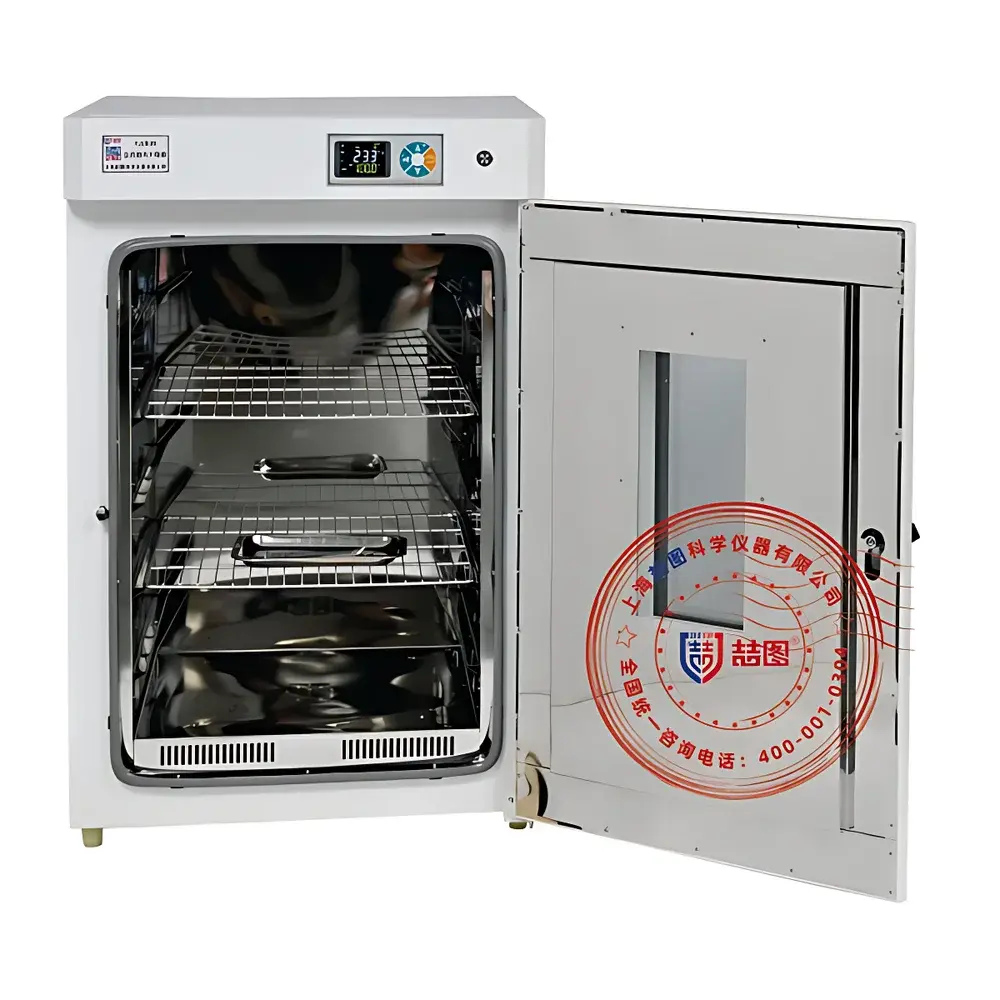

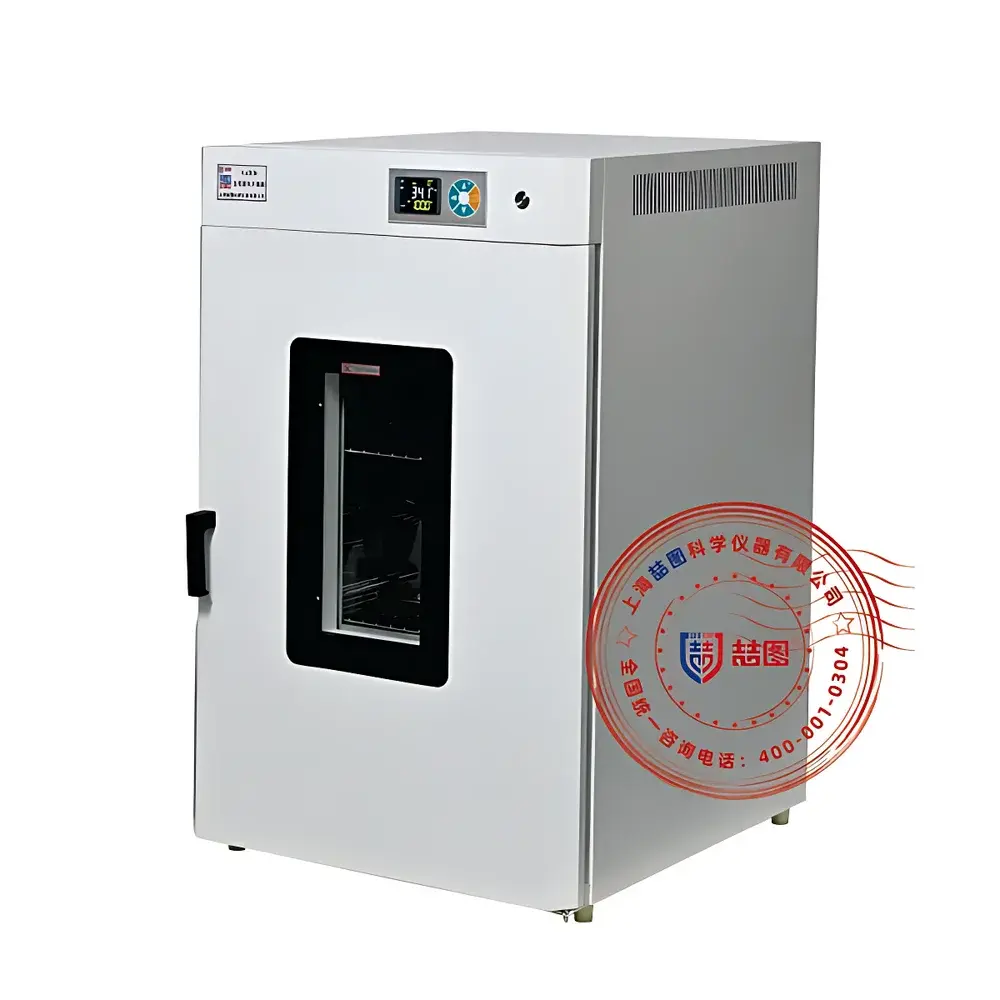

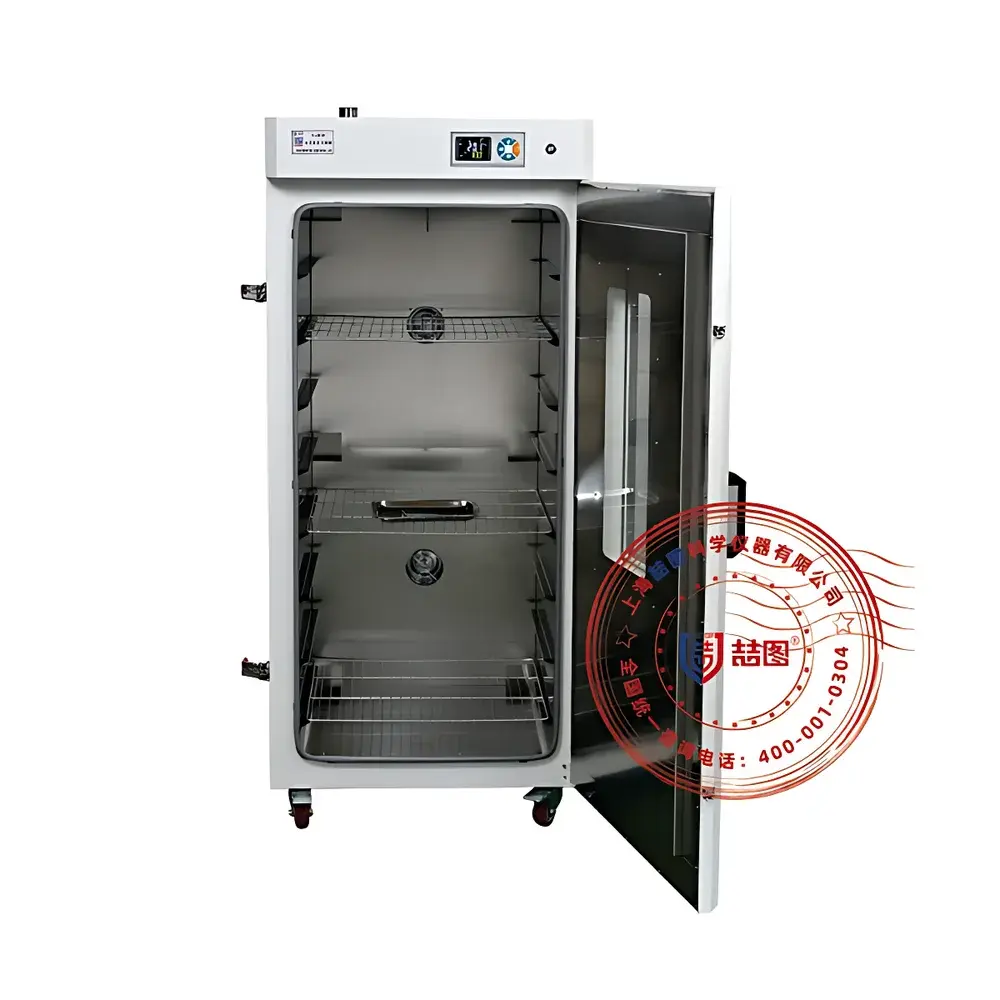

• Modular stainless steel interior (SUS304, 1.5 mm gauge) and removable, height-adjustable perforated shelves (up to 4 standard positions)—designed for easy decontamination and residue-free cleaning between sample runs.
• Horizontal rear-mounted exhaust duct with standardized 60 mm diameter port—compatible with external fume extraction systems per EN 14175-3 specifications for laboratory ventilation.
• Self-diagnostic firmware with alphanumeric fault-code display (e.g., E01 = sensor open circuit; E03 = heater overcurrent) and automatic parameter retention after power interruption—supporting uninterrupted validation workflows under 21 CFR Part 11 Annex 11 data integrity frameworks.

Sample Compatibility & Compliance

The TLG-B1040 accommodates heterogeneous sample geometries—including stacked wafers, coated substrates, molded plastics, and packaged electronics—without compromising thermal homogeneity. Its forced-air path is optimized via CFD-simulated airflow channels that minimize dead zones and recirculation vortices. The chamber meets ISO 14644-1 Class 8 cleanroom compatibility when operated with HEPA-filtered intake (optional accessory), and its stainless steel construction resists corrosion from halogenated solvents, acidic vapors, and saline aerosols per ASTM B117 salt spray testing protocols. For regulated industries, the oven supports IQ/OQ documentation packages and integrates with third-party calibration management software (e.g., MET/TEAM, Qualer) for traceable temperature mapping per ISO/IEC 17025 Clause 6.4.2.

Software & Data Management

Standard configuration includes an embedded 4.3-inch TFT-LCD interface with three-color status coding (green = stable, amber = ramping, red = alarm). Optional RS485 Modbus RTU communication enables bidirectional integration with SCADA or LIMS platforms for automated log export. The USB data port (type A) allows direct export of time-stamped temperature logs (.CSV) and trend graphs to removable media—fully compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). When paired with the optional programmable controller (7-segment LED or 7-inch color touchscreen), users can define up to 30 segmented thermal profiles with soak-hold-ramp sequences, each with independent alarm thresholds and event-triggered digital outputs.

Applications

• Pre-drying of moisture-sensitive raw materials prior to gravimetric analysis (ASTM D229, ISO 293)
• Curing of epoxy-coated electrical insulators and printed circuit board laminates (IPC-CC-830B)
• Accelerated aging of polymer films and elastomers (ISO 188, ASTM D573)
• Residual solvent removal from pharmaceutical granules (ICH Q5C)
• Thermal conditioning of calibration standards and reference materials (ISO Guide 34)
• Drying of filter membranes post-microbiological filtration (USP )

FAQ

What is the maximum validated temperature uniformity across the full chamber volume?
At 100°C under no-load conditions, temperature uniformity is ±2.5°C (measured at 9 points per ICH Q1A(R2) mapping protocol). Load-dependent uniformity may vary by ±1.0°C depending on sample mass and thermal mass distribution.
Does the TLG-B1040 support GMP-compliant electronic record keeping?
Yes—when equipped with the optional RS485 interface and validated software drivers, it generates timestamped, immutable audit trails with user authentication, change history, and electronic signature support per 21 CFR Part 11 Subpart B.
Can the exhaust duct be connected to an active fume hood system?
Yes—the 60 mm rear outlet accepts standard flexible ducting (max. 3 m length recommended) and maintains negative pressure differential when interfaced with a Class I or II biosafety cabinet exhaust manifold.
Is stainless steel interior electropolished for pharmaceutical use?
The standard SUS304 interior is passivated per ASTM A967 but not electropolished; electropolishing and Ra ≤ 0.4 µm finish are available as a factory-customized option (lead time +12 weeks).
What calibration certificates are supplied with delivery?
Each unit ships with a factory-issued Certificate of Conformance (CoC), NIST-traceable temperature sensor calibration report (at 50°C, 100°C, 200°C), and mechanical verification checklist signed by QA personnel. UKAS-accredited field calibration services are available upon request.
