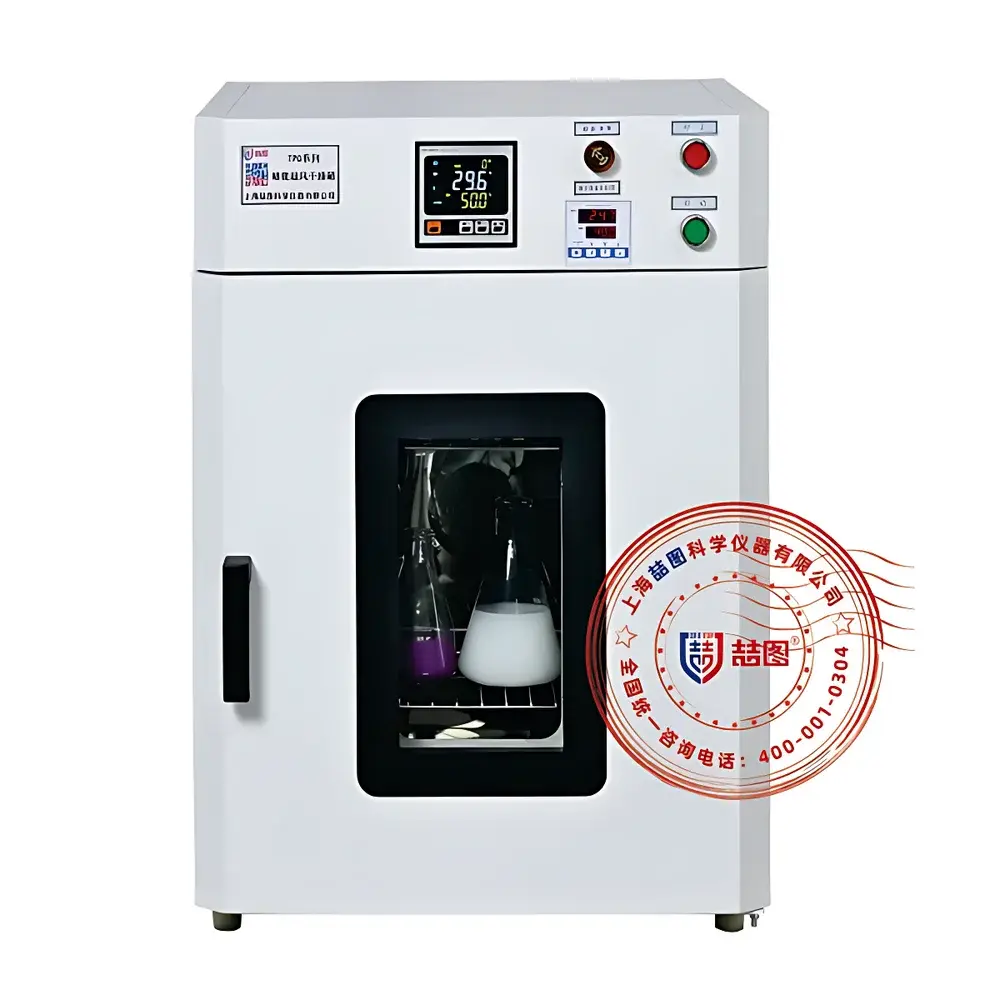

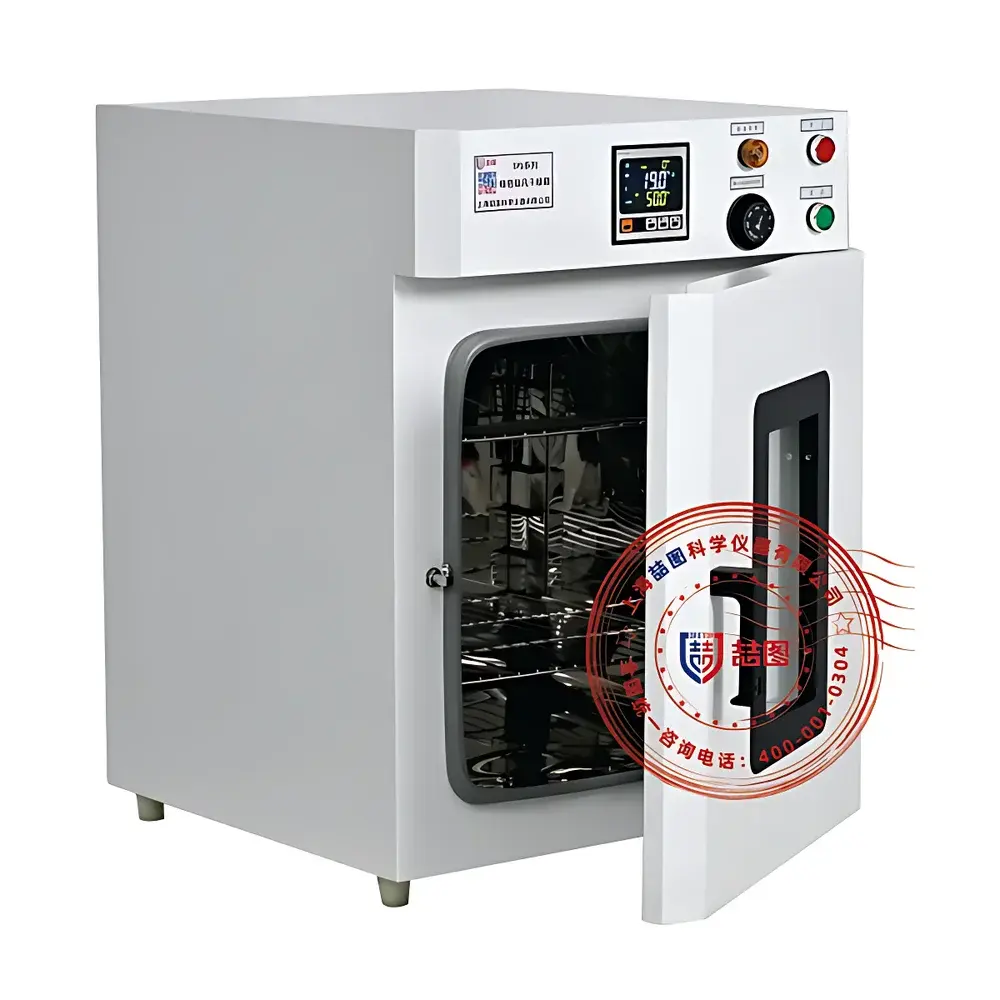

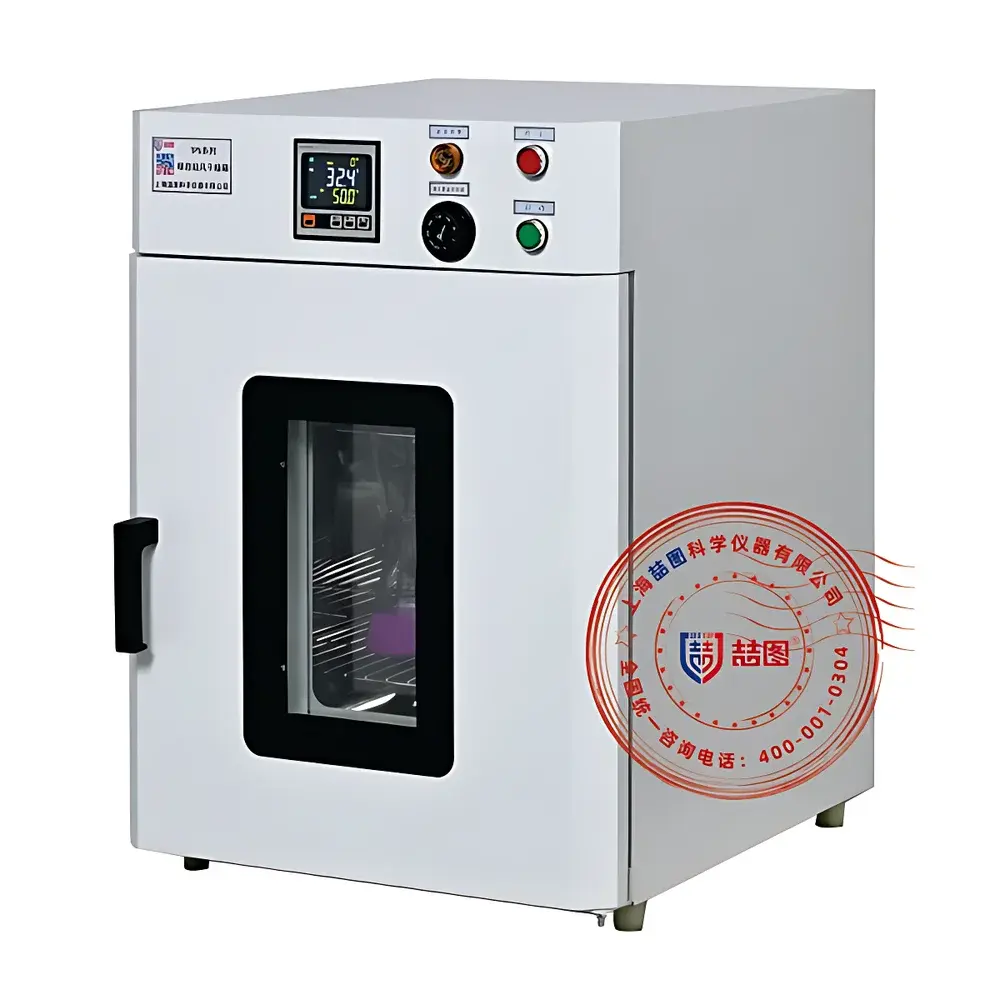

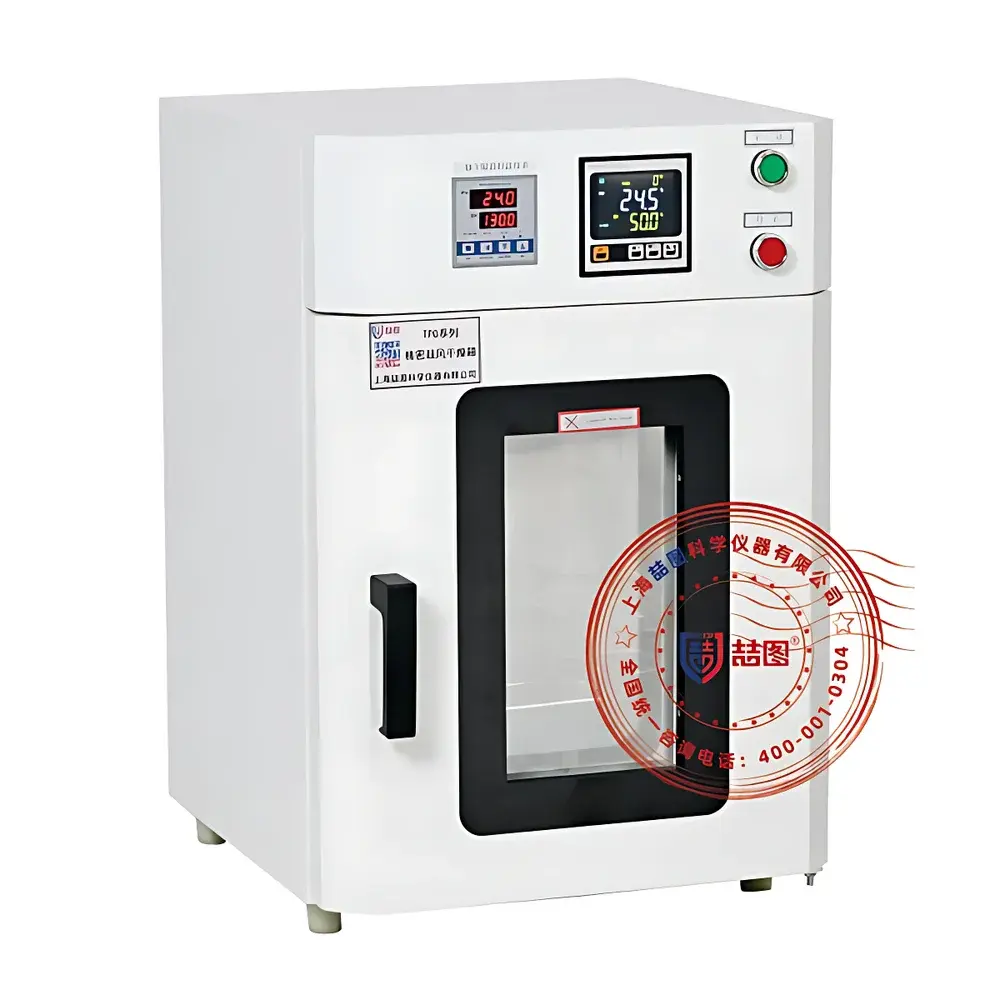

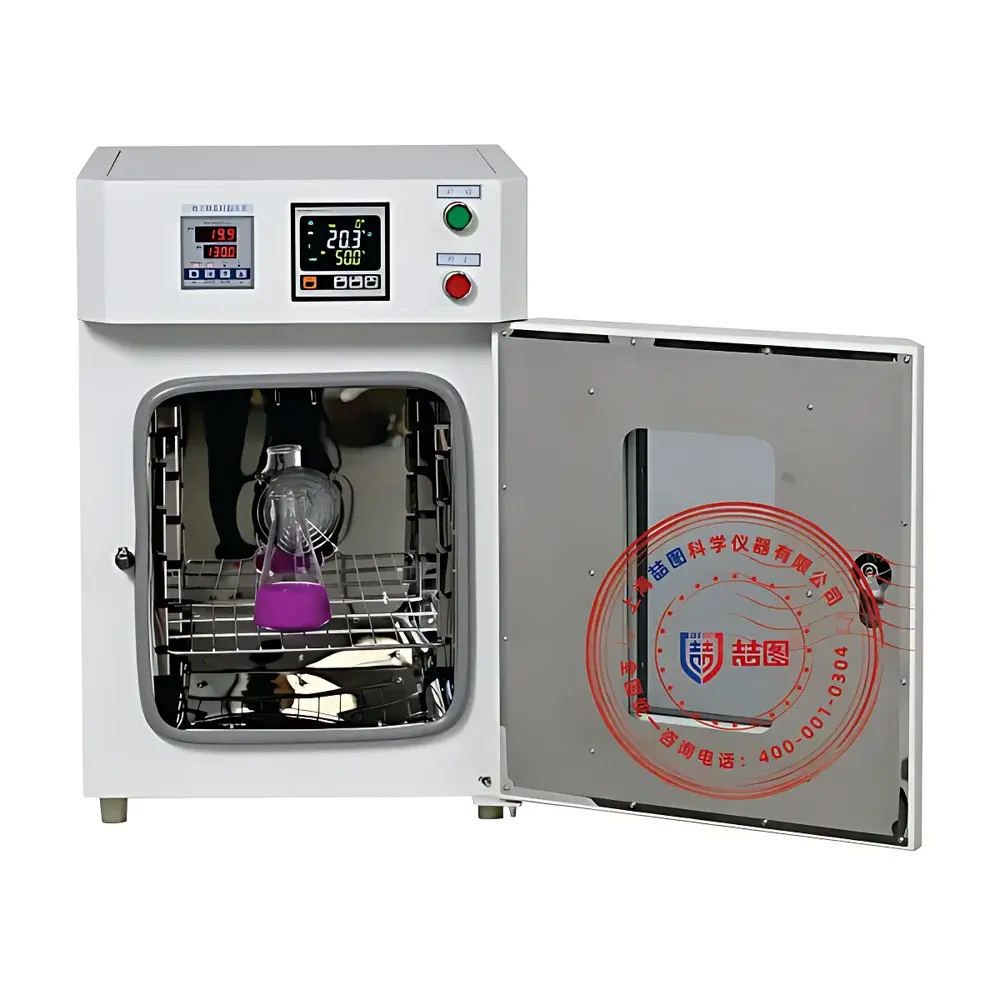

DRETOP TPG-F225BP Precision Forced-Air Circulating Oven

Overview

The DRETOP TPG-F225BP is a precision forced-air circulating oven engineered for laboratories and industrial R&D environments requiring high thermal stability, repeatable temperature uniformity, and long-term operational reliability. It operates on the principle of forced convection—using a high-temperature-rated centrifugal blower and a geometrically optimized internal airflow duct system—to ensure rapid heat-up, minimal thermal overshoot, and consistent temperature distribution across the entire 225 L working chamber. Unlike natural convection ovens, the TPG-F225BP actively circulates heated air at controlled velocity, mitigating stratification and cold spots—critical for applications involving moisture removal, thermal aging, pre-baking of substrates, or conditioning of sensitive electronic components. Its design meets baseline requirements for ISO/IEC 17025-compliant calibration labs and supports GLP-aligned workflows where traceable, auditable thermal control is essential.

Key Features

• Microprocessor-based PID temperature controller with dual-stage over-temperature protection: primary control loop plus independent mechanical safety limiter, compliant with IEC 61000-4-2 ESD immunity standards;
• 0.1 °C temperature resolution and ±0.2 °C steady-state fluctuation—validated per ASTM E2209-21 Annex A2 using calibrated Class A PT100 sensors at nine spatial points;
• Double-layer tempered glass observation window with silicone-sealed gasket, enabling real-time visual monitoring without thermal interruption;
• Adjustable, slide-out stainless steel shelves (AISI 304, 1.2 mm thickness), spaced at 30 mm intervals, supporting up to 15 kg per shelf under static load;
• High-efficiency heating system utilizing SSR (Solid-State Relay) power modulation—eliminating contactor chatter, reducing electromagnetic interference, and extending component service life;
• Integrated self-diagnostic firmware: displays standardized fault codes (e.g., E01 = sensor open circuit, E03 = over-temperature alarm) directly on the 4.3-inch monochrome LCD interface;
• Power-fail recovery function: retains set parameters and timer status during brief outages (≤30 s), preventing experimental interruption and data loss.

Sample Compatibility & Compliance

The TPG-F225BP accommodates standard laboratory sample formats including Petri dishes, crucibles, PCB panels (up to 480 × 650 mm), polymer films, battery electrode coatings, and ceramic green bodies. Its stainless-steel interior resists oxidation and chemical corrosion from common solvents (e.g., acetone, isopropanol, ethanol) and low-concentration acids encountered in material pretreatment. The oven complies with EN 61000-6-3 (EMC emission limits) and EN 61000-6-2 (immunity), and its construction adheres to CE machinery directive 2006/42/EC. While not intrinsically rated for hazardous atmospheres, optional modifications—including purge ports and explosion-proof wiring kits—can be implemented per ATEX Zone 2 consultation. For pharmaceutical QC use, the unit supports IQ/OQ documentation packages and can be validated against USP drying procedures when paired with external thermocouple mapping.

Software & Data Management

The base configuration includes an embedded timer (1–9999 minutes) and manual ramp-hold operation. Optional RS485 Modbus RTU or USB CDC virtual COM port enables integration with LabVIEW, MATLAB, or custom SCADA systems for remote parameter setting, real-time temperature logging, and automated shutdown triggers. Firmware v2.3+ supports CSV export of time-stamped chamber temperature logs (1 Hz sampling) via USB flash drive—retaining timestamps aligned to UTC and supporting post-run analysis in Excel or Python pandas. Audit trail functionality (user login, parameter changes, alarm events) is available with the color touchscreen upgrade, satisfying FDA 21 CFR Part 11 requirements when deployed with role-based access controls and electronic signature protocols.

Applications

• Thermal stabilization of optical components prior to interferometric testing;
• Moisture content determination per ISO 29540 (wood-based panels) and ASTM D2216 (soil specimens);
• Pre-drying of Li-ion battery cathode slurries on aluminum foil substrates (105–120 °C, N₂-purged environment compatible);
• Aging studies of aerospace-grade adhesives (e.g., FM73, EA9394) under controlled thermal cycling profiles;
• Curing of epoxy-coated electrical insulators per IEC 60270 partial discharge test prep;
• Residual solvent removal from printed electronics inks prior to sintering;
• Conditioning of reference standards for mass metrology (e.g., stainless steel weights per OIML R111).

FAQ

What is the maximum operating temperature and certified uniformity specification?
The TPG-F225BP is rated for continuous operation up to 300 °C. Temperature uniformity is specified as ±2 °C at 100 °C (per 9-point mapping per ASTM E2209-21), with tighter tolerances achievable at lower setpoints through extended equilibration.
Can this oven be used under inert gas atmosphere?
Yes—the chamber includes a standard 12 mm diameter test port (NPT 1/4″) suitable for N₂ or Ar inlet/outlet tubing. Optional gas-tight door gaskets and pressure-relief valves are available upon request.
Is validation support provided for GxP environments?
DRETOP supplies IQ/OQ templates, factory-as-tested calibration certificates (traceable to NIM, China), and temperature mapping reports. Full 3Q services (including PQ under user-defined protocols) are deliverable via authorized third-party partners.
How is airflow velocity controlled, and can it be adjusted?
Air velocity is regulated via a multi-speed blower motor (3 fixed settings) accessible through service mode. Final velocity is tuned during commissioning to balance uniformity and sample disturbance—typical face velocity at shelf level is 0.4–0.7 m/s.
Does the unit meet energy efficiency standards such as ENERGY STAR or EU Ecodesign?
While not ENERGY STAR–certified (a U.S.-focused program for consumer appliances), the TPG-F225BP exceeds EU Ecodesign Directive (EU) 2019/2021 minimum efficiency thresholds for industrial ovens, achieving ≤1.8 kWh/kL·°C specific energy consumption at 150 °C steady state.
