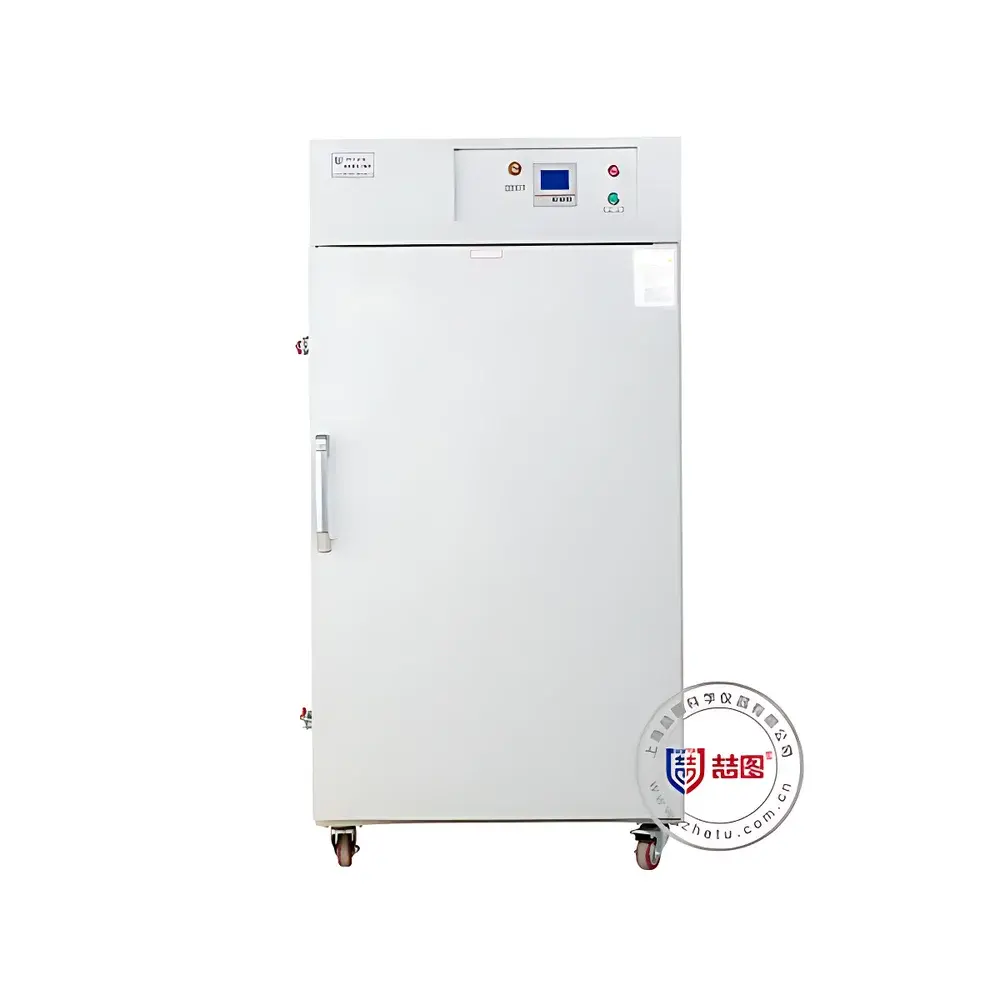

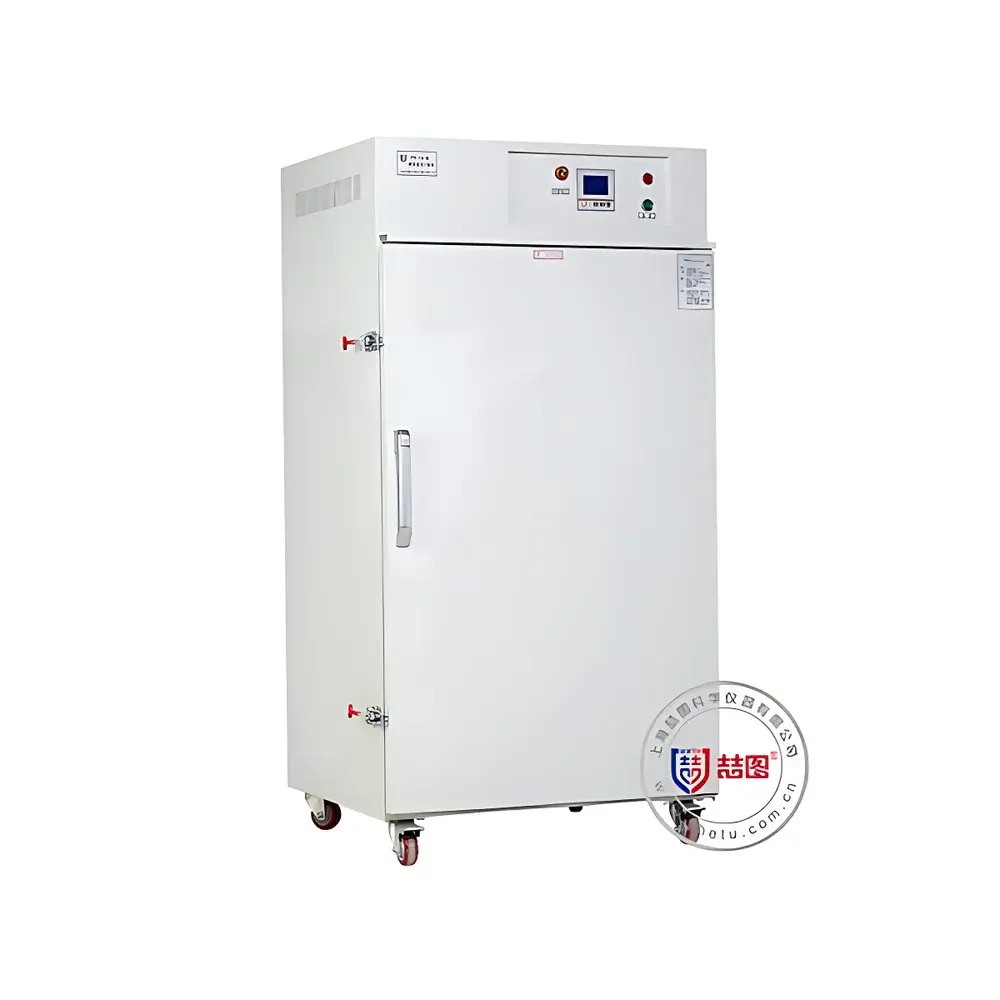

DRETOP TPG-F320 Precision Forced-Air Drying Oven

Overview

The DRETOP TPG-F320 Precision Forced-Air Drying Oven is an engineered solution for laboratories and industrial R&D facilities requiring high-fidelity thermal conditioning under controlled, repeatable conditions. Utilizing a forced-convection architecture—driven by a low-noise, high-efficiency centrifugal blower and precision-positioned stainless-steel heating elements—the oven ensures rapid heat transfer and exceptional spatial temperature uniformity across its 320 L working chamber. Its microprocessor-based P.I.D. temperature controller delivers real-time feedback regulation with 0.1°C resolution and ±0.2°C stability under steady-state operation (measured per ISO 17025-compliant empty-chamber protocols at 100°C). Designed for continuous-duty applications in aerospace component curing, battery electrode drying, polymer film annealing, and materials pre-conditioning prior to mechanical or spectroscopic analysis, the TPG-F320 meets the functional expectations of users previously reliant on premium European or Japanese benchtop ovens—without compromising on traceability, safety redundancy, or long-term thermal fidelity.

Key Features

• Forced-air circulation system with multi-blade centrifugal fan and adjustable air damper—enabling manual airflow modulation from full convection to near-static conditions via rotary control

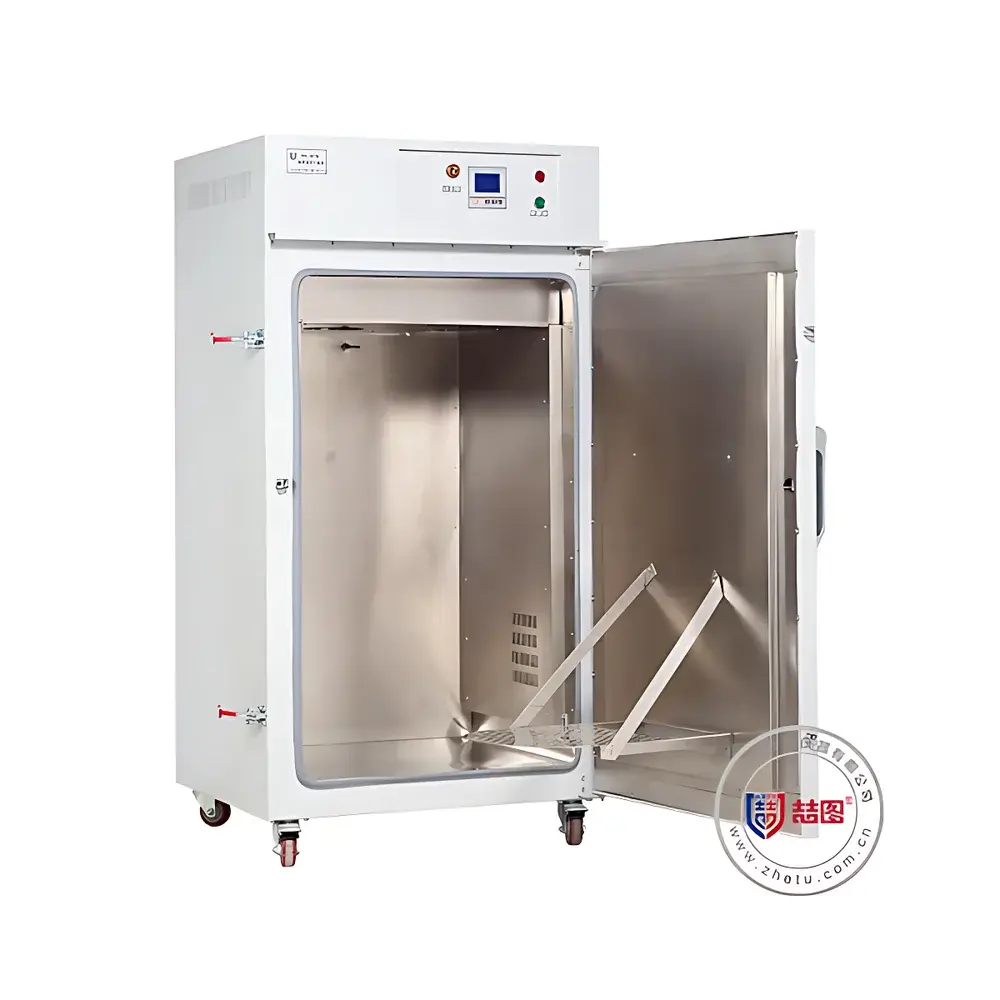

• Mirror-finish SUS304 stainless steel interior chamber with radius-rounded corners for complete cleanability and corrosion resistance under repeated thermal cycling
• Dual independent temperature control architecture: primary P.I.D. controller with digital display + secondary mechanical limiter for fail-safe over-temperature interruption
• High-reliability heating system featuring corrosion-resistant stainless steel sheathed heaters and SSR (Solid-State Relay) or thyristor-based power regulation—eliminating contactor chatter and extending service life beyond 10,000 operational hours
• Intelligent safety suite including motor overheat detection, earth leakage protection, short-circuit cutoff, and automatic power recovery after brownout or blackout events
• Large backlit LCD interface showing setpoint, real-time chamber temperature, elapsed time, remaining timer duration, and alarm status—all simultaneously visible without menu navigation
• High-performance silicone rubber door gasket engineered for minimal Joule heating effect and dimensional stability up to 250°C, certified non-outgassing per ASTM E595 requirements

Sample Compatibility & Compliance

The TPG-F320 accommodates a broad spectrum of sample formats—including petri dishes, crucibles, metal trays, ceramic boats, and custom fixtures—within its spacious 600 × 570 × 930 mm chamber. Its uniformity specification of ±1.5°C (verified at 100°C per IEC 60068-3-5 and GB/T 5170.2) ensures consistent drying kinetics across heterogeneous loads, critical for QC workflows in pharmaceutical excipient moisture testing (aligned with USP ) and electronics substrate bake-out procedures. The unit is constructed to meet CE marking prerequisites for electrical safety (EN 61010-1) and electromagnetic compatibility (EN 61326-1). When configured with RS485 or USB data export, it supports 21 CFR Part 11-compliant electronic records when paired with validated third-party software—facilitating audit readiness in regulated manufacturing environments operating under ISO 13485 or IATF 16949.

Software & Data Management

While the base configuration operates autonomously via front-panel controls, optional communication interfaces enable integration into centralized lab infrastructure. The RS232/RS485 port supports Modbus RTU protocol for direct connection to SCADA systems or PLC-controlled thermal process lines. An embedded USB port allows periodic firmware updates and local data dump of temperature logs (timestamped, with setpoint and deviation tracking). With the optional color touch-screen module, users gain access to real-time temperature curve visualization, historical trend replay, and configurable alarm thresholds—including upper/lower deviation limits and rate-of-change alerts. All data exports are CSV-formatted and compatible with LIMS platforms such as LabWare or Thermo Fisher SampleManager. Audit trails—including operator ID, parameter changes, and alarm acknowledgments—are retained onboard for ≥30 days when enabled.

Applications

• Pre-drying of moisture-sensitive raw materials prior to Karl Fischer titration or gravimetric analysis
• Thermal stabilization of calibration standards (e.g., reference metals, ceramic thermocouple calibrants)
• Curing of conformal coatings on printed circuit boards under NADCAP AC7108-specified profiles
• Accelerated aging studies of lithium-ion battery cathode slurries per IEEE 1625 guidelines
• Conditioning of tensile test specimens per ASTM D618 prior to mechanical property evaluation
• Residual solvent removal from thin-film photovoltaic layers during R&D prototyping
• Drying of filter membranes used in environmental particulate matter collection (EPA Method IO-3.2)

FAQ

What is the maximum recommended continuous operating temperature?
The TPG-F320 is rated for sustained operation up to 250°C. For optimal heater longevity and chamber integrity, prolonged use above 220°C should be limited to validated processes with documented thermal load profiles.
Does the oven support programmable ramp-soak cycles?
Standard configuration includes fixed-setpoint operation with timer-based hold functionality. Multi-segment ramp/soak programming requires the optional touchscreen controller module.
Is vacuum capability available for this model?
The TPG-F320 is a forced-air convection oven only. Vacuum drying functionality is not integrated; however, custom vacuum-compatible variants (e.g., TPG-V series) can be commissioned upon request.
How is temperature uniformity verified during factory calibration?
Each unit undergoes 9-point empty-chamber mapping using NIST-traceable Class A PT100 sensors per ISO/IEC 17025 procedures, with full validation report supplied with shipment.
Can the oven be integrated into a building management system (BMS)?
Yes—via optional RS485 Modbus output, the TPG-F320 can transmit real-time temperature, status flags, and alarm codes to BMS controllers compliant with BACnet MS/TP or Modbus TCP gateways.
