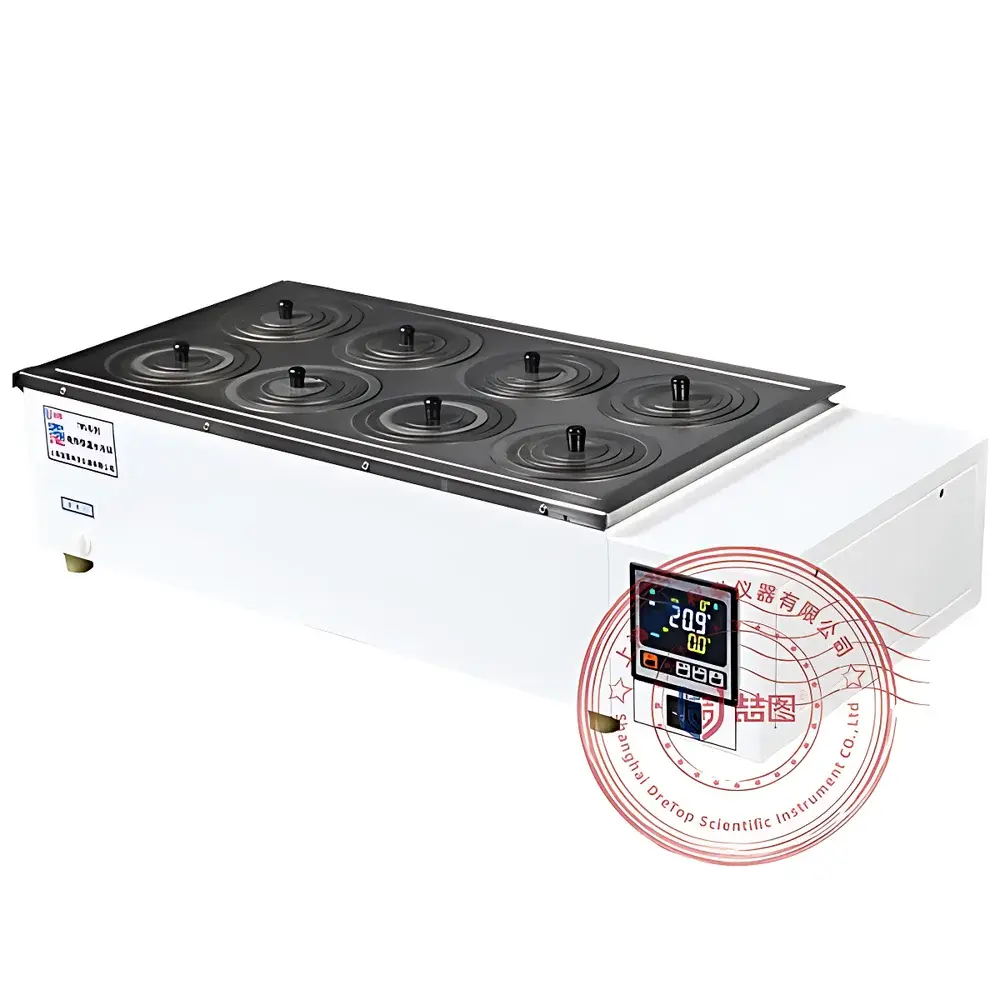

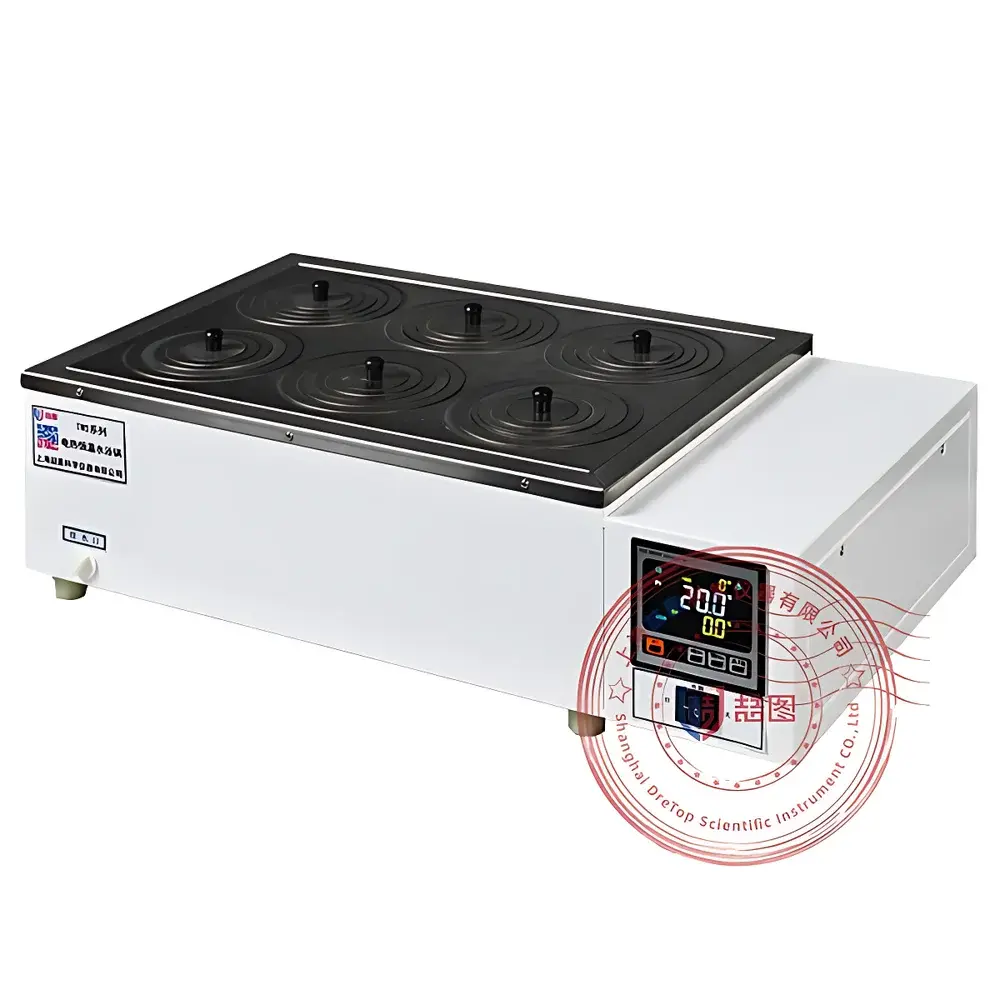

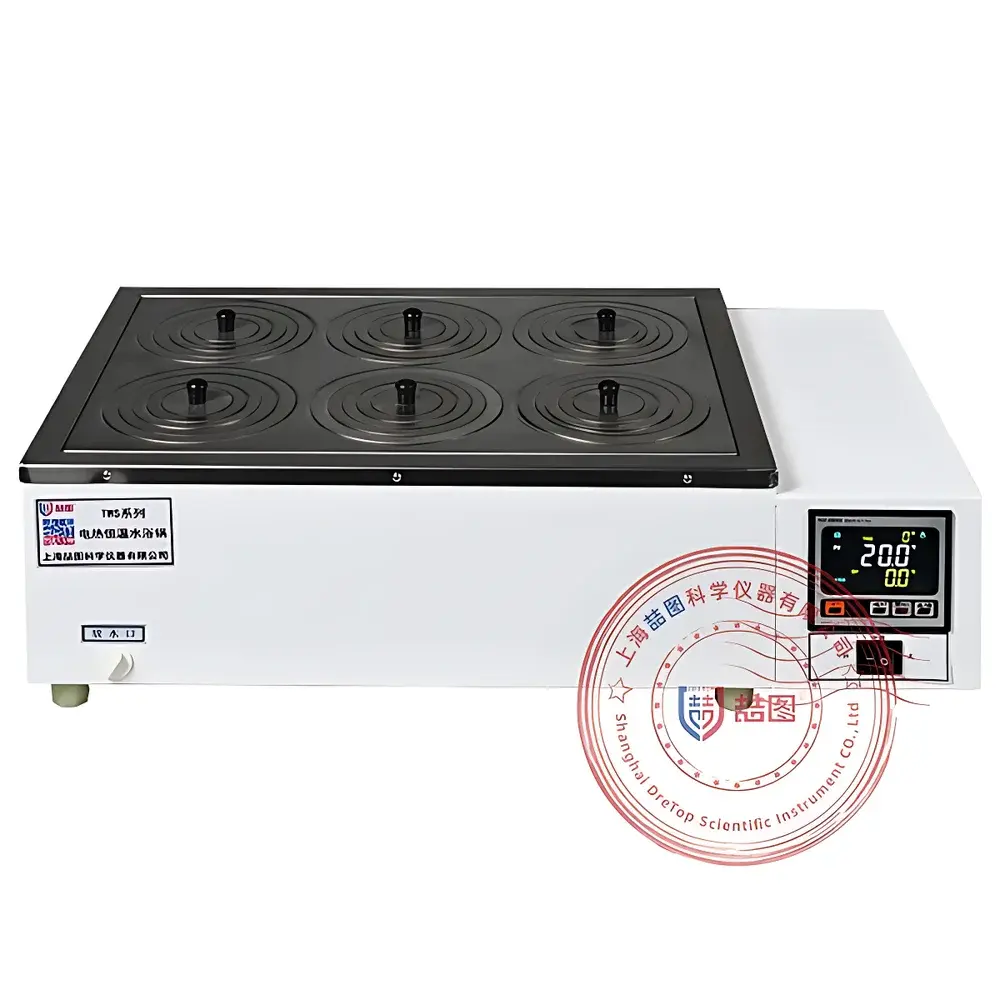

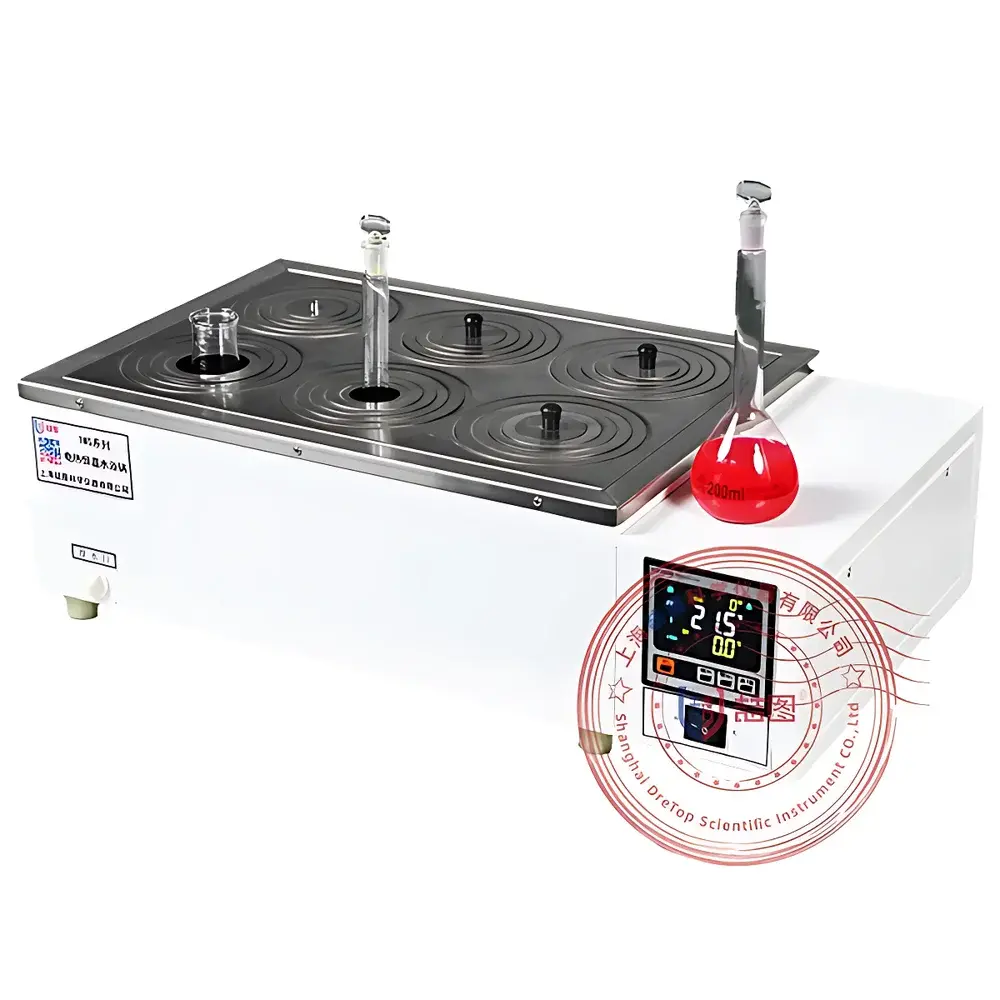

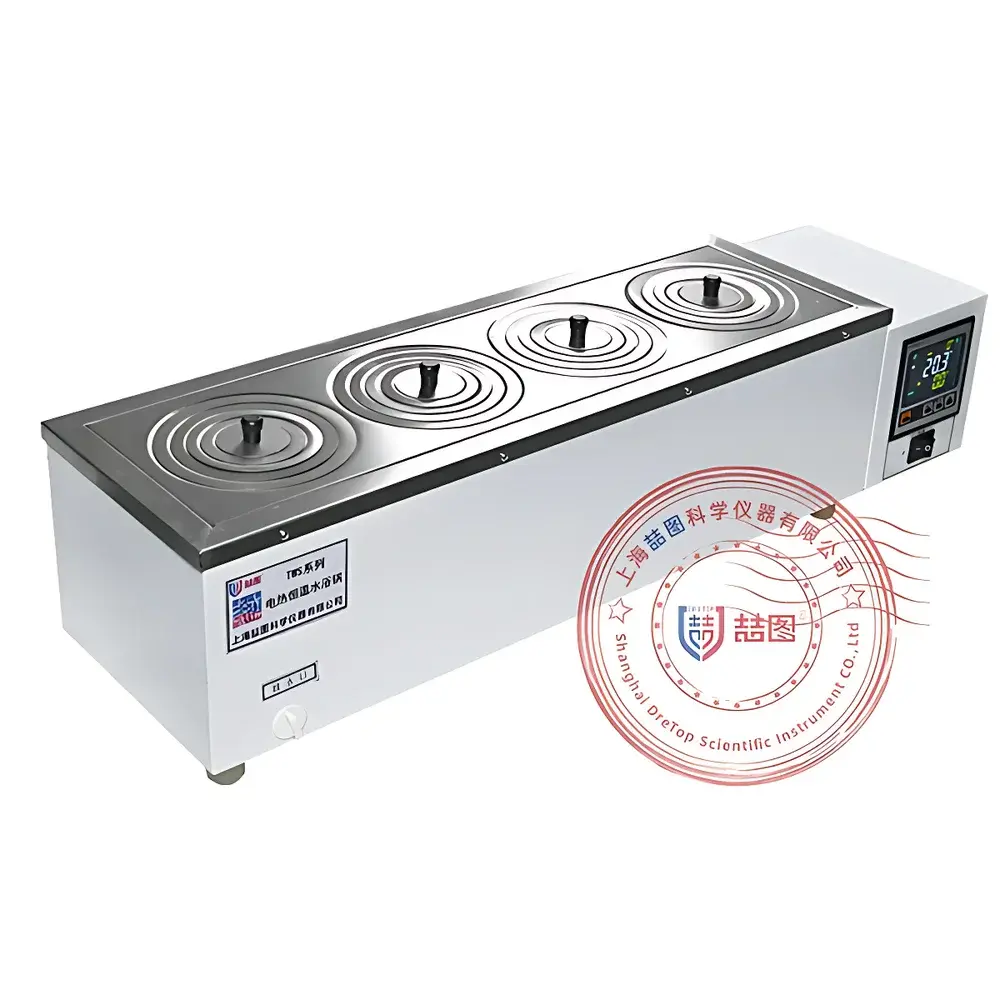

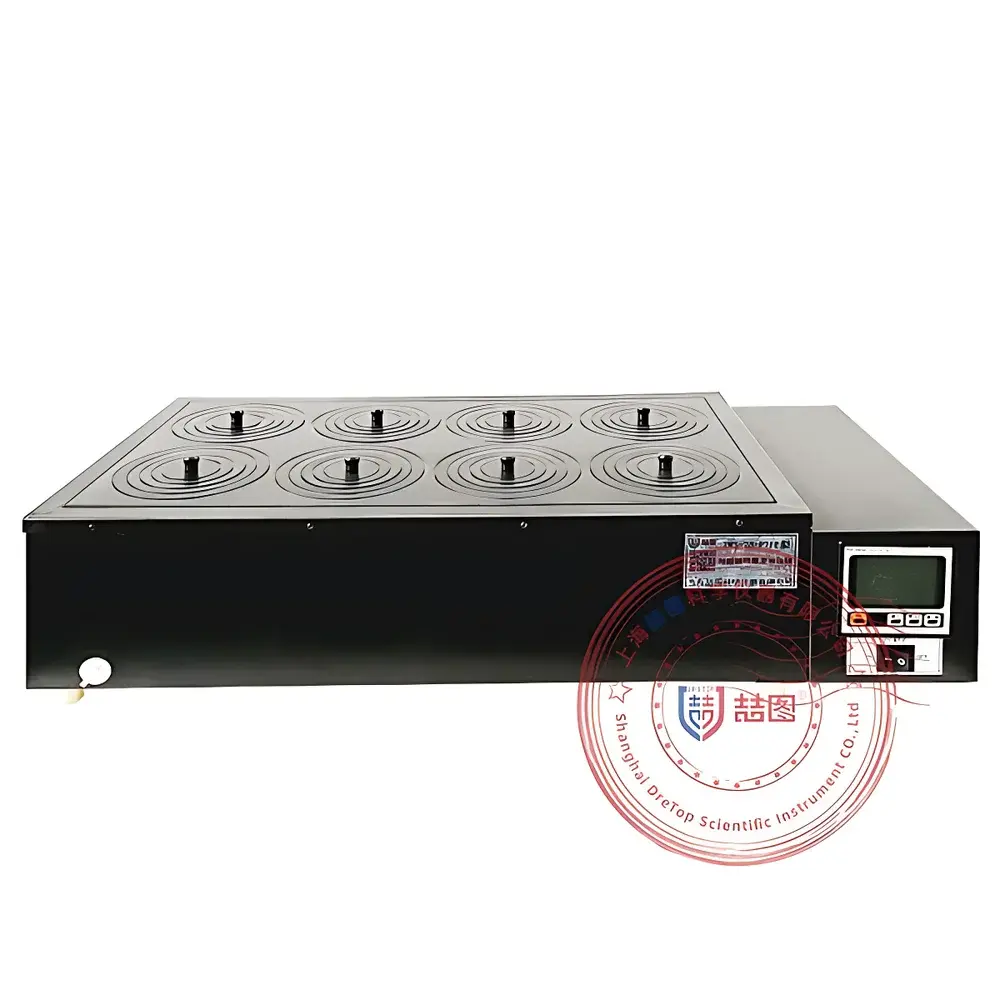

DRETOP TWS/UHP/NWS Series Precision Electric Constant-Temperature Water Bath

Overview

The DRETOP TWS/UHP/NWS Series Precision Electric Constant-Temperature Water Bath is a laboratory-grade thermal stabilization platform engineered for reproducible, low-thermal-mass heating and temperature maintenance in aqueous or liquid-immersed applications. Based on resistive heating elements coupled with high-stability PID feedback control, the system maintains setpoint accuracy within ±0.1°C across its operational range of RT+5°C to 100°C — suitable for applications requiring strict thermal consistency without convective air interference. Unlike dry-block or oil baths, water baths provide uniform heat distribution via conduction and natural convection, minimizing thermal gradients across sample vessels. This makes the series especially appropriate for enzyme kinetics, cell culture pre-warming, reagent equilibration, dissolution testing, and ASTM/USP-compliant stability studies where liquid-phase thermal transfer is mandated.

Key Features

• Microprocessor-based PID temperature controller with dual digital display: simultaneous readout of setpoint and real-time bath temperature, resolution 0.1°C.
• High-precision platinum resistance thermometer (PT100-class sensor) integrated into stainless-steel immersion well for rapid thermal response and long-term drift stability.
• Stainless-steel inner chamber (304 grade) with electropolished finish; PTFE-coated variants (UHP series) validated per ASTM B117 salt-spray test for >500 h corrosion resistance in acidic and alkaline environments.
• Multi-layer insulated housing with waterproof sealing and bottom-mounted drain valve enabling fast, spill-free water exchange — critical for GLP-compliant cleaning validation.
• Intelligent dry-run protection: automatic heater shutoff when liquid level falls below minimum immersion threshold, accompanied by audible alarm and visual indicator flash.
• Power-fail recovery mode: embedded non-volatile memory retains setpoint, timer value, and ramp parameters during unexpected power loss; resumes operation upon restoration without manual reconfiguration.
• Optional 30-segment programmable controller supports time-temperature profiling (e.g., stepwise ramp-hold cycles), meeting ICH Q5C and USP environmental conditioning requirements.

Sample Compatibility & Compliance

The bath accommodates standard laboratory glassware including Erlenmeyer flasks, volumetric flasks, centrifuge tubes, and reaction vials up to Ø150 mm diameter via adjustable stainless-steel perforated support trays and interchangeable silicone-rubber collar inserts. All models comply with IEC 61010-1:2010 safety standards for electrical equipment used in laboratory environments. The UHP and NWS variants meet ISO 15190:2020 requirements for analytical laboratory infrastructure, while firmware architecture supports audit trail generation and user-access logging — essential for FDA 21 CFR Part 11 and EU Annex 11 compliance in regulated QC labs. Optional auto-refill integration enables unattended overnight operation under GMP Annex 1 environmental monitoring protocols.

Software & Data Management

While standalone operation requires no software, optional RS-485 or USB interface modules enable bidirectional communication with LIMS or SCADA systems. Firmware supports Modbus RTU protocol for remote parameter read/write, real-time temperature streaming, and event-triggered data logging (e.g., deviation alerts, power interruption timestamps). All logged entries include ISO 8601 timestamps, operator ID, and device serial number — fulfilling ALCOA+ data integrity principles. The built-in timer function records cumulative heating duration per session, supporting preventive maintenance scheduling per ISO/IEC 17025:2017 Clause 6.4.10.

Applications

• Biological sample preparation: pre-warming media, thawing cryopreserved cells, and maintaining enzymatic assay conditions per CLSI EP17-A2 guidelines.
• Pharmaceutical quality control: dissolution medium conditioning (USP ), extractive solvent equilibration, and stability-indicating method development.
• Environmental analysis: BOD incubation support, nutrient solution tempering for algal growth studies (ISO 8692), and EPA Method 1664 extraction baths.
• Materials science: polymer solubilization, surfactant cloud point determination (ASTM D2024), and colloidal dispersion homogenization.
• Educational laboratories: undergraduate thermodynamics experiments, Arrhenius rate constant derivation, and calibration verification of secondary temperature sensors.

FAQ

What is the maximum recommended operating temperature for continuous use?
The bath is rated for sustained operation at 100°C; however, for optimal longevity of seals and electronics, prolonged use above 95°C should be limited to validated protocols with documented thermal stress assessment.
Can the unit be calibrated internally without external equipment?
Yes — the controller includes a two-point offset adjustment mode accessible via service menu; traceable calibration using NIST-traceable reference thermometers is recommended annually per ISO/IEC 17025.
Is the PTFE coating on UHP models chemically bonded or sprayed?
The UHP series features electrostatically applied, sintered PTFE coating cured at 380°C, achieving adhesion strength >12 MPa (ASTM D4541) and surface contact angle >110°.
Does the auto-refill option require plumbing modifications?
The module connects to standard 1/4″ OD polyethylene tubing and integrates a float-switch-controlled solenoid valve; no permanent plumbing is required — compatible with benchtop deionized water reservoirs.
Are replacement parts such as heaters and sensors available separately?
Yes — all critical subassemblies (heating element, PT100 probe, control board, drain valve assembly) are stocked globally and supplied with full dimensional and electrical specifications for field replacement.
