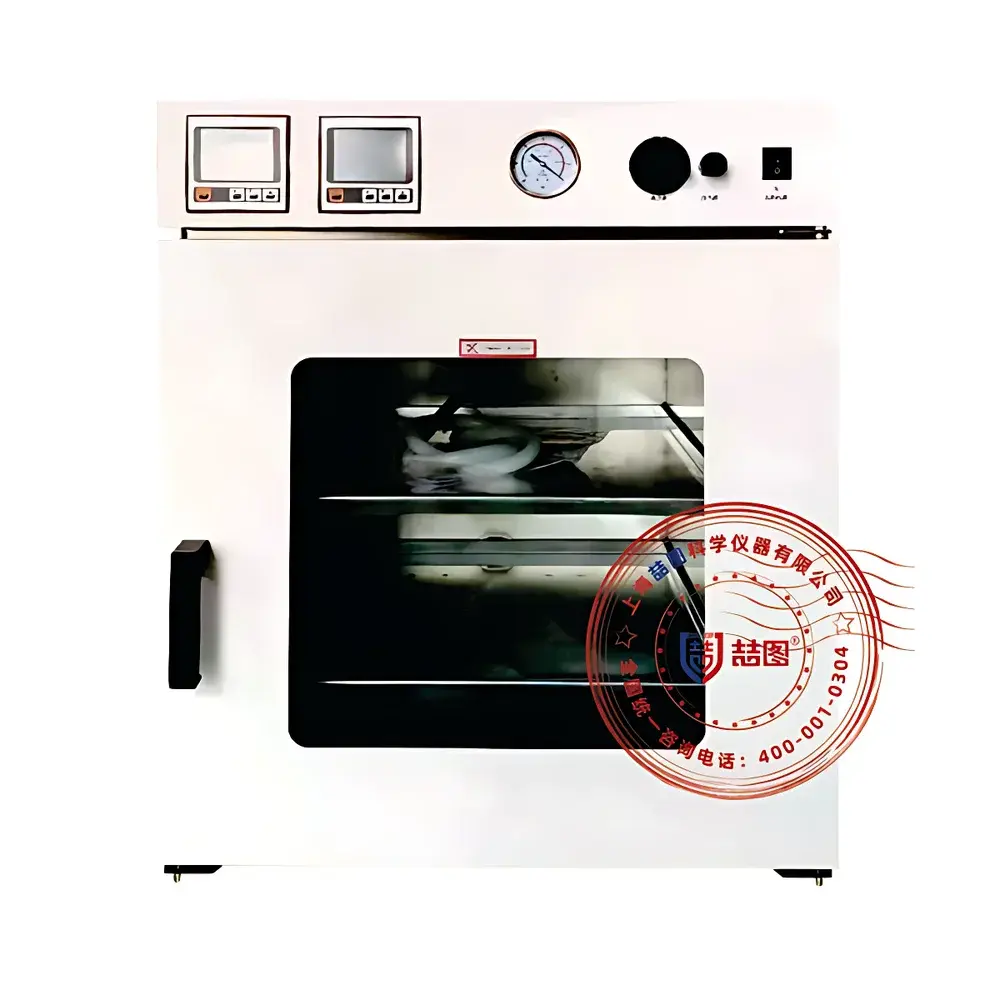

DRETOP TZF-6050UBV Vertical Vacuum Drying Oven

Overview

The DRETOP TZF-6050UBV Vertical Vacuum Drying Oven is an engineered solution for low-temperature, oxygen-sensitive thermal processing of heat-labile, volatile, or oxidation-prone materials. It operates on the principle of vacuum-assisted drying—reducing ambient pressure inside the chamber to lower the boiling point of solvents and moisture, thereby enabling effective dehydration at substantially reduced temperatures. This thermodynamic advantage is critical in preserving structural integrity, biological activity, and chemical stability during drying, concentration, crystallization, or degassing operations. Designed for laboratory-scale R&D, process validation, and quality control workflows, the unit meets functional requirements across pharmaceutical development, biotechnology, microelectronics, fine chemicals, and food science applications—where conventional convection ovens risk thermal degradation or oxidative side reactions.

Key Features

• Internal heating architecture: Heating elements are integrated directly into the 304 stainless steel chamber walls, ensuring rapid thermal response and uniform energy transfer via conduction and near-field radiation—optimized for vacuum environments where convective heat transfer is negligible.
• PID-based intelligent temperature control: Digital microprocessor controller delivers setpoint accuracy within ±0.5°C and resolution of 0.1°C, supporting stable operation across the full range of RT+10°C to 300°C.
• High-fidelity vacuum performance: Achieves ultimate vacuum levels ≤133 Pa (≤1 Torr), compatible with standard rotary vane vacuum pumps (not included); optional inert gas inlet valve enables controlled backfilling with N₂ or Ar for sensitive samples.
• Robust safety system: Includes over-temperature cut-off protection, real-time vacuum leak detection with audible/visual alarm, and a certified pressure-relief valve compliant with EN 13445 mechanical integrity standards.
• Ergonomic vertical design: Maximizes floor space efficiency while accommodating up to two removable stainless steel shelves (standard configuration includes one shelf), facilitating flexible sample loading and accessibility.

Sample Compatibility & Compliance

The TZF-6050UBV accommodates diverse sample formats—including Petri dishes, vials, crucibles, wafers, and custom trays—within its 50 L internal volume. Its inert 304 stainless steel chamber resists corrosion from organic solvents, acids, and biological residues, supporting cleaning validation under GLP and GMP-aligned protocols. While not certified as Class II biological safety equipment, its sealed construction minimizes airborne contamination risks during drying of microbial cultures, enzyme preparations, or vaccine intermediates. The system complies with IEC 61010-1:2010 for electrical safety and supports traceable calibration per ISO/IEC 17025 requirements when paired with external reference thermometers and vacuum gauges.

Software & Data Management

The standard configuration features a programmable digital controller with data logging capability (optional RS485 interface available for Modbus RTU communication). Logged parameters—including chamber temperature, elapsed time, and vacuum status—are timestamped and exportable via USB or serial connection for audit-ready documentation. When integrated into regulated environments, the system supports 21 CFR Part 11-compliant electronic records when used with validated third-party SCADA or LIMS platforms that enforce user authentication, audit trails, and electronic signatures.

Applications

• Pharmaceutical & Biotech: Lyophilization pre-drying of protein therapeutics, excipient drying prior to tablet compression, and residual solvent removal from API intermediates under inert atmosphere.
• Electronics Manufacturing: Dehydration of dielectric layers, desorption of moisture from PCB substrates, and post-curing drying of encapsulants without inducing thermal stress or oxidation.
• Materials Science: Solvent removal from MOFs, aerogels, and nanocomposite precursors; thermal aging studies under controlled vacuum and temperature ramp profiles.
• Food & Agricultural Research: Gentle drying of probiotic cultures, herbal extracts, and enzymatically active food additives while retaining viability and potency.
• Academic & Industrial R&D: Process parameter mapping for vacuum drying kinetics, shelf-life modeling of hygroscopic formulations, and validation of sterilization-drying cycles for medical devices.

FAQ

What vacuum pump is recommended for optimal performance?
A two-stage rotary vane pump with ultimate vacuum ≤5 Pa and pumping speed ≥4 L/min is recommended; compatibility with oil mist filters and cold traps is advised for solvent-rich applications.
Can the chamber be purged with inert gas?
Yes—optional inert gas inlet valve allows controlled introduction of nitrogen or argon before or after drying cycles to prevent oxidation or support anaerobic sample handling.
Is the unit suitable for drying biological samples containing live microorganisms?
It supports low-temperature vacuum drying of microbial suspensions and lyophilization-ready cultures; however, terminal sterilization is not performed—the unit is not a substitute for autoclaves or biosafety cabinets.
How is temperature uniformity verified across the chamber?
Uniformity is validated using nine-point thermocouple mapping per ASTM E2207, confirming ≤±1°C deviation at steady state under vacuum at 60°C and 120°C operating points.
Does the system support multi-step programmable drying protocols?
Yes—optional programmable controller (TZF-6050UBV-P) enables up to 32 segment temperature/vacuum ramps with hold times, suitable for complex dehydration profiles requiring staged heating and pressure modulation.
