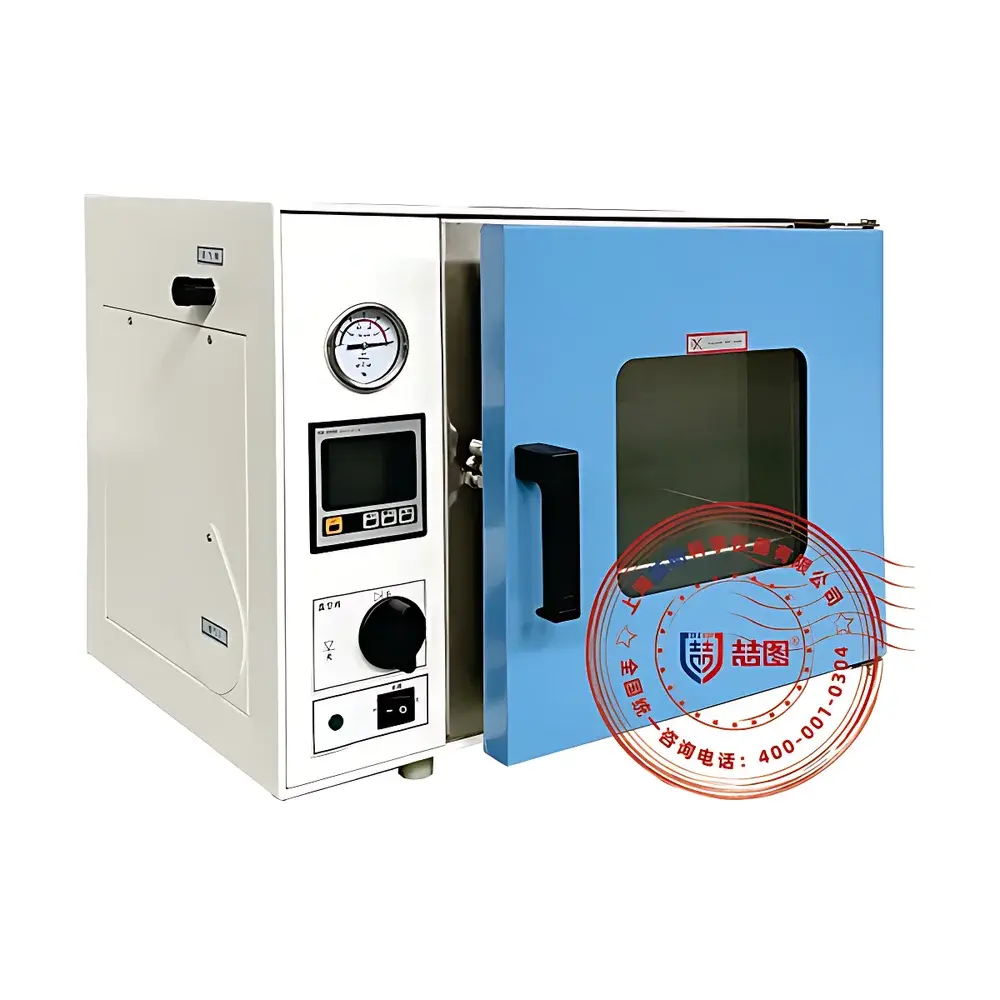

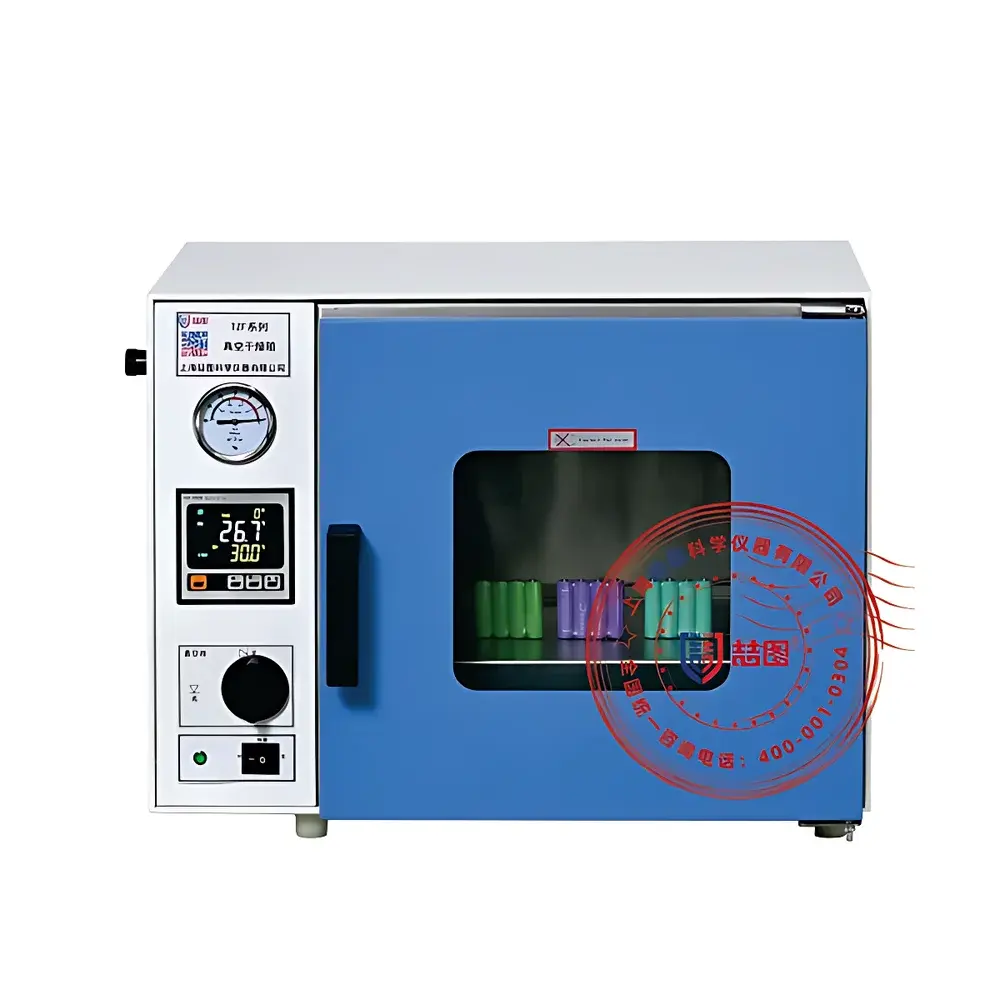

DRETOP TZF-6125V Vacuum Drying Oven

Overview

The DRETOP TZF-6125V Vacuum Drying Oven is a precision-engineered thermal processing system designed for controlled dehydration, solvent removal, and heat treatment under reduced-pressure conditions. It operates on the fundamental principle of lowering the boiling point of volatile components via vacuum evacuation—enabling gentle, uniform drying of thermally sensitive, oxidation-prone, or compositionally complex samples without degradation. Unlike forced-air convection ovens, this unit eliminates convective heat transfer and atmospheric oxidation by maintaining a stable sub-atmospheric environment (≤133 Pa), thereby preserving sample integrity during extended thermal exposure. Its robust architecture supports applications requiring strict thermal stability, reproducible process outcomes, and compliance with laboratory-scale GMP/GLP workflows in R&D and quality control settings.

Key Features

• Microprocessor-based PID temperature controller with programmable timer (1–9999 min), over-temperature alarm, and automatic cut-off protection
• High-visibility double-layer tempered glass observation window with stainless-steel sealed frame for real-time monitoring without vacuum break
• Externally mounted four-side heating elements—eliminating internal electrical components from vacuum chamber and mitigating arcing, carbon deposition, or outgassing risks
• 304 stainless-steel interior chamber (500 × 500 × 500 mm) and removable perforated stainless-steel shelves for unrestricted airflow and easy cleaning
• Electrostatically coated steel exterior with reinforced door sealing mechanism: dual-stage zinc-alloy latch and high-elasticity silicone gasket ensuring long-term vacuum integrity
• Integrated diagnostic system displaying fault codes directly on the LCD interface for rapid troubleshooting and maintenance transparency
• Thermal insulation using high-density glass fiber between chamber and housing—reducing standby heat loss and improving energy efficiency
• Comprehensive safety suite: short-circuit, over-current, ground-fault, and over-temperature protection; parameter memory retention after power interruption

Sample Compatibility & Compliance

The TZF-6125V accommodates diverse sample formats—including powders, granules, thin-film coatings, semiconductor wafers, Li-ion battery electrodes, optical crystals, biological tissues, and pharmaceutical intermediates—without particle dispersion or surface oxidation. Its ≤133 Pa operating vacuum falls within the medium-vacuum range (10²–10⁻¹ Pa), where mean free path increases sufficiently to suppress oxidative reactions while maintaining practical pump-down times and operational reliability. The unit meets mechanical and electrical safety requirements per IEC 61010-1 and is compatible with standard vacuum accessories (KF16/KF25 flanges, V-series rotary vane pumps, VGM-series corrosion-resistant diaphragm pumps). Optional inert gas inlet valves (N₂/Ar) enable controlled atmosphere purging prior to vacuum cycles—supporting ASTM E145, ISO 12099, and USP moisture content validation protocols.

Software & Data Management

While the base model features a dedicated LCD controller with three-color display (green/yellow/red for status indication), optional upgrades include RS485 communication interface for integration into centralized lab management systems, embedded thermal printers for audit-ready hardcopy logs, and color touchscreen HMI modules supporting multi-step profile programming (ramp-soak-cool sequences). All digital variants support timestamped data logging with configurable sampling intervals and export via USB (device not included). When equipped with optional PLC control or VT-series touch panels, the oven complies with FDA 21 CFR Part 11 requirements for electronic records and signatures—including user-level access control, audit trail generation, and tamper-evident data storage.

Applications

This vacuum drying oven serves critical roles across multiple technical domains: pre-bake stabilization of OLED encapsulation layers; moisture removal from hygroscopic cathode materials in solid-state battery R&D; residual solvent extraction from polymer films and photoresists; post-cleaning drying of MEMS devices and quartz crystal resonators; lyophilization pre-treatment of biologics; and accelerated aging studies of adhesives and conformal coatings. In academic and industrial QC labs, it supports standardized methods such as ASTM D2243 (plastic film drying), ISO 11358 (polymer thermal analysis sample prep), and pharmacopeial drying loss tests (USP ). Its consistent ±0.5 °C temperature fluctuation and ±1 °C uniformity across the full 125 L chamber volume ensure inter-laboratory comparability and method transfer readiness.

FAQ

What vacuum level does the TZF-6125V achieve, and how is it measured?
The unit achieves a base pressure of ≤133 Pa (1 Torr) using a standard 20 m³/h rotary vane pump; vacuum level is monitored via analog or optional digital vacuum gauge calibrated per ISO 20487.
Can inert gases be introduced during operation?
Yes—optional inert gas inlet valves (N₂ or Ar) allow controlled backfilling to atmospheric or sub-atmospheric partial pressures, enabling passivation or purge-dry cycles.
Is the chamber suitable for acidic or halogenated solvent residues?
The 304 stainless-steel interior resists mild corrosion; for aggressive solvents (e.g., HF, HCl), optional electropolished 316L chamber lining or VGM-series oil-free vacuum pumps are recommended.
How is temperature uniformity validated across the working volume?
Uniformity is verified per ISO 17025-accredited procedures using nine calibrated PT100 sensors placed at standardized locations (center + six faces + corners) during IQ/OQ qualification.
Does the system support regulatory-compliant data archiving?
With optional RS485 or touchscreen HMI, raw temperature/vacuum/time data can be streamed to LIMS or SCADA platforms with full audit trail, electronic signature, and ALCOA+ compliant metadata tagging.
