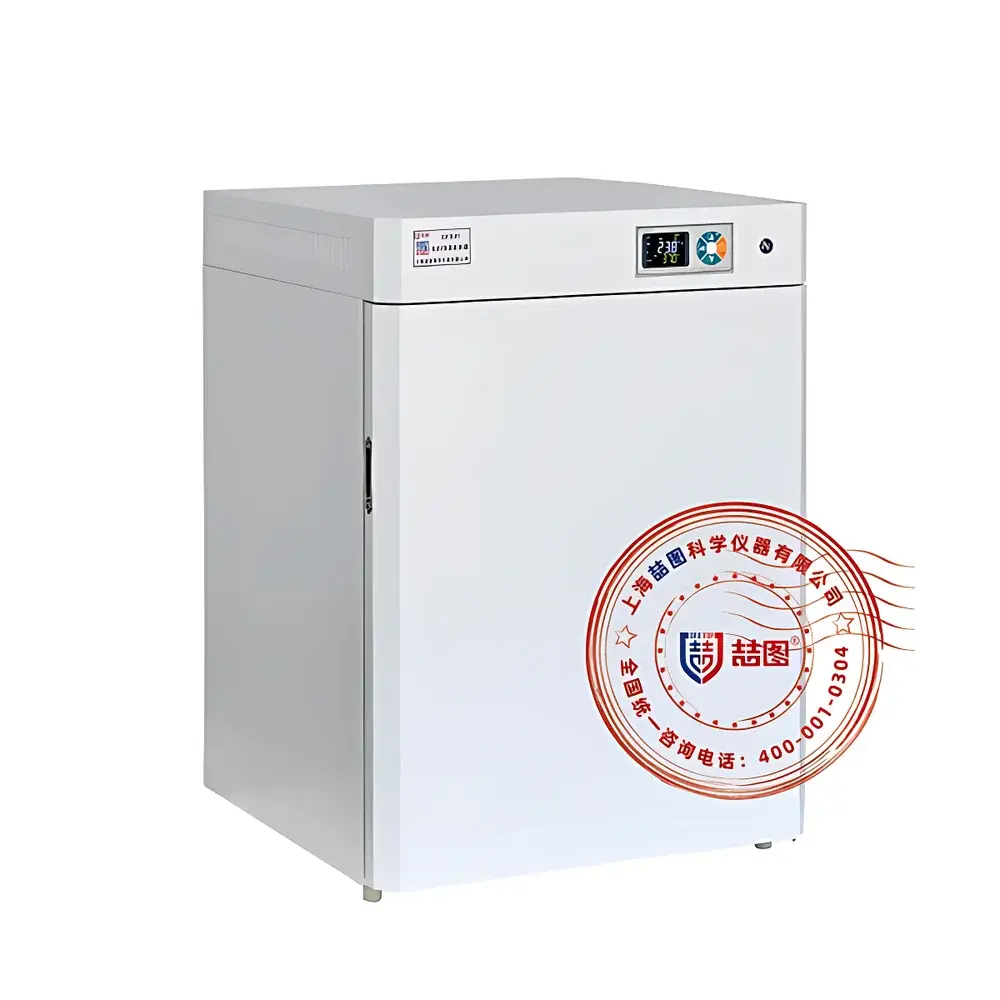

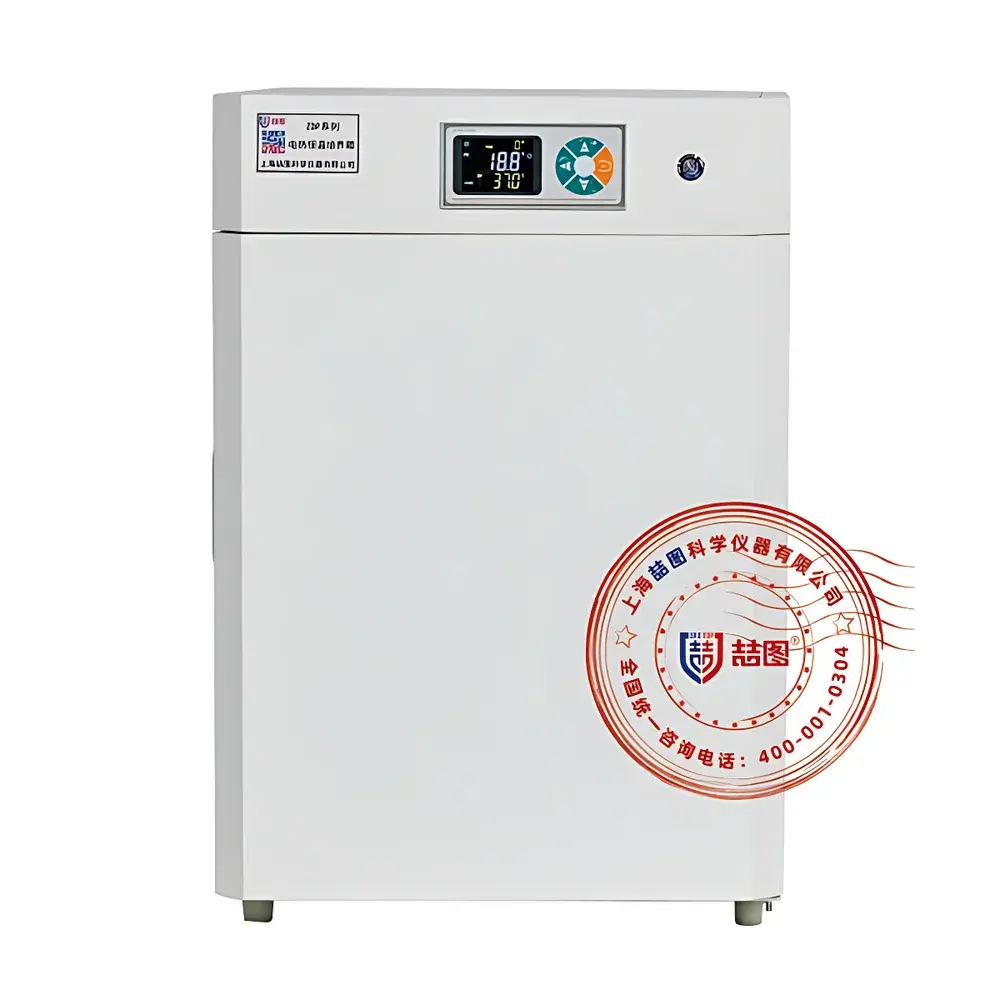

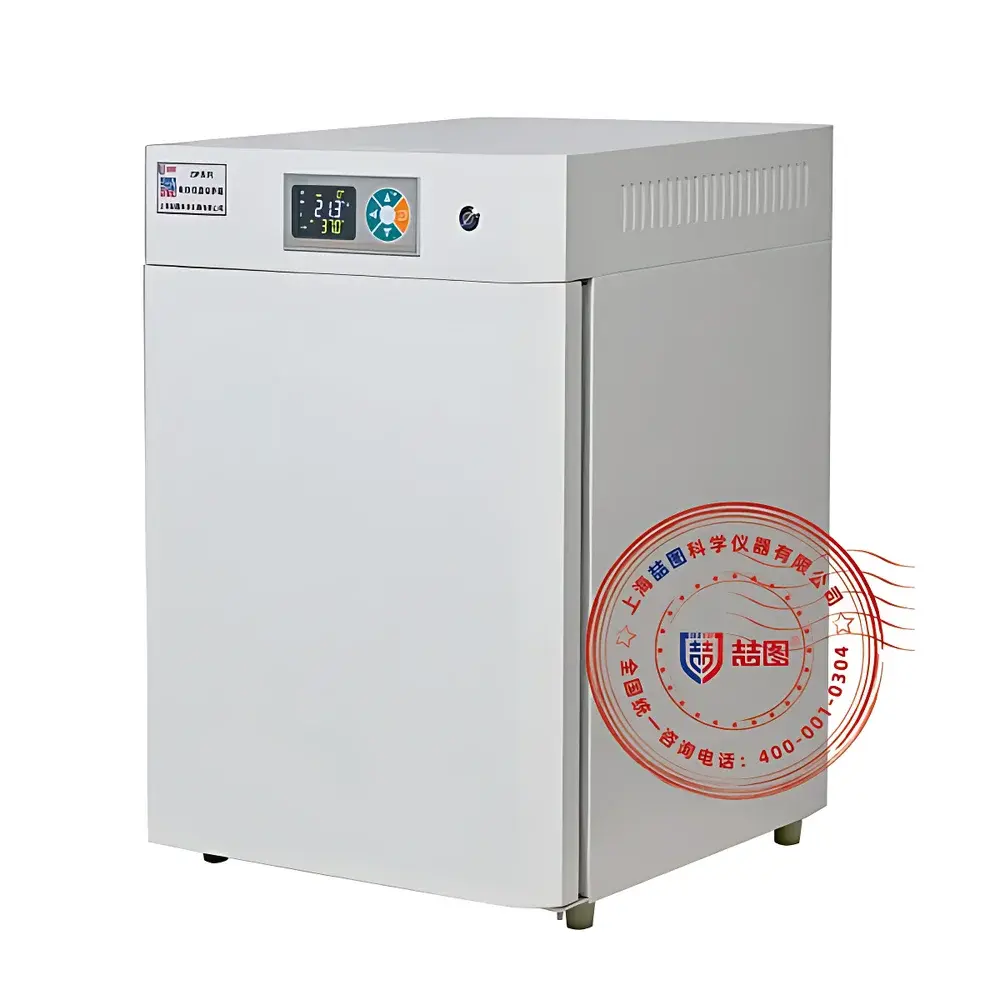

DRETOP ZDP-9082 Electric Constant Temperature Incubator

Overview

The DRETOP ZDP-9082 Electric Constant Temperature Incubator is a precision-engineered laboratory incubation system designed for stable, reproducible thermal environments in life science applications. Utilizing direct-heating air-jacketed architecture with natural convection airflow, this incubator maintains consistent temperature distribution without forced-air turbulence—critical for sensitive cell cultures, microbial growth, enzymatic assays, and long-term stability testing. Its operational range spans from ambient +2°C to 65°C, making it suitable for both mesophilic bacterial cultivation (e.g., E. coli, Bacillus subtilis) and higher-temperature applications such as yeast propagation or accelerated aging studies. The unit complies with fundamental design principles outlined in ISO 13408-1 (aseptic processing of health products) and supports GLP-compliant workflows through traceable temperature control and parameter retention.

Key Features

• Stainless steel interior (304 grade) with seamless welded corners and fully removable, height-adjustable shelves—enabling complete decontamination and compliance with cleaning validation requirements.

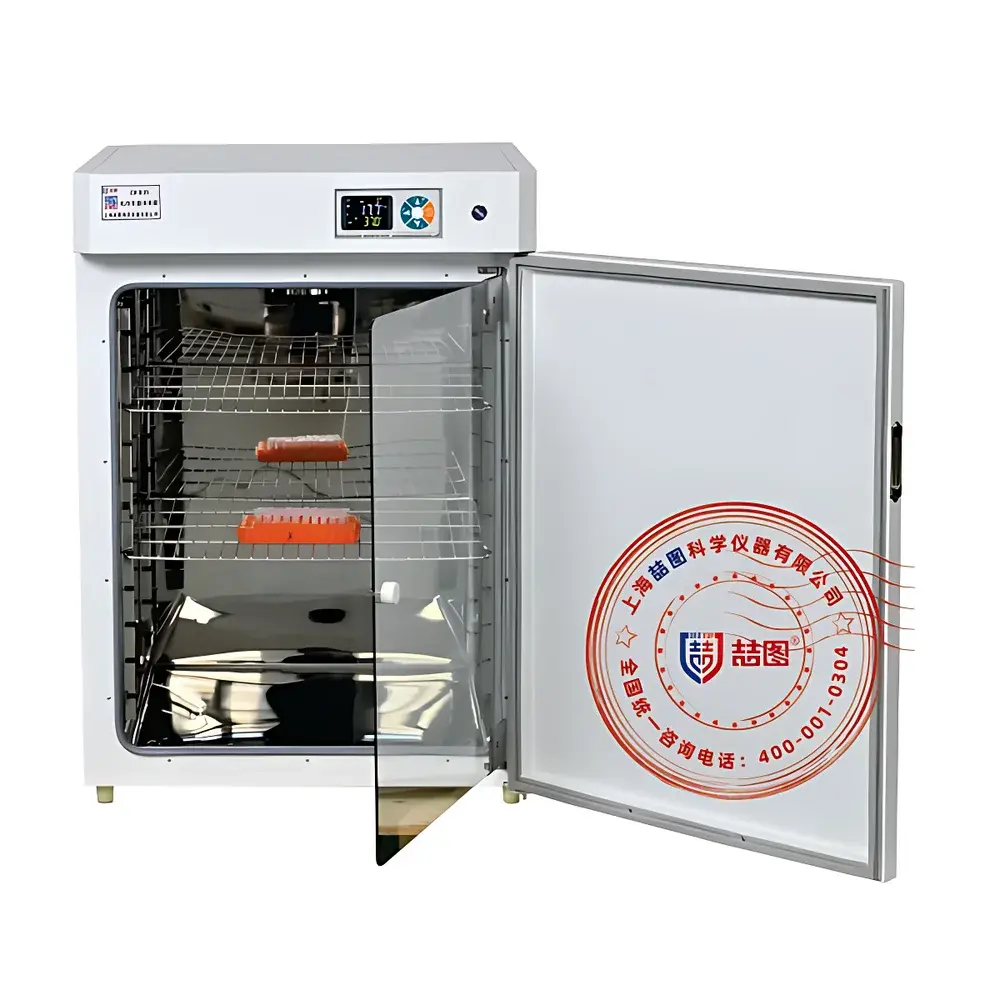

• Dual-door configuration: outer magnetic seal door minimizes heat loss; inner tempered glass door permits real-time observation without compromising thermal stability.
• Digital PID temperature controller with 0.1°C resolution and ±0.5°C control accuracy ensures minimal overshoot during ramp-up and high repeatability across repeated cycles.
• Evenly distributed electric heating film elements mounted on all four inner walls provide rapid warm-up (typical time to reach 37°C from 25°C: <15 min) and uniform thermal loading—validated per ASTM E2777-21 (Standard Practice for Performance Testing of Laboratory Incubators).
• Robust enclosure with electrostatic powder coating resists corrosion and mechanical wear under routine laboratory use; chamfered corner geometry eliminates dust traps and facilitates wipe-down sanitation.
• Power-failure recovery mode retains setpoints and elapsed time; configurable over-temperature alarm triggers audible/visual alerts when deviation exceeds user-defined thresholds.

Sample Compatibility & Compliance

The ZDP-9082 accommodates standard Petri dishes (up to 150 mm), multi-well plates (6–96-well), culture flasks (T25–T225), and test tubes in upright or angled orientation. Its natural convection design avoids shear stress on delicate suspension cultures or adherent monolayers—a key advantage over fan-assisted units in stem cell expansion or primary tissue explant protocols. The incubator meets structural and electrical safety requirements per IEC 61010-1:2010 and is CE-marked for laboratory equipment. While not certified for ISO Class 5 cleanroom integration, its sealed chamber and optional UV germicidal lamp (254 nm, 15 W) support periodic bioburden reduction aligned with USP <1116> environmental monitoring guidelines.

Software & Data Management

The base model operates via front-panel keypad navigation with real-time display of setpoint, actual temperature, and elapsed time. For enhanced traceability, the RS485 serial interface enables integration with centralized lab management systems (LIMS) or SCADA platforms using Modbus RTU protocol. Optional accessories include an external data logger (±0.2°C accuracy, 1-second sampling interval) and a programmable timer supporting up to 9999-minute incubation cycles. All configurations maintain audit-trail readiness per FDA 21 CFR Part 11 when paired with validated third-party software—supporting electronic signatures, change logs, and user access controls required in regulated QC/QA environments.

Applications

• Bacterial and fungal cultivation in clinical microbiology, food safety testing, and pharmaceutical raw material screening.
• Enzyme activity assays requiring strict thermal consistency (e.g., amylase, protease kinetics at 37°C or 55°C).
• Seed germination studies and plant tissue culture under controlled non-photoperiodic conditions.
• Stability testing of diagnostic reagents, vaccines, and biologics per ICH Q5C guidelines.
• Environmental simulation for aquatic microbiology (e.g., waterborne pathogen growth at 22°C or 35°C).
• Pre-incubation of PCR master mixes and restriction digests prior to thermocycling.

FAQ

Is the ZDP-9082 suitable for CO₂-independent mammalian cell culture?
Yes—its stable thermal profile and stainless-steel chamber minimize contamination risk, though users must supplement with external humidity control if required for prolonged culture.
Can the incubator be validated for IQ/OQ/PQ protocols?
Absolutely—the unit’s deterministic thermal response, documented calibration points, and optional data logging make it compatible with vendor-supported qualification packages compliant with ISO/IEC 17025 and GxP standards.
What maintenance is recommended for long-term reliability?
Monthly inspection of door seals, quarterly cleaning of exterior vents, and annual verification of temperature sensor drift using NIST-traceable reference probes are advised.
Does the device support remote monitoring via Ethernet or Wi-Fi?
No native Ethernet/Wi-Fi capability is included; however, the RS485 port allows connection to industrial gateways enabling cloud-based telemetry when deployed with compatible middleware.
How does natural convection affect temperature recovery after door opening?
Recovery to ±0.5°C of setpoint typically requires 4–6 minutes following a 10-second door opening at 37°C—consistent with Class II incubator benchmarks defined in CLSI M22-A3.
