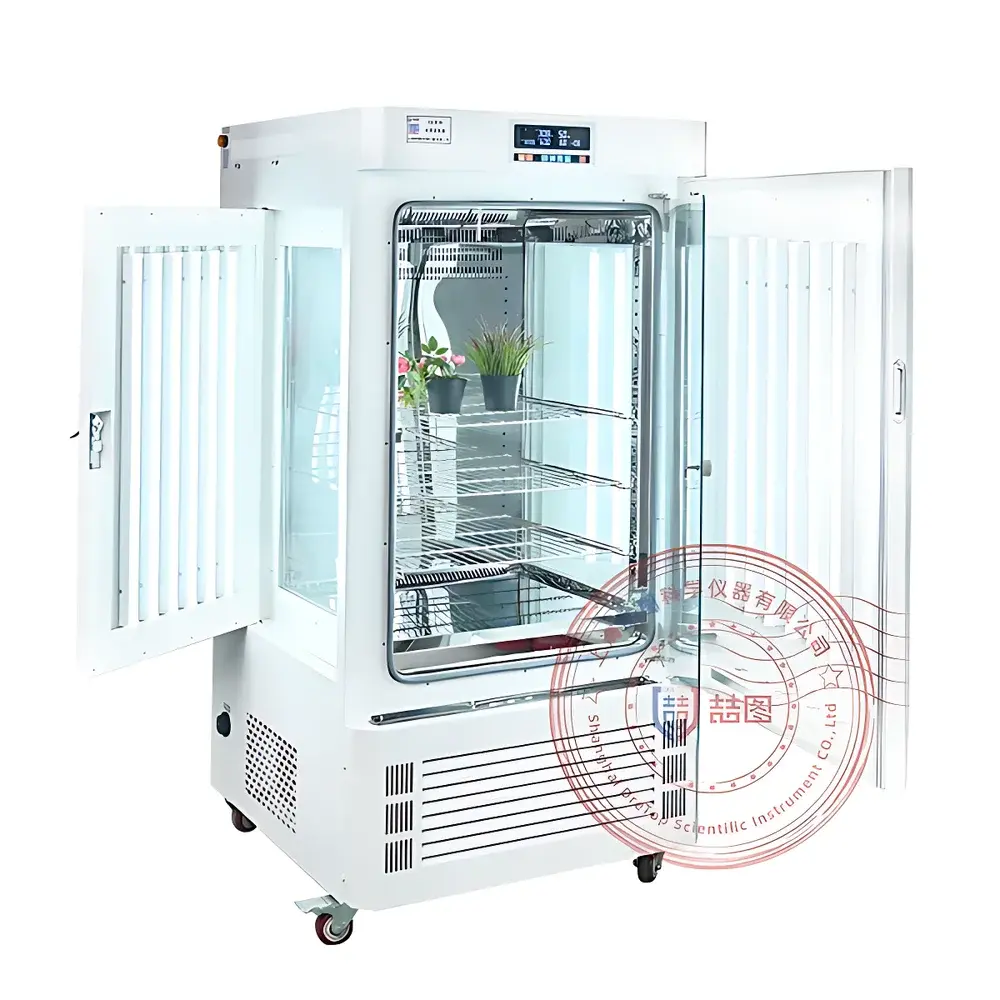

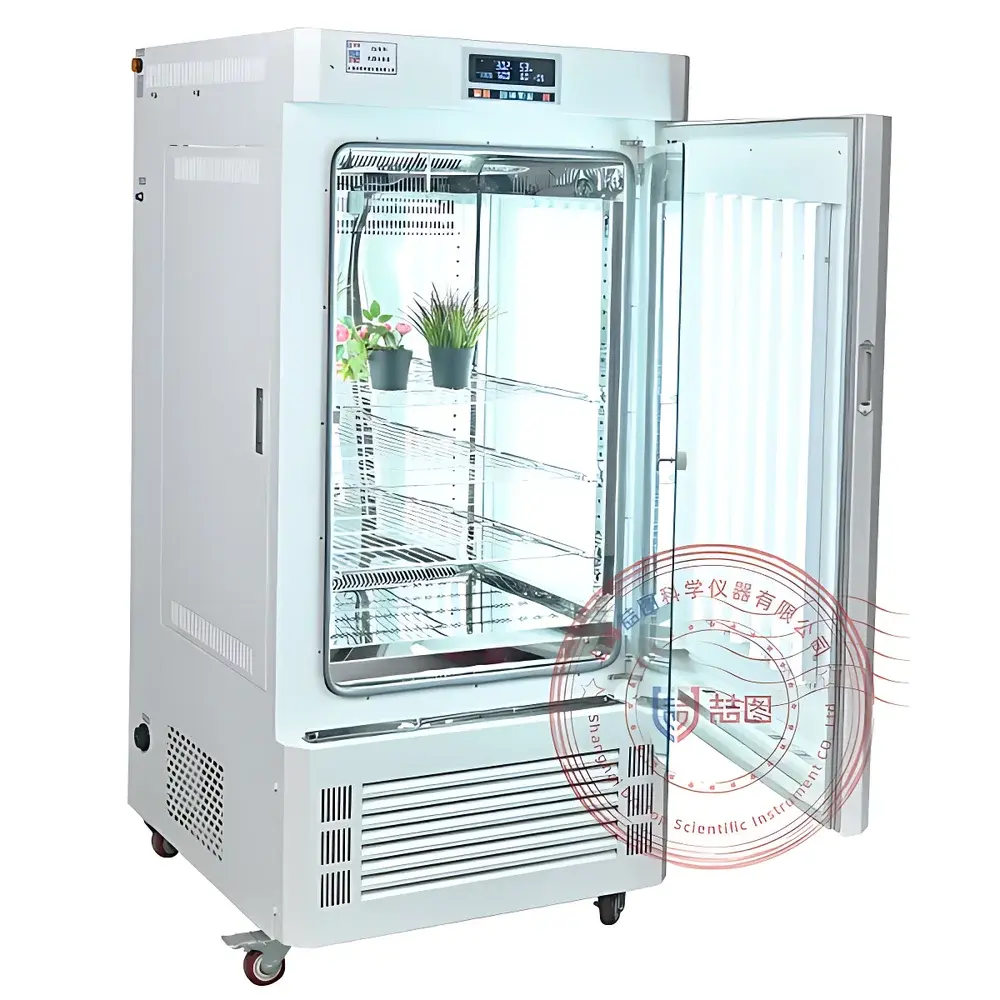

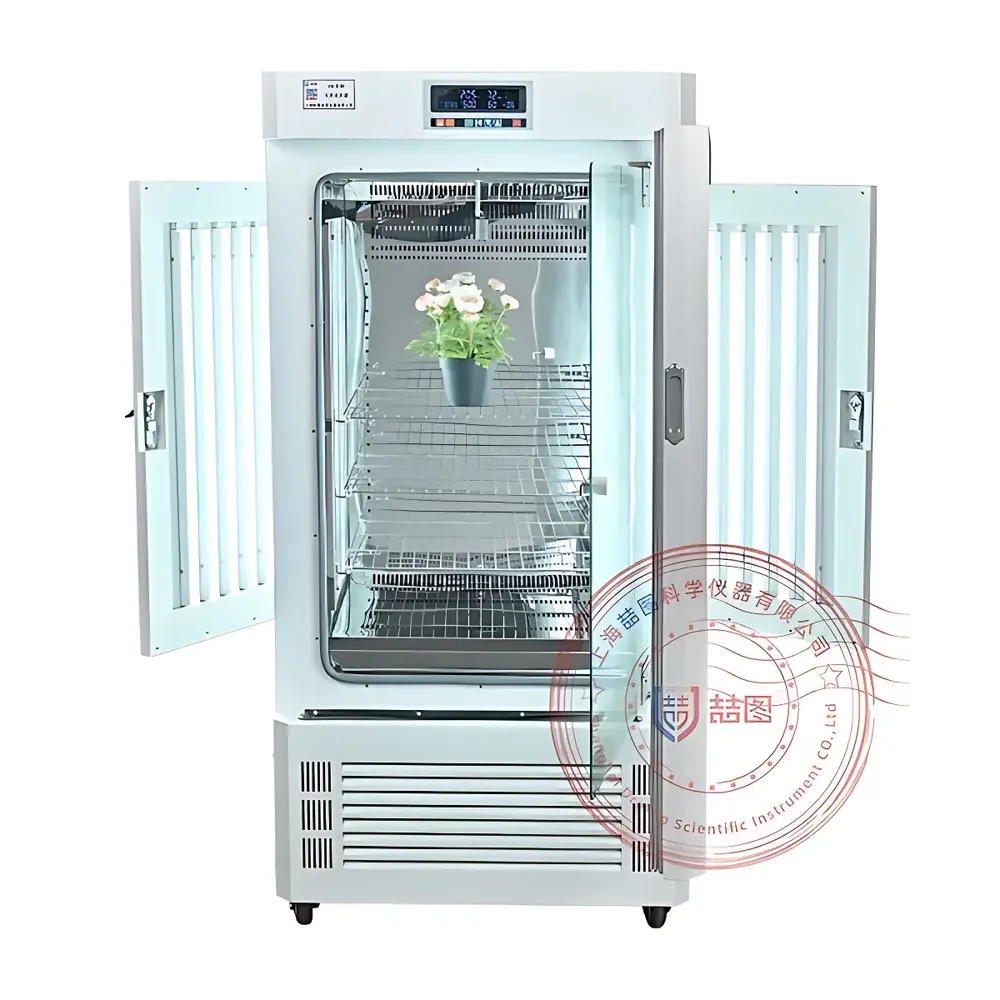

DRETOP ZGC Series Plant Growth Chamber

Overview

The DRETOP ZGC Series Plant Growth Chamber is an engineered environmental simulation system designed for controlled-conditions plant physiology, photobiology, and agri-research applications. It operates on the principle of active climate regulation—precisely coupling thermodynamic control (via dual-mode heating/cooling), spectral illumination (full-spectrum LED), and passive atmospheric exchange—to replicate diurnal light–temperature–humidity regimes required for reproducible plant development studies. Unlike general-purpose incubators, the ZGC series integrates layer-specific photometric control with high-fidelity thermal stability, enabling parallel experiments under identical temperature/humidity conditions but divergent irradiance levels—a critical capability for dose–response analysis in photosynthetic efficiency, photomorphogenesis, or stress acclimation research.

Key Features

• Three independently controllable LED illumination layers, each supporting direct numeric input of target illuminance (0–25,000 lx), ensuring experimental isolation between light-intensity treatments without cross-layer interference.
• Full-spectrum cold-white LEDs (350–800 nm), optimized for photosynthetically active radiation (PAR) delivery, mounted on corrosion-resistant anodized aluminum frames with optically transparent polycarbonate diffusers for uniform photon distribution and UV/IR safety.
• High-precision climate control architecture: PID-regulated stainless steel finned heater; eco-friendly R134a refrigeration circuit with all-copper evaporator and condenser; low-noise axial airflow system calibrated for laminar chamber circulation and ±1 °C spatial uniformity.
• Monolithic polyurethane insulation (≥80 mm thickness) minimizes thermal bridging and external load impact, sustaining stable setpoints even during extended photoperiods or ambient temperature fluctuations.
• Industrial-grade ≥4-inch color touchscreen controller with multi-segment programmability (up to 30 steps per program), real-time data logging (timestamped temperature, humidity, light intensity), and password-protected parameter access tiers (operator, supervisor, administrator).
• Wireless Ethernet connectivity enables remote monitoring and configuration via standard web browsers—no proprietary software required. Logged datasets export in CSV format for integration with LIMS or statistical analysis platforms (e.g., R, Python, JMP).

Sample Compatibility & Compliance

The ZGC chamber accommodates a broad range of botanical specimens—from seedlings in Petri dishes and tissue culture vessels to mature potted plants up to 1.2 m tall—within its customizable internal volume (150–1100 L). Its stainless steel interior (AISI 304) resists corrosion from nutrient solutions, sterilants, and high-humidity operation. The system complies with IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity standards). While not certified for GMP manufacturing, its audit-ready data logging—including user ID, timestamp, parameter changes, and alarm events—supports GLP-aligned workflows per OECD Principles of Good Laboratory Practice. Humidity and temperature validation protocols align with ISO 17025 traceable practices when used with NIST-traceable reference sensors.

Software & Data Management

The embedded controller firmware supports continuous data acquisition at user-defined intervals (1 s to 60 min resolution). All operational logs—including setpoint deviations, door-open events, compressor duty cycles, and light-output calibration offsets—are stored onboard (≥1 year at default logging rate) and exportable via USB or wireless transfer. The system maintains full audit trails compliant with FDA 21 CFR Part 11 requirements when deployed with network-authenticated user accounts and electronic signature enablement (configured via admin menu). No cloud dependency: local storage ensures data sovereignty and uninterrupted operation during network outages.

Applications

• Photosynthetic quantum yield assays under variable PAR intensities
• Diurnal rhythm entrainment studies using programmable light/dark cycling
• Abiotic stress screening (drought, heat, high-light) with concurrent microclimate tracking
• Seed germination kinetics across light-quality gradients
• Tissue culture acclimatization protocols requiring precise photoperiod control
• Phytochemical profiling (e.g., anthocyanin induction) under spectrally defined irradiance
• Controlled-environment phenotyping for crop breeding programs

FAQ

Does the ZGC Series support spectral tuning (e.g., red/blue ratio adjustment)?
No—the standard configuration uses fixed-ratio full-spectrum white LEDs (350–800 nm). Spectral customization requires optional multi-channel monochromatic LED modules (available upon request with lead-time extension).
Is humidity control available on all ZGC models?
Yes—integrated ultrasonic humidification and desiccant-assisted dehumidification are standard across the 300 L and larger configurations. Sub-300 L units operate in dry-air mode only.
Can the chamber be validated for ISO/IEC 17025-compliant temperature mapping?
Yes—its uniformity performance (±1 °C) and stability (±0.5 °C over 24 h) meet common mapping acceptance criteria. DRETOP provides empty-chamber validation reports; user-conducted loaded mapping is recommended per ASTM E2875.
What is the expected service life of the LED arrays?
Rated for ≥50,000 hours at 25 °C ambient (L70 lifetime per IES LM-80), with gradual lumen depreciation compensated by controller-based intensity recalibration.
Is third-party calibration certification included?
Factory calibration certificates (traceable to NIM, China) are provided. ISO/IEC 17025-accredited calibration is available as an add-on service through authorized metrology partners.
