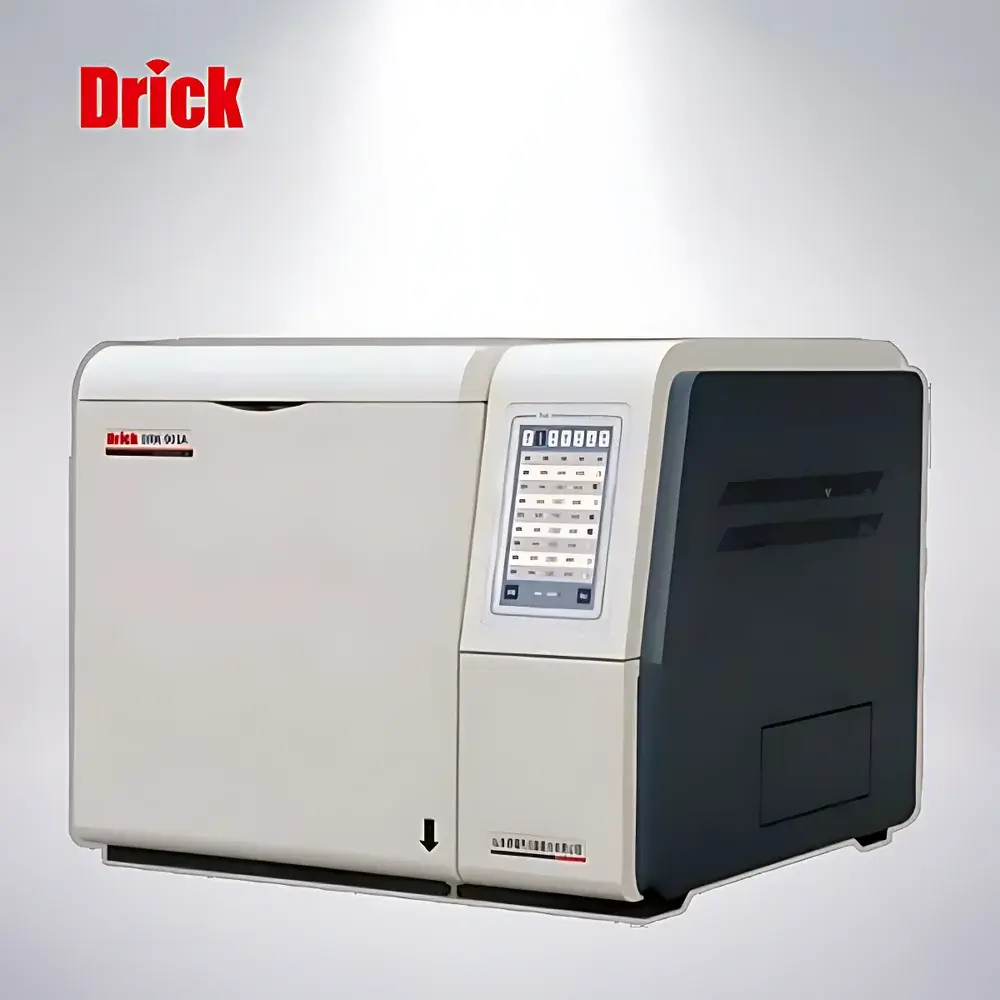

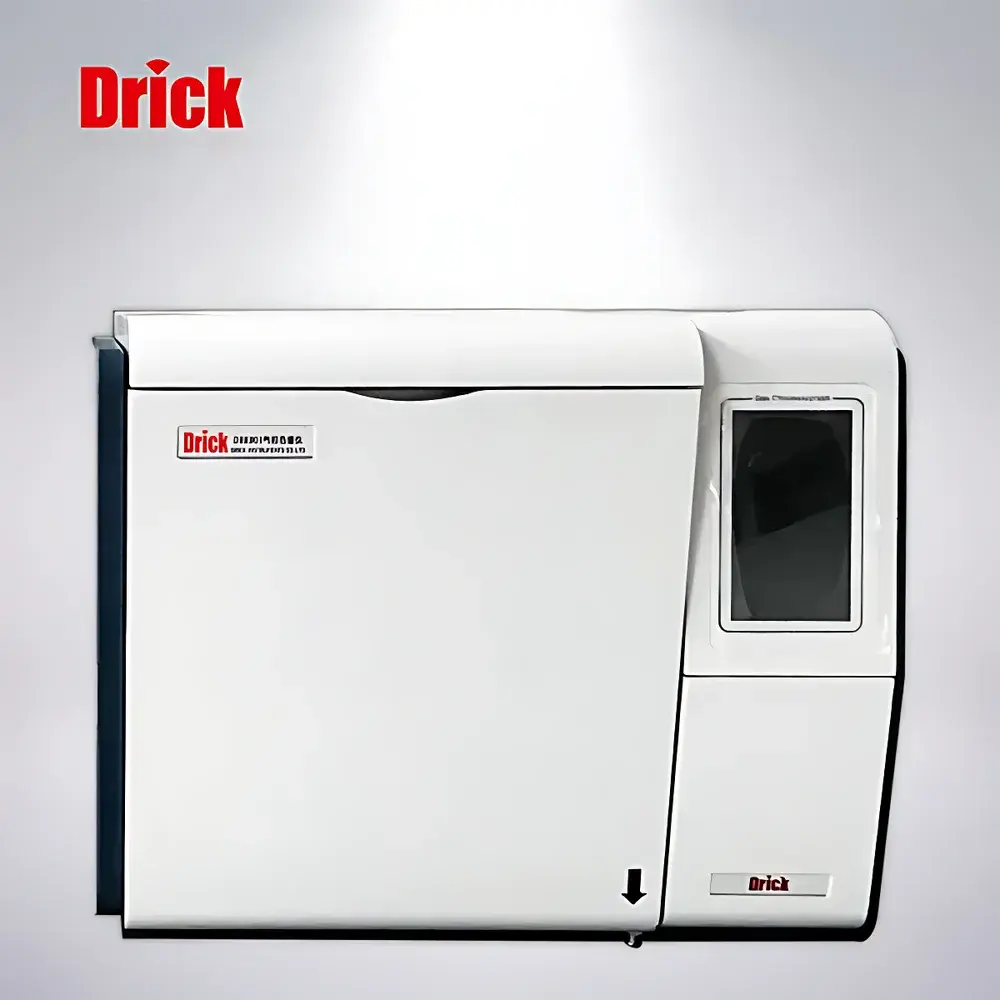

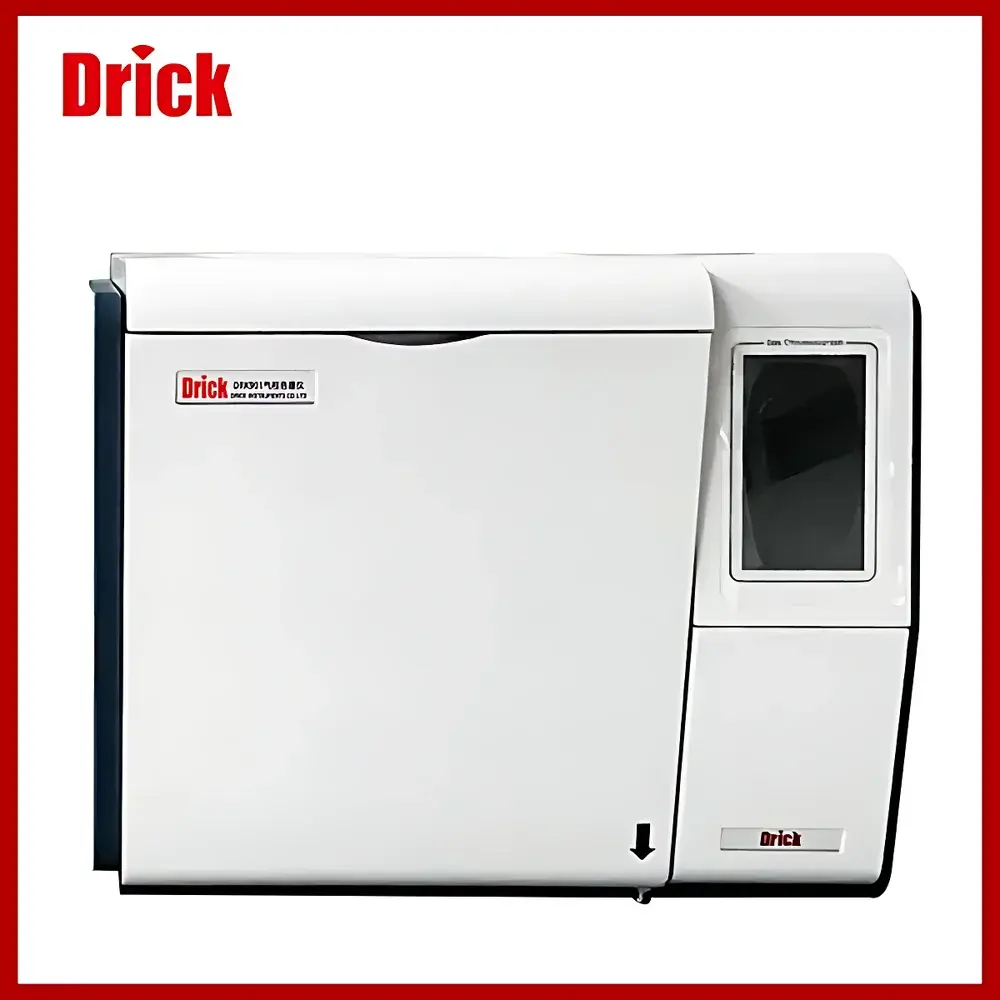

Drick DRK-901A Laboratory Gas Chromatograph with 8-Independent-Zone Temperature Control and Multi-Mode Injection Compatibility
| Brand | Drick |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | OEM Manufacturer |
| Regional Classification | Domestic (PRC) |
| Model | DRK-901A |
| Instrument Type | Benchtop Laboratory Gas Chromatograph |
| Application Scope | General-Purpose Analytical Chemistry |
Overview
The Drick DRK-901A is a benchtop laboratory gas chromatograph engineered for precision, flexibility, and operational reliability in routine and method-development environments. It operates on the fundamental principle of gas-liquid partition chromatography: analytes in a gaseous mobile phase are separated based on differential partitioning between the mobile phase and a stationary phase coated inside a fused-silica capillary column. Separation efficiency, resolution, and retention time reproducibility are governed by precise thermal management of the column oven, inlet(s), and detector zones — a capability central to the DRK-901A’s architecture. Designed for general-purpose analytical chemistry applications, the system supports method transfer across diverse sample matrices and complies with foundational chromatographic performance criteria outlined in ISO 17025-accredited laboratories and aligned with ASTM D3612 and USP guidelines for system suitability testing.
Key Features
- Eight independently programmable temperature zones: column oven, up to four inlet modules (split/splitless, PTV, on-column, or gas sampling valve), and up to three detector compartments (FID, TCD, ECD, or optional NPD), enabling simultaneous optimization of vaporization, separation, and detection conditions.
- Multi-mode injection compatibility: accommodates split, splitless, programmed temperature vaporizing (PTV), cold-on-column, and gas-tight syringe or valve-based gaseous sample introduction — supporting volatile organic compounds (VOCs), residual solvents, hydrocarbon profiling, and environmental air monitoring protocols.
- Robust column oven design with rapid heating/cooling rates (up to 40 °C/min) and isothermal/temperature-programmed operation from ambient +5 °C to 450 °C, ensuring method scalability and column stability across extended runs.
- Integrated electronic pressure control (EPC) for carrier gas (He, H₂, or N₂), enabling precise flow rate regulation (0.01–100 mL/min), backflush capability, and real-time pressure monitoring at all critical points.
- Modular detector interface supporting hot-swappable configurations; factory-calibrated FID with linear dynamic range >10⁷ and TCD with enhanced sensitivity for permanent gases.
Sample Compatibility & Compliance
The DRK-901A accepts liquid, gaseous, and headspace-derived samples via standardized 0.5–1.0 µL syringe injection or automated valve actuation. It is routinely deployed for analysis of residual solvents in pharmaceutical excipients (per ICH Q3C), monomer purity in polymer synthesis, flavor/aroma profiling in food matrices, and VOC emissions from packaging materials (ASTM D3960, ISO 16000-6). The instrument’s firmware and hardware architecture support GLP-compliant workflows, including user access levels, audit trail logging (time-stamped method changes, calibration events, and sequence edits), and data integrity safeguards consistent with FDA 21 CFR Part 11 requirements when paired with validated chromatography data systems (CDS).
Software & Data Management
Control and data acquisition are managed through Drick ChromaSuite™ — a Windows-based CDS offering ISO/IEC 17025-aligned reporting templates, automatic system suitability calculation (tailing factor, resolution, %RSD of RT and peak area), and raw data export in open formats (e.g., .cdf, .csv). The software supports method validation documentation packages, electronic signature implementation, and integration with LIMS via ODBC or HL7 interfaces. All chromatograms, methods, and audit logs are stored with immutable timestamps and checksum verification to ensure traceability during regulatory inspections.
Applications
- Quality control of raw materials and finished products in pharmaceutical, food, and chemical manufacturing.
- Environmental testing: analysis of BTEX, chlorinated hydrocarbons, and pesticides in water, soil, and air samples per EPA Method 8260/8021.
- Packaging and printing industries: quantification of migration compounds and solvent residues in flexible films and laminates.
- Academic and contract research laboratories requiring configurable, cost-effective GC platforms for teaching, method development, and routine assay validation.
- Forensic toxicology screening and clinical chemistry assays where reproducible retention indexing and peak symmetry are critical.
FAQ
Does the DRK-901A support compliance with 21 CFR Part 11?
Yes — when operated with validated ChromaSuite™ software configured with role-based user accounts, electronic signatures, and enabled audit trail functionality.
Can I upgrade detector options post-purchase?
Yes — the modular detector bay supports field-installable detector modules; upgrades require factory calibration and firmware synchronization.
What column dimensions and phases are compatible?
Standard 0.1–0.53 mm ID fused-silica capillaries up to 60 m in length; compatible with polysiloxane, polyethylene glycol, and porous-layer open-tubular (PLOT) phases.
Is remote monitoring supported?
Yes — via secure Ethernet connection using ChromaSuite™ Remote Access module with TLS 1.2 encryption and session timeout controls.
What maintenance intervals are recommended?
Inlet liner replacement every 100 injections; column trimming every 2–3 months depending on sample cleanliness; detector cleaning and gas filter replacement quarterly.
