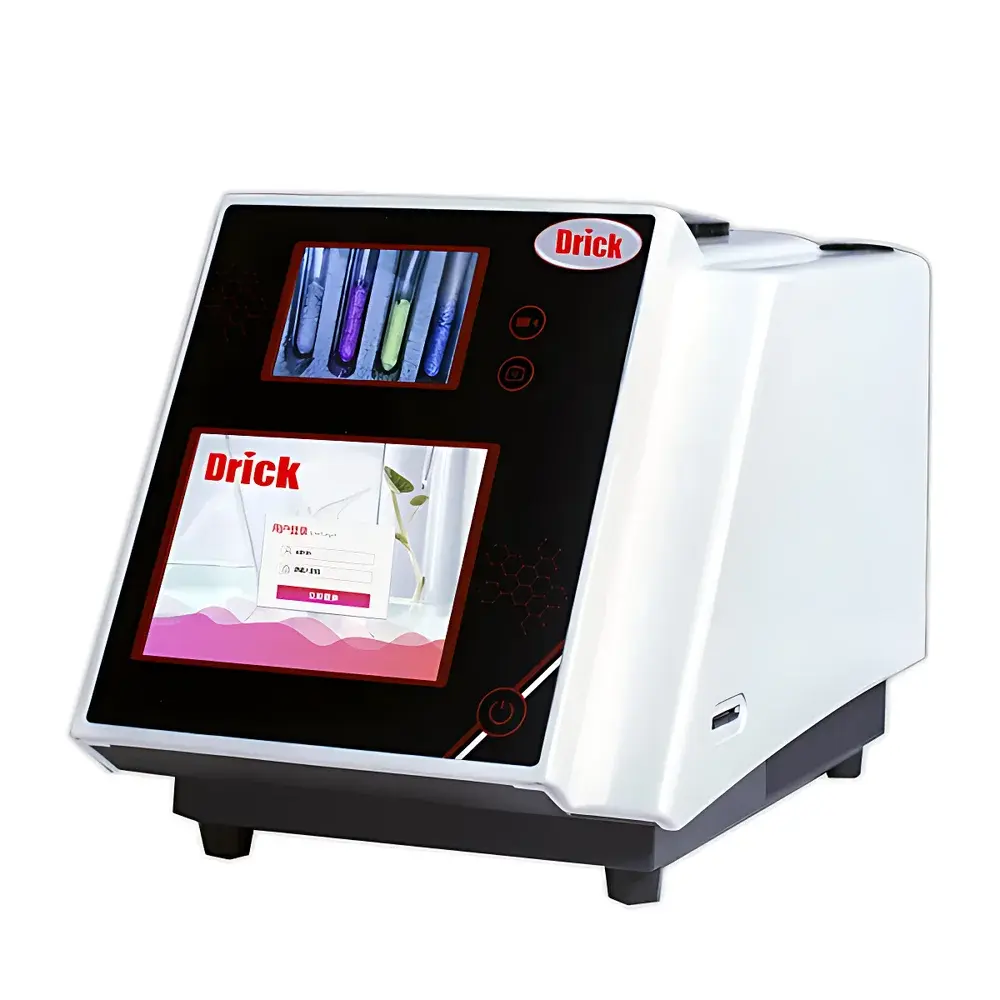

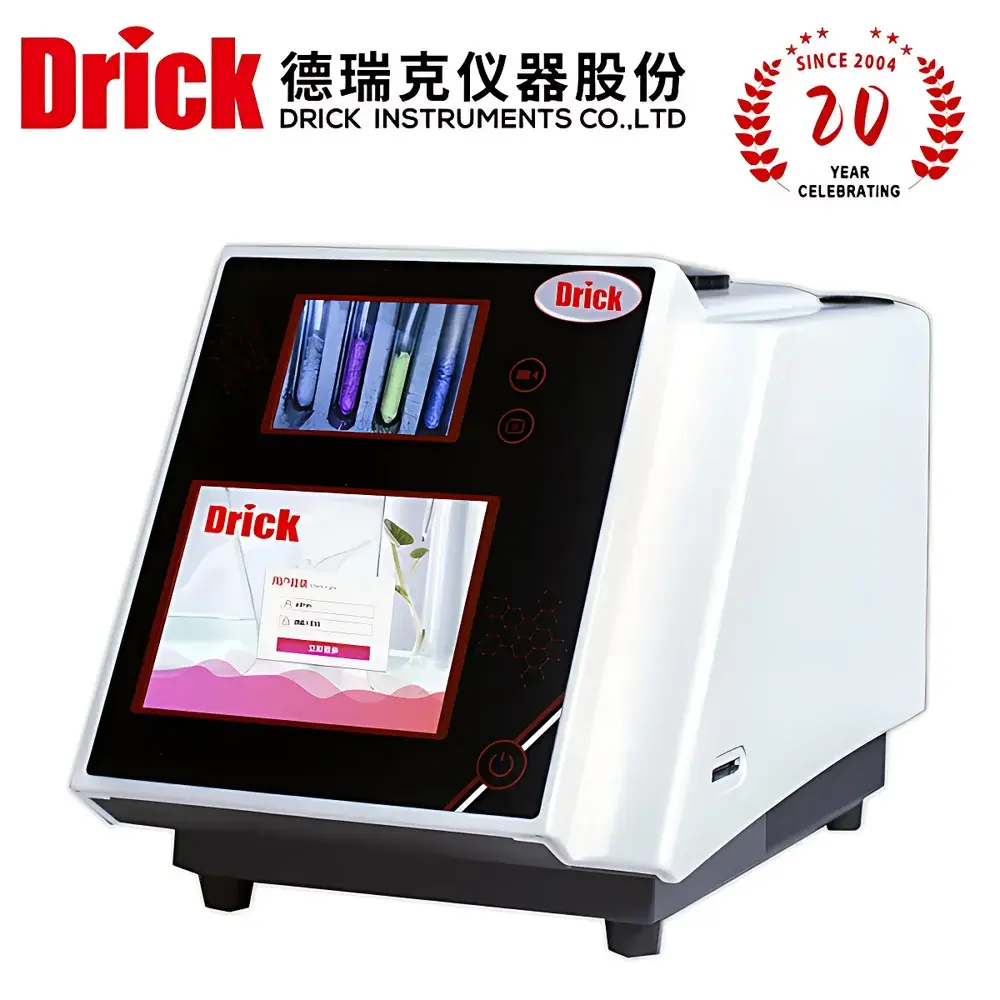

Drick DRK-X30 Semi-Automatic Video Melting Point Apparatus with Precise Temperature Control and Manual Observation
| Brand | Drick |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | DRK-X30 |
| Temperature Range | Ambient to 350 °C |
| Heating Rate | 0.1–20 °C/min (200-step continuously adjustable) |
| Temperature Accuracy | ±0.3 °C (<250 °C) |
| Capillary Dimensions | Outer Diameter 1.4 mm, Inner Diameter 1.2 mm |
Overview
The Drick DRK-X30 Semi-Automatic Video Melting Point Apparatus is engineered for precise, repeatable determination of melting point ranges in solid organic compounds, pharmaceutical intermediates, polymers, and reference standards. It operates on the classical capillary tube method—where a small sample is loaded into a standardized glass capillary and heated under controlled conditions while real-time optical observation is conducted via an integrated high-resolution digital video system. Unlike fully automated systems that rely on image analysis algorithms, the DRK-X30 maintains manual visual endpoint detection, offering full operator control over judgment criteria—a critical requirement in pharmacopoeial compliance (e.g., USP & EP methods) and academic research where subjective interpretation of meniscus formation, sintering, and collapse behavior remains essential. Its robust thermal block design ensures uniform axial heating and minimal temperature gradient across multiple capillaries, supporting reliable inter-laboratory reproducibility.
Key Features
- Precise semi-automatic temperature control with 200-step adjustable heating rate (0.1–20 °C/min), enabling method flexibility for slow ramping (e.g., 0.5 °C/min for narrow-melting APIs) or rapid screening (e.g., 10 °C/min for preliminary purity assessment).
- Digital video imaging system with adjustable magnification and LED coaxial illumination, optimized for clear visualization of capillary contents without glare or shadow artifacts.
- High-stability aluminum heating block with PID-controlled thermoregulation, delivering ±0.3 °C accuracy below 250 °C—meeting ASTM E324 and ISO 6383-1 performance benchmarks for routine laboratory use.
- Standardized capillary compatibility: accepts 1.4 mm OD × 1.2 mm ID borosilicate tubes (length 80–100 mm), ensuring consistent sample geometry and thermal mass across assays.
- Compact benchtop footprint with intuitive front-panel interface, requiring no external PC or proprietary software for basic operation—ideal for QC labs with limited IT infrastructure.
Sample Compatibility & Compliance
The DRK-X30 accommodates crystalline and semi-crystalline solids commonly encountered in pharmaceutical development (e.g., active pharmaceutical ingredients, excipients), fine chemicals, agrochemicals, and polymer additives. It supports standard pharmacopoeial procedures including USP , EP 2.2.17, and JP 2.60, where visual endpoint determination is explicitly required. While not FDA 21 CFR Part 11 compliant out-of-the-box (as it lacks electronic audit trail and user authentication), its operational parameters are fully documentable via manual logbooks or optional third-party LIMS integration. The instrument conforms to IEC 61010-1 safety standards for electrical equipment used in laboratory environments.
Software & Data Management
The DRK-X30 operates independently of software; however, its video output (via HDMI or analog composite signal) can be captured using industry-standard recording tools (e.g., OBS Studio, Camtasia) for archiving and review. Users may annotate timestamps manually or integrate with validated digital lab notebooks for GLP-aligned record retention. For regulated environments, laboratories may implement procedural controls—including dual-operator verification, pre-defined pass/fail criteria per batch, and calibration logs traceable to NIST-certified reference standards (e.g., pure indium, tin, zinc). Annual verification against certified reference materials is recommended per ISO/IEC 17025 requirements.
Applications
- Pharmaceutical quality control: identity confirmation and purity assessment of raw materials and finished dosage forms.
- Academic research: correlation of melting behavior with molecular symmetry, hydrogen bonding, and polymorphic transitions.
- Chemical synthesis: reaction monitoring and intermediate characterization during process development.
- Regulatory submissions: generation of supporting data for ICH Q5A and Q5B guidelines on physicochemical characterization.
- Education: hands-on training in thermal analysis fundamentals for undergraduate and graduate chemistry programs.
FAQ
What capillary specifications are supported?
The DRK-X30 is calibrated for standard capillaries with outer diameter 1.4 mm and inner diameter 1.2 mm. Use of non-standard dimensions may affect heat transfer kinetics and observed melting range.
Is the instrument suitable for samples with decomposition near melting?
Yes—its fine-resolution heating rate control allows users to decelerate ramping near suspected transition points, minimizing thermal lag and distinguishing true melting from decomposition onset.
Can multiple samples be measured simultaneously?
The unit accommodates one capillary at a time. For throughput optimization, sequential runs with identical thermal protocols are recommended, with thermal equilibration verified between cycles.
Does it support GLP-compliant documentation?
While the base configuration does not include electronic audit trails, full GLP adherence is achievable through documented SOPs, manual calibration logs, and video archiving with metadata tagging.
What maintenance is required?
Annual verification using certified reference standards, periodic cleaning of optical path components, and inspection of capillary holder alignment are advised. No consumables beyond standard capillaries are required.
