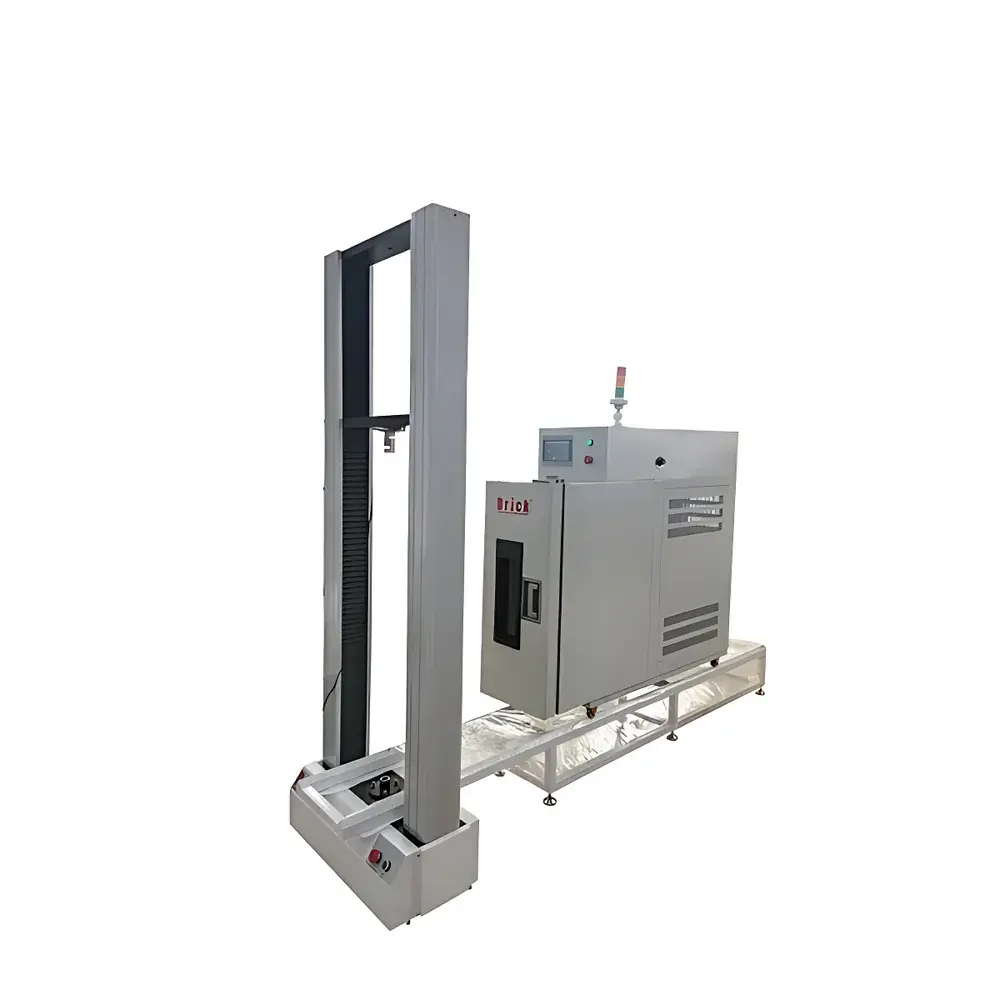

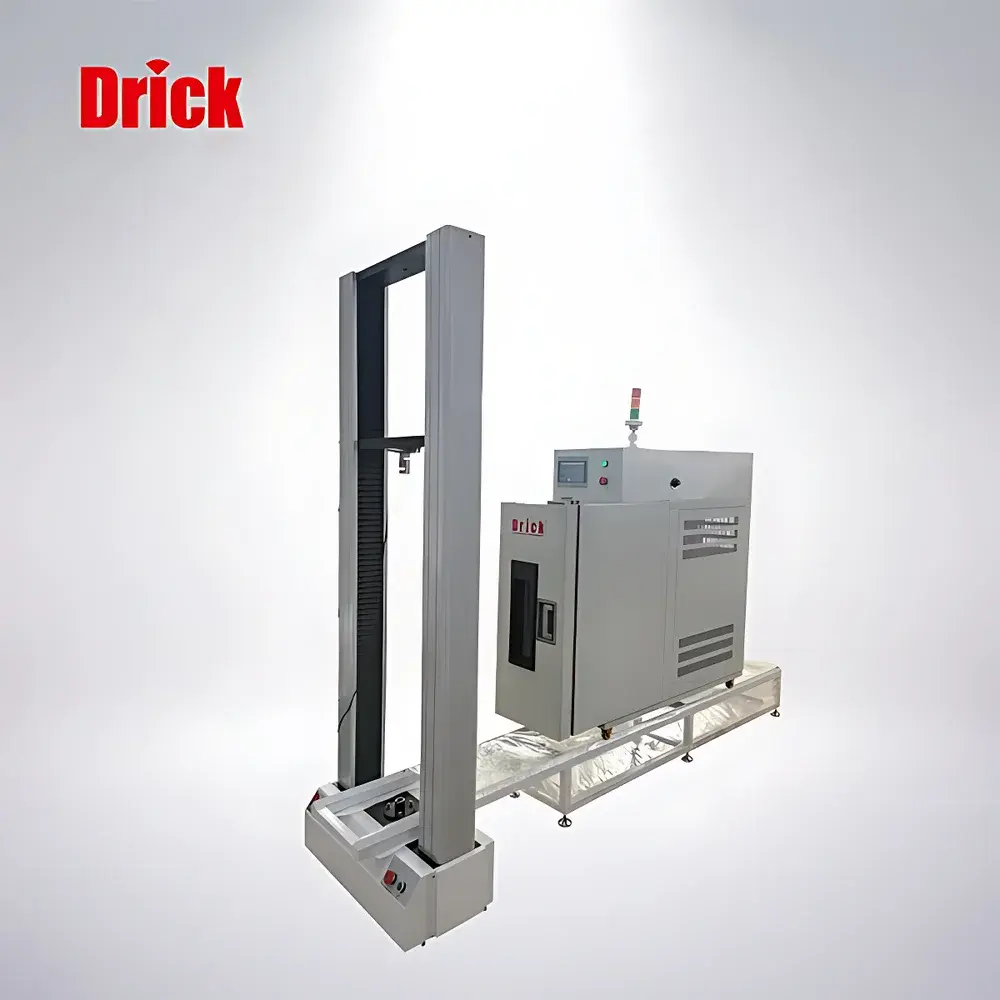

Drick DRK101 Environmental Tensile Tester with Integrated High-Low Temperature Chamber

Overview

The Drick DRK101 Environmental Tensile Tester is a precision-engineered universal testing system designed for static mechanical characterization of materials under controlled thermal conditions. It operates on the principle of servo-controlled uniaxial force application, compliant with fundamental standards for tensile, compressive, flexural, shear, tear, and peel testing—including ISO 527, ASTM D638, ASTM D882, ISO 179, ASTM D1876 (T-peel), and ASTM D903 (strip peel). Its modular architecture integrates a high-stiffness dual-column load frame with a closed-loop servo motor and ball-screw actuation system, enabling stable force control across a wide speed range (0.01–500 mm/min) and precise displacement tracking. The system supports optional integration with a user-specified environmental chamber—capable of programmable temperature conditioning—to evaluate material behavior across thermally induced phase transitions, glass transition effects, or cold-embrittlement regimes. This capability makes the DRK101 particularly suitable for R&D labs and QC departments requiring traceable, repeatable data under non-ambient conditions.

Key Features

• High-fidelity load measurement with ±0.5% force accuracy and 1/10,000 full-scale resolution, calibrated per ISO 7500-1 Class 0.5 requirements
• Multi-parameter real-time acquisition: synchronized force–displacement, force–time, stress–strain, strain–time, and displacement–time curves
• Configurable unit system supporting SI (N, kN), imperial (lbf, Kgf, g), and derived units for cross-regional reporting compliance
• Windows 7–based control software with modular VB.NET architecture, enabling secure parameter formula customization and user-defined report templates
• Database-driven test data management: automatic timestamped storage of raw curves, metadata, operator ID, and environmental chamber logs (when equipped)
• Integrated safety protocols including hardware-based upper/lower limit switches, emergency stop circuitry, and software-enforced travel boundaries
• USB 2.0 interface for peripheral connectivity; export-ready output to Excel (.xlsx) with embedded chart objects and metadata tags
• Auto-calibration routine compliant with ISO 376: users input certified reference load values via GUI to trigger digital gain/offset correction

Sample Compatibility & Compliance

The DRK101 accommodates specimens ranging from thin polymer films (≥10 µm thickness) to metallic rods (≤10 mm diameter) and composite laminates (up to 400 mm width). Standardized grip configurations include pneumatic, wedge, and roller types—compatible with ASTM E8/E8M, ISO 6892-1, and GB/T 228.1 specimen geometries. When paired with an environmental chamber, the system meets GLP-aligned operational requirements: audit-trail-enabled user authentication, electronic signature support, and tamper-evident data archiving. All firmware and software modules are developed in accordance with IEC 62304 for medical device-grade software lifecycle rigor, and data integrity aligns with FDA 21 CFR Part 11 expectations for electronic records and signatures.

Software & Data Management

The DRK101’s proprietary test software provides role-based access control, multi-language UI (English, Simplified Chinese, Traditional Chinese), and configurable data visualization panels. Raw test sequences are stored in encrypted SQLite databases with SHA-256 checksum validation. Users may overlay multiple historical tests for comparative analysis—including modulus deviation, yield offset calculation (0.2% proof stress), and energy-to-break integration. Report generation supports customizable headers, company logos, statistical summaries (mean, SD, CV%), and ISO/ASTM-compliant terminology. Export functions retain full curve fidelity and metadata—enabling downstream analysis in MATLAB, Python (via Pandas), or third-party LIMS platforms.

Applications

• Quality assurance of packaging films (peel strength, seal integrity, cold-tack performance)
• Mechanical screening of biomedical polymers (sutures, hydrogels, resorbable implants) across physiological and cryogenic ranges
• Thermo-mechanical evaluation of aerospace composites (carbon fiber/epoxy, PEEK laminates) under simulated service temperatures
• R&D of elastomeric adhesives, pressure-sensitive tapes, and battery separator membranes
• Educational laboratories requiring ISO/ASTM-aligned instruction on stress–strain fundamentals and failure mode analysis
• Production line verification of wire coatings, textile yarns, and rubber compounds per GB/T standards

FAQ

Does the DRK101 comply with ISO/IEC 17025 calibration requirements?
Yes—the force transducer, displacement encoder, and environmental chamber sensors are supplied with UKAS-accredited calibration certificates traceable to NIST or PTB standards. On-site recalibration services are available.
Can the system perform cyclic loading or fatigue tests?
No—the DRK101 is configured exclusively for static and quasi-static testing per ISO 6892-1 Annex A. For dynamic or high-cycle fatigue, consider the Drick DF series servo-hydraulic testers.
Is the environmental chamber integrated at the factory or field-installed?
Chamber integration is performed at the Drick production facility in Shandong, ensuring mechanical alignment, thermal uniformity validation, and unified software commissioning prior to shipment.
What database formats does the software support for LIMS integration?
Raw test data can be exported as CSV or XML with schema documentation; ODBC connectivity is available upon request for direct SQL server ingestion.
Are software updates provided post-purchase?
Yes—Drick delivers biannual firmware and software patches via secure download portal, including regulatory compliance enhancements and minor feature expansions under warranty terms.
