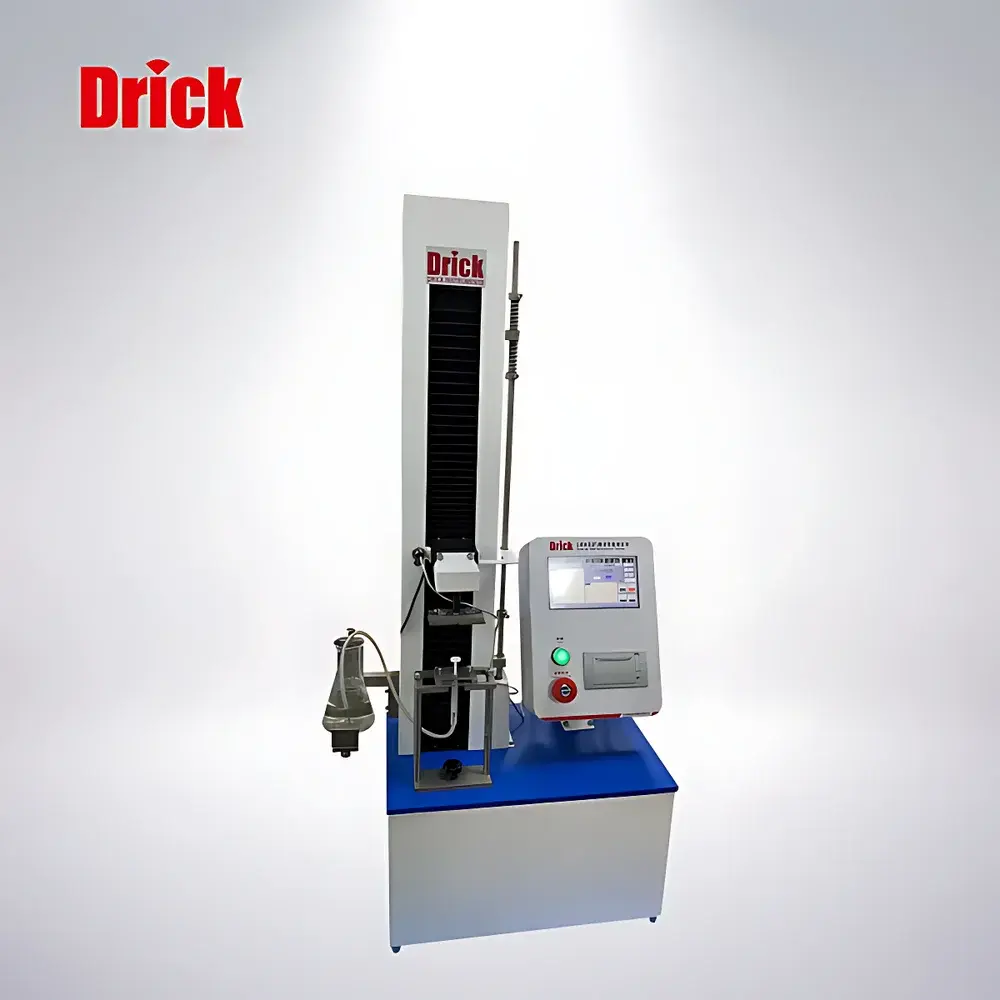

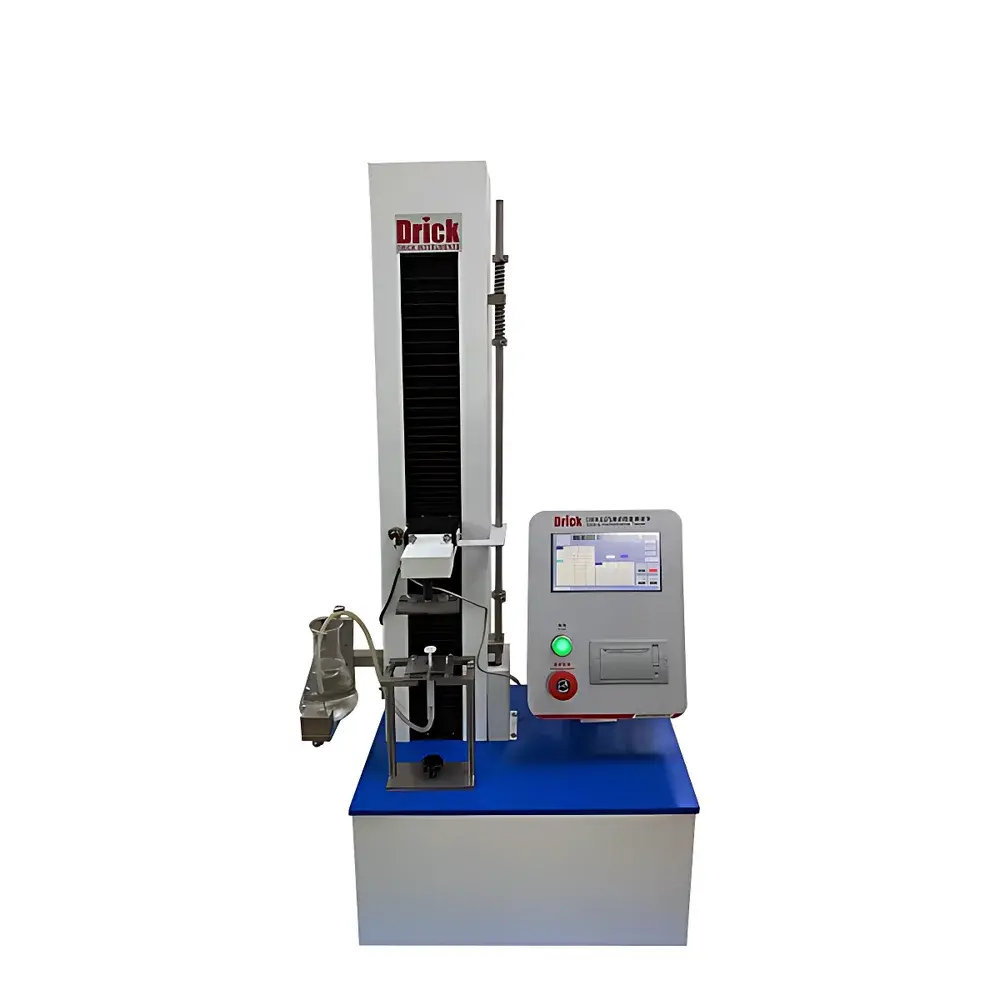

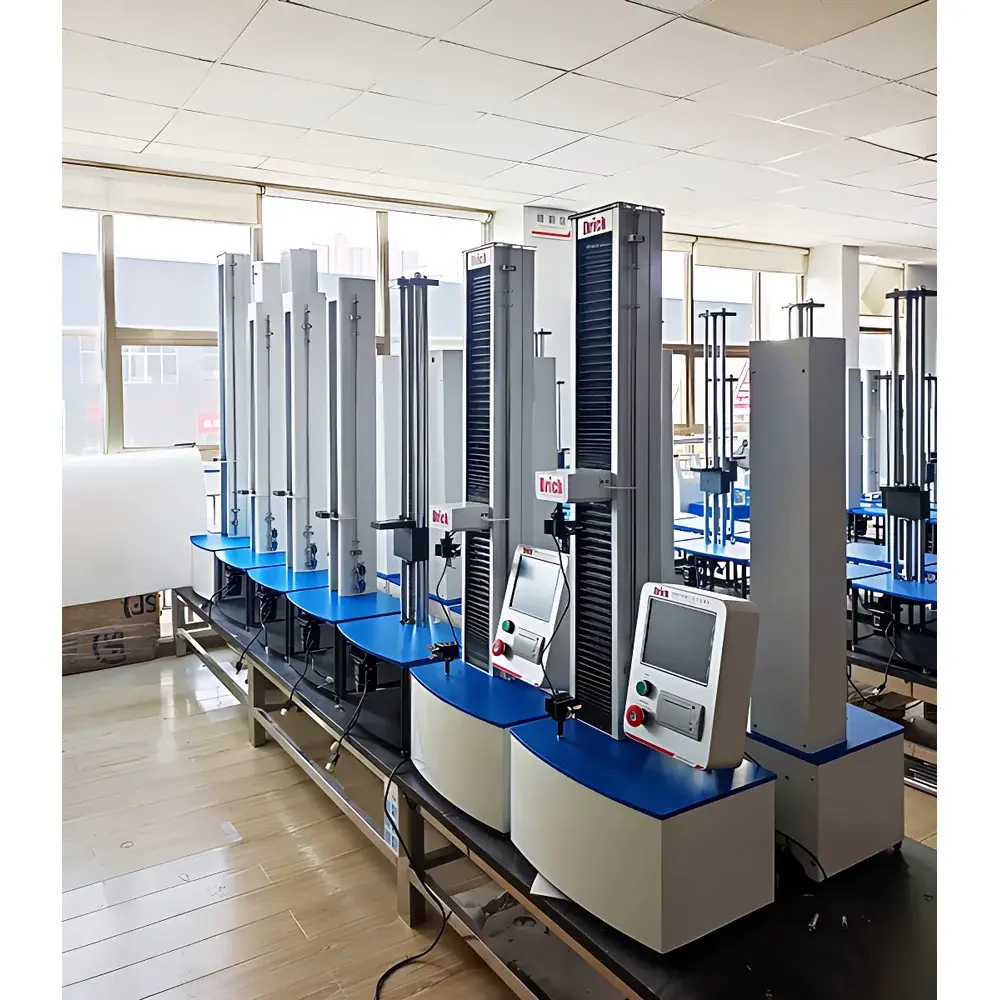

Drick DRK101 Syringe Sliding Force Tester for Single-Use Sterile Injection Devices

Overview

The Drick DRK101 Syringe Sliding Force Tester is an ISO-compliant, microprocessor-controlled mechanical testing system engineered to quantify the sliding force characteristics of single-use sterile syringes—specifically the plunger rod’s resistance during barrel insertion and withdrawal under standardized axial motion. Based on the principle of controlled linear displacement with high-fidelity load cell measurement, the instrument replicates clinically relevant actuation conditions defined in international regulatory test protocols. It operates by applying a precisely regulated, motor-driven linear motion to the syringe plunger at user-defined speed profiles while continuously acquiring synchronized force and displacement data. The system is designed for compliance with essential performance verification requirements for Class III medical devices under ISO 13485 quality management systems and supports full traceability for GLP/GMP-regulated environments.

Key Features

• ARM-based embedded control architecture with real-time operating system for deterministic response and low-latency data acquisition
• 800 × 480 TFT color touchscreen display with industrial-grade capacitive touch panel (rated for ≥50,000 actuations)
• High-resolution load measurement: 1 part in 200,000 full-scale resolution (7-digit display including decimal), with ≤0.3% FS accuracy per ASTM E4 calibration standards
• Displacement sensing accuracy: ±0.5% of reading; velocity control precision: ±1% of setpoint across 1–100 mm/min range
• 200 Hz sampling rate ensures robust capture of transient force peaks and valley events during plunger start-up and steady-state travel
• Dual-language UI (English/Chinese) with multi-unit support: Newton (N), kilogram-force (kgf), pound-force (lbf)
• Automated peak/valley detection algorithm compliant with GB 15810–2019 Annex B and ISO 7886-1:2017 Clause 6.4.2 for initial breakaway force (F_b) and average gliding force (F_g) calculation
• Configurable test height selection based on nominal syringe volume (1 mL to 60 mL), with manual override for non-standard configurations
• Hardware and software dual-layer safety interlocks—including emergency stop circuitry, over-travel limit switches, and real-time force threshold monitoring

Sample Compatibility & Compliance

The DRK101 accommodates standard Luer-lock and Luer-slip syringes per ISO 594-1/2, including glass, polypropylene, and cyclic olefin copolymer (COC) barrels. Fixture adaptability supports both fixed-barrel and fixed-plunger mounting modes. Regulatory alignment includes: GB 15810–2019 (Chinese national standard for sterile syringes), YY/T 0497–2018 (insulin syringes), ISO 8537:2016 (large-volume syringes), and ISO 7886-1:2017 (general requirements and test methods). All test sequences are structured to satisfy documentation requirements for FDA 21 CFR Part 820 design validation and EU MDR Annex I General Safety and Performance Requirements (GSPR) 10.1.

Software & Data Management

The DRK101 supports optional PC-based data acquisition software compliant with FDA 21 CFR Part 11 for electronic records and signatures. Software features include: audit trail logging (user actions, parameter changes, test initiation/completion timestamps), configurable report templates (PDF/CSV export), statistical analysis suite (max/min/mean/standard deviation/coefficient of variation per test group), and role-based access control supporting up to 10 hierarchical user accounts (administrator, technician, reviewer). Raw time-series data (force vs. displacement) is stored with metadata tags (operator ID, syringe lot number, test date/time, environmental temperature/humidity if logged externally).

Applications

• Quality control release testing of syringe plunger lubricity and barrel dimensional consistency
• Design verification of silicone oil coating uniformity and migration behavior
• Stability assessment of syringe performance after accelerated aging (ISO 11607-1)
• Comparative evaluation of alternative materials (e.g., COC vs. PP) for reduced friction hysteresis
• Root cause analysis of clinical “stick-slip” phenomena reported during manual injection
• Supporting biocompatibility study documentation where mechanical interface properties influence extractables profiling (ISO 10993-12)

FAQ

What syringe sizes can the DRK101 accommodate?
The system supports nominal volumes from 1 mL to 60 mL using adjustable fixture inserts aligned with ISO 7886-1:2017 dimensional tolerances.
Is calibration traceable to national standards?
Yes—load cell calibration is performed using NIST-traceable deadweight standards; certificate includes uncertainty budget per ISO/IEC 17025 requirements.
Does the system meet FDA 21 CFR Part 11 requirements?
When equipped with the optional validated software package, full Part 11 compliance is achieved—including electronic signature workflows, audit trails, and secure user authentication.
Can test methods be customized beyond standard protocols?
Yes—users may define custom velocity ramps, dwell periods, and force thresholds via the embedded scripting interface, subject to internal validation.
What maintenance is required for long-term accuracy?
Annual recalibration of the load cell and displacement encoder is recommended; routine verification using certified reference weights and gauge blocks is performed before each shift.
