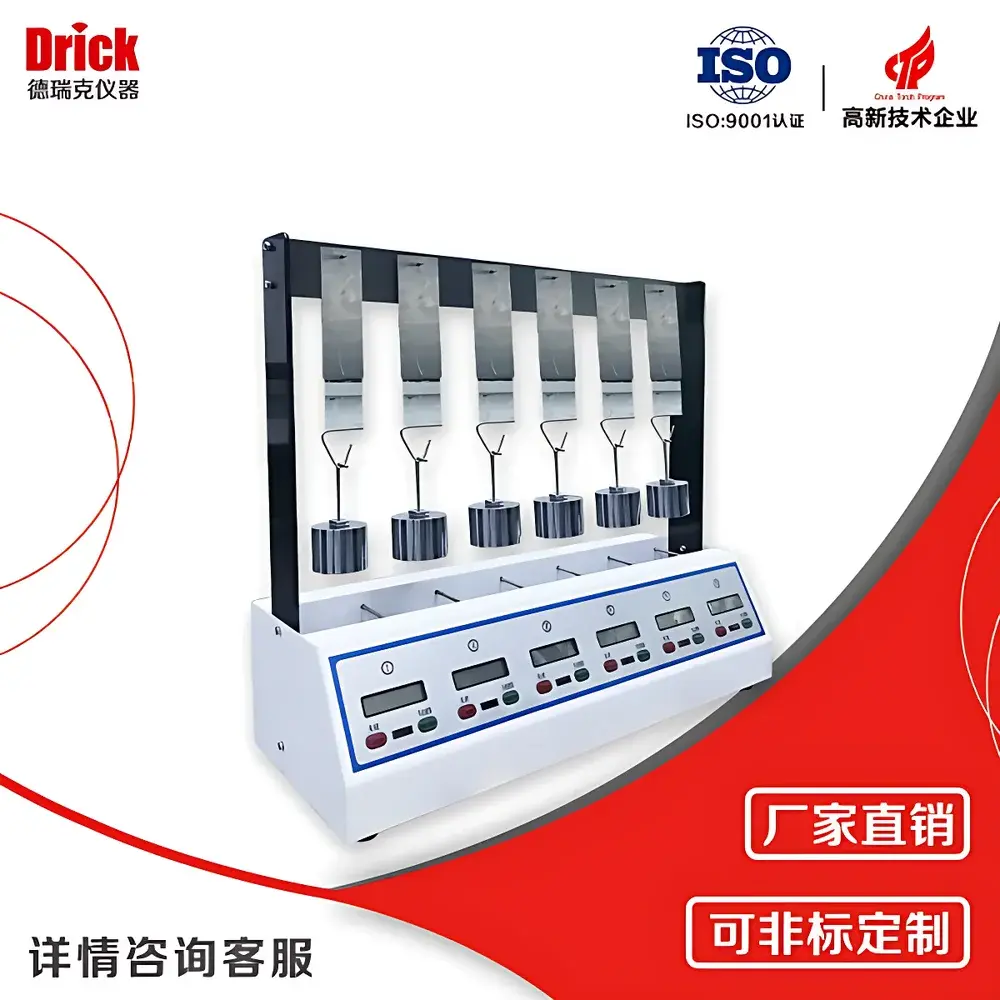

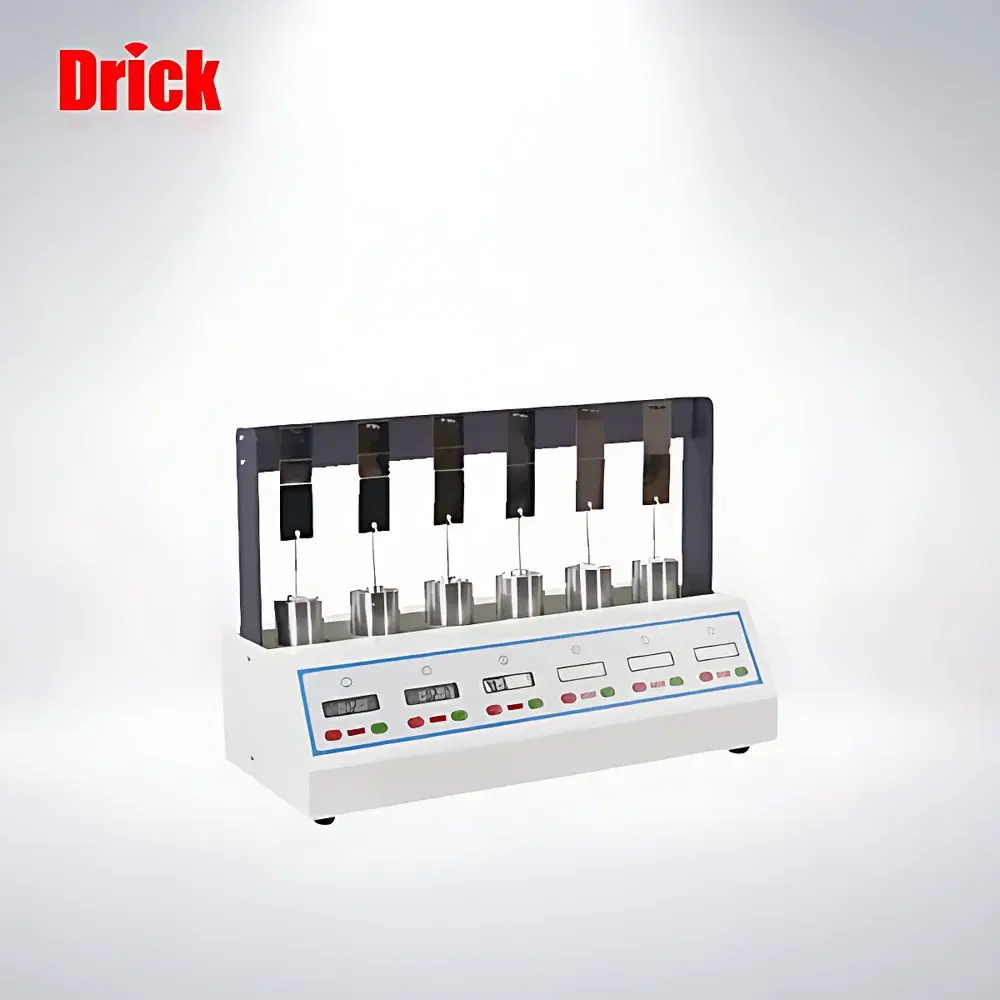

Drick DRK130 Pressure-Sensitive Adhesive Tape Holding Power Tester

Overview

The Drick DRK130 Pressure-Sensitive Adhesive Tape Holding Power Tester is an engineered instrument designed to quantify the holding power (shear adhesion) of pressure-sensitive adhesive (PSA) materials under constant static load and controlled environmental conditions. Based on the principle of vertical shear creep testing—where a standardized specimen is affixed vertically to a stainless-steel test panel and subjected to a defined tensile load—the DRK130 measures the time elapsed until complete slippage or detachment occurs. This method directly reflects real-world performance of labels, medical patches, protective films, and masking tapes during prolonged application, especially in packaging, pharmaceutical labeling, and healthcare device assembly contexts. The system operates in strict accordance with internationally recognized test protocols including GB/T 4851 (China), ASTM D3654 (Standard Test Method for Holding Power of Pressure-Sensitive Tapes), and JIS Z0237 (Japanese Industrial Standard for Adhesive Tapes), ensuring data comparability across global R&D, QC, and regulatory submission workflows.

Key Features

• Microprocessor-controlled timing circuitry with high-resolution LCD display, delivering time measurement accuracy within ±0.1% over the full 0–100 h range.
• Six independent test stations enable parallel evaluation of multiple specimens—critical for statistical robustness, batch release verification, and comparative material screening.
• High-durability proximity sensors replace mechanical switches, eliminating wear-induced drift and ensuring consistent trigger response over >100,000 test cycles.
• Integrated load-locking mechanism secures the 1000 g ±10 g test mass (including loading plate) without manual adjustment, minimizing operator-induced variability.
• Calibrated 2000 g ±50 g rubber-coated roller ensures uniform adhesive contact pressure during specimen preparation per ASTM D3330 and ISO 29862.
• Stainless-steel test panels (standardized 180 × 45 mm, Ra ≤ 0.8 µm) provide reproducible surface energy and topography for inter-laboratory correlation.

Sample Compatibility & Compliance

The DRK130 accommodates standard PSA formats including self-adhesive labels (paper, film, foil substrates), transdermal drug delivery patches, silicone-free protective films, acrylic and rubber-based masking tapes, and specialty industrial transfer tapes. Specimen width is fixed at 25 mm per ISO 29862; length ≥100 mm ensures adequate grip margin. All test fixtures and loading components comply with dimensional tolerances specified in ASTM D3654 Annex A1. The instrument supports GLP-aligned operation: each test record includes timestamped station ID, operator code (via optional USB keyboard input), ambient temperature/humidity logging (when paired with external sensor), and automatic pass/fail flagging against user-defined hold-time thresholds. Full traceability meets FDA 21 CFR Part 11 requirements when integrated with compliant LIMS or electronic lab notebook systems.

Software & Data Management

While the base DRK130 operates as a standalone hardware platform with embedded firmware, optional PC connectivity via RS-232 or USB-to-serial adapter enables automated data export to CSV or Excel-compatible formats. Customizable reporting templates include test summary sheets, individual station logs, statistical summaries (mean, SD, CV%), and trend charts across batches. Audit trails capture firmware version, calibration date, parameter changes, and user login events. For regulated environments, optional software modules support electronic signatures, role-based access control, and 21 CFR Part 11-compliant audit trail generation—including immutable storage of raw timing data and event timestamps.

Applications

• Quality control of roll-fed label stock prior to die-cutting and printing.
• Accelerated aging studies correlating holding power loss with thermal exposure (e.g., 40 °C/75% RH for 168 h per ISO 11607-1).
• Formulation development of low-surface-energy (LSE) adhesives for polyolefin packaging films.
• Validation of sterilization stability for medical device fixation tapes (ISO 11135, ISO 11137).
• Supplier qualification testing against contractual hold-time specifications (e.g., ≥72 h @ 23 °C/50% RH).
• Root cause analysis of label delamination failures in cold-chain logistics (validated down to 5 °C per ICH Q5C).

FAQ

What adhesive types are compatible with the DRK130?
The tester supports all pressure-sensitive adhesive chemistries—including acrylics, rubber-based, silicone, and hybrid formulations—provided specimens meet ASTM D3654 specimen geometry and surface preparation requirements.
Is calibration certification included with shipment?
Each unit ships with a factory calibration report traceable to NIM (National Institute of Metrology, China); ISO/IEC 17025-accredited calibration certificates are available upon request.
Can test parameters be modified beyond the standard 1000 g load?
The mechanical design permits optional load kits (500 g, 2000 g) subject to recalibration and updated compliance documentation per ASTM D3654 Section 7.2.
How is specimen alignment verified before testing?
A precision-machined alignment jig ensures 0° ±0.5° angular registration between substrate edge and test panel datum line, minimizing torsional stress artifacts.
Does the DRK130 meet EU Machinery Directive 2006/42/EC requirements?
Yes—CE marking is applied following conformity assessment by a Notified Body; technical file includes risk analysis per EN ISO 12100 and electrical safety testing per EN 61010-1.
