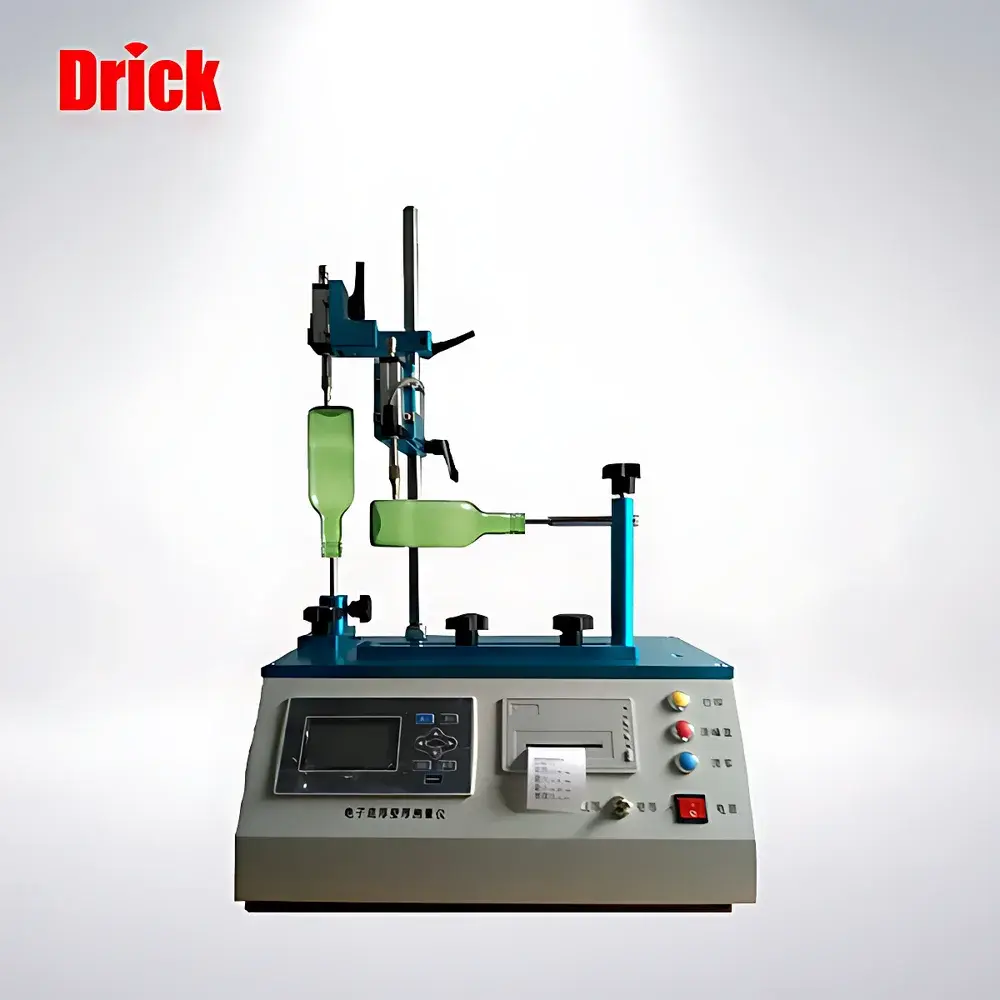

Drick DRK508B Electronic Wall Thickness Gauge for Pharmaceutical Plastic Bottles

Overview

The Drick DRK508B Electronic Wall Thickness Gauge is a precision metrology instrument engineered specifically for non-destructive thickness evaluation of thermoplastic containers used in pharmaceutical and beverage packaging applications. It operates on the principle of high-resolution contact displacement measurement using dual linear variable differential transformer (LVDT)-based probes—one for base thickness and one for sidewall profiling—ensuring simultaneous, synchronized acquisition of critical dimensional parameters. Designed to meet stringent regulatory expectations for container integrity and consistency, the DRK508B supports quality control workflows in GMP-compliant manufacturing environments where wall thickness uniformity directly correlates with mechanical strength, barrier performance, sterilization stability, and leachables risk assessment. Its architecture adheres to fundamental metrological traceability requirements, with resolution calibrated to 1 µm and indication error maintained below ±0.1 µm across the full 0–25 mm range—enabling reliable detection of localized thinning, molding inconsistencies, or post-blowing deformation.

Key Features

• Dual independent LVDT probe system optimized for concurrent base and sidewall thickness measurement, minimizing operator-induced variability and cycle time.
• Real-time graphical display of thickness profiles on integrated 5.7-inch TFT LCD, showing instantaneous values, running max/min, and thickness ratio (max/min) for rapid process deviation recognition.
• Onboard embedded software with configurable measurement interval, automatic data logging, and statistical summary per test set (including mean, standard deviation, Cp/Cpk-ready outputs).
• USB 2.0 interface for bidirectional communication with Windows-based PCs; supports CSV export, trend chart generation, and integration into LIMS or MES platforms via standardized data schema.
• Integrated thermal printer for immediate hardcopy output of measurement reports—including sample ID, timestamp, operator code, individual point readings, and pass/fail status against user-defined tolerances.
• Modular probe holder design accommodates interchangeable measuring rods to adapt to diverse bottle geometries—from narrow-neck vials (Ø10 mm) to wide-mouth infusion bottles (Ø120 mm) and heights up to 320 mm.
• Internal memory stores ≥100 complete test records with metadata (date/time, probe position, calibration flag), supporting audit readiness under FDA 21 CFR Part 11 when paired with validated PC software.

Sample Compatibility & Compliance

The DRK508B is validated for use with rigid and semi-rigid polyethylene terephthalate (PET), polypropylene (PP), and high-density polyethylene (HDPE) containers common in pharmaceutical primary packaging—including ampoules, vials, oral liquid bottles, IV bags with rigid bases, and pre-filled syringe barrels. It conforms to national standards GB 12415–1990 (glass and plastic ampoules), GB 2641–1990 (glass bottles for pharmaceuticals), and GB 2639–1990 (glass containers for injectables), as well as YBB series technical guidelines issued by the National Medical Products Administration (NMPA) for plastic packaging materials. While not an ISO/IEC 17025-accredited instrument per se, its measurement methodology aligns with ISO 3534-2:2013 (statistical vocabulary) and supports GLP/GMP documentation requirements through traceable calibration logs, electronic audit trails, and configurable user access levels.

Software & Data Management

The gauge runs proprietary firmware supporting real-time curve rendering, multi-point scanning sequences, and tolerance band visualization. When connected to a host PC via USB, optional Drick DataLink™ software enables advanced analysis: overlay comparison of historical profiles, SPC charting (X̄–R, I-MR), automated report templating (PDF/Excel), and secure database archiving with role-based permissions. All exported files include embedded digital signatures and timestamps compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Raw data files are stored in ASCII-delimited format for third-party analytics interoperability.

Applications

• Quality assurance of blow-molded PET bottles prior to filling—verifying minimum base thickness to prevent bottom rupture during autoclaving or transport stacking.
• In-process monitoring of injection stretch blow molding (ISBM) lines to detect die swell anomalies or uneven parison cooling.
• Stability testing of cold-filled containers subjected to thermal cycling, assessing creep-induced wall thinning at stress concentration zones.
• Supplier qualification audits requiring objective evidence of wall thickness distribution compliance with contractual specifications (e.g., ISO 8517:2021 for plastic containers).
• Regulatory submission support—generating reproducible datasets referenced in CMC sections of ANDA/MAA dossiers for plastic primary packaging components.

FAQ

Does the DRK508B require annual recalibration?
Yes. For continued metrological validity, we recommend annual calibration against NIST-traceable gauge blocks and certified step gauges, documented per ISO/IEC 17025 procedures.
Can the instrument measure opaque or textured surfaces?
Yes—the LVDT probes operate independently of surface optical properties and are unaffected by color, translucency, or matte finishes typical of pharmaceutical-grade resins.
Is the onboard printer compatible with external label printers?
No. The integrated thermal printer is fixed-function; however, full measurement data can be exported digitally for integration with enterprise labeling systems.
What is the warranty coverage for the displacement sensors?
Drick provides a 24-month limited warranty on all LVDT probes, covering material defects and functional failure under normal operating conditions.
Does the system support multi-language UI?
The embedded interface is English-only; PC software supports English, German, French, Spanish, and Simplified Chinese localizations.
