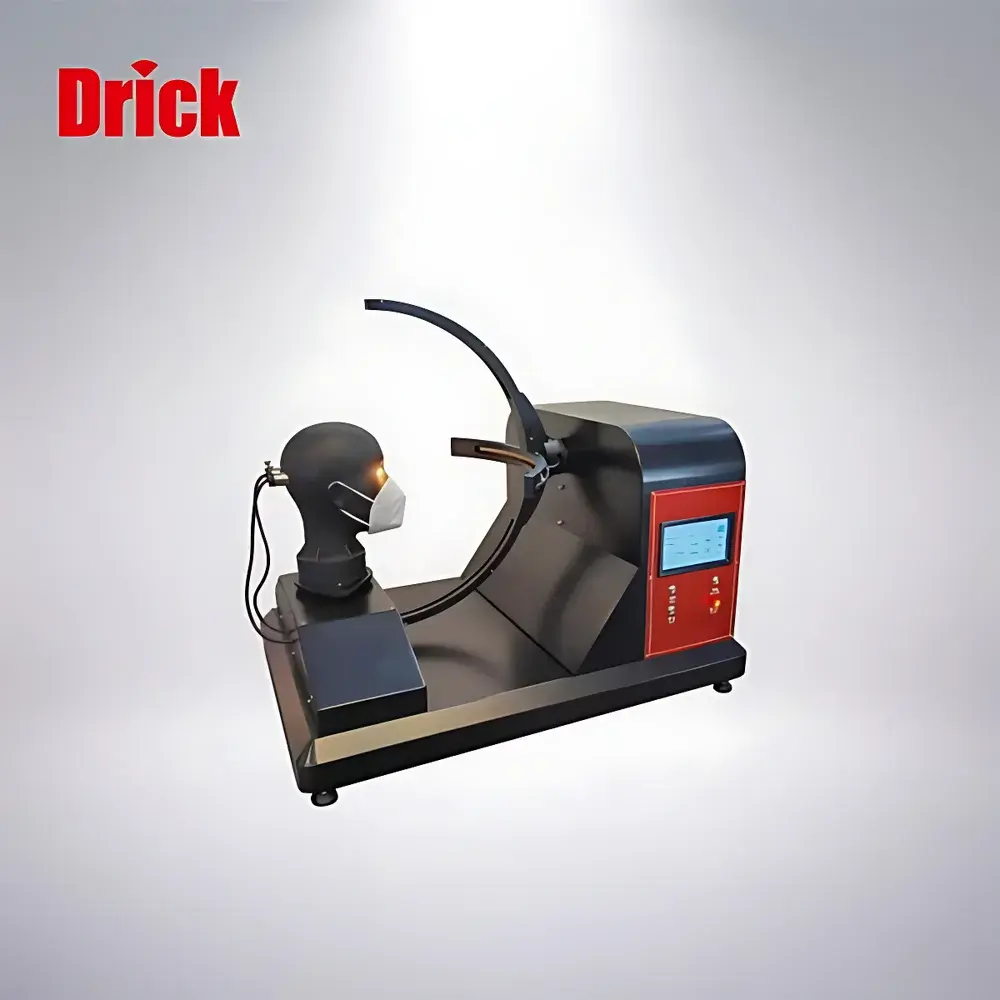

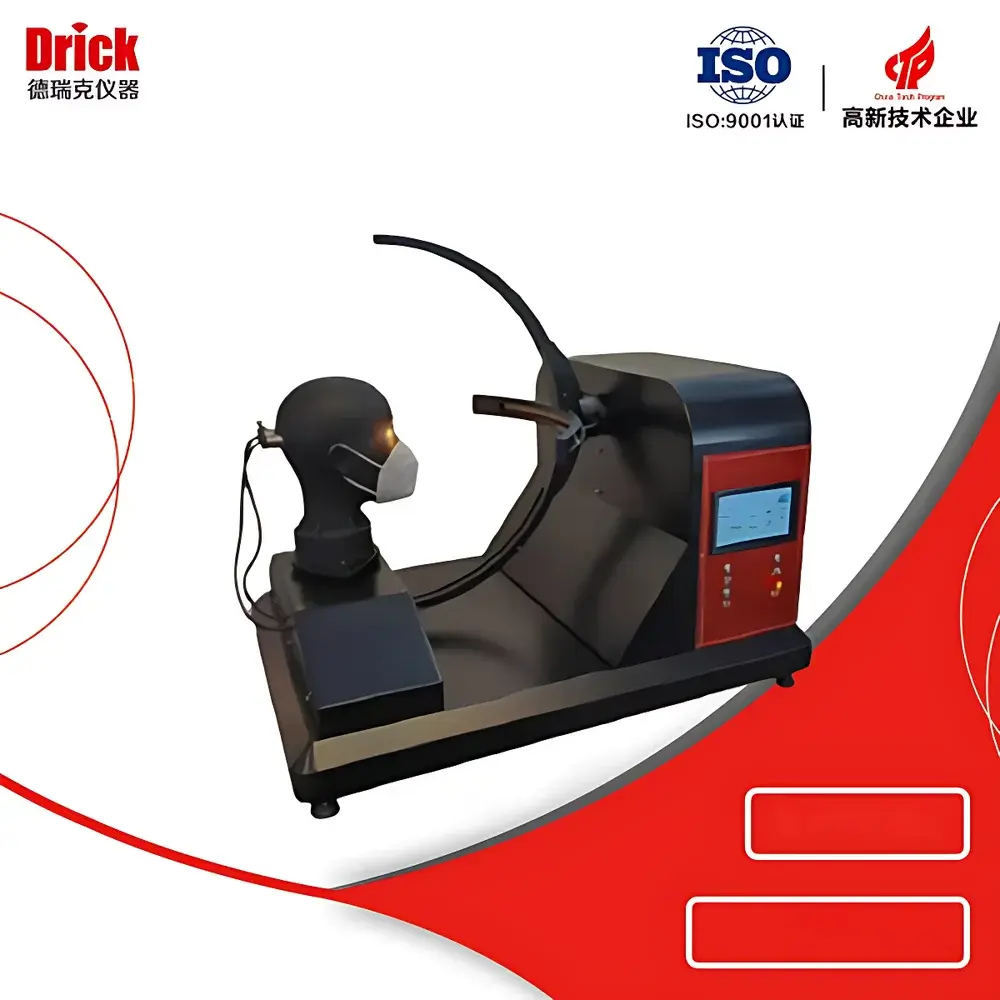

Drick DRK703 Field-of-View Tester for N95 Respirators and Protective Facepieces

Overview

The Drick DRK703 Field-of-View Tester is an engineered instrumentation system designed to quantitatively assess the binocular visual field limitations imposed by respiratory protective devices—including N95 filtering facepiece respirators, half-face and full-face elastomeric respirators, and industrial breathing apparatus—under standardized laboratory conditions. It operates on the principle of mechanical angular mapping: a calibrated arc-shaped goniometric frame rotates around the optical axis of a standardized headform, while a movable luminous target (white sighting marker) traverses predefined angular increments (0° to 90° in 5° steps) along the arc. A synchronized recording stylus traces the corresponding angular coordinates onto a fixed polar-coordinate chart, enabling direct graphical interpretation of horizontal and vertical field boundaries. This methodology aligns with fundamental psychophysical measurement paradigms used in occupational safety testing, where peripheral vision obstruction is evaluated relative to anatomically referenced gaze vectors.

Key Features

• 7-inch full-color capacitive touchscreen interface with redundant physical metal push-button controls for operational redundancy and glove-compatible operation in PPE-lab environments.
• Motor-driven, programmable arc rotation mechanism with precision stepper-motor actuation and positional feedback, ensuring repeatable alignment of the 0° reference line with the subject’s primary line of sight.
• Integrated mechanical linkage between the sliding white sighting marker and recording stylus guarantees synchronous angular registration without software interpolation or digital latency.
• Adjustable headform mounting platform compliant with ISO 16976-3 and GB/T 32610–2016 anthropometric specifications: interpupillary distance fixed at 65 mm; pupil center located 7.0 ± 0.5 mm posterior to the midpoint of the interocular line; ocular centers aligned precisely with the rotational centers of the 300–340 mm radius arc.
• Rugged steel frame construction with vibration-damped base and ergonomic height-adjustable work surface (580 × 380 × 700 mm footprint), optimized for long-term stability during manual and semi-automated test cycles.

Sample Compatibility & Compliance

The DRK703 accommodates all standard respirator classes defined under major regulatory frameworks: disposable particulate respirators (N95, KN95, FFP2), reusable elastomeric half/full-facepieces, powered air-purifying respirators (PAPRs) with visor assemblies, and escape hoods. It supports compliance verification per GB 2626–2019 (Section 6.10), GB 2890–2009 (Section 6.8), GB/T 32610–2016 (Section 6.12), and EN 136:2021 (Clause 4.3.2 – “Field of Vision”). The device does not perform optical transmittance or fogging evaluation; it exclusively measures geometric field-of-view occlusion. All test reports generated are traceable to internal calibration records and support GLP-aligned documentation workflows.

Software & Data Management

The included Lenovo-branded PC analysis software (v3.2+) provides post-test digitization of hand-traced polar charts via high-resolution image capture and vector-based boundary detection algorithms. Export formats include PDF (annotated report), CSV (angular coordinate tables), and SVG (scalable vector graphics for regulatory submission). Audit trails record operator ID, timestamp, test sequence number, and headform orientation metadata. Software complies with basic data integrity principles per ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate) and supports optional integration with LIMS via ODBC drivers. No FDA 21 CFR Part 11 electronic signature module is embedded; users must implement external validation protocols if required for GMP environments.

Applications

• Pre-market validation of new respirator designs against national and regional field-of-view requirements.
• Batch release testing in manufacturing QA labs to ensure consistent fit-related visual performance across production lots.
• Comparative assessment of alternative strap configurations, lens curvature profiles, or exhalation valve placements on visual field preservation.
• Root-cause analysis of user-reported peripheral vision loss complaints during workplace usability studies.
• Training aid for occupational health professionals demonstrating how different respirator types constrain operational awareness zones.

FAQ

Does the DRK703 measure visual acuity or contrast sensitivity?
No. It measures only the angular extent of unobstructed binocular field-of-view—not optical clarity, resolution, or perceptual thresholds.
Can it be used with custom anthropomorphic headforms?
Yes, provided the headform conforms to the specified pupillary geometry and allows secure, repeatable mounting at the designated posterior offset (7.0 ± 0.5 mm). Calibration verification is required for non-standard models.
Is the arc radius adjustable between 300 mm and 340 mm?
No. The arc is fixed at 320 mm nominal radius; the stated range reflects permissible manufacturing tolerance per GB 2626–2019 Annex D.
What maintenance is required for long-term accuracy?
Quarterly mechanical inspection of stylus tip wear, annual recalibration of angular encoder zero point, and biannual verification of headform positioning repeatability using certified gauge blocks.
Is technical support available outside mainland China?
Drick provides remote diagnostics and English-language documentation; on-site service requires coordination through authorized regional distributors with trained field engineers.
